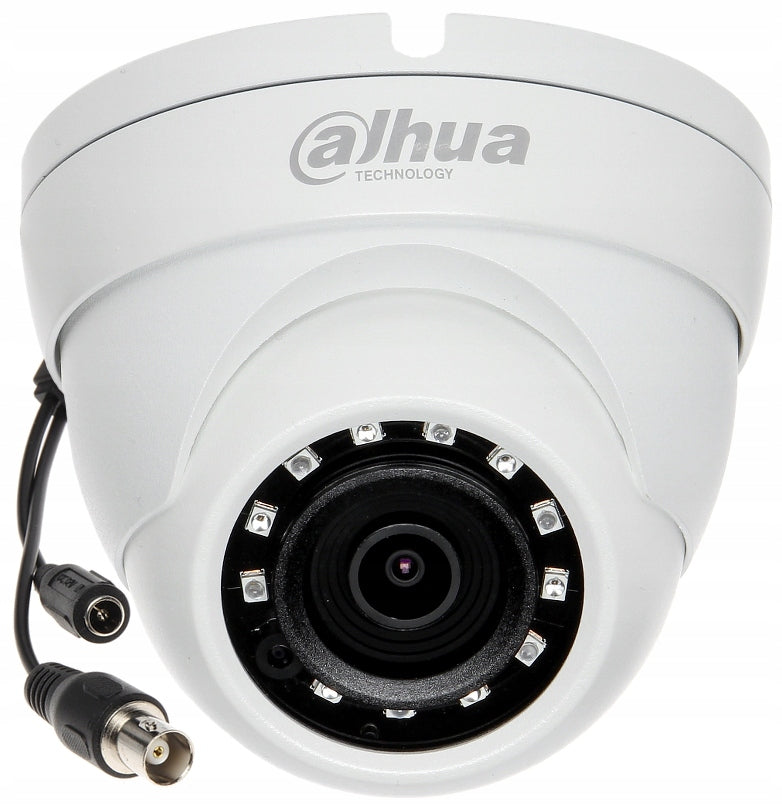

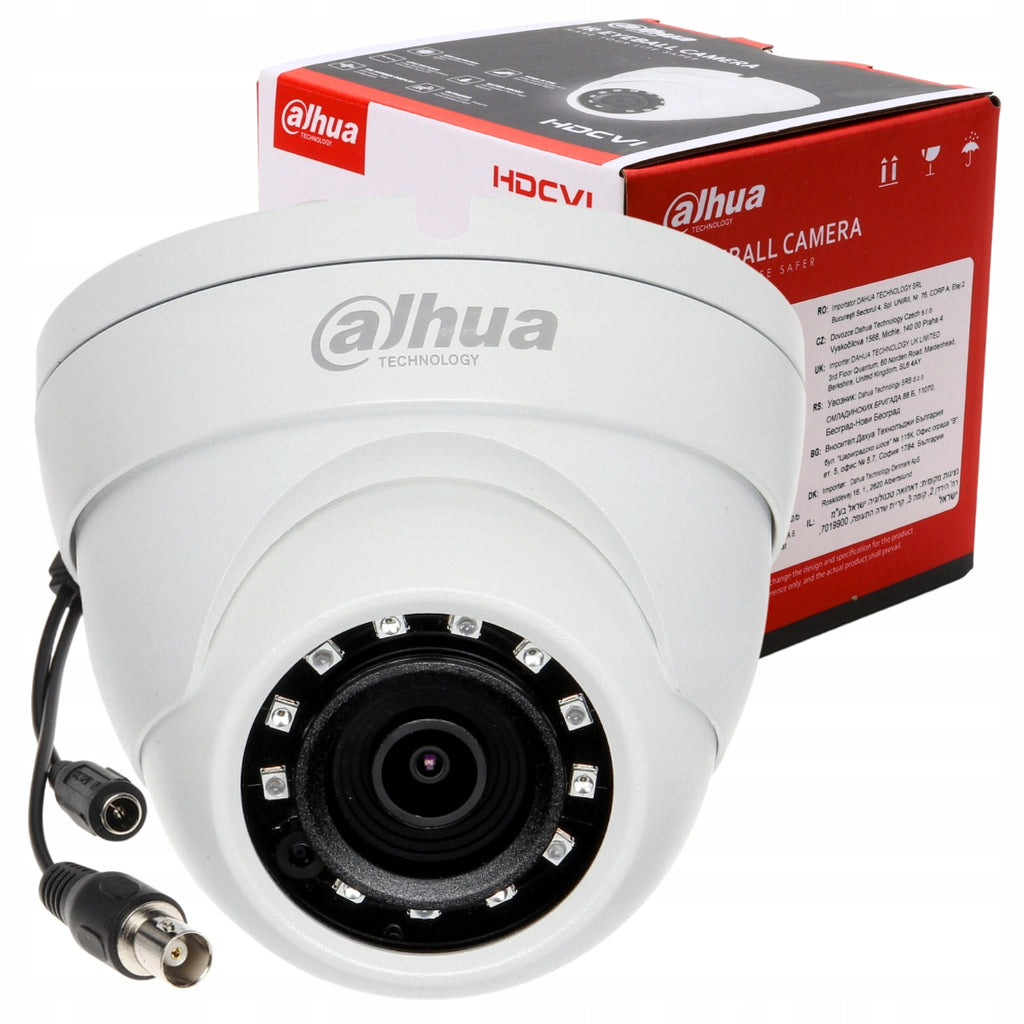

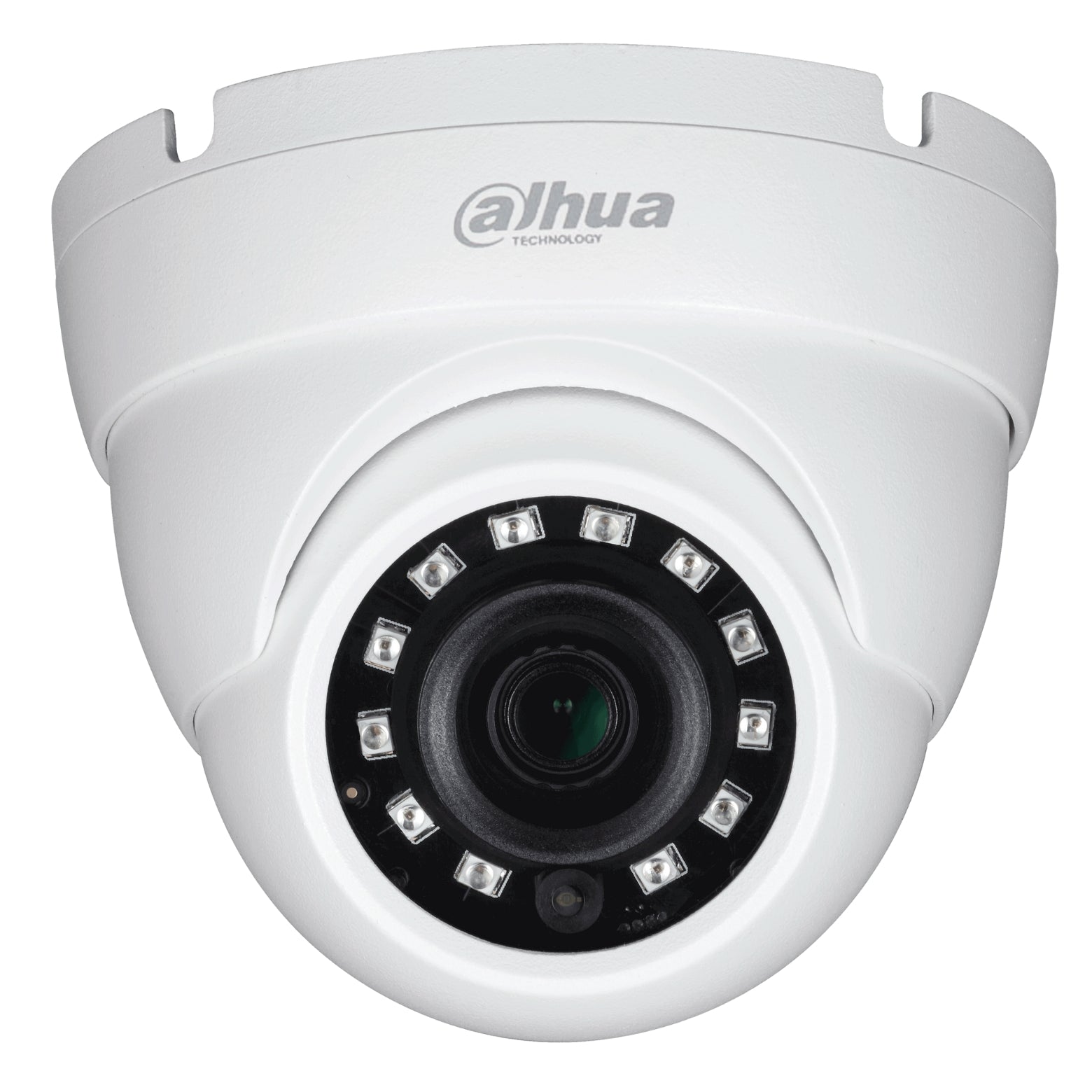

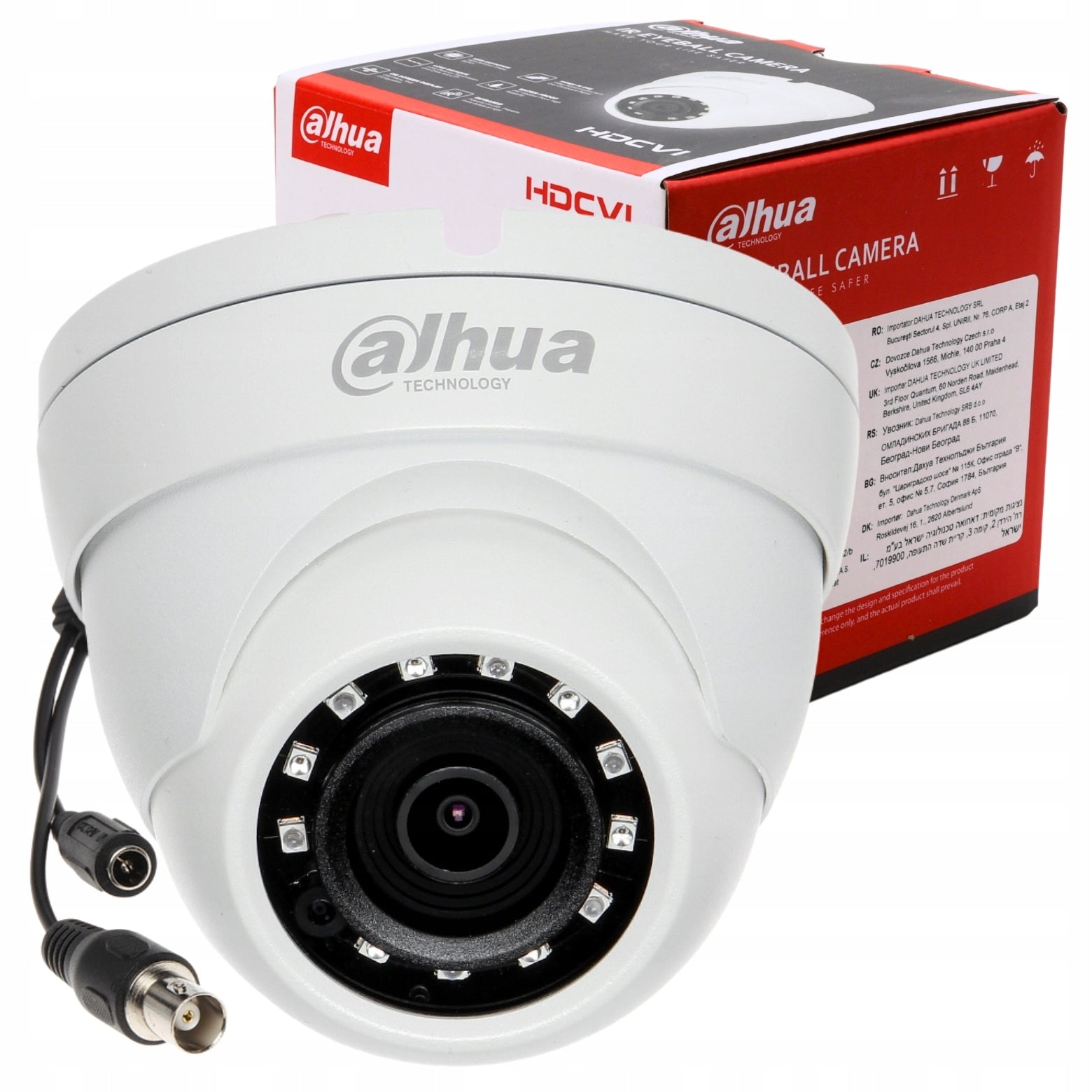

Dome tipo vaizdo kamera Dahua HAC-HDW1800M-0280B, 8 Mpx, 4K, 12x IR, CVI/TVI/AHD/CVBS

Trumpai apie prekę

Prekė: Dome tipo vaizdo kamera Dahua HAC-HDW1800M-0280B, 8 Mpx, 4K, 12x IR, CVI/TVI/AHD/CVBS. Kategorija: Fotoaparatai.

• Gamintojas: Dahua
• Modelis: HAC-HDW1800M-0280B

✅ Poland distribution | ✅ Full support and service in Poland | ✅ DH Partner application and loyalty points | ✅ Exchange for attractive prizes

✅ Dahua network cameras are modern solutions for monitoring your home, company or property, offering high image quality and intelligent analysis functions. Thanks to the ability to work in difficult conditions and advanced technology, the system can be easily adapted to the individual needs of the user.

✅ Main advantages:

➡ High resolution 4K Real-Time – The 8MP CMOS sensor allows you to capture real-time images in 4K quality, providing exceptional detail and smoothness of recordings.

➡ 4in1 Technology – The camera supports CVI, TVI, AHD and CVBS standards, which facilitates integration with various monitoring systems.

➡ IR illuminator up to 30m – 12 IR LEDs provide effective illumination of the monitored space in complete darkness.

➡ Advanced image functions – The camera is equipped with technologies such as 2D NR, DWDR, BLC, HLC, AGC, AWB, which improve image quality in difficult conditions.

➡ Fixed focal length lens 2.8mm – Guarantees a wide viewing angle without adjustment, ideal for quick installation.

➡ High weather resistance – The IP67 rated housing protects the camera from dust and water, allowing outdoor installation.

➡ Intuitive OSD menu from the DVR – Configuration and change of settings is done remotely via the CoC function, without physical access to the camera.

✅ High-Quality 4K Image in All Conditions

Modern surveillance solution with a 1/2.7" 8MP Progressive Scan CMOS sensor and 8MPx (4K) resolution, providing a crystal-clear image day and night. With a wide 105° viewing angle, it allows for effective monitoring of large areas without losing detail.

✅ Image quality enhancement features

Thanks to technologies such as:

• D-WDR – improved visibility in high contrast scenes
• 2D-DNR – noise reduction in low light
• BLC/HLC – compensation of background and strong light, you can get a clear, detailed image in almost any lighting conditions.
• AGC - Automatic image gain adjustment
• AWB- Automatic white balance
• Smart lighting function

✅ 4K Real-Time Display

Thanks to the 4K Real-Time function, it is possible to display the camera image in ultrawhigh 4K resolution in real time. Thanks to this, the user receives exceptionally detailed and liquid image, without delays, jams or ghost effect, which is crucial in situations requiring fast reaction and precise monitoring. This technology enables accurate identification of faces, license plates and fine details that could go unnoticed at lower resolutions.

✅ Multi-system technology

The device supports up to four different technologies of image transmission: CVI, TVI, AHD and CVBS. Thanks to this versatility, it can be easily integrated into various monitoring systems, regardless of their standard. Switching between modes of work is done using the OSD menu, which makes the whole process simple and convenient for the user.

✅ IR illuminator up to 30 meters

The device is equipped with 12 IR LED, which guarantee effective lighting of the monitored space even in complete darkness. Thanks to the use of infrared, the camera can capture clear images at night or in zero outdoor lighting. The diodes emit light invisible to the human eye, allowing for discreet monitoring without disturbing the environment. Range up to 30 meters makes the device perfect for securing medium and larger areas, such as yards, parking lots, warehouses or production halls.

✅ Masks of privacy

The system of privacy masks in cameras allows you to adjust the monitoring to the specific spatial layout and requirements of a given place. This feature allows precise to specify area to be excluded from video recordings, which increases the flexibility and compliance of the system with privacy rules.

✅ Protection class IP67

The high quality of the housing confirmed by the protection class IP67 proves the exceptional resistance of the device to adverse external conditions. The housing is completely dustproof, which prevents dust particles from entering the device, as well as resistant on short-term immersion in water – even to a depth of 1 meter for up to 30 minutes. Thanks to this, the camera can be safely installed outdoors, regardless of the weather, without fear of damage caused by rain, snow or dust. It is ideal for external monitoring systems where durability and reliability are crucial.

➡ Technical specifications:

• Manufacturer/Brand: Dahua
• Model: HAC-HDW1800M-0280B
• Sensor: 1/2.7" 8MP Progressive Scan CMOS
• Resolution: 3840x2160, 8Mpx (4K)
• Scanning system: Progressive
• Shutter: 1/25s ~ 1/100000s (PAL), 1/30s ~ 1/100000s (NTSC)
• Minimum Illumination: 0.03 Lux/F2.0, 30IRE
• Minimum Illumination (IR): 0 Lux (on) IR)
• Signal to noise ratio: >65dB
• Illuminator: 12 IR LEDs
• Illuminator range: 30m (98.4ft)
• Illuminator Control: Automatic/Manual
• Rotation range - panorama: 0° ~ 360°
• Rotation range - tilt: 0° ~ 78°
• Rotation range - rotation: 0° ~ 360°
• Lens type: Fixed focal length
• Mounting type: M12
• Focal length: 2.8mm (F2.0)
• Viewing angle - horizontal: 105°
• Viewing angle - vertical: 56°
• Viewing angle - diagonal: 125°
• Aperture type: Fixed
• Macro mode: 1.0m (3.3ft)
• DORI Range: Detection: 74.7m, Surveillance: 29.9m, Reconnaissance: 14.9m, Identification: 7.5m
• Processing resolutions: 8Mpx (3840x2160) / 5Mpx (2592x1944) / 4Mpx (2560x1440) / 960H (960x576 / 960x480)
• Speed ​​and resolution (CVI, PAL): 25 fps @ 8Mpx (Real Time) / 15 fps @ 8Mpx / 20 fps @ 5Mpx / 25 fps @ 4Mpx
• Speed ​​and resolution (CVI, NTSC): 30 fps @ 8Mpx (Real Time) / 15 fps @ 8Mpx / 20 fps @ 5Mpx / 30 fps @ 4Mpx
• Speed ​​and resolution (AHD, PAL): 15 fps @ 8Mpx
• Speed ​​and resolution (AHD, NTSC): 15 fps @ 8Mpx
• Speed ​​and resolution (TVI, PAL): 15 fps @ 8Mpx
• Speed ​​and resolution (TVI, NTSC): 15 fps @ 8Mpx
• Speed ​​and resolution (CVBS, PAL): 960H
• Speed ​​and resolution (CVBS, NTSC): 960H
• Day/Night Mode: Automatic switching via ICR
• Backlight compensation: BLC / HLC / DWDR
• Gain Control: Automatic (AGC) / Manual
• Noise reduction: 2D NR
• White balance: Auto (AWB) / Manual
• Smart IR: Support
• Mirror Image: On / off
• Privacy Zones: On / off (8 areas, rectangles)
• Video output: 1x 1V pp, BNC, 75Ω (HD/CVBS)
• Power supply - connector: 1x 5.5/2.1 socket on the cable
• Operating mode: HD-CVI, HD-TVI, AHD, CVBS - change via OSD menu
• Requirements for CVBS to CVI conversion: UTC PFM820 Controller
• OSD Menu: Yes, control via coaxial cable (CoC)
• OSD languages: Polish , English, Chinese, French, German, Spanish, Portuguese, Italian, Korean, Japanese, Russian
• Tightness class: IP67
• Certificates: CE (EN 55032, EN 55024, EN 50130-4, EN 60950-1)
• Certifications: FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
• Certifications: UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
• Housing material: metal
• Power supply: 12V DC (±30%)
• Power consumption: Max. 4.3W (12V DC, IR on) )
• Humidity: 0 ~ 95% (non-condensing)
• Ambient temperature: -40°C ~ +60°C (-40°F ~ +140°F)
• Operating temperature: -40°C ~ +60°C (-40°F ~ +140°F)
• Weight: 270g
• Dimensions: Ø93.4x79.4mm (Ø3.68" x 3.13")

Gallery:

FAQ - Frequently Asked Questions and Answers:

1. What is the difference between a horn camera and a dome camera?

✔ The horn camera (or bullet) has an elongated cylindrical shape and is often mounted outside – it works well when observing specific areas, e.g. entrance gates. The dome camera has a rounded dome-shaped housing and is more discreet. It is often used indoors or under a roof, e.g. in vestibules, staircases or terraces.

2. Is the camera external?

✔ If the camera has an appropriate tightness class, e.g. IP66 or IP67, this means that it is weather resistant (rain, dust, snow) and suitable for outdoor use. It is also worth paying attention to the resistance to vandalism – cameras with the IK10 designation have a reinforced housing.

3. Can I put the camera in front of the house?

✔ Yes, you can mount a camera that monitors the space around your own property, but you must comply with data protection regulations. In accordance with Article 2 para. 1 and 2 GDPR, private monitoring (conducted by a natural person for personal or domestic purposes) is not subject to full application of the provisions of the GDPR.

✔ However:

• The camera should not over-record public space, e.g. the whole sidewalk, street or neighboring property.

• If you register e.g. entrance gate or part of the sidewalk, it is worth posting information about monitoring.

• In the event of a conflict with a neighbor or a breach of privacy, the office or court may consider the installation unauthorized.

Why choose Dahua outdoor cameras?

✔ 100% originality – you buy from the official distributor of the Dahua brand, one of the leaders in the monitoring systems industry.

✔ Reliability and durability – Dahua cameras are resistant to adverse weather conditions and adapted to work around the clock for many years.

✔ Advanced Technology – Dahua offers innovative features such as AI motion detection, color at night (Full Color), 4K recording and remote access via the app.

✔ Higher level of security – thanks to Dahua cameras you can monitor your home, business or property in real time – wherever you are.

✔ Energy efficiency – modern solutions in Dahua cameras ensure stable operation with low energy consumption.

✔ Confirmed quality – all our Dahua products are CE certified and meet applicable European standards.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	HAC-HDW1800M-0280B
Parametry	Model	HAC-HDW1800M-0280B
Parametry	Brand	Dahua
Parametry	Product width	9.3 cm
Parametry	Product height	79.4 cm
Parametry	Product depth	9.3 cm
Parametry	Product weight	270 g
Parametry	Product weight with unit packaging	0.35 kg
Parametry	Housing	dome
Parametry	Transducer size	1/2"
Parametry	DSP signal processor	1/2.7 '' Progressive Scan CMOS
Parametry	Resolution	8 Mpx
Parametry	Signal-to-noise ratio	65 dB
Parametry	Sensitivity	0.03 lx
Parametry	Lens	fixed-focus
Parametry	Camera waterproof rating	IP67
Parametry	Number of infrared LEDs	12
Parametry	Infrared range	30 m
Parametry	EAN (GTIN)	6939554975899
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Camera type	black and white,colorful,infrared
Parametry	Technology	AHD,CVBS,HD-CVI,HD-TVI
Parametry	Functions	automatic gain control (AGC),automatic white balance (AWB),digital noise reduction (DNR),high light compensation (HLC),rear light compensation (BLC)
