Dronas DJI Air 3S RC-N3, 4K kamera, 120 FPS, HDR, LiDAR, WiFi, Bluetooth, 4276 mAh

Trumpai apie prekę

Prekė: Dronas DJI Air 3S RC-N3, 4K kamera, 120 FPS, HDR, LiDAR, WiFi, Bluetooth, 4276 mAh. Kategorija: Dronai ir multikopteriai.

• Gamintojas: DJI
• Modelis: DJI Air 3S

Drone DJI Air 3S RC-N3 Camera 4K 120FPS HDR LiDAR WiFi Bluetooth 4276mAh

DJI Air 3S is an advanced drone equipped with two cameras with a 14-degree dynamic range – a main camera with a 1-inch CMOS sensor and a camera with a 70 mm telephoto lens. This makes it perfect for capturing landscapes, portraits, and more - all with a unique wealth of detail! Record 4K/120FPS videos and take 50MP photos, try the new Free Panorama feature as well. What’s more, the DJI Air 3S is the first DJI drone to offer forward-facing LiDAR, which allows for effective detection of obstacles even at night. It also features a long flight time of up to 45 minutes and a built-in 42 GB memory. Discover its possibilities and see how good aerial shots can look!

THE MOST IMPORTANT PARAMETERS

• Sensors: LiDAR, Infrared sensor, Vision sensor
• Maximum speed (m/s): 21 m/s
• Maximum climb speed (m/s): 10
• Maximum flight time (min): 45
• Battery capacity (mAh): 4276
• Control Type: Controller, Remote
• Video recording resolution: 3840 2160 (4K), 1920 x 1080 (FullHD), 2688x1512 (2.7K)
• Photo resolution (Mpix): 12, 50
• USB
• WiFi
• Range (m): 20000
• Maximum descent speed (m/s): 10

Two cameras, unsurpassed image quality

DJI Air 3S is equipped with two cameras, thanks to which it allows you to get many interesting perspectives and is perfect for various tasks. Its main camera with a 1-inch CMOS sensor and 24-millimeter lens is great for filming vast landscapes. It provides a stunning, detailed image and a wide field of view. In turn, a camera with a medium telephoto lens and a focal length equivalent to 70 mm performs fantastically, for example, when creating portraits, allowing you to emphasize the object being filmed and give it a more expressive character.

Main camera – an incredible wealth of details

The main camera of the DJI Air 3S drone is equipped with a 1-inch CMOS sensor, which provides a lot of creative possibilities. Capture spectacular sunrises and sunsets on detailed 4K/60FPS HDR videos, or record incredible action during a match on a 4K/120FPS slow motion shot. You can also take unique photos in 50 MP resolution. The camera also supports 10-bit D-Log and HLG modes, ensuring crisp colors and rich details even in harsh lighting conditions.

Medium telephoto lens – excellent portraits

The medium telephoto lens DJI Air 3S uses a 1/1,3-inch CMOS sensor. It allows you to record video in the same resolution and frame rate as the main camera, and supports the same color modes. Thanks to this, you can be sure that after post-production your video materials will be visually consistent! There is also a 3x optical zoom that will allow you to record wildlife, for example, or take detailed portrait shots from a distance of your choice. What’s more, the camera with a medium telephoto lens DJI Air 3S allows you to take photos in 48 MP resolution.

Many smart features to try

Both the main camera and the medium telephoto camera offer a new Free panorama mode. How does it work? A drone allows you to create consistent panoramas by combining multiple images with a manually selected object or area. The main camera provides a wider field of view, which increases efficiency when taking panoramic photos, and the medium telephoto camera reduces distortion. But the possibilities do not end there. DJI Air 3S also supports other popular features such as 2.7K Vertical Shooting, MasterShots and QuickShots (automatic recording of complex shots), Hyperlapse and much more.

Improved Tracking Modes

DJI Air 3S supports ActiveTrack 360° mode, which will help you keep the selected object in the frame. The drone automatically plans the flight route based on its surroundings and adjusts the framing in such a way that your destination is always the center of attention. Not without significance is also improved tracking performance. Even if the lower part of the silhouette of the object is covered, DJI Air 3S can easily cope with keeping it in the frame! You also have the Subject Focusing function, which keeps the focus stable on the selected target.

Safe flights even at night

The DJI Air 3S is the first DJI drone equipped with a front LiDAR sensor. It also supports Advanced Pilot Assistance Systems (APAS), and has lower Time-of-Flight (ToF) sensors and six vision sensors – two at the front, back and bottom. All this means that it can effectively detect and avoid obstacles even in difficult lighting conditions – even at night. The drone is also distinguished by the new generation RTH (Return to Home) function, which allows it to safely return to the starting point even in places where there is no GPS signal or after dark. Thanks to this, you can fully focus on creating original shots and enjoy peace of mind!

Additional opportunities for you

Do you want to make it even easier to record exceptional aerial footage? DJI Air 3S is for you! The drone offers an improved Vision Assist feature that, in addition to the standard preview (front, back, right, left), adds a bottom view. Thanks to this, you gain more control and can get to know your surroundings better! What’s more, Waypoint Flight allows you to plan your flight routes, and Cruise Control (tempomat) makes it easier to fly longer distances.

Forget about limitations

The flight time of the DJI Air 3S reaches 45 minutes. So you can freely explore the area, look for interesting corners to capture in photos, work on the composition and refine your shots. An additional advantage of the drone is the video transmission technology DJI O4,which allows you to transfer video in 1080p/60FPS resolution over a distance of up to 10 km.6 DJI Air 3S is also compatible with the DJI Cellular Dongle 2 module (in separate sale),thanks to which, even if there are problems with the signal,4G networks can be used to avoid disconnection of devices and ensure flight safety.

Convenient file management

The drone offers 42 GB of internal memory. This allows you to start recording almost immediately – you do not have to use microSD cards, although you always have the opportunity to do so. You can also conveniently transfer your photos and videos to your phone – even when the DJI Air 3S is turned off. Do you prefer to copy selected files to your computer? This is also possible without having to turn on the drone – just use a compatible USB cable.

More possibilities with accessories

Want to get more out of your drone? Use accessories that are available for sale separately or are included in Fly More Combo sets! For example, the wide-angle lens extends the field of view of the drone’s main camera to 114°, and the ND filter kit allows you to create high-quality materials even in adverse lighting conditions. An interesting option is also a dedicated hub, which allows sequential charging of three batteries. It also offers an energy accumulation function, thanks to which you can transfer the remaining power from several batteries to the one that has the highest level of charge.

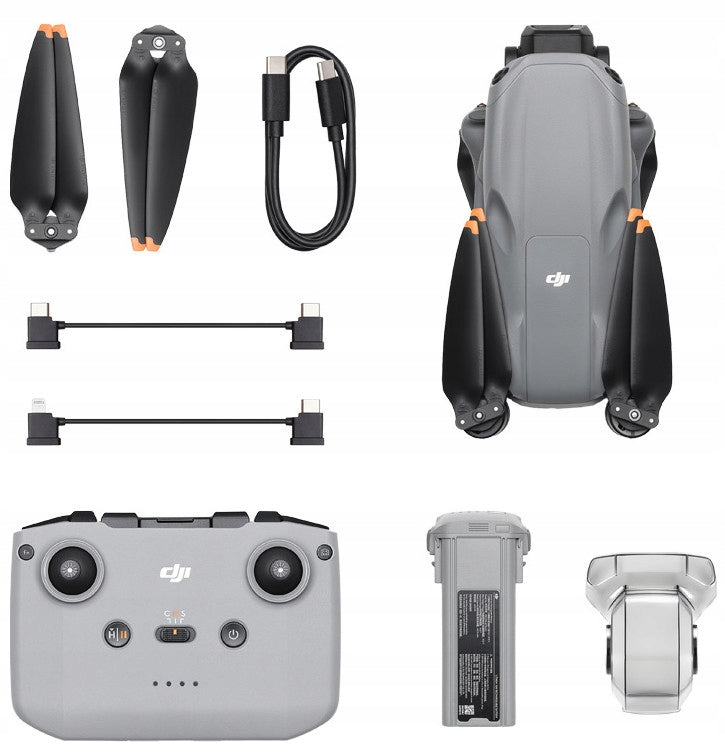

Comes with DJI Air 3S (DJI RC-N3)

• DJI Air 3S Drone x1
• Control apparatus DJI RC-N3 x1
• Battery for DJI Air 3S x1
• Propellers DJI Air 3 Series Low-Noise Propellers (pair) x1
• Gimbal cover for DJI Air 3S x1
• USB-C to USB-C PD x1 cable
• Cable for control apparatus DJI RC-N3/N2/N1 (USB-C connector) x1
• Cable for control apparatus DJI RC-N3/N2/N1 ( Lightning connector) x1

TECHNICAL SPECIFICATION

Drone

• Starting weight: 724 g
• Dimensions: Folded (without propellers): 214,19×100,63×89,17 mm (D×S×W); Folded (without propellers): 266,11×325,47×106 mm (D×S×W);
• Max. Ascension speed: 10 m/s
• Max. Dropping speed: 10 m/s
• Max. Horizontal speed: At sea level, in windless conditions: 21 m/s; At sea level, with a rear wind of 6 m/s, when flying in the same direction as the wind: 27 m/s; *Measured in a wind tunnel during take-off from a height of 0 m and vertical elevation to a height of 1,5 m above the ground in Sport mode. The information provided here serves only as a reference. Always pay attention to the reminders in the camera view during the flight. *19 m/s in the EU region.
• Max. ceiling: 6000 m
• Max. Flight time: 45 minutes *Measured for DJI Air 3S, when flying forward at a constant speed of 32,4 km/h, in windless conditions, at sea level, with obstacle avoidance function set as Brake, in Photo mode, with battery charge level from 100% to 0%. The information provided here serves only as a reference. Always pay attention to reminders in the app during the flight.
• Max. hover time: 41 minutes *Measured for DJI Air 3S, during hovering in windless conditions, at sea level, with obstacle avoidance function set as Brake, in Photo mode, with battery charge level from 100% to 0%. The information provided here serves only as a reference. Always pay attention to reminders in the app during the flight.
• Max. Flight distance: 32 km *Measured for DJI Air 3S, when flying forward at a constant speed of 48,6 km/h, in windless conditions, at sea level, with obstacle avoidance function set as Brake, in Photo mode, with battery charge level from 100% to 0%. The information provided here serves only as a reference. Always pay attention to reminders in the app during the flight.
• Max. Wind resistance: 12 m/s
• Max. angle of inclination: 36°
• Operating temperature: -10°C to 40°C
• GNSS: GPS + Galileo + BeiDou
• Hover accuracy range: Vertical: ±0,1 m (with video positioning); ±0,5 m (with satellite positioning); Horizontal: ±0,3 m (with video positioning); ±0,5 m (with satellite positioning);
• Internal memory: 42 GB
• Class: C1 (EU)

Camera

• Matrix: Wide-angle camera: 1-inch CMOS sensor, effective pixels: 50 MP; Medium telephoto camera: 1/1,3-inch CMOS sensor, effective pixels: 48 MP;
• Lens: Wide-angle camera: Field of view (FOV): 84°; Focal length equivalent: 24 mm; Aperture: f/1.8; Focus: 0,5 m to ∞; Medium telephoto camera: Field of view (FOV): 35°; Focal length equivalent: 70 mm; Aperture: f/2.8; Focus: 3 m to ∞;
• ISO Range: Video Normal: 100-12800 (Normal); 100-3200 (D-Log M); 100-3200 (HLG); Slow Motion: 100-6400 (Normal); 100-3200 (D-Log M); 100-3200 (HLG); Images:100-6400 (12 MP); 100-3200 (48 MP and 50 MP); Shutter speed Wide angle camera: Photo 12 MP:1/8000-2 s (2,5-8 s for simulated long exposure); Picture 50 MP: 1/8000-2 s; Medium telephoto camera:Image 12 MP: 1/16000-2 s (2,5-8 s for simulated long exposure); Image 48 MP: 1/16000-2 s;
• Max. image size: Wide-angle camera: 8192×6144; Medium telephoto camera: 8064×6048;
• Photography modes: Wide-angle camera: Single Shot: 12 MP and 50 MP; Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames; AEB: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV; Timed: 12 MP, 2/3/5/7/10/15/20/30/60 sec; 50 MP, 5/7/10/15/20/30/60 sec; Medium Telephoto camera: Single Shot: 12 MP and 48 MP; Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames; AEB: 12 MP, 3/5/7 frames; 48 MP, 3/5 at 0.7 EV; Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48MP, 5/7/10/15/20/30/60s;
• Image Format: JPEG/DNG (RAW)
• Video Resolution: Wide-angle camera/Medium Telephoto camera: H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/120*FPS; FHD: 1920×1080@24/25/30/48/50/60/120*/240*FPS; 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60FPS; *Recording frame rates. The corresponding video will be played as a slow motion video. Slow motion videos and 4K recordings only support H.265 encoding.
• Video format: MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
• Max. video bitrate: H.264/H.265: 130 Mbps
• Supported file system: exFAT
• Color Modes and Sampling Method: Wide-angle camera/Medium Telephoto camera: Normal (FHD/2.7K): 8-bit 4:2:0 (H.264); Normal (FHD/2.7K): 10-bit 4:2:0 (H.265); HLG/D-Log M (FHD/2.7K): 10-bit 4:2:0 (H.264/H.265); Normal/HLG/D-Log M (4K): 10-bit 4:2:0 (H.265);
• Optical Zoom: Wide Angle Camera: 1-2,9x; Medium Telephoto Camera: 3-9x;

Gimbal

• Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)
• Mechanical range: Tilt: -135° to 70°; Roll: -50° to 50°; Pan: -27° to 27°;
• Control range: Tilt: -90° to 60°; Pan: -5° to 5°;
• Max. Control speed (tilt): 100°/s
• Angular vibration range: ±0,0037°

Sensor system

• Sensor Type: Omnidirectional vision system with two cameras, assisted by LiDAR facing forward and infrared sensor on the bottom of the device
• Front: Measurement range: 0,5-18 m; Detection range: 0,5-200 m; Effective detection speed: flight speed ≤ 15 m/s; Field of view: 90° horizontal, 72° vertical;
• Rear: Measuring range: 0,5-18 m; Effective detection speed: flight speed ≤ 14 m/s; Field of view: 90° horizontal, 72° vertical;
• Side: Measurement range: 0,5-30 m; Effective detection speed: flight speed ≤ 14 m/s; Field of view: 90° horizontal, 72° vertical;
• Upper: Measurement range: 0,5-18 m; Effective detection speed: flight speed ≤ 6 m/s; Field of view: 72° front and rear, 90° left and right;
• Lower: Measuring range: 0,3-14 m; Effective detection speed: flight speed ≤ 6 m/s; Field of view: 106° front and rear, 90° left and right;
• Working environment: Front, back, left, right and top: Surfaces with recognizable patterns and appropriate lighting (above 1 lux); Bottom: Surfaces with recognizable patterns, diffuse reflection coefficient > 20% (for example, walls, trees, people) and appropriate lighting (above 1 lux);
• 3D Infrared Sensor: Forward-facing LiDAR sensor: Measurement range (at night): 0.5-25m (reflectivity>10%); Field of view: 60° above and below, 60° left and right; Downward-facing infrared sensor: Measurement range: 0.3-8m (reflectivity>10%); Field of view: 60° front and back, 60° left and right;

Video transmission

• Video transmission system: O4
• Live view quality: Control apparatus: 1080p/30fps, 1080p/60fps
• Operating frequency: 2.,4000-2,4835 GHz; 5,170-5,250 GHz; 5,725-5,850 GHz; *Working frequencies may vary by country and region. Understand local frequency regulations.
• Transmitter power (EIRP): 2,4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC); 5,1 GHz: < 23 dBm (CE); 5,8 GHz: < 33 dBm (FCC); < 30 dBm (SRRC); < 14 dBm (CE);
• Max. transmission range (unobstructed, uninterrupted): FCC: 20 km; CE: 10 km; SRRC: 10 km; MIC: 10 km;*Measured in open noise-free space. The above data represents the furthest communication range for one-way flights without return in any standard. Always pay attention to RTH reminders in the app during the flight.
• Max. transmission range (unobstructed, interference): Strong interference: urban landscape, approx. 1,5-4 km; Average disturbance: suburban landscape, approx. 4-10 km; Low disturbance: suburbs / coastal areas, approx. 10-20 km; *Measured according to FCC standard in unobstructed environments with typical interference. The information provided serves only as a reference point and does not guarantee the actual transmission distance.
• Max. transmission range (with obstacles, with interference): Low interference and obstacles in the form of buildings: approx. 0-0,5 km; Low disturbances and obstacles in the form of trees: approx. 0,5-3 km; *Measured according to FCC standard in environments with obstacles and typical low interference. The information provided serves only as a reference point and does not guarantee the actual transmission distance.
• Max. Download speed: O4:10 MB/s (with DJI RC-N3); 10 MB/s (with DJI RC 2); Wi-Fi 5: 30 MB/s* *Measured in a laboratory environment, with minimal interference, in countries/regions supporting both 2,4 GHz and 5,8 GHz. Download speeds may vary depending on the actual conditions.
• Lowest latency: Drone + control apparatus: approx.120 ms; *Depending on the actual environment and mobile device.
• Antenna: 6 antennas, 2T4R

Wifi

• Protocol: 802.11 a/b/g/n/ac
• Operating frequency: 2,400-2,4835 GHz; 5,725-5,850 GHz;
• Transmitter power (EIRP): 2,4 GHz: < 20 dBm (FCC/CE/SRRC/MIC); 5,8 GHz: < 20 dBm (FCC/SRRC); < 14 dBm (CE);

Bluetooth

• Protocol: Bluetooth 5.2
• Operating Frequency: 2,400-2,4835 GHz
• Transmitter power (EIRP): < 10 dBm

Battery

• Capacity: 4276 mAh
• Weight: Approx. 247 g
• Rated voltage: 14,6 V
• Maximum charging voltage: 17,2 V
• Type: Li-ion 4S
• Energy: 62,5 Wh
• Charging temperature: 5°C to 40°C
• Charging Time: Approx. 80 minutes (with DJI 65W portable charger); Approx. 60 minutes (with DJI 100W USB-C power supply and charging hub);

Charger

• Input: Portable charger DJI 65W: 100-240 V (AC), 50-60 Hz, 2 A; Power adapter DJI 100W USB-C: 100-240 V (AC), 50-60 Hz, 2,5 A;
• Output: Portable charger DJI 65W: USB-C: 5 V, 5 A; 9 V, 5 A; 12 V, 5 A; 15 V, 4,3 A; 20 V, 3,25 A; 5-20 V, 3,25 A; USB-A: 5 V, 2 A; DJI 100W USB-C power supply: Max. 100W (total power); *When both ports are used, the maximum output power of one port is 82W, and the charger dynamically distributes the output power between the two ports depending on the load.
• Rated Power: Portable charger DJI 65W: 65W; Power adapter DJI 100W USB-C: 100W;

Hub for charging

• Input: USB-C: 5-20 V, max. 5 A
• Output (energy accumulation): Battery port: 12-17,2 V, 3,5 A
• Output (charging): Battery port: 12-17,2 V, max. 5 A
• Output (USB): USB-C: 5 V, 3 A; 9 V, 5 A; 12 V, 5 A; 15 V, 5 A; 20 V, 4,1 A;
• Charging method: Sequential charging of three batteries
• Compatibility: Smart battery for DJI Air 3; Smart battery for DJI Air 3S

Car charger

• Input: Car power input: 12,7-16 V, 6,5 A, rated voltage 14 V (DC)
• Output: USB-C: 5 V, 5 A; 9 V, 5 A; 12 V, 5 A; 15 V, 4,3 A; 20 V, 3,25 A; 5-20 V, 3,25 A; USB-A5 V, 2 A;
• Rated Power: 65 W
• Charging temperature: 5°C to 40°C

Memory

• Recommended microSD cards: Lexar 1066x 64GB V30 U3 A2 microSDXC, Lexar 1066x 128GB V30 U3 A2 microSDXC, Lexar 1066x 256GB V30 U3 A2 microSDXC, Lexar 1066x 512GB V30 U3 A2 microSDXC, Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC, Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC, Kingston Canvas GO! Plus 256GB V30 U3 A2 microSDXC, Kingston Canvas GO! Plus 512GB V30 U3 A2 microSDXC

Control apparatus DJI RC-N3

• Max. working time: Without charging mobile device: 3,5 hours; When charging mobile device: 1,5 hours;
• Max. Size of supported mobile device: 180×86×10 mm (D×S×W)
• Operating temperature: -10°C to 40°C
• Charging temperature: 5°C to 40°C
• Charging Time: Approx. 2 hours
• Charging method: It is recommended to use a 5V/2A charger.
• Battery capacity: 9,36 Wh (3,6 V, 2600 mAh)
• Weight: Approx. 320 g
• Dimensions: 104,2×150×45,2 mm (D×S×W)
• Type of mobile device supported port: Lightning, USB-C, Micro USB *Using a mobile device with a Micro USB port requires a DJI RC-N Series RC cable (with a standard Micro USB connector), which is available for separate sale.
• Video transmission operating frequency: 2,4000-2,4835 GHz; 5,170-5,250 GHz; 5,725-5,850 GHz; *Working frequencies may vary by country and region. Understand local frequency regulations.
• Video Transmission Transmitter Power (EIRP): 2,4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC); 5,1 GHz: < 23 dBm (CE); 5,8 GHz: < 33 dBm (FCC); < 14 dBm (CE) < 30 dBm (SRRC);
