Dūmų detektorius su sirena, baterijinis, ZIGBEE TUYA išmanus

Trumpai apie prekę

Prekė: Dūmų detektorius su sirena, baterijinis, ZIGBEE TUYA išmanus. Kategorija: Jutikliai.

• Gamintojas: Sone
• Modelis: SB1197

The device connects to the app using Zigbee technology. For its operation, it is necessary to have an additional device – the Zigbee gate.

Our Zigbee Tuya smoke detector will increase security in your home, apartment, office or warehouse, based on its indications, you can control other devices that work with the TUYA application. Battery powered allows you to place the sensor anywhere. You can read all the parameters in the free TUYA application, installation is very simple and intuitive.

Adequate response, thanks to prevention after installing the sensor in the house, apartment, office, garage or Hall, it is possible to connect multiple sensors to one application and give them their own name, e.g. Smoke detector kitchen.

With Tuya app connectivity, you can get a notification directly to your smartphone and respond instantly.

Control is done using the Tuya or Smart life app or other app. (free to download on Android and iOS).

In our offer you will find two Zigbee goals:

• Zigbee Wired Gate No. Offers: 14510436437
• Zigbee Wireless Gateway No. Offers: 13133997561

TUYA SMOKE DETECTOR Zigbee Highlights

• Free App
• Wireless remote reading of sensor parameters
• ADDITIONAL GATEWAY REQUIRED
• Communication: Zigbee
• 2 ways of installation: glue - double-sided tape (not included), for screws to the wall (included)
• Automatic test function
• Ability to add a device to Home Assistent via ZIGBEE2MQTT
• Our sensor has a button for testing (we recommend doing a test before assembly)
• Small size 46x90mm
• LED signaling
• Reading history (smoke detection)
• Operating temperature 0°C - +50°C
• Cooperation with the TUYA and SMART LIFE application
• Control from anywhere in the world
• The ability to create scenes with other devices, e.g. Turn off the power when the sensor detects smoke
• In-App Parameter Reading: Smoke Detection, Battery Level (Low/High)
• Loud SIREN >85dB
• Easy pairing
• Installation on-wall or anywhere else
• Low battery alarm
• Powered by two 3xA (AAA) 3V batteries (not included) - we do not specifically add it to mount a new fully functional battery
• Scenes (automations) - control against specific conditions, e.g. turn on the device when the sensor detects smoke

Remote readings and compact size

TUYA Zigbee smoke detector. It will allow you to control security being connected to the Wifi network or remotely from anywhere on earth. The small size of 46x90 mm will also allow you to mount anywhere

Notification of smoke detection and amount of smoke in the air

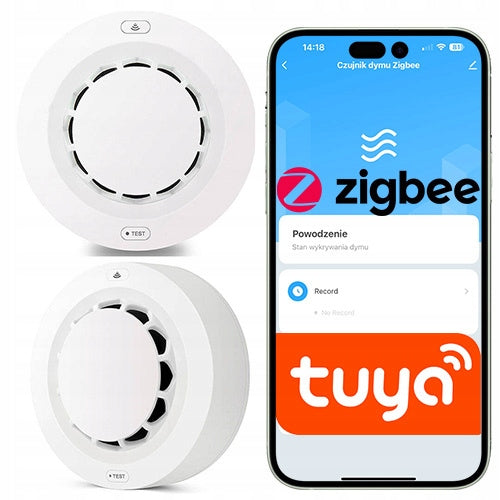

Our smoke detector presents data in real time and reading histories, after entering the sensor in the application, we can see whether it is in the alarm state, possible notification of the alarm, we can change the name of the sensor, see the battery status and stories of operation (smoke detection case)

• Information about the alarm
• History of smoke detection
• possibility to change the name (click the pencil in the upper right corner)

• Monitoring security in your home, apartment, office, warehouse or garage.
• Emergency power off when smoke is detected (using a scene with another device)
• Threat warning

By clicking the "+" icon on the main screen in the app you will move to the scene settings. The scene is otherwise automatic action that will perform itself. Thanks to the possibility of connecting other devices, you can use them turn off the power when smoke is detected

Assembly

Attach the mounting lid to the surface, in the figure you can see the spacing of the mounting holes, after installing the lid, insert the batteries into the device (no batteries included).

If the LED on the device does not flash at a constant frequency, hold the button on the top of the device on the housing for about 6 seconds until the "test" diode begins to flash - now the sensor is in pairing mode.

Before you start adding your smoke detector to the app , make sure you have a Zigbee gateway configured and within range of the detector.

1. Open the Zigbee gateway in the app and search for a new device.
2. Once you find the sensor, give it a name to easily identify it.
3. Then apply the smoke detector to the lid and gently twist to fix it. Do not use a lot of force – the elements fit together with a slight tightening.

Thanks to these steps, the device will be properly mounted and ready for operation.

The device works with Tuya Smart and Smart Life – popular applications for IoT devices (Internet of Things)

Simple addition of the device - just hold down the button on it and search for it in the application.

The TUYA and SMART LIFE ecosystems are:

• The application works in Polish, you can add and control various smart devices in it
• The application works with a very wide range of devices
• Nearly 10 000 manufacturers
• 310 000 devices compatible with the app
• 30 categories that can include, among others: lighting, monitoring, air conditioning, heating
• The application is free and constantly developed with new features.
• Applications can be downloaded to devices running iOS and Android.

Above all, it is intuitive operation and simple installation

• Wireless network: Zigbee
• LED status indication
• Power supply: 2x 3V BATTERY (AAA)
• For indoor use
• Alarm sound ~83dB/m
• Operating temperature 0°C - +50°C
• Permissible humidity ≤ 95% RH
• To use the sensor, you need to download the TuyaSMART application from Google Play or the App Store

Our sensor is compatible with Home Assistant and works via Zigbee2MQTT.

In the following screenshot you can see its parameters.

The sensor was added to Home Assistant using:

• Zigbee2MQTT
• Zigbee2MQTT version: 1.42.0-2
• Zigbee dongles used: SLZB-06

Specifications
