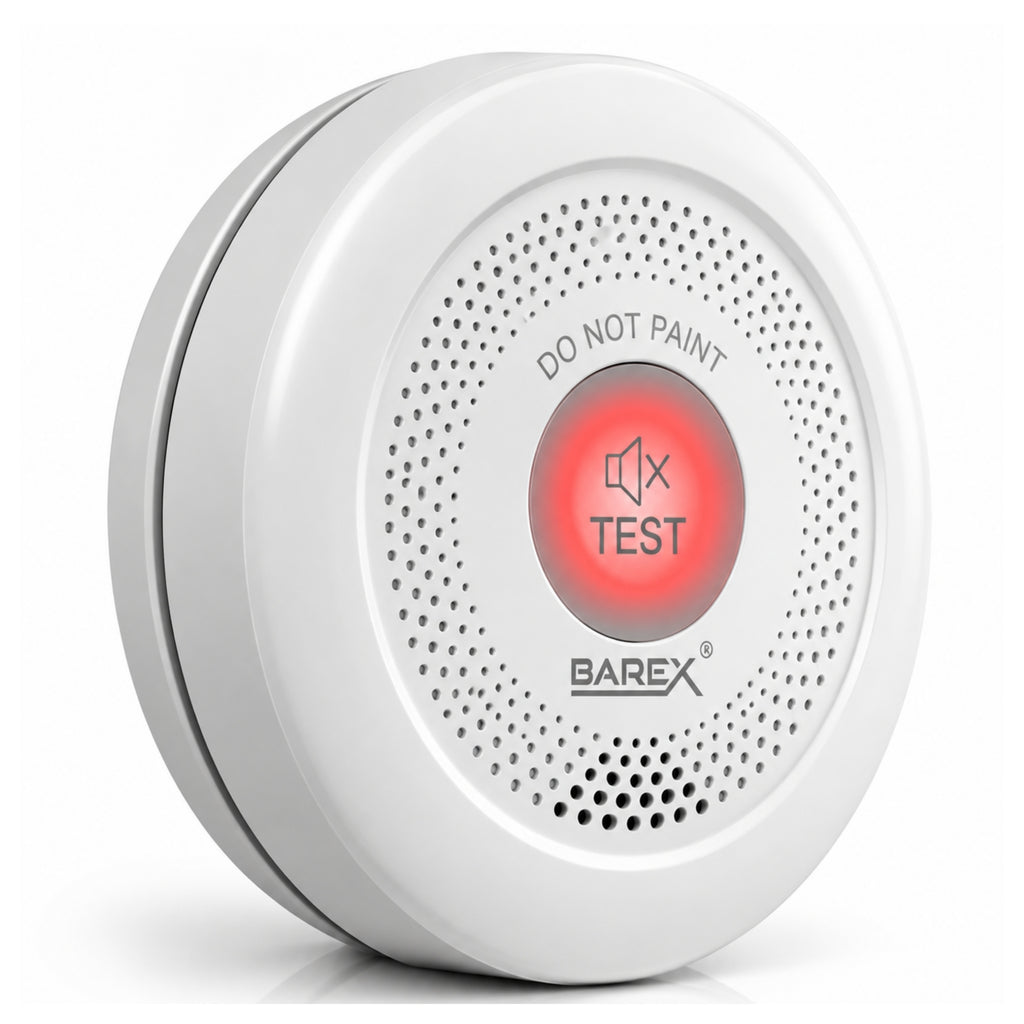

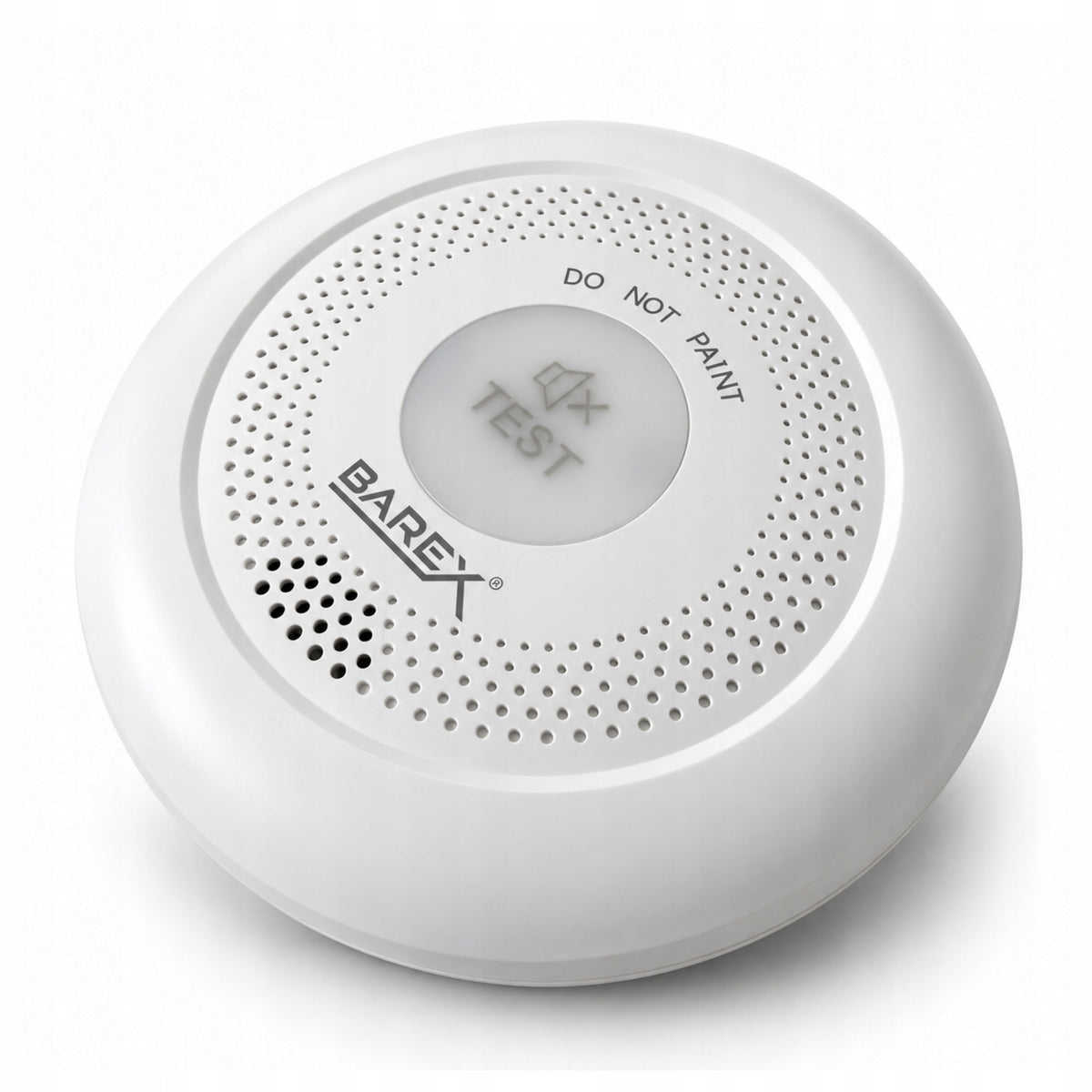

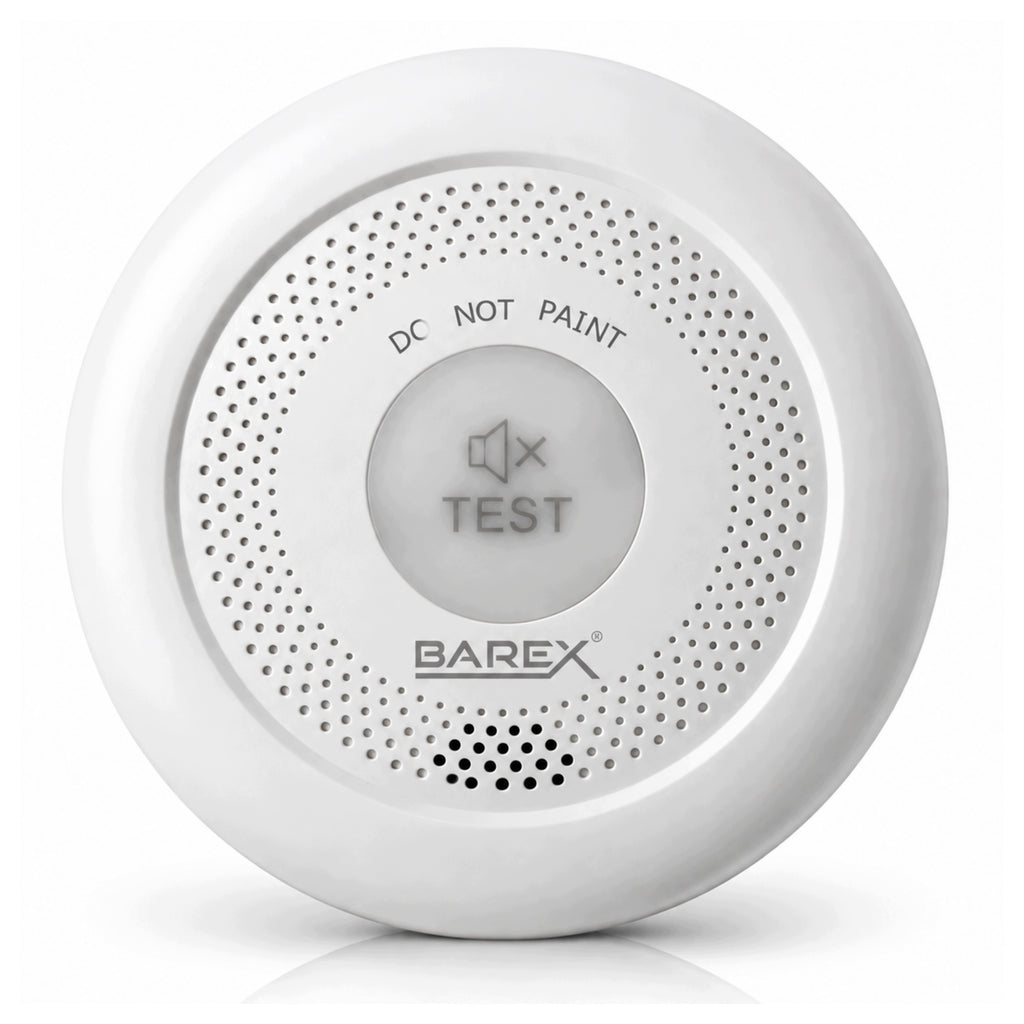

Dūmų jutiklis BAREX, 10 metų, EN14604, su TUV sertifikatu

Trumpai apie prekę

Prekė: Dūmų jutiklis BAREX, 10 metų, EN14604, su TUV sertifikatu. Kategorija: Jutikliai.

• Gamintojas: BAREX

Smoke detector BAREX EN 14604

Autonomous smoke detector for detecting and indicating the presence of smoke in rooms. The device works independently, without the need for a WiFi connection, mobile application or additional control devices.

• Effective smoke detection
• Very loud sound signaling 80dB
• Optical signaling
• Small size and simple installation
• No WiFi or internet access required
• No application or additional gateway required
• TEST button to check the operation of the device
• Meets the requirements of EN 14604:2005/AC:2008

⚠ ATTENTION! The sensor works autonomously – the alarm is triggered directly in the device when the appropriate smoke level is detected.

The smoke detector has a certificate of constancy of performance.

The product meets the requirements of the harmonised standard EN 14604:2005/AC:2008 for autonomous smoke detectors for use in residential buildings.

EN 14604 specifies requirements for, inter alia, smoke detection efficiency, alarm performance, reliability and safety of autonomous smoke detectors.

Thanks to the use of a certified solution, the device can be an additional element of fire protection in the home, apartment or other utility rooms.

When the appropriate smoke level is detected, the sensor automatically triggers an audible alarm and LED signaling, informing household members of the potential danger.

This is a practical solution for:

• smoke appearance during the absence of household members
• fire hazards at night
• safety checks for children and the elderly
• protection of a house, apartment or utility rooms

The device works independently and does not require:

✔ Internet connection

✔ phone or app

✔ WiFi network configuration

✔ additional control panel or gate

After proper installation, the sensor is ready for operation.

✔ Works independently of phone and internet

✔ Simple installation without configuration

✔ Immediate alarm signalling at the installation site

✔ Low power consumption

✔ Proven optical smoke detection technology

✔ Compliance with the requirements of EN 14604 for domestic smoke detectors

✅ Recommended installation location: the best results are achieved by installing a sensor on the ceiling or high part of the wall in the central part of the apartment – for example, in the hallway or in the living room close to the entrances to the bedroom.

You can also mount the unit near the kitchen, however, keep it away from direct water vapor sources (e.g. above the stove) and strong drafts to reduce the risk of false alarms.

Brand: Barex

Type: Autonomous smoke detector

Standard: EN 14604:2005/AC:2008

Sensor type: optical (photoelectric)

Indication: sound

Alarm volume level: 80 dB

TEST button: Yes

Color: white

Assembly: ceiling

• Smoke detector BAREX
• Operating instructions
• Screws x2
• Screws x2

The BAREX smoke detectors are equipped with an optical (photoelectric) sensor that detects smoke particles floating in the air. This technology allows you to detect smoke generated during slow smoldering of materials such as upholstery, cables, paper or home furnishings.

The device meets the requirements of EN 14604:2005/AC:2008 for autonomous smoke detectors, which specifies requirements for, inter alia, smoke detection sensitivity, alarm operation and device reliability.

The sensor reacts to the presence of smoke in the room – it does not detect the flame itself, the temperature of the fire or the heat source.

Sensors of this type need a few or several seconds of constant contact with the appropriate concentration of smoke to exceed the alarm threshold and start signaling. This is a deliberate design action that helps reduce the number of false positives, e.g. when cooking or using candles.

This model is an autonomous smoke detector. It does not have WiFi, mobile app or phone notifications.

The device works on its own after proper assembly and commissioning.

⚠ The sensor is designed to detect fire hazards and dense smoke generated during combustion.

❌ The device may not respond to:

• cigarette smoke,
• e-cigarettes,
• a small amount of steam,
• very light or short-lived smoke.

✅ This is normal operation of home smoke detectors. The device is designed to detect a real fire hazard, not everyday sources of light smoke.

✅ The sensor constantly analyzes the smoke level and triggers an alarm when an appropriate level of danger is detected.

⚠ Response time depends on:

• amount of smoke,
• type of smoke,
• places of installation,
• air flow,
• distance of the smoke source from the device.

❌ It is not a device that reacts to individual smoke particles or small amounts of smoke in the immediate environment.

✅ The sensor is designed to detect the actual fire hazard.

⚠ Light cigarette smoke or short-term paper smoke may not reach the alarm level required to start the device.

✅ For performance testing, it is recommended to use the TEST button located on the sensor housing.

❌ No.

This model operates completely autonomously and does not require:

✔ phone,

✔ mobile application,

✔ Internet connection,

✔ WiFi configuration.

Once installed and activated, the device is ready to go.

⚠ Battery life depends on many factors:

• quality of the battery used,
• ambient temperature,
• frequency of testing the device,
• number of alarms triggered.

🔋 We recommend using branded alkaline batteries and regularly checking the operation of the device with the TEST button.

❌ No.

The device detects smoke, not the flame itself, fire temperature or heat radiation.

✅ The purpose of the sensor is to warn early about the presence of smoke, which may indicate a fire hazard.

✅ Best Place to Assemble:

• ceiling,
• the central part of the room,
• a place with good air flow,
• around the corridors leading to the bedroom.

⚠ Installation is not recommended:

• directly at the stove,
• in the bathroom,
• with fans and vents,
• in places with high humidity,
• near the steam sources.

⚠ There may be false alarms in the kitchen caused by:

• steam,
• frying,
• burning of food,
• high temperature.

✅ It is recommended to install near the kitchen, but not directly above the stove or source of intense steam.

✅ Recommended method:

✔ use of the TEST button located on the housing,

✔ regular control of the alarm signal,

✔ checking the condition of the device according to the instruction manual.

❌ Testing is not recommended:

• by cigarette,
• with a lighter,
• with open fire,
• intense smoke in the room.

✅ Correct installation affects the effectiveness of the sensor.

The most common problems are due to:

• incorrect installation site,
• lack of device activation,
• discharged battery,
• lack of regular testing.

📘 The set includes an instruction manual in Polish.

The BAREX smoke detector has been manufactured in accordance with the requirements of EN 14604:2005/AC:2008 for autonomous smoke detectors used in residential buildings.

BAREX – a simple and reliable way to increase home security.

An autonomous smoke detector does not require the Internet, an application or additional configuration – it is enough to properly install and regularly test the device.

Specifications
