Apraksts
Trumpai apie prekę
Prekė: Durų užuolaida Reventon HUMMER 200C-1P, šalto oro. Kategorija: Oro užuolaidos.
- Gamintojas: Reventon
- Modelis: ACH200C-2000
Producer: Reventon
Condition: new
Packaging: original
Origin: official distribution
Warranty: manufacturer

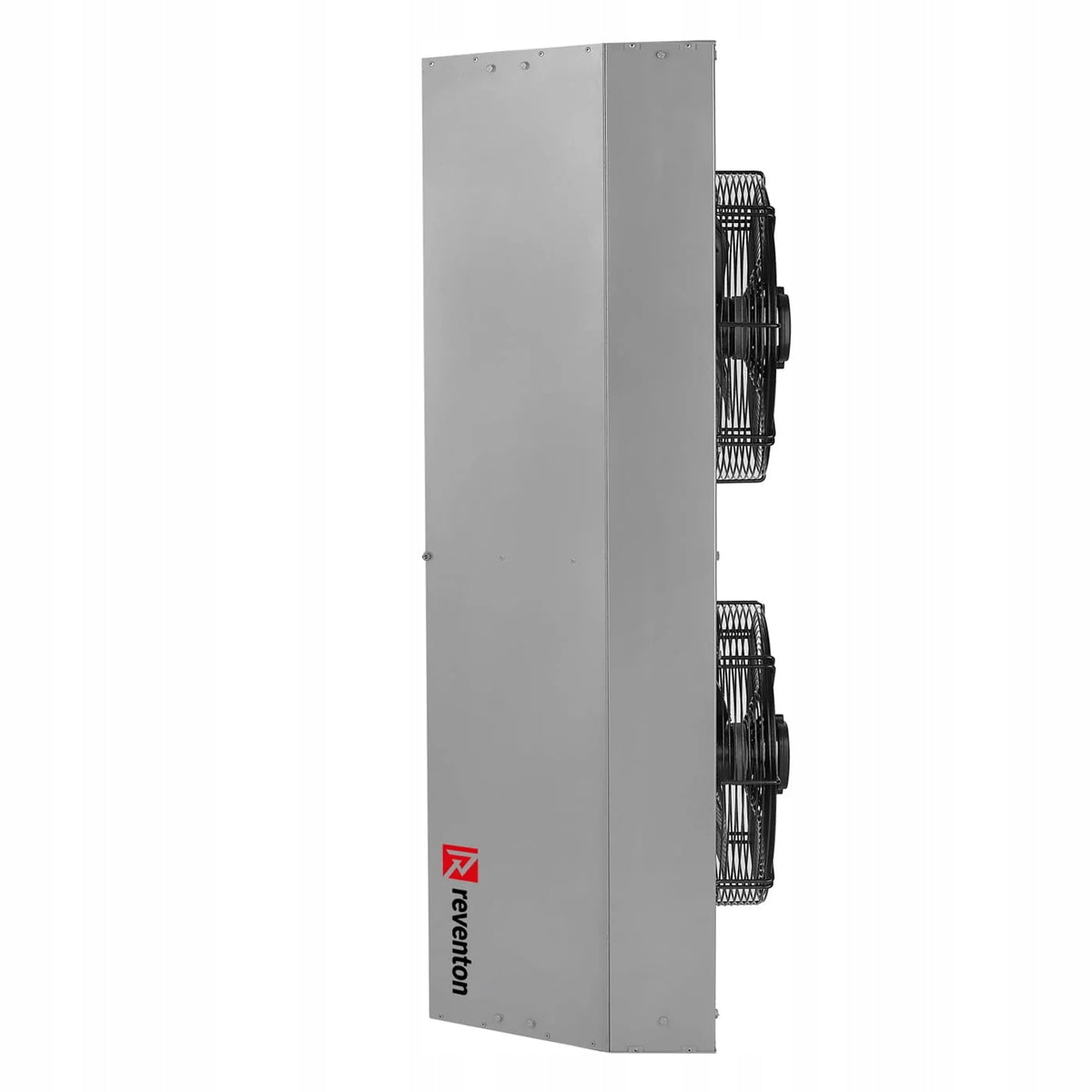

Reventon HUMMER 200C-1P cold door curtain
Cold door curtain from the HUMMER series. The cold air curtain blows air at the temperature prevailing in the room. Air curtains are perfect for loading and unloading areas, creating a kind of air barrier when the entrance gate is opened. The main function of a gate curtain is to protect the facility against the escape/inflow of air at undesirable temperatures.
Application
The air curtain is designed for installation at industrial gates in places such as:
- warehouses,
- logistics centers,
- garages,
- car workshops.
Parameters
Range: 6.5 - 8 m
Weight: 40 – 60 kg
Housing: powder-coated galvanized steel
Additional information:
- Fans are devices with a protection class of IP 54 and meet the requirements of the European Directive 2009/125/EC (ErP 2015).
Control
HUMMER series air curtains have dedicated accessories to automate the operation of the device. The use of appropriate automation allows the curtain to be programmed to adapt its operation to specific needs.
Advantages
- mounting elements included,
- effective protection against heat loss,
- durable housing,
- two coatings protecting the device against corrosion,
- easy assembly,
- modern design of the device.
Technical data
HUMMER 150C-1P HUMMER 200C-1P HUMMER 150C-1P TURBO HUMMER 200C-1P TURBO HUMMER 150C-EC HUMMER 200C-EC Product code ACH150C-1999 ACH200C-2000 ACH150CT-2434 ACH200CT-2435 ACH150C-EC-2353 ACH200C-EC-2354 Maximum air flow [m3/h]
3rd gear*/2nd gear/1st gear
7200 / 6100 / 4400 10500 / 8600 / 6700 10000 / 8400 / 6100 14400 / 11800 / 9200 10100 14500 Maximum curtain range [m]
3rd gear*/2nd gear/1st gear
6.5 / 6.5 / 6.0 7.0 / 7.0 / 6.5 7.0 / 7.0 / 6.5 8.0 / 7.5 / 7.0 7.0 8.0 Supply voltage/frequency [V/Hz] 230/50 230/50 230/50 230/50 230/50 230/50 Nominal motor current [A]
3rd gear*/2nd gear/1st gear
2.16 / 1.72 / 1.40 3.24 / 2.58 / 2.10 4.10 / 3.30 / 2.80 6.15 / 4.95 / 4.20 5.90 8.85 Nominal engine speed [rpm]
3rd gear*/2nd gear/1st gear
1360 / 1050 / 750 1360 / 1050 / 750 1380 / 1200 / 900 1380 / 1200 / 900 1400 1400 Nominal motor power [W]
3rd gear*/2nd gear/1st gear
480 / 380 / 320 720 / 570 / 480 910 / 700 / 560 1365 / 1050 / 840 860 1290 Motor IP protection class [-] 54 54 54 54 54 54 Net weight [kg] 40 57 43 60 41 58 Noise level [dB]*** 67 70 64 71 67 70
* - in the case of fans with an EC motor, the highest efficiency is measured
*** - measurement at a distance of 5m
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Reventon |
| Parametry | Kind | without heater |
| Parametry | Manufacturer code | ACH200C-2000 |
