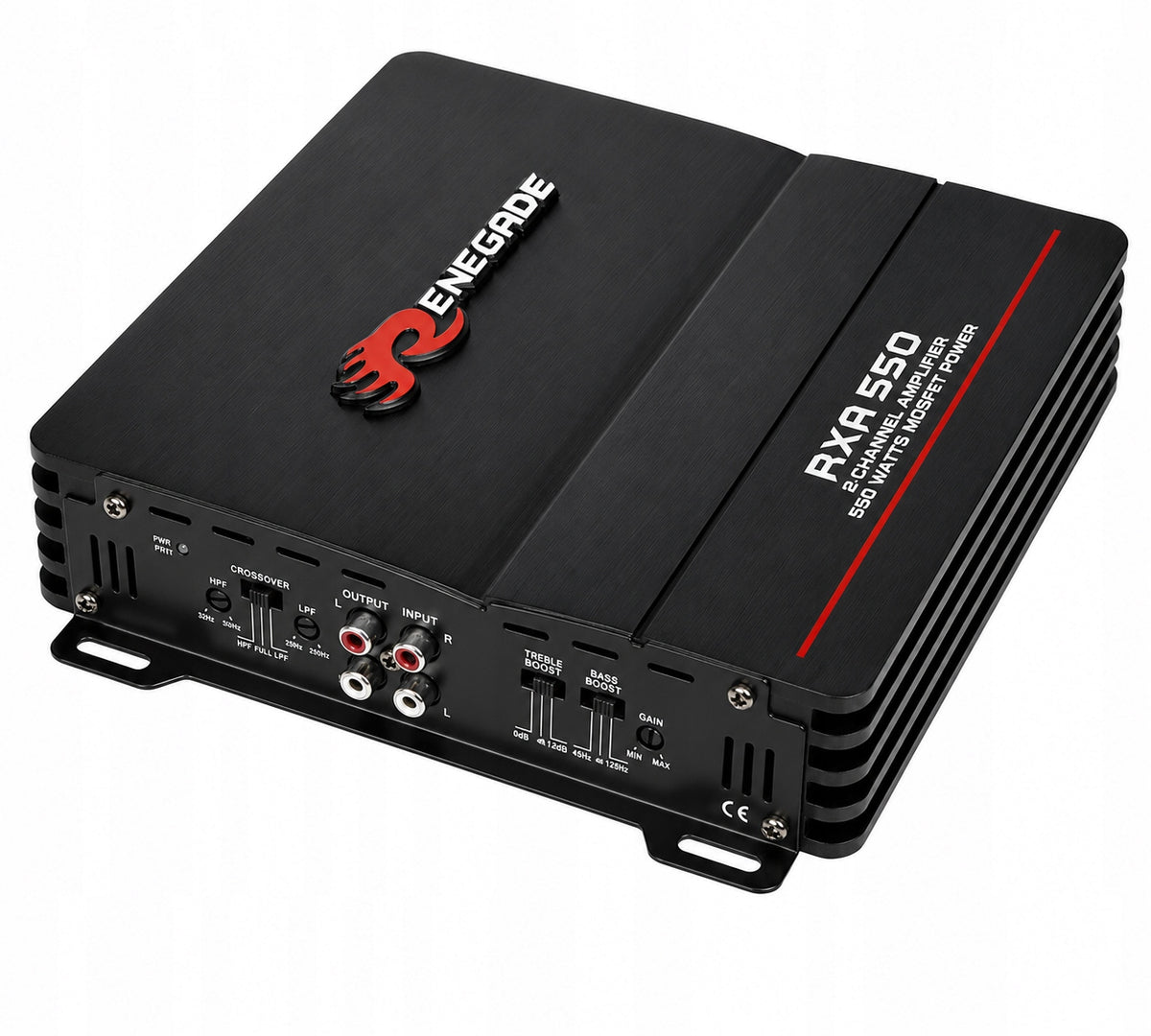

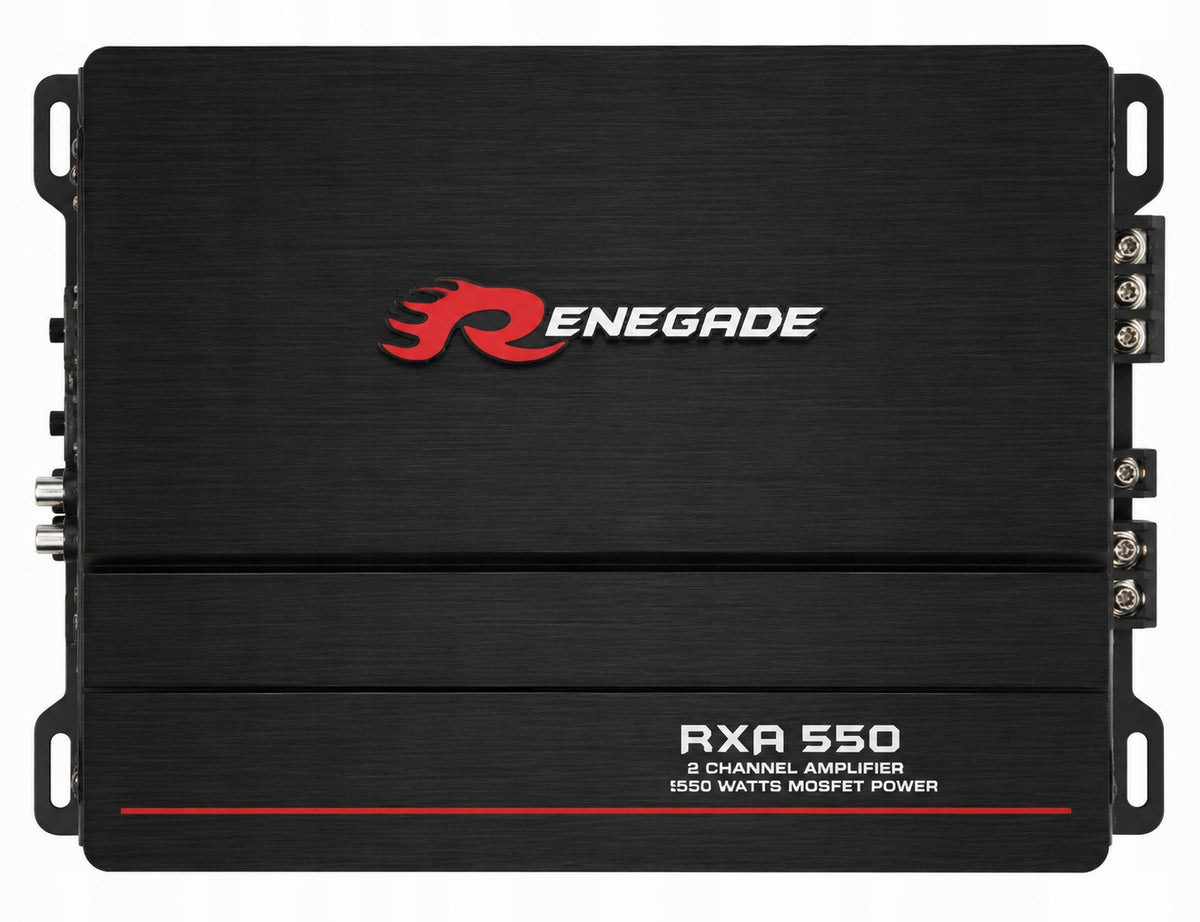

Divkanālu pastiprinātājs RENEGADE RXA550, 2x75 W RMS, 250 W RMS tilta režīms

Trumpai apie prekę

Prekė: Dvikanalis stiprintuvas RENEGADE RXA550, 2x75 W RMS, 250 W RMS tiltinis režimas. Kategorija: Stiprintuvai.

• Gamintojas: Renegade
• Modelis: RXA550

⭐ ONE AMPLIFIER – MANY POSSIBILITIES

Looking for an affordable amplifier to enhance the sound of your factory speakers or power your subwoofer?

The Renegade RXA550 is one of the most versatile amplifiers in its price class. Thanks to two channels, the possibility of bridging and extensive active filters, it will work both as an amplifier for speakers and for a subwoofer.

It is an ideal model for people starting their adventure with Car Audio and for drivers who want to get more power and better sound quality without spending a lot of money.

The most important advantages

✅ Class A/B analog amplifier

✅ 2 x 75 W RMS at 4 Ω

✅ 2 x 135 W RMS at 2 Ω

✅ 1 x 250 W RMS in bridge at 4 Ω

✅ Crossovers HPF and LPF

✅ Ability to power speakers or subwoofer

✅ RCA output for system expansion

✅ Very good value for money

The Renegade RXA550 can be configured in two ways.

Speaker power

When the HPF filter is set, the amplifier cuts off the lowest frequencies that put the most strain on the speakers.

Thanks to this:

✅ sound becomes cleaner

✅ reduce distortion

✅ Speakers work safer

✅ the dynamics of listening improves

Subwoofer power

Once the channels are bridged, the amplifier can power a single subwoofer.

The built-in LPF filter allows you to direct only low frequencies to the subwoofer.

The effect?

✅ stronger bass

✅ better speaker control

✅ greater efficiency of the system

✅ proper operation of the subwoofer

Despite its attractive price, the RXA550 offers features often found in much more expensive designs.

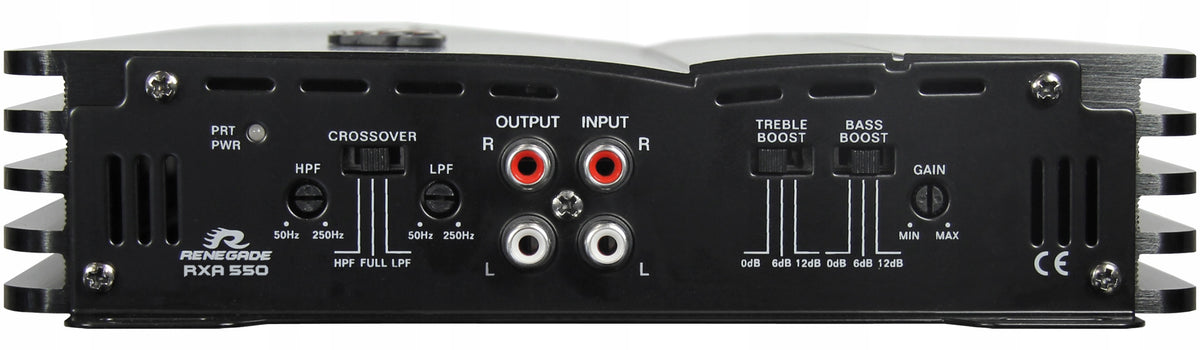

Functions

✅ FULL / HPF / LPF mode

✅ HPF High Pass Crossover

✅ LPF Low Pass Crossover

✅ Input sensitivity adjustment

✅ Bass boost

✅ Conquering the treble

✅ RCA output for additional amplifier

✅ Stereo work

✅ Bridge work

Thanks to this, the amplifier can be easily adapted to virtually any basic Car Audio system.

Basic data

✅ Model: Renegade RXA550

✅ Number of channels: 2

✅ Operating Class: Analog A/B

✅ Bridged: Yes

RMS output power

✅ 2 x 75 W RMS at 4 Ω

✅ 2 x 135 W RMS at 2 Ω

✅ 1 x 250 W RMS in bridge at 4 Ω

Dynamic power

✅ 2 x 150 W at 4 Ω

✅ 2 x 275 W at 2 Ω

✅ 1 x 500 W in bridge at 4 Ω

Active filters

✅ HPF: 50 – 250 Hz / 12 dB

✅ LPF: 50 – 250 Hz / 12 dB

✅ Modes: FULL / HPF / LPF

Audio parameters

✅ Frequency Response: 5 Hz – 40 kHz

✅ Signal-to-noise ratio: >90 dB

✅ THD + N: < 0,5%

✅ Input sensitivity: 0,1 – 7 V

✅ Input Impedance: 10 kΩ

Inputs and outputs

✅ RCA Input

✅ RCA Output (1 Pair)

✅ Hi-Level Input: No

Security

✅ Overload protection

✅ Thermal protection

✅ Power Indicator

✅ Security indicator

✅ Overheating indicator

Power supply

✅ Fuse: 1 x 30 A

Dimensions

✅ Length: 250 mm

✅ Width: 220 mm

✅ Height: 48 mm

Frequently Asked Questions

❓ Is the amplifier suitable for door speakers?

Yes. This is one of its primary uses.

❓ Can I connect a subwoofer?

Yes. After bridged channels, the amplifier offers 250 W RMS at 4 Ω.

❓ Does it have subwoofer filters?

Yes. The built-in LPF filter allows you to properly power the subwoofer.

❓ Can the system be extended with another amplifier?

Yes. The amplifier has an RCA output for connecting another device.

Comes with a set of

✅ Renegade RXA550 Amplifier

✅ Manufacturer's instructions

✅ Original packaging
