Apraksts
Trumpai apie prekę

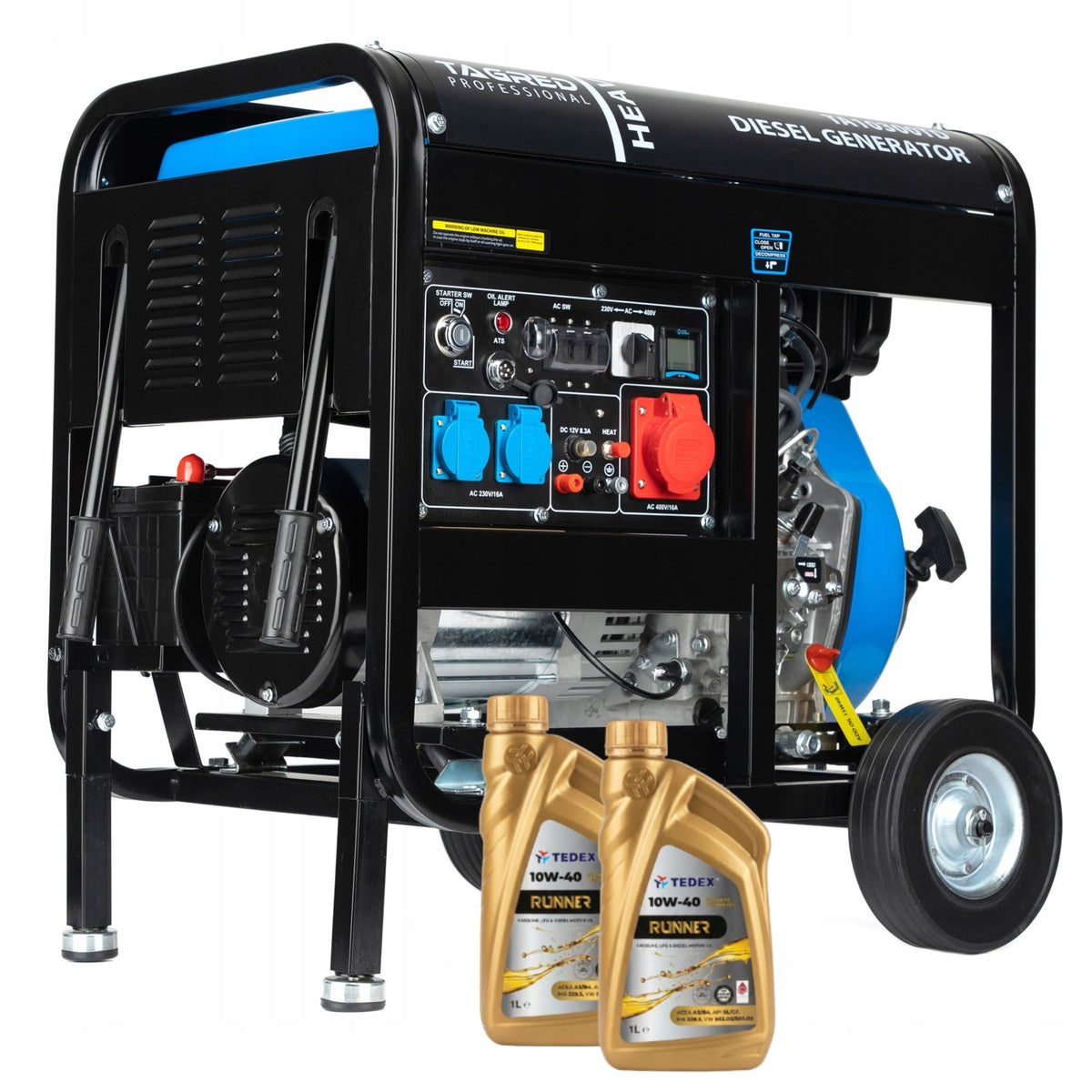

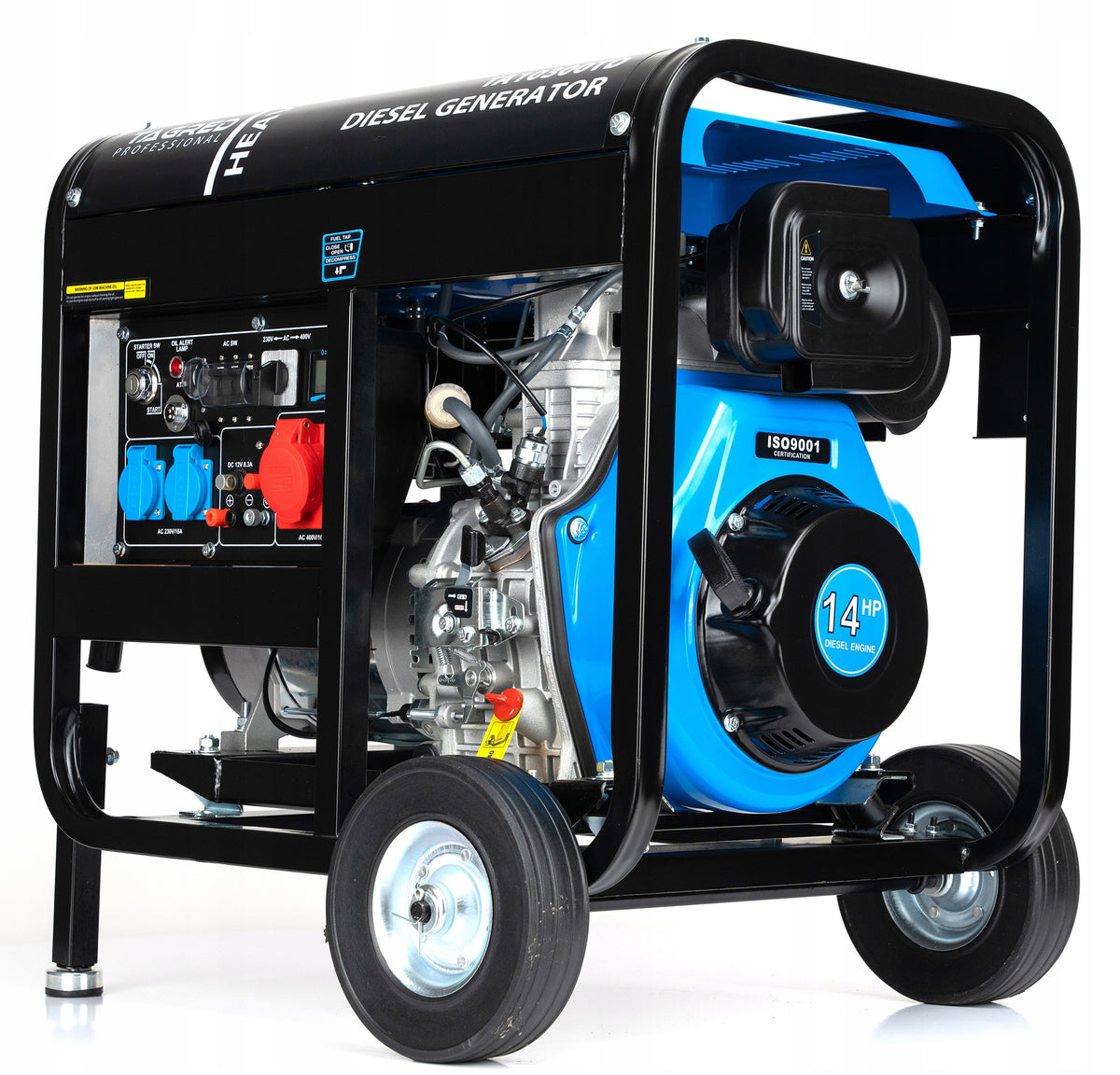

Prekė: Dyzelinis generatorius 7000W 230/400V, 14AG, trifazis, su AVR ir alyva. Kategorija: Elektros generatoriai.
- Gamintojas: Tagred
- Modelis: TA10300TD
Advantages
⚡MAXIMUM GENERATOR POWER increased: 230V 6 kW (1p); 400V 7kW (~3p))
⚡ Reinforced engine of Japanese construction with a power of 10300 W (14hp )
⚡ Comfort of work
⚡COPPER stator winding
⚡LATEST VERSION OF AVR Electronic Voltage Stabilizer
⚡ The unit was made in the EURO 5 emission standards standard
⚡Safe, IP23
The professional Tagred TA10300TDS power generator is powered by a high-end high-power disel motor. It is a reliable solution that will protect your home, farm, or business with energy, perfect for construction sites. It will easily power tools, construction machinery (betony machine, welding machine), lighting, many types of electrical equipment.
A big advantage is the mobility of the generator, which has castors.
It cannot be overestimated that the TAGRED generator is equipped with candle heating and a relaxer for easy start-up.
The built-in glow plug in the intake system makes it easier to start the unit during low temperatures, allows you to work in difficult conditions!
Multitasking
The diesel generator set TAGRED generates a current of 230/400 V. The generator set has 3 sockets: 2 x AC 240 V and 1 x 400 V. Thanks to them you can power several different machines, even in parallel. The rated current is 23,91 A (230V~) / 9,36 A (400V 3~) / 8,3 A (12V d.c.). It is useful in all places without access to electricity, e.g. on construction sites, open spaces, etc.
T - Tagred is one of the most advanced and reliable generator sets brands on the market
A - The advantage is that our generators are not strained and work Max at 90% power
G - Where everyone tries to live their devices to the limit, we focused on the reliability and longevity of our equipment
R - The result is that thanks to this solution, our aggregates operating at maximum loads consume at least 30% less fuel and thus their service life is extended at least twice compared to devices of similar class
E - economy and quality are our top priorities
Robust, powerful engine
1-cylinder, 4-stroke diesel engine with a high power of up to 14 hp, which is equipped with an electric start guarantees reliability of use!
Copper GENERATOR winding!
Generator - stand and rotor, made of the highest quality copper with very good electrical conductivity
This resulted in better work efficiency and reliability, and the operating time of the device was significantly extended.
Startup: E-Start from the ignition
The generator is started by automatic start-up, using a key. The set includes a starter power battery with a capacity of 36 Ah.
Safety of operation provides a degree of protection IP23 and overload protection.
Our unit has additional oversized protections. Here we see a silencer with thermal protection
Composition of the set
- Generator set Diesel TAGRED TA10300TD
- Accessories
- User manual in Polish
Technical data
- TA10300TD
- Generator: synchronous
- Protection class: IP 23M
- Engine power:10300 W/14 HP
- Continuous power S1: 6500 W/400 V 3~; 5500 W/230 V ~
- Maximum power S2 5min.: Max. 7000 W/400 V 3~; Max. 6000 W/230 V~
- Continuous power (12 V d.c.): 100 W
- Rated voltage: 2x 230V~/1x 400V~/1x 12V d.c.
- Rated Prad: 23,91 A (230V~) / 9,36 A (400V 3~) / 8,3 A (12V d.c.)
- Frequency: 50Hz
- Displacement: 531 cc
- Fuel: Diesel
- Fuel tank capacity: 16 liters
- Motor oil: 1,7 l (10W40)
- Weight: 158 kg
- Power factor cos : 1,0
- Power Class: G1
- Maximum setting height (n.p.m.): 1000 m
- Battery Data: 12V / 36Ah
Dimensions in the package:
- Height: 64
- Width: 76
- Depth: 53
Weight per pack: 134 kg
- Height:75 cm:
- Width: 72 cm:
- Depth: 48 cm:
Weight: 129 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | Tagred |
| Parametry | Model | TA10300TD |
| Parametry | Kind | portable |
| Parametry | Generator type | three-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Startup | electric |
| Parametry | Maximum power | 7000 W |
| Parametry | Nominal power of the alternator | 6500 W |
| Parametry | Engine power | 14 KM |
| Parametry | Gasoline tank capacity | 16 l |
| Parametry | Device weight | 170 kg |
| Parametry | Fuel type | diesel fuel |
| Parametry | Frequency | 50 Hz |
| Parametry | Product height | 64 cm |
| Parametry | Product width | 76 cm |
| Parametry | Product depth | 53 cm |
| Parametry | Number of 1-phase outlets | 2 |
| Parametry | Number of 3-phase outlets | 1 |
| Parametry | Manufacturer code | TA10300TD |
| Parametry | Additional information | voltage regulation (AVR),12 V outlet |
