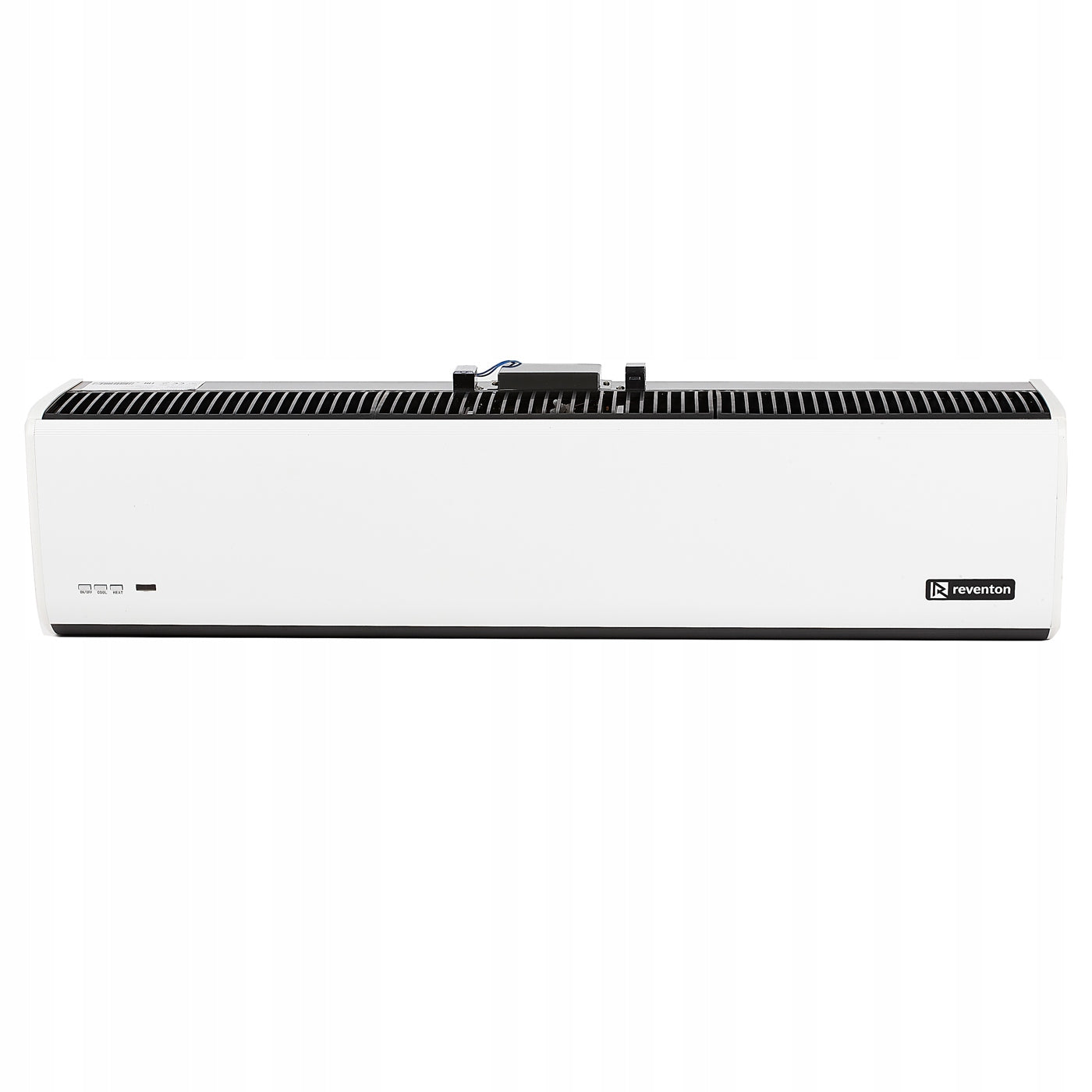

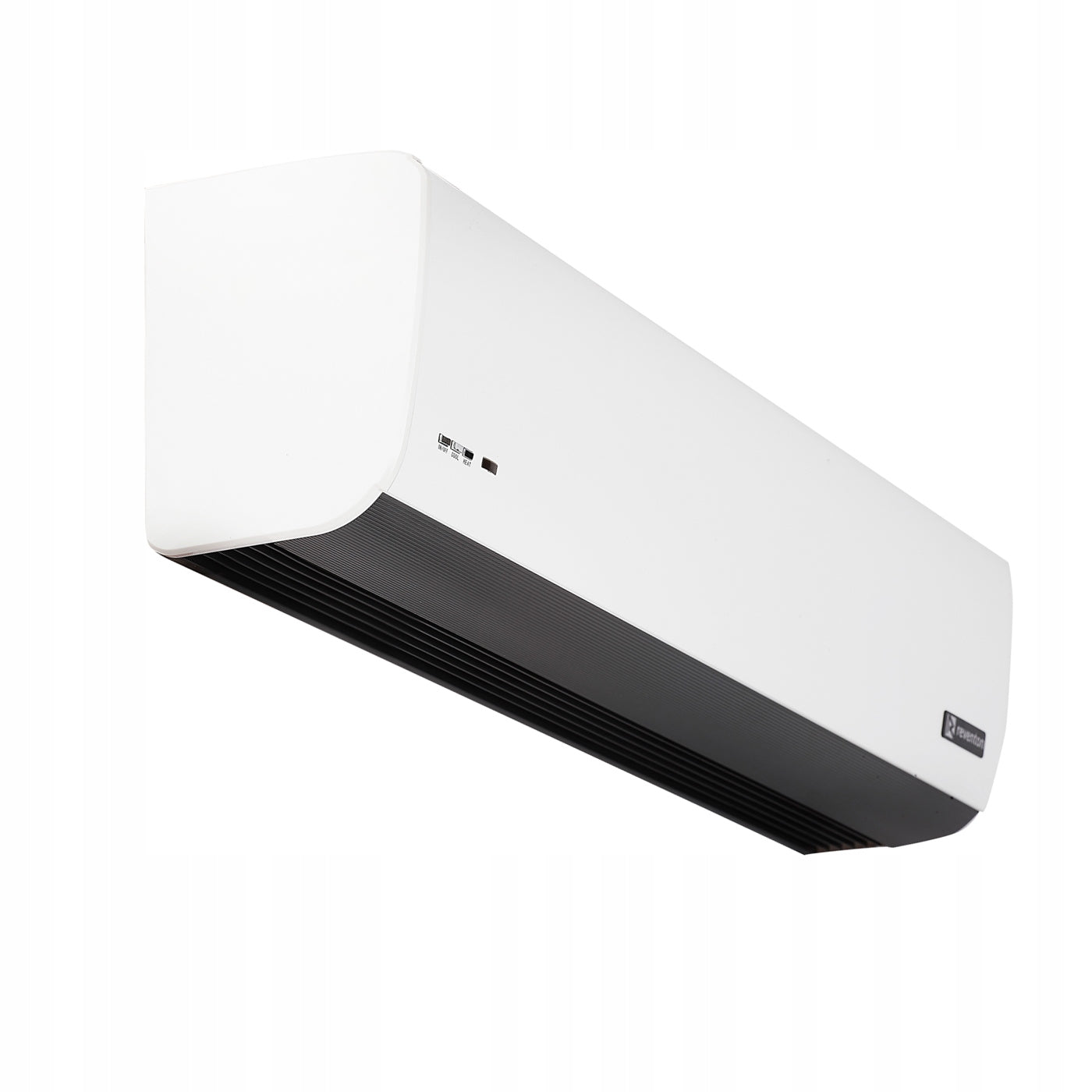

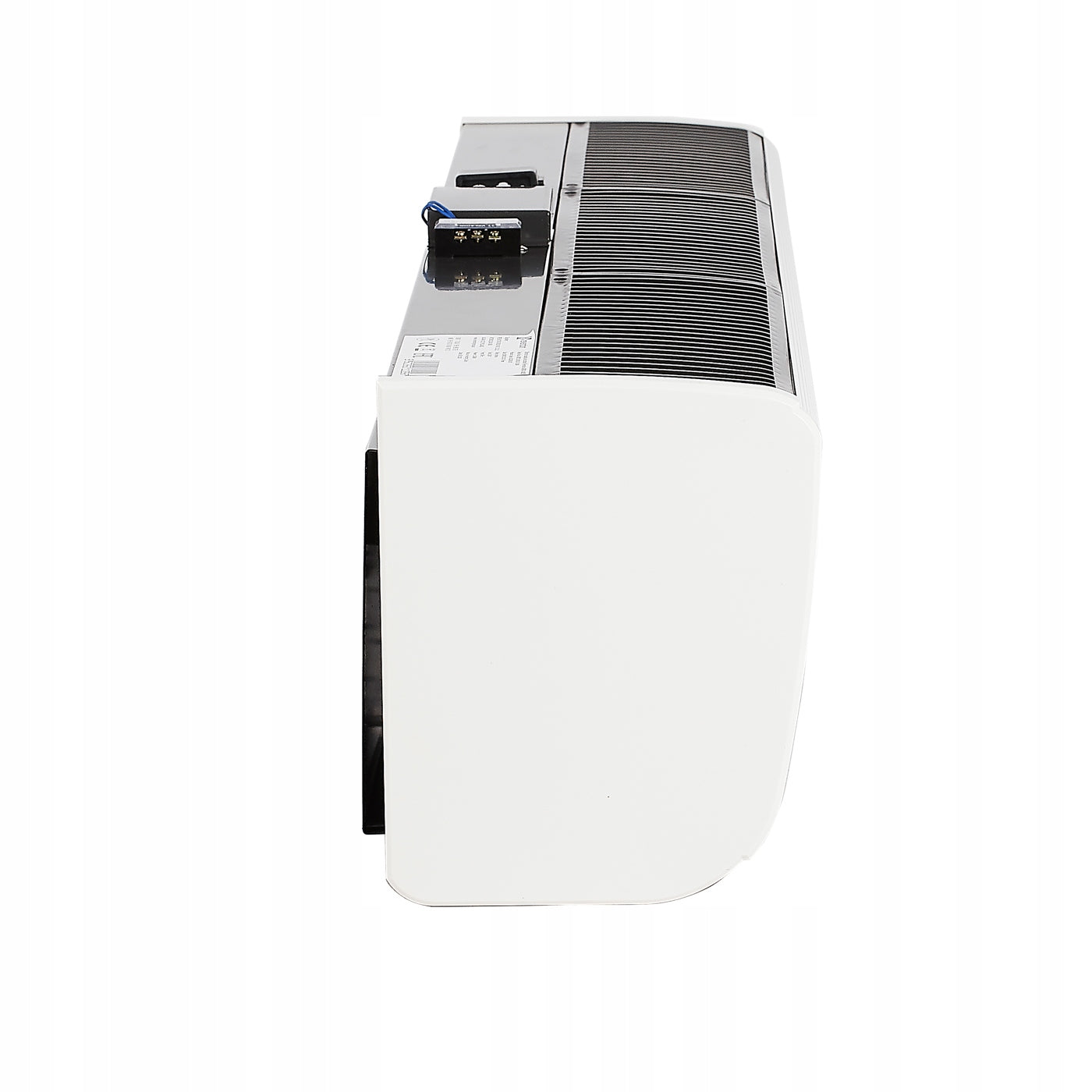

Elektrinė oro užuolaida AERIS 200EN-3P 400V

Trumpai apie prekę

Prekė: Elektrinė oro užuolaida AERIS 200EN-3P 400V. Kategorija: Oro užuolaidos.

• Gamintojas: Reventon
• Modelis: AERIS 200EN-3P
• Galia: 16 W

It is a device that will not only save energy bills, but above all prevent cold air from entering the building or room from the outside. Thanks to this, you do not need to additionally heat up, e.g. office premises or conference rooms, because the air circulation system used provides and maintains heat in rooms.

• Durable plastic housing
• Mounting panel, door sensor, remote control
• Effective protection against dust and insects from the outside
• Easy installation
• Modern design

The air curtain from the AERIS series is designed for installation above or along the entrance door. The device is equipped with electric heaters that heat the air flowing through them. The product is intended for installation in facilities with a three-phase (400 V) installation. During operation, the air curtain creates a barrier preventing loss heat through the opening door. It also protects the room against the penetration of insects and dust into its interior.

• 3-degree or 2-stage fan speed control
• Possible operation in continuous, thermostatic mode or using a door sensor

The air curtain will work in places such as:

• hotels
• shopping malls
• restaurants
• beauty salons
• other public utilities

• Heater power: 16/10/5 kW (heating stage 3/2/1)
• Rated heater current: 24,2 A
• Maximum airflow: 3540/2900 (m³/h kW 2 gear/1 gear)
• Maximum air speed: 11//9 (m³/h kW 2 gear/1 gear)
• Curtain range: 3m
• Voltage/ frequency of heater supply: 400/50 V/Hz
• Voltage/power frequency of motor: 230/50 V/Hz
• Engine power: 560/440 (W 2 gear/1 gear)
• Engine rated current: 2,43/1,91 (A 2 gear/1 gear)
• Isolation class/IP rating: E/IP20
• Net weight: 31 kg
• Volume: 65/63 (dB 2 gear/1 gear)

Specifications
