Elektrinė oro užuolaida VTS EC, 150 cm, energiją taupanti

Trumpai apie prekę

Prekė: Elektrinė oro užuolaida VTS EC, 150 cm, energiją taupanti. Kategorija: Oro užuolaidos.

• Gamintojas: VTS
• Modelis: WING II E150 EC
• Galia: 3200 W

✔AIR CURTAIN WING - A NEW GENERATION DEVICE CREATED WITH A PASSION FOR LIGHTNESS OF FORM AND MODERN DESIGN✔

PROVEN QUALITY AT 5⭐⭐⭐

✅SPECIFICATION:

• Power supply: 400/3/50 V/ph/Hz
• Maximum door width: 1,5 meters
• Maximum air efficiency: 3150m3/h
• Heating power range: 8/12kW
• Power of electric heaters: 4 and 8kW
• Rated current of electric heaters: 11,5/max.17,3 A
• Engine power: 0,3kW
• Rated current: 1,3A
• Degree of protection: IP20
• Weight of the device: 23,4kg
• Range: 3,7m
• Width: 158,2cm
• Height: 21cm
• Depth: 46,5cm

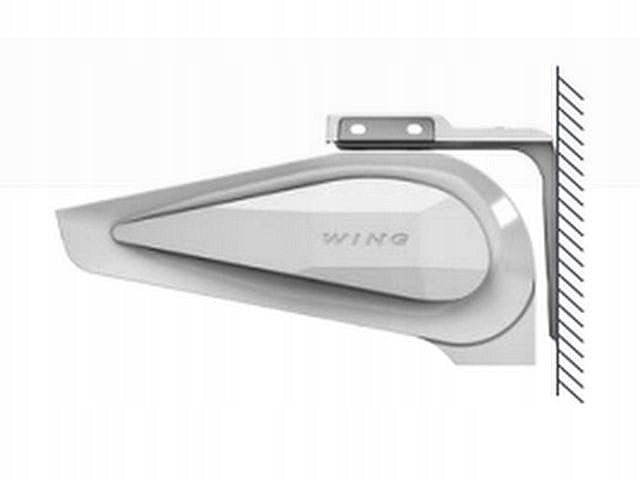

• Possible vertical and horizontal mounting

SUPPORTS AND CONTROLLER ARE COMPLETED SEPARATELY.

✅WHY ELECTRIC CURTAIN?

Electric curtains are used at the entrances to supermarkets, shops, hotels, offices, warehouses, etc. They protect from heat, cold, dust and insects from the outside. In winter, prevent from uncontrolled heat loss, and in summer before its influx into the room. However, curtains should not be used in corrosive environments for aluminum, copper and steel as well as heavily dusted (above 0,3 g/ ). Devices should also not be installed in rooms where they would be exposed to high humidity or direct water exposure

✅CARE FOR DETAILS

The color of the curtain is due to the powder coating process obtained with the latest technologies, which allows for a flawlessly vibrant and durable color

Timeless and versatile design means that the curtain will fit most interiors!

✅QUALITY AND DESIGN

High-quality materials and rigid construction ensure quiet operation of the device and a large air intake area allows you to fully use the power of the heat exchanger. Easy maintenance of the curtain, double protective coating and trouble-free motor determine the durability of the device.

✅ENERGY SAVING - ENGINE EC

The EC motor curtain uses up to 40% less electricity and allows direct connection to the BMS system.

WING CURTAIN - YOUR INVISIBLE BARRIER👍

The WING air curtain is a new generation device, created with a passion for lightness of form and modern design. The use of the WING air curtain allows you to leave the door to the room open regardless of weather conditions, while maintaining the required thermal comfort inside the room or facility. Modern design of the air curtain is also due to its wide application. Among the places where the device can be installed, there are shopping centers, office buildings, supermarkets, cinema complexes, shops, warehouses, production facilities or warehouse halls.

It is worth emphasizing that the use of an air curtain is not only a protective barrier, but also an additional source of heat in the room.

✅UNIQUE SHAPE

The minimalist shape of the WING curtain housing, inspired by the shape of the glider wing and the characteristic diamond-shaped side guards give the form of the curtain unique harmony and elegance. The light form is the perfect culmination of any interior.

✅MAIN ADVANTAGES:

• protection of indoor climatic conditions
• lower heating and cooling costs,
• universal size, the ability to work vertically and horizontally
• fast, easy and intuitive installation

✅APPLICATION:

• warehouse halls
• Wholesale
• sports facilities
• supermarkets
• sacred buildings
• hotels
• clinics
• pharmacies
• hospitals
• office buildings
• production facilities.

UNIQUE SHAPE - PROVEN QUALITY - SAVINGS - CHECK FOR YOURSELF! ⭐

Specifications
