Elektrinis keltuvas, virvinis, 200 kg, 50 m, 30 m/min

Trumpai apie prekę

Prekė: Elektrinis keltuvas, virvinis, 200 kg, 50 m, 30 m/min. Kategorija: Keltuvai.

• Gamintojas: no brand
• Modelis: 1141100

The subject of sale is an electric rope winch from the Italian manufacturer Imer Group model TR VK 200N

This model is fast and reliable, designed to lift all construction materials to a height of 50m, weighing up to 200kg. Standard equipped with a control cassette on a 1,5m cable. Optionally, a cassette with a 50m cable is available for control from below.

The winch is equipped with a patented ARS system to prevent uncontrolled winding of the carrier rope.

.

Installation of the winch possible on various types of fastenings such as scaffolding, window, expansion (between the ceiling and the floor) free-standing (expansion mounting + lashings and ballast box) e.g. on the roof or on the crane.

.

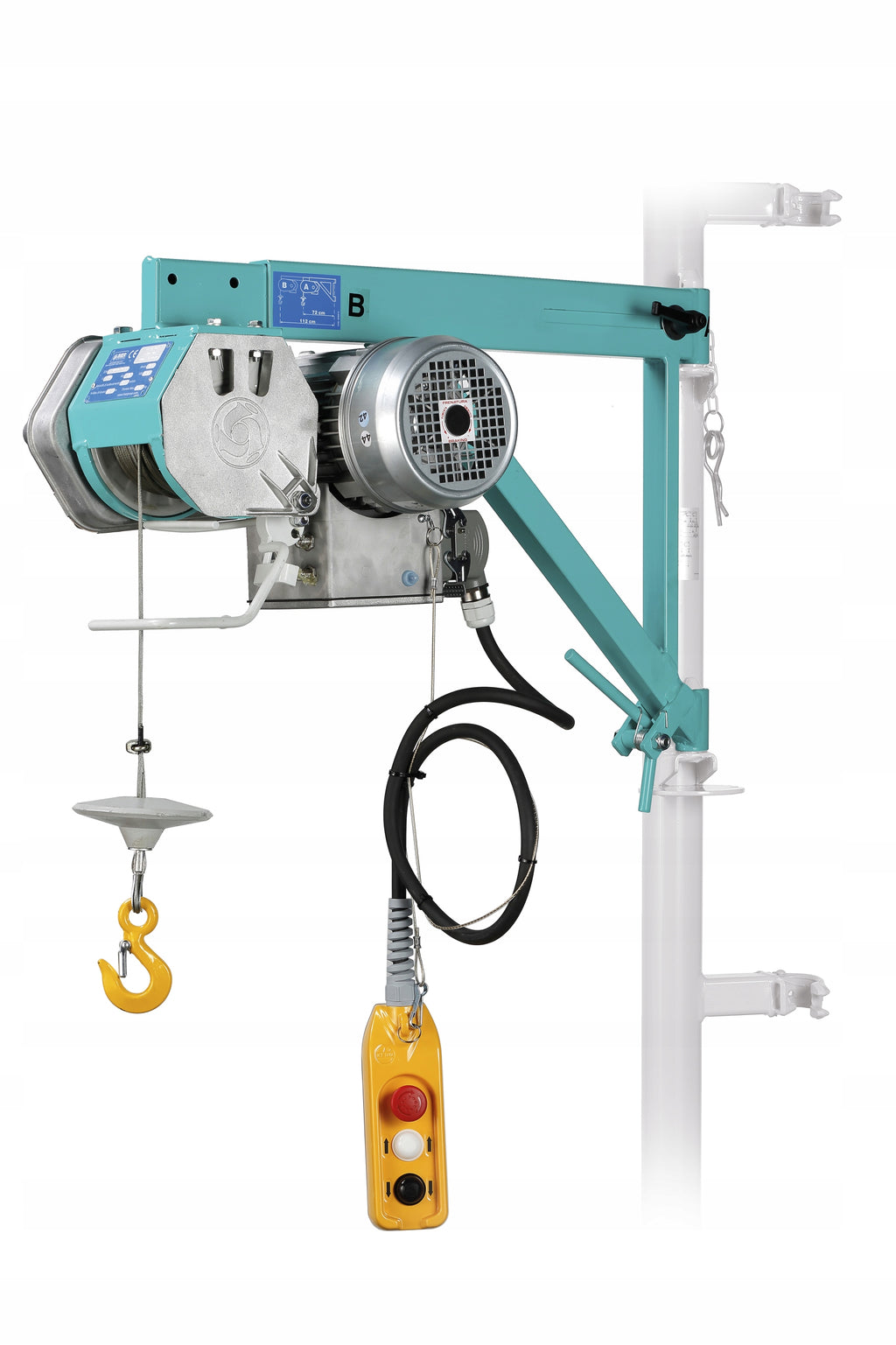

Electric rope winch Imer TR VK 200N

Standard equipment:

✓ Motor with magnetic braking system

✓ Rotating and extended boom with 72 – 112 cm with working position lock

✓ Control panel with emergency stop button on neoprene cable 1.5m

✓ Multi-contact connection for changing the control panel

✓ Protection against excessive winding of the rope

✓ IP 67 16A plug

.

Optional equipment:

Control panel with emergency stop button to control from below on 50m and 24V neoprene cable

Extension cable with IP67 socket, 16A, IP44 plug, 16A and 3 x 2,5mm cable, 16A

.

• Specifications: TR VK 200 N
• Leverage: 200 kg
• Lifting speed: 30 m/min
• Lifting height: 50 m
• Length of rope: 51 m
• Diameter of rope: Ø 5 mm
• Engine: 230V/50Hz, 1.1 kW, 2650 rpm, 10.1 A
• Weight: 48 kg
• Noise level from operator position: < 75 dB(A)
• Dimensions: W. 390 / L 770(1170) / H 520 mm
• Dimensions for transport: width. 350 / L 820 / H 550 mm

. If you want to see the winch live before buying, make an appointment at Lambor’s headquarters
