Elektriskais troses pacēlājs YATO, 250 kg

Trumpai apie prekę

Prekė: Elektrinis lyninis keltuvas YATO, 250 kg. Kategorija: Keltuvai.

• Gamintojas: Yato
• Modelis: YT-5901
• Galia: 500 W

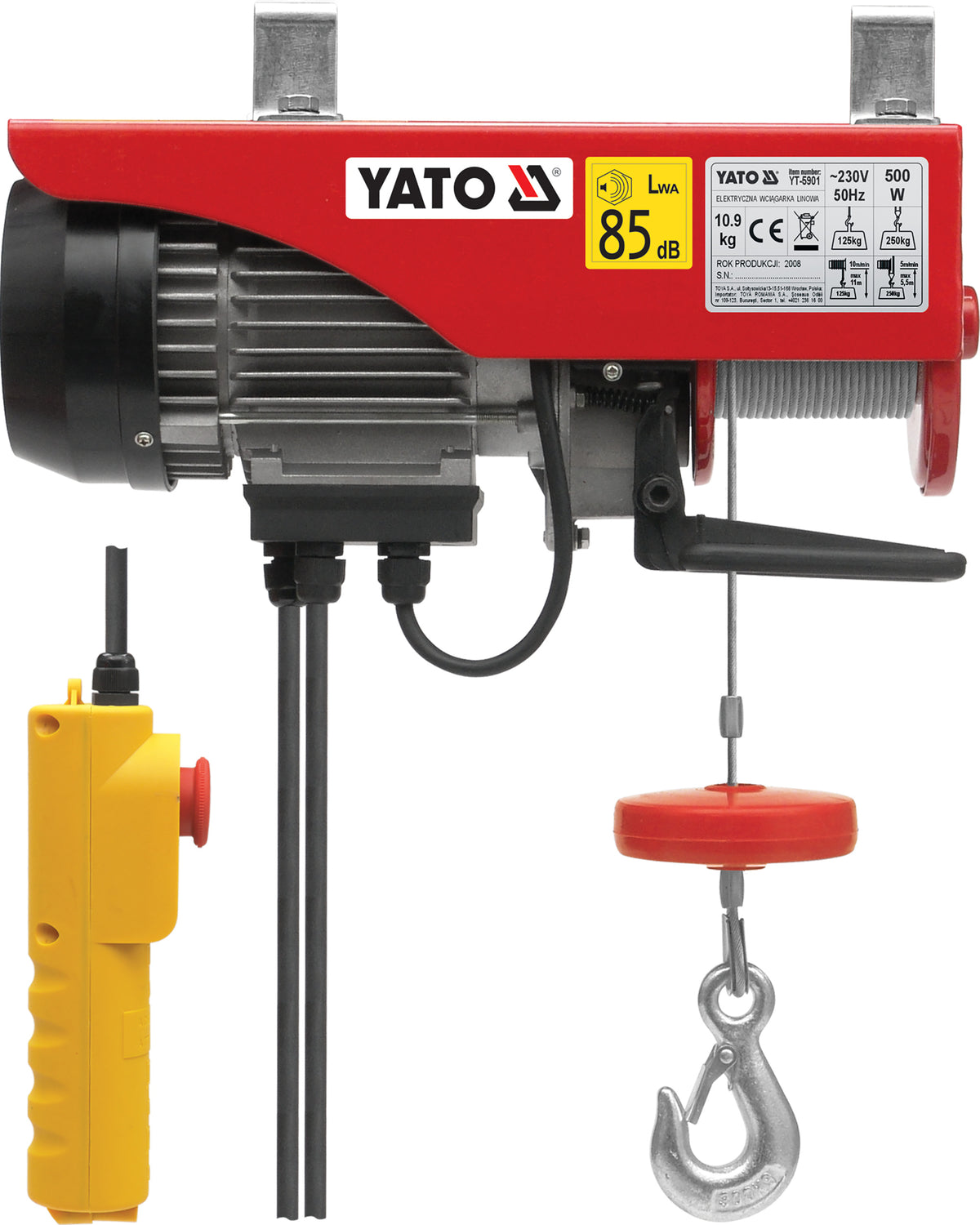

YATO YT-5901

A rope hoist is a device that allows to lift and lower significant weights using a hook suspended on a steel line. It is also possible to use the hoist in a horizontal position.

The hoist is sold with clamps, screws, washers for mounting to the support beam. The set also comes with an additional hook on the block.

Construction:

• load-bearing element: braided steel cable
• drive is an electric motor
• Slow-speed transmission
• Electro-mechanical brake blocking the transmission when the power supply in the engine is disconnected

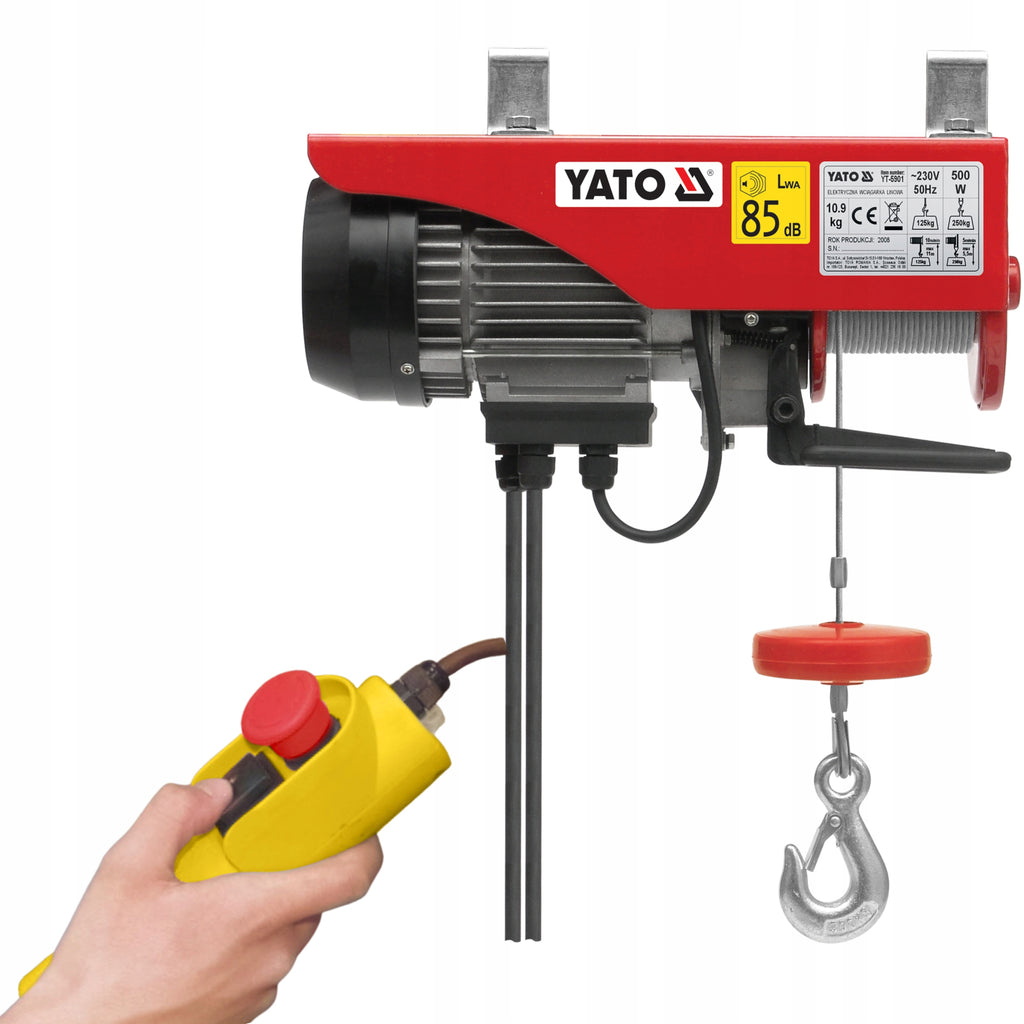

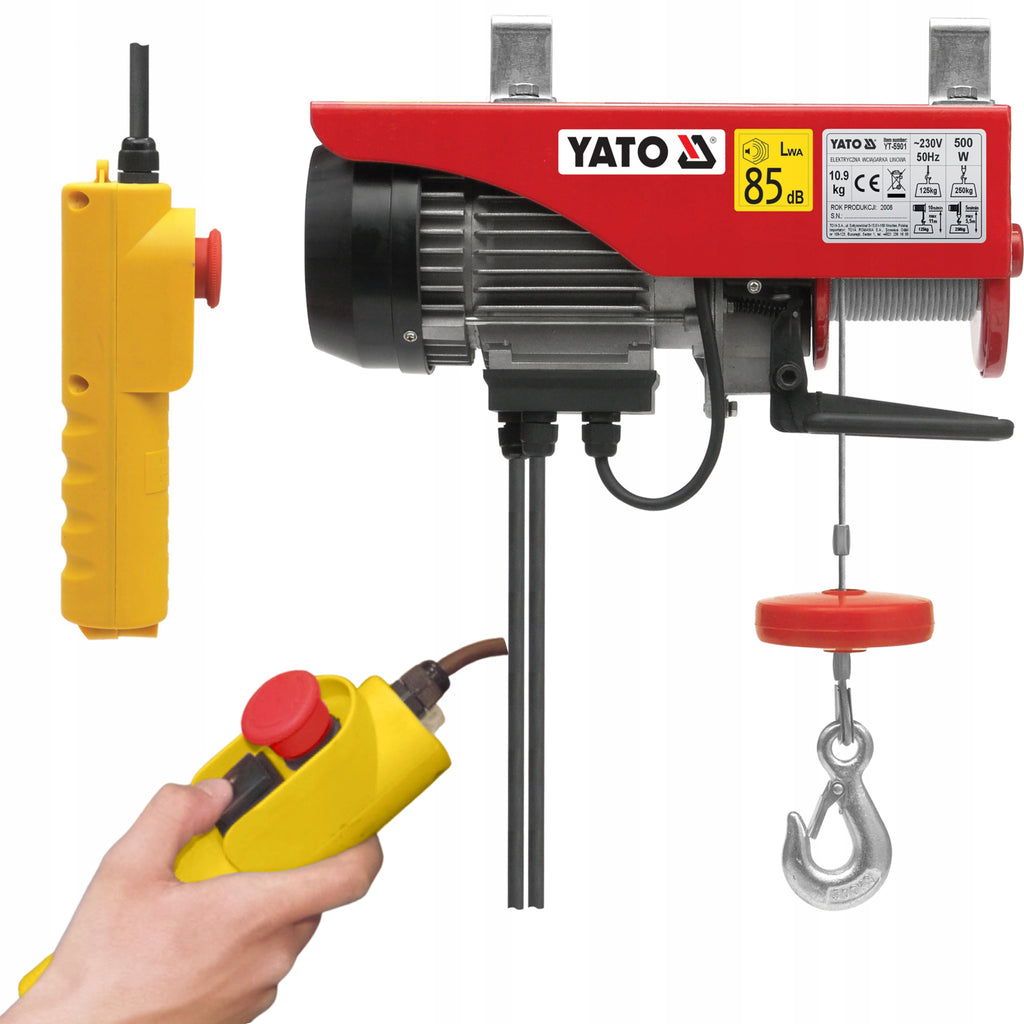

• control console on a long electric cable
• Limit mechanical switch

Parameters:

• Maximum load weight [kg]: 125 (without additional hook), 250 (with additional hook)
• Maximum lifting height [m]: 11 (without additional hook), 5,5 (with additional hook)
• Lifting speed [m/min]: 8 (without additional hook), 4 (with additional hook)
• Rope length [m]: 12
• Rope diameter [mm]: 3,0
• Rope strength [N/mm2]: ? 1870
• Rated voltage [V]: 230
• Rated frequency [Hz]: 50
• Rated current [A]: 2,2
• Engine power [W]: 500
• Degree of protection: IP54
• Degree of insulation: B
• Electrical protection class: I
• Group of mechanisms: M1
• Weight [kg]: 10,5

Increasing the lifting capacity of the hoist

It is possible to double the lifting capacity of the hoist by using an additional hook with a block. Such an assembled system allows you to lift a load with a mass twice that in the case of direct attachment of the load on the hoist hook. However, at the expense of halving the height of lifting or lowering.

Traffic limiters

The hoist is equipped with stops that do not allow you to lift too high or lower the load too low.

In the case of lifting the load, after reaching the maximum height, the lifting limiter will stop the hoist operation. If the load is lowered, after reaching the maximum lower position of the load, the lowering limiter will work and stop the operation of the winch.

Emergency engine stop

If there is a need to immediately stop the movement of the hoist, this can be done with a red safety button located on the remote control module.

Specifications
