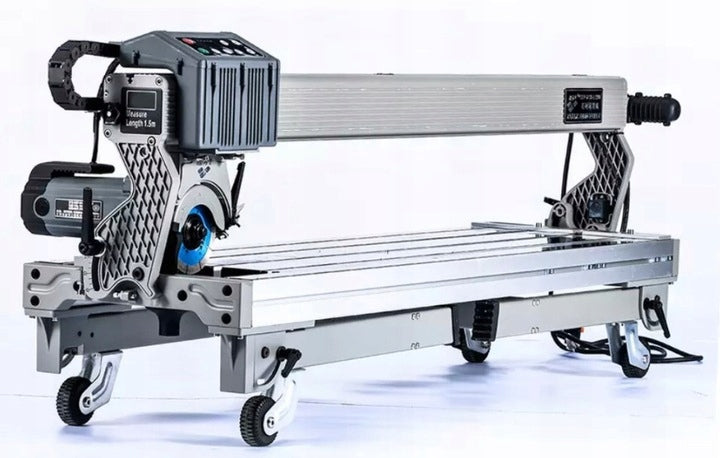

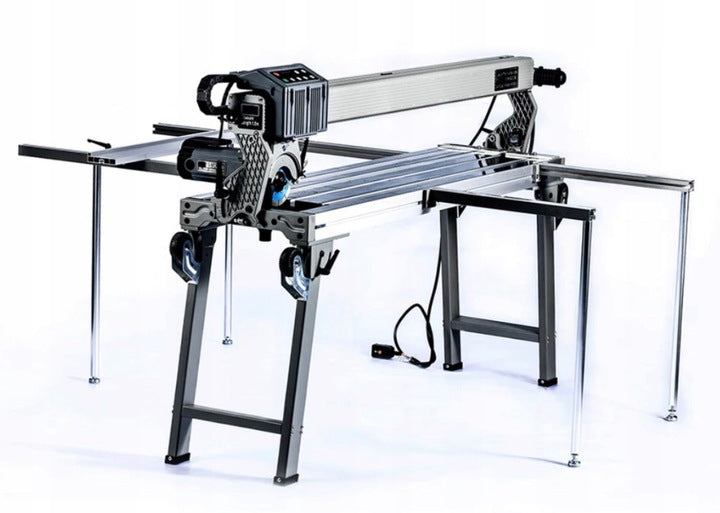

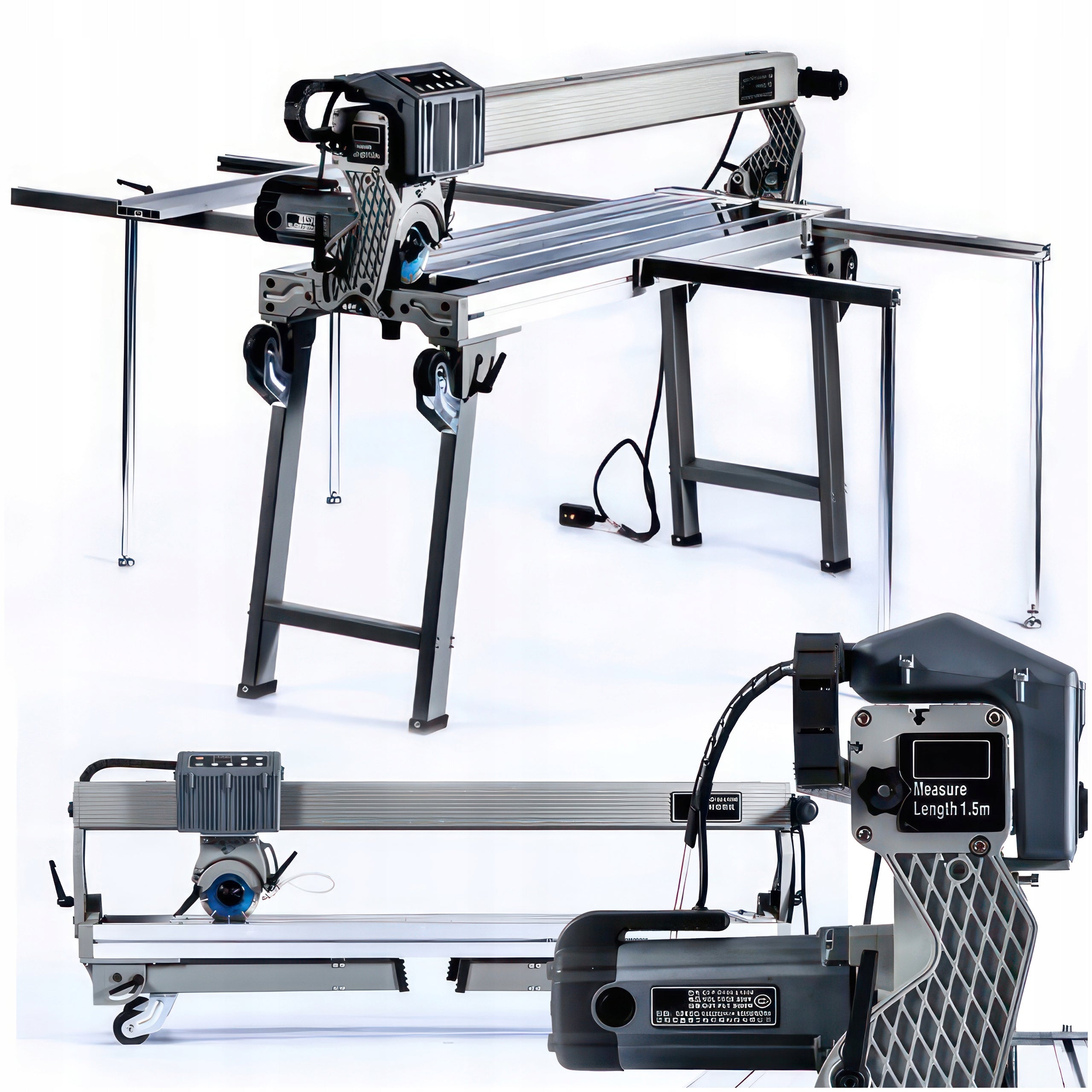

Elektrinis plytelių pjaustytuvas BIHUI TCSA 1200

Trumpai apie prekę

Prekė: Elektrinis plytelių pjaustytuvas BIHUI TCSA 1200. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Bihui
• Modelis: BIHUI-TCSA1200 przecinarka automatyczna
• Galia: 3000 W

✅ Automatic Electric Cutter BIHUI TCSA 1200 – Efficiency and Precision in One

The BIHUI TCSA 1200 electric cutter is an efficient and precise tool that will work in both manual and automatic modes. With a cutting length of 120 cm and a strong 3000W motor, this table cutter provides easy and fast cutting of various materials with different angles. Ideal for professionals who need equipment for cutting stone, plate, ceramic or concrete.

✔ Key advantages of the BIHUI TCSA 1200

✔ Cutting versatility

The machine allows cutting at an angle of 90° to 30 mm and at an angle of 45° to 20 mm, making it suitable for a wide range of finishing and construction works.

✔ Manual and automatic mode

BIHUI TCSA 1200 can operate in manual mode for precise cuts or in automatic mode, which significantly increases efficiency when cutting large quantities of material.

✔ Stability and performance

With a weight of 60 kg and engine power of 3000W, the machine is stable and reliable, which ensures high performance and long-term use in intensive conditions.

✔ Green laser

The green laser helps to exactly set the cutting line, which facilitates precise cutting of materials.

✔ External water system

Water for cooling the disc is provided by an external pump, not as in classic models in the tank on the countertop, which provides better cooling and purity at work.

✔ Cutting speed adjustment

Thanks to the cutting speed adjustment, the BIHUI TCSA 1200 provides precise cuts with different materials, giving full control over the work process.

✅ Technical specification

• Model: BIHUI TCSA 1200
• Cutting length: 1200 mm
• Tabletop width: 40 cm
• Cutting 90°: max 30 mm
• Cutting 45°: max 20 mm
• Engine power: 3000 W
• Cutting speed adjustment: Yes
• Water system: External pump (tank under the table top)
• Laser: Green
• Discs included: 2x 120x20x1,8 mm
• Machine weight: 60 kg
• Water flow control: Electronic panel
• Recommended use: Cutting stone, tiles, ceramics, concrete

✅ Unique features of the product

✔ Performance and precision

The powerful 3000W motor and precision laser system ensure high cutting quality and speed, which makes the cutter ideal for use in workshops and construction sites.

✔ High stability

The stability of the machine and the weight of 60 kg provide solid support for intensive work, which increases cutting precision and comfort of use.

✔ Safe operation

The external water pump and the flow control system ensure purity and cooling of the disc, which contributes to safer and more comfortable operation.

✔ Ease of use

The machine is equipped with an electronic control panel, which ensures easy adjustment of cutting settings, including speed and water flow.

✅ Instructions for use

1. Power connection: Make sure that the machine is connected to the appropriate power source and the water is supplied to the tank.
2. Choosing cutting mode: Set manual or automatic mode according to your needs.
3. Cutting angle setting: Set the cutting angle to 90° or 45° depending on your requirements.
4. Turn on the machine: Use the electronic control panel to start cutting. Use the laser to precisely set the cutting line.
5. Remember safety: Always use protective glasses and gloves to ensure your safety while working.

✅ Frequently Asked Questions

✔ What materials can be cut with the BIHUI TCSA 1200 cutter?

The BIHUI TCSA 1200 cutter is ideal for cutting stone, plate, ceramic, concrete and other hard materials.

✔ Is the machine easy to operate?

Yes, the cutter is equipped with a control panel and a laser system, which allows easy and precise cutting. In addition, the machine can operate in automatic mode, which increases the convenience of use.

✔ What are the benefits of using an external water pump?

External water pump provides better cooling of the disc, reduces dust build-up and improves work safety, keeping the cutting site clean.

✔ Which discs fit the BIHUI TCSA 1200?

The cutter fits discs 120x20x1,8 mm, which are included in the set.

✔ What are the maximum cutting dimensions?

The cutter allows cutting up to 30 mm at 90° angle and up to 20 mm at 45° angle.
