Elektrinis siaurapjūklis GRAPHITE, 600 W, su rankena

Trumpai apie prekę

Prekė: Elektrinis siaurapjūklis GRAPHITE, 600 W, su rankena. Kategorija: Elektriniai siaurapjūkliai.

• Gamintojas: GRAPHITE
• Modelis: 58G078
• Įtampa: 230 V

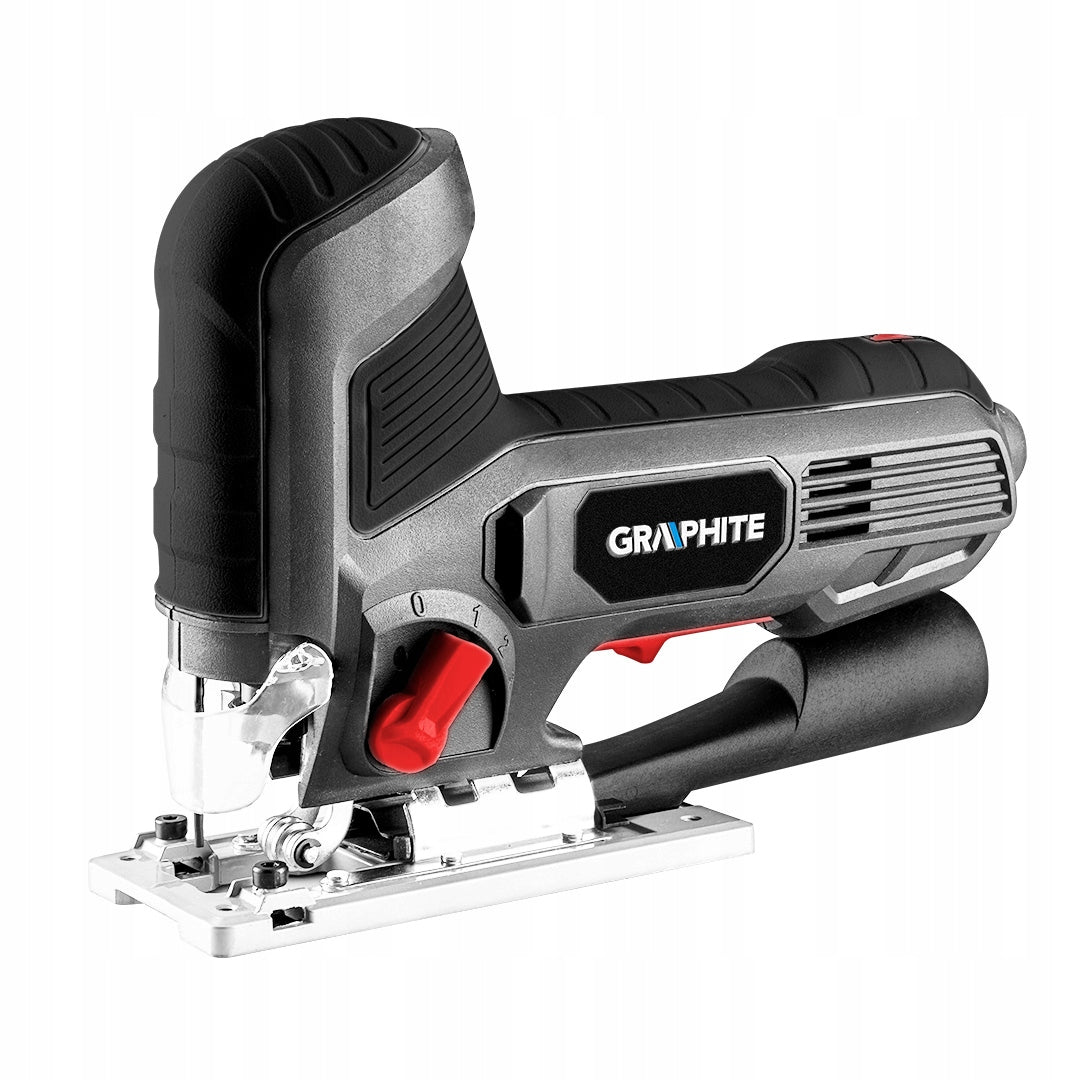

Network jigsaw 600W with handle for body GRAPHITE

Product code: 58G078

The GRAPHITE jigsaw with a power of 600W is an advanced tool designed for users who require full control and precision from the equipment during operation. The distinctive design with a handle behind the body, often chosen by professionals, allows you to guide the tool closer to the material being processed, which translates into a better feel of the cutting line. It is an ideal choice for both carpentry workshops and demanding renovation works.

The device is distinguished by an aluminum foot, which ensures stability and smooth feed on the material. Thanks to the three-stage adjustment of the pendulum movement (cutting function), the user can choose between fast, aggressive cutting and precise edge finishing. The tool-free blade change system significantly speeds up work, eliminating the need for additional keys when changing attachments.

Technical data

• Manufacturer: GRAPHITE
• EAN code: 5902062073112
• Rated power: 600W
• Frequency of strokes: 800-3000min-1
• Maximum cutting depth in wood: 80mm
• Maximum cutting depth in steel: 8mm
• Foot inclination range: 0-45º
• Saw blade pitch: 18mm
• Degrees of pendulum movement: 3
• Foot Material: Aluminium
• Power cord length: 3m
• Included: Saw blade, guide and connection to vacuum cleaner

Comfort and functionality in every detail

Working with the GRAPHITE jigsaw is extremely comfortable thanks to the ergonomic shape of the body covered with non-slip rubber. This solution guarantees a secure grip even during long-term tasks. The built-in dust extraction feature allows you to keep your workspace clean and provides excellent visibility of the cutting line, which is crucial when making complex shapes.

The ability to adjust the rotational speed in a wide range from 800 to 3000 strokes per minute allows you to perfectly adjust the working pace to the hardness of the material – from soft pine wood, through hard laminated boards, to thin sheets of sheet metal or plastics. Adjusting the angle of inclination of the foot up to 45º additionally allows you to make precise diagonal cuts.

Advice on use

• Choose the right type of saw blade for the material – saw blades with fine teeth are best suited for clean cutting of wood and laminates, while those with large teeth for fast rough cuts.
• When cutting metal, set a lower stroke frequency and turn off the cutting function (pendulum) to avoid overheating of the saw blade and ensure a smooth edge.
• Always use a dust extraction system or workshop vacuum cleaner to protect your lungs and maintain good visibility of your cutting line.
• When cutting holes inside the plate, first drill a hole with a drill with a diameter slightly larger than the width of the saw blade to safely start working.
• Remember to regularly clean the foot and the area around the saw blade guide roller, which will ensure a longer life of the tool mechanisms.
