Elektrinis statybinis keltuvas, 42 m, 500 kg

Trumpai apie prekę

Prekė: Elektrinis statybinis keltuvas, 42 m, 500 kg. Kategorija: Keltuvai.

• Gamintojas: no brand
• Modelis: 1140830

The subject of the offer is the winch drive of the Italian manufacturer Imer Group model G500

With its rugged design and powerful motor, the Imer G 500 construction winch is suitable for use in the toughest conditions.

The G 500 is an ideal application, especially on the last floors, and crane mounting is the safest and most stable solution of all winches available on the market.

The winch is adapted to work with a voltage of 210 – 235 V. The rope drum placed transversely relative to the not always vertically leveled frame, prevents the rope from winding on one side.

Standard equipment of the drive:

✓ Motor with magnetic braking system

✓ Sliding trolley with 4 aluminium wheels and working position lock (brake)

✓ Protection against overwinding

✓ Control panel with emergency stop button on neoprene cable 1.5m

✓ IP 67 16A plug

Technical data:

• Lifting capacity: 500 kg
• Lifting speed: 17 m/min
• height Lifting: 42 m
• Rope length: 43 m
• Rope diameter: Ø 6 mm
• Motor: 230V/50Hz, 1.5 kW, 1300 rpm /min, 12A
• Weight: 71 kg
• Operator noise level: < 72 dB(A)
• Dimensions: W. 382 / L 800 / H 410 mm
• Dimensions for transport: width. 400 / L 820 / H 440 mm

The control cassette is equipped with double protection: electrical and mechanical

Winch equipped with dustproof and waterproof 230V plug, with IP67 safety standard.

Complete with IP67/IP54 extension cable, the connection can be kept underwater to the head. 1m to 30 minutes. The connection is also completely dustproof.

Optional equipment:

• Extension cable with IP67 socket, 16A, IP44 plug, 16A and 3 x 2,5mm cable, 16A
• Gantry crane for G500 (standard version, anchored to the ground)
• Ballast boxes (without ballast)
• Foot protection - front crane barrier

We recommend the purchase of a protective barrier, to prevent the operator's feet from slipping off or cargo from slippery surfaces such as e.g. roof after rain...

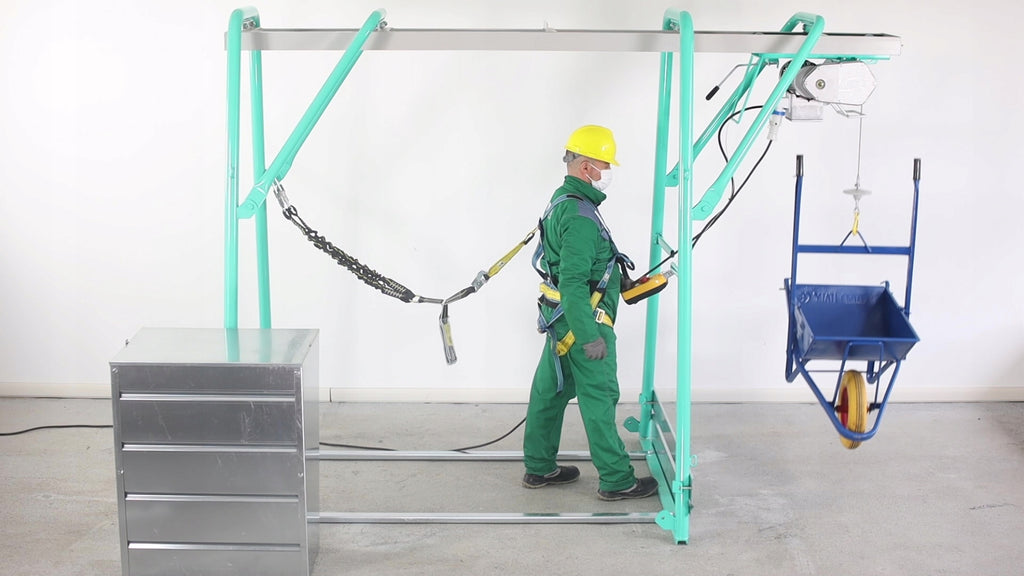

The drive of the winch can be mounted on the optional (not included) gate crane visible below in the photos.

The standard version of the crane is anchored to the ground or optionally equipped with ballast boxes for filling, on a ready and inviolable substrate.

The front vertical crane brackets are equipped with two raised locks to protect the winch operator from falling from a height.
