Elektroninė apkrova KP184, 400 W, 40 A, 220 V, vieno kanalo testuoklis

Trumpai apie prekę

Prekė: Elektroninė apkrova KP184, 400 W, 40 A, 220 V, vieno kanalo testuoklis. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: 857585

Description

The KP184 single channel electronic DC load tester offers four load modes (CC, CV, CW and CR) with good heat dissipation. Numerous protections and various test functions meet the test requirements while ensuring safe use of the device. Performance and functionality are unbeatable compared to traditional sliding wire resistors. Application in related industries can increase efficiency and reduce costs.

Key Features

4 load modes: Four load modes, including CC, CV, CW and CR, which can be operated synchronously online, meet the test requirements.

Different test functions: The functions of voltage measurement at the end of the circuit, self-test, dynamic testing at 10 kHz, battery capacity testing, battery internal resistance testing and overcurrent protection point/time testing meet the test requirements.

Digital control mode: Digital control mode provides high precision and stability, guaranteeing accurate test results.

Switchable voltage: The voltage can be switched between AC110V and AC220V, allowing the device to be used at different voltages.

Ease of use: The clear interface and one-button switch make it easy to operate.

Excellent heat dissipation: Heat dissipation holes on both sides allow for quick heat dissipation, prolonging the life of the device while ensuring high power density.

Many protections: Overvoltage, overcurrent, overload, overheating and overvoltage protection ensure safe use.

Details

Pads: Four wear-resistant and non-slip pads at the bottom ensure stable positioning and prevent scratching of the countertop.

Waterproof Switch: The switch comes with a cover for water resistance, so you can touch it even with wet hands.

Application

It can be widely used for testing and aging products in LED lighting, power sources, chargers and batteries.

Specification

Model: KP184

Color: Blue

Shape: Rectangular

Style: Modern

Power Type: Plug

Plug: EU Standard

Input power supply:

Voltage: AC 110 V/220 V ±10%, 50 ± 2 Hz

Power Consumption: < 20 W

Input power:

Load Voltage: DC 1-150 V

Load Current: 0-40 A

Load power: 0-400 W

Measurement accuracy:

Current: ±0,05% + 5 mA

Voltage: ±0,05% + 5 mV

Precision control:

Current: ±0,05% + 5 mA

Voltage: ±0,05% + 5 mV

Communication method: RS232/RS485

Security:

Overvoltage (OV): Greater than 152V without load

Temperature overrun (OT): 85? /185?

Power Exceedance (OP): Single Channel 410W

Input fuse: 0,5 A

Ambient temperature range: 0 to 500? /0–932?

Ambient humidity range: 10 to 90% RH

DC input voltage strength to housing: ±500 V DC

DC input insulation resistance to housing: >20 M? , 500 V DC

Insulation resistance of AC input to housing: >20 M? , 500 V DC

Weight: 4,5 kg/9,9 lbs

Package Dimensions: 38,5 x 16 x 27 cm/15 x 6 x 10 inches

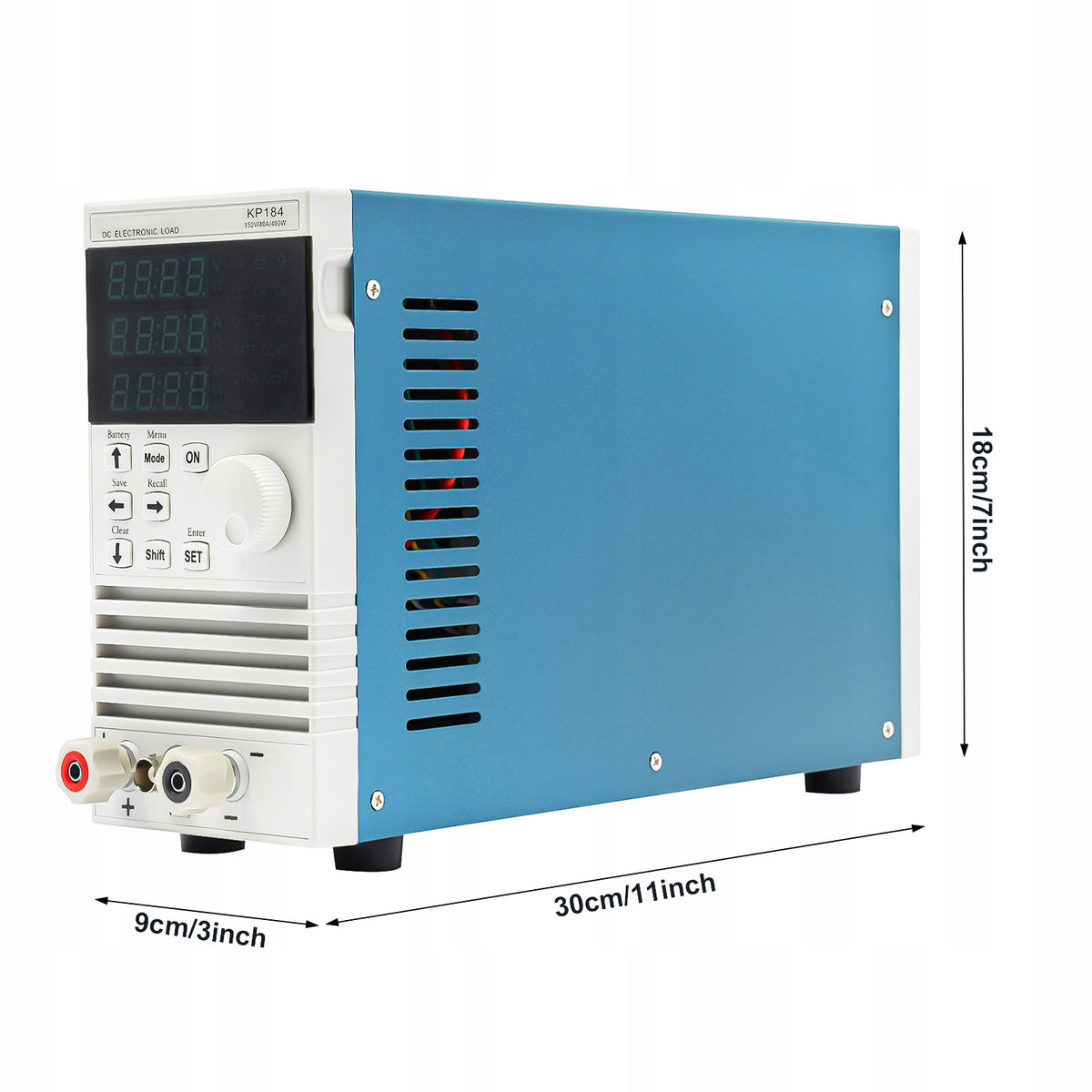

Product Dimensions: 30 x 9 x 18 cm/11 x 3 x 7 inches

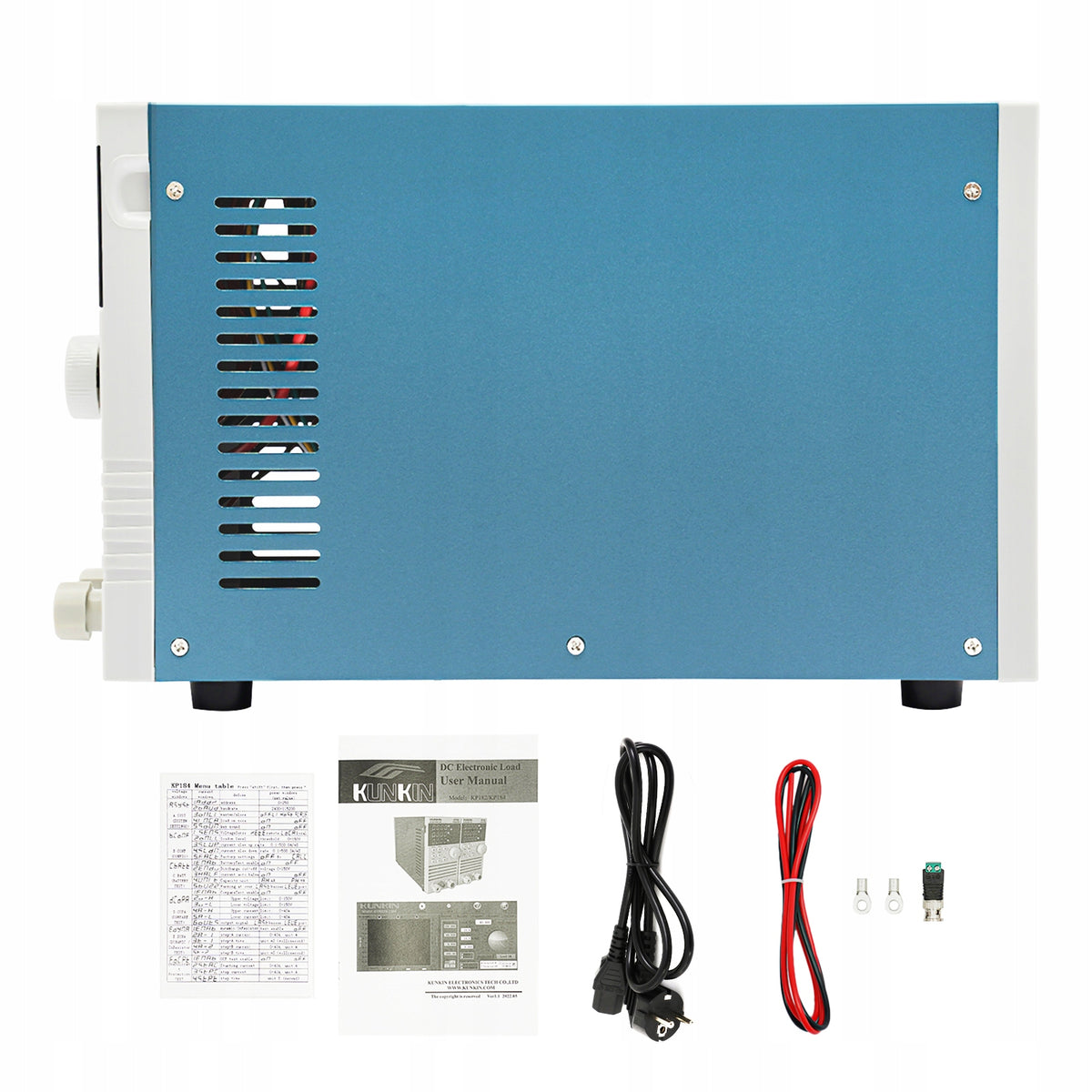

Package Content: 1 x KP184 Single Channel Electronic DC Load Tester

1 x Power Cord

1 x Remote Compensation Clamp

2 x Positive and Negative Test Clamps

2 x Test Cables

1 x User Manual in English

Notes

1. Before installation and use, please carefully read the instruction manual, paying special attention to the included safety instructions.

2. Please take into account slight differences in color caused by flash light and manual measurement error (1-3 cm). Please make sure that this does not bother you before placing your order.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	no brand
Parametry	EAN (GTIN)	6976084857585
Parametry	Manufacturer code	857585
