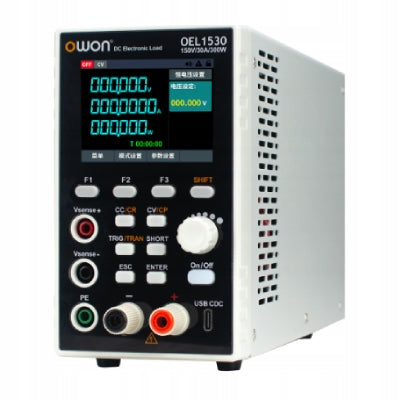

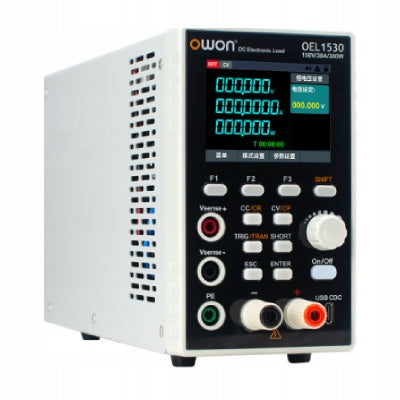

Elektroninė programuojama apkrova OWON OEL1530, 150V, 30A, 300W

Trumpai apie prekę

Prekė: Elektroninė programuojama apkrova OWON OEL1530, 150V, 30A, 300W. Kategorija: Baterijų testeriai.

• Gamintojas: Owon
• Modelis: OEL1530

Programmable electronic load OWON OEL1530 is a powerful DC measuring device, dedicated to precise tests in systems with lower voltage, but requiring high current. This model offers a range of operation enabling voltage loads up to 150 V, current up to 30 A and continuous power up to 300 W. Thanks to this characteristic, the OEL1530 is an ideal tool for testing batteries, automotive power systems, photovoltaic cells and efficient DC-DC converters. The device maintains the compact form of the OEL series, while offering advanced test functions and high stability.

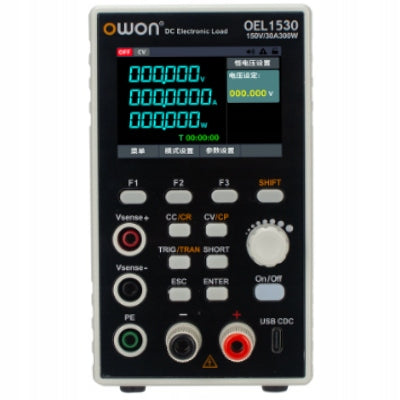

The device is equipped with a clear, 2.8-inch TFT color LCD display, which presents key parameters in real time. This model provides high resolution settings and readings, which is crucial for precise laboratory measurements. OWON OEL1530 supports four main operating modes: constant voltage (CV), constant current (CC), constant resistance (CR) and constant power (CP). In addition, the equipment offers dynamic mode up to 5 kHz, allowing you to simulate rapid load changes. Robust housing with intelligent fan cooling system ensures safe operation even at full load of 300W. Communication with the computer is carried out using standard interfaces USB Device and RS232 (with SCPI protocol support).

Parameters:

• Brand: OWON
• Model: OEL1530
• Voltage range: 0 - 150 V DC
• Current Range: 0 - 30 A
• Maximum power: 300 W
• Operating modes: CC, CV, CR, CP
• Reading resolution: 1 mV / 1 mA
• Dynamic test up to 5 kHz
• Rate of current build-up to 2 A/μs
• Display 2.8" LCD TFT
• Protections: OVP (voltage), OCP (current), OPP (power), OTP (thermal)
• Communication interfaces: USB Device, RS232 (RS485 optional)
• Power supply 100 V - 240 V AC, 50/60Hz
• Active cooling
• Dimensions: 84 x 151 x 283 mm
• Weight: approx. 2.5 kg
• Additional Features: Settings Memory, Keyboard Lock, Remote Compensation
• Optional test functions: Battery test, OCP/OPP dynamic test (depending on version/license)

Constant Voltage Mode (CV Mode)

• Adjustment range: 0 – 150 V
• Resolution: 1 mV
• Accuracy: ±(0,05% + 0,05% FS)

Constant Current Mode (CC Mode)

• Adjustment range: 0 – 30 A
• Resolution: 1 mA
• Accuracy: ±(0,05% + 0,05% FS)

Constant Resistance Mode (CR Mode)

• Adjustment range: 0,05 Ω – 7,5 kΩ
• Accuracy: ±(0,1% + 0,01% R)

Constant Power Mode (CP Mode)

• Adjustment range: 0 – 300 W
• Resolution: 10 mW
• Accuracy: ±(0,1% + 0,1% FS)

Reading parameters – measurements

• Voltage measurement: 0 – 150 VResolution: 1 mVAccuracy: ±(0,05% + 0,05% FS)
• Current measurement: 0 – 30 AResolution: 1 mADaccuracy: ±(0,05% + 0,05% FS)
• Power measurement: 0 – 300 WResolution: 10 mWDaccuracy: ±(0,1% + 0,1% FS)

Dynamic parameters

• Time T1 and T2: 0,1 ms – 50 sTime accuracy: ±15%
• Slew Rate (side): 0,001 A/µs – 2 A/µsMinimum build-up time: 20 µs

Other information

• Dimensions (width x height x depth): 84 x 151 x 283 mm
• Weight: about 2,5 kg

The set includes

• 1 x Electronic load OWON OEL1530
• 1 x Power Cord
• 1 x Fuse
• 1 x User Manual (User Manual)
• 1 x Original packaging
