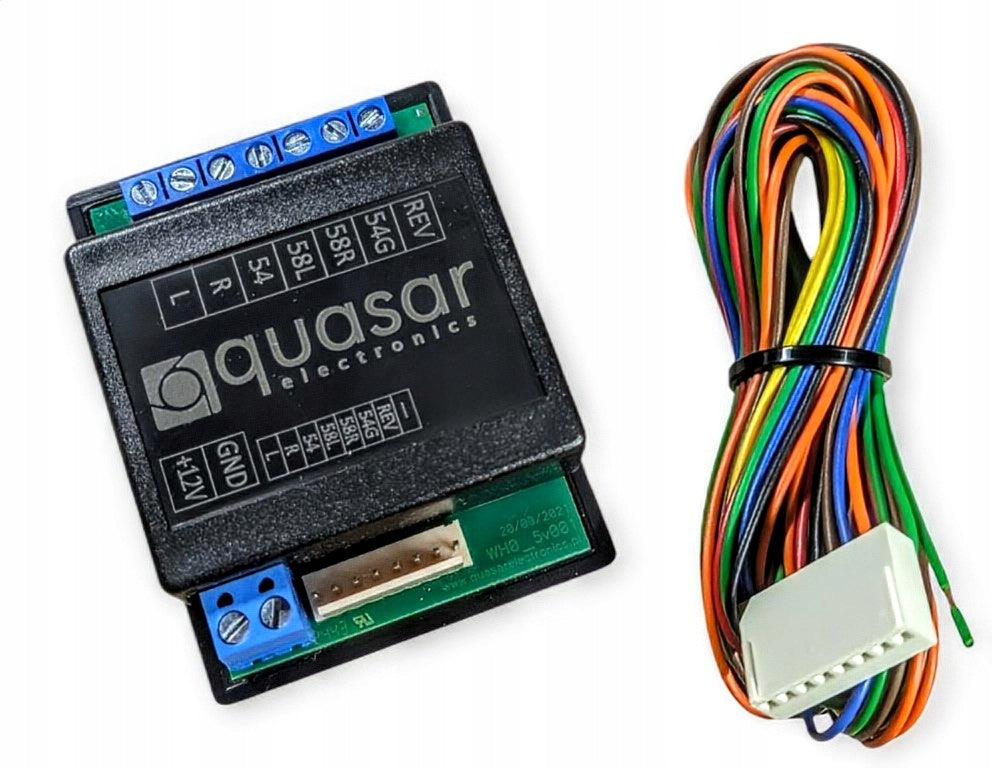

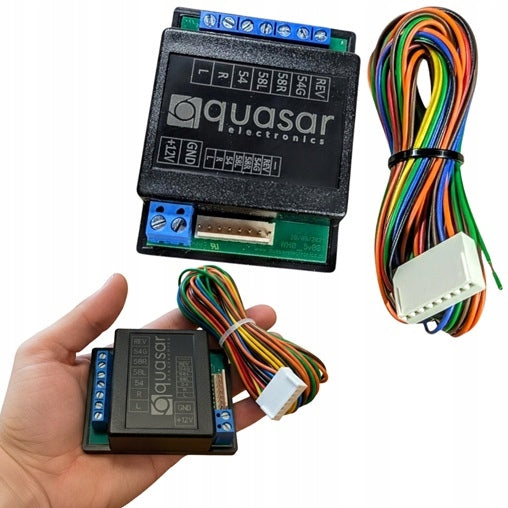

Elektroninis priekabos jungties valdiklis 7/13 PIN, lenkiškas

Trumpai apie prekę

Prekė: Elektroninis priekabos jungties valdiklis 7/13 PIN, lenkiškas. Kategorija: Laidai ir lizdai.

• Gamintojas: Quasar

Looking for an electric tow hook installation controller to power your trailer, camper, or bike rack? Choose a universal hook module that works with your vehicle's computer on all car models - including the latest ones!

UNIVERSAL TOW HOOK MODULE SUPPORTING 7 and 13 PIN SOCKETS (in the case of a 13 PIN socket, it is possible to connect backwards to 8 PIN)

APPLICATION: all vehicles

Short description:

The WH0 module is the simplest trailer lighting controller in the most economical picking.

The module is designed to connect an 8-wire trailer installation (i.e. with a reverse light) and should be used with a 13-pin socket but can be used with a 7-pin socket (then without reverse light support).

It should be noted that this module is adapted to incandescent lighting as well as LED car and works correctly with "PWM" lighting control in the car (i.e. when one cable is signaling for two lights, e.g. "stop" and "position").

The module does not load the electrical circuit of the car, because the current consumption from the beam on each of the signal inputs is about 1mA, which excludes interference with the electronic system of the vehicle. It can be connected to both vehicle installations with filament bulbs and LED. The module is the most economical solution for mounting 13-wire installations.

WHEN IS IT WORTH USING A 13 PIN BEAM?

• for towing cargo trailers
• for towing car tow trucks
• to operate bicycle rack lighting

ELECTRICAL WIRING HARNESS TECHNICAL DATA

• Manufacturer: QUASAR ELECTRONICS
• Produced in: POLAND

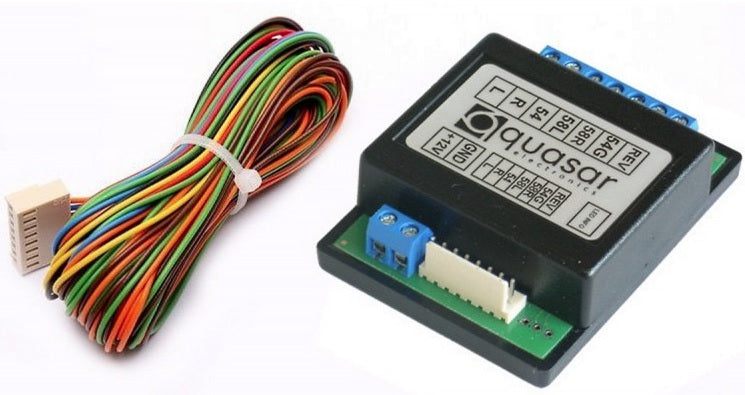

• Catalog number: WH0
• Supports socket: 7 and 13 PIN
• Supports plugins: 7 and 13 PIN !
• Supply Voltage: 10-18V
• Input Current Load: 2mA
• Approval: E20

WHAT FUNCTIONS DOES THE MODULE PERFORM?

• automatically detects trailer connection
• cooperation with CAN BUS computer
• supports reversing light (with 13 PIN socket - eighth PIN)
• supports LED lights
• supports lamps with single-fiber bulbs
• activates the trailer fog lamps
• controls the lighting of the trailer
• relieves the electrical system of the car
• does not support reversing sensors

ASSEMBLY DIAGRAM:

Very important: this kit does not include a hook socket (for connecting the trailer) or wires to the socket and power supply.

INSTRUCTIONS AND CONNECTION DIAGRAM CAN BE FOUND IN THE "ATTACHMENT" TAB ADDITIONAL INFORMATION ON THIS AUCTION (below).
