Apraksts
Trumpai apie prekę

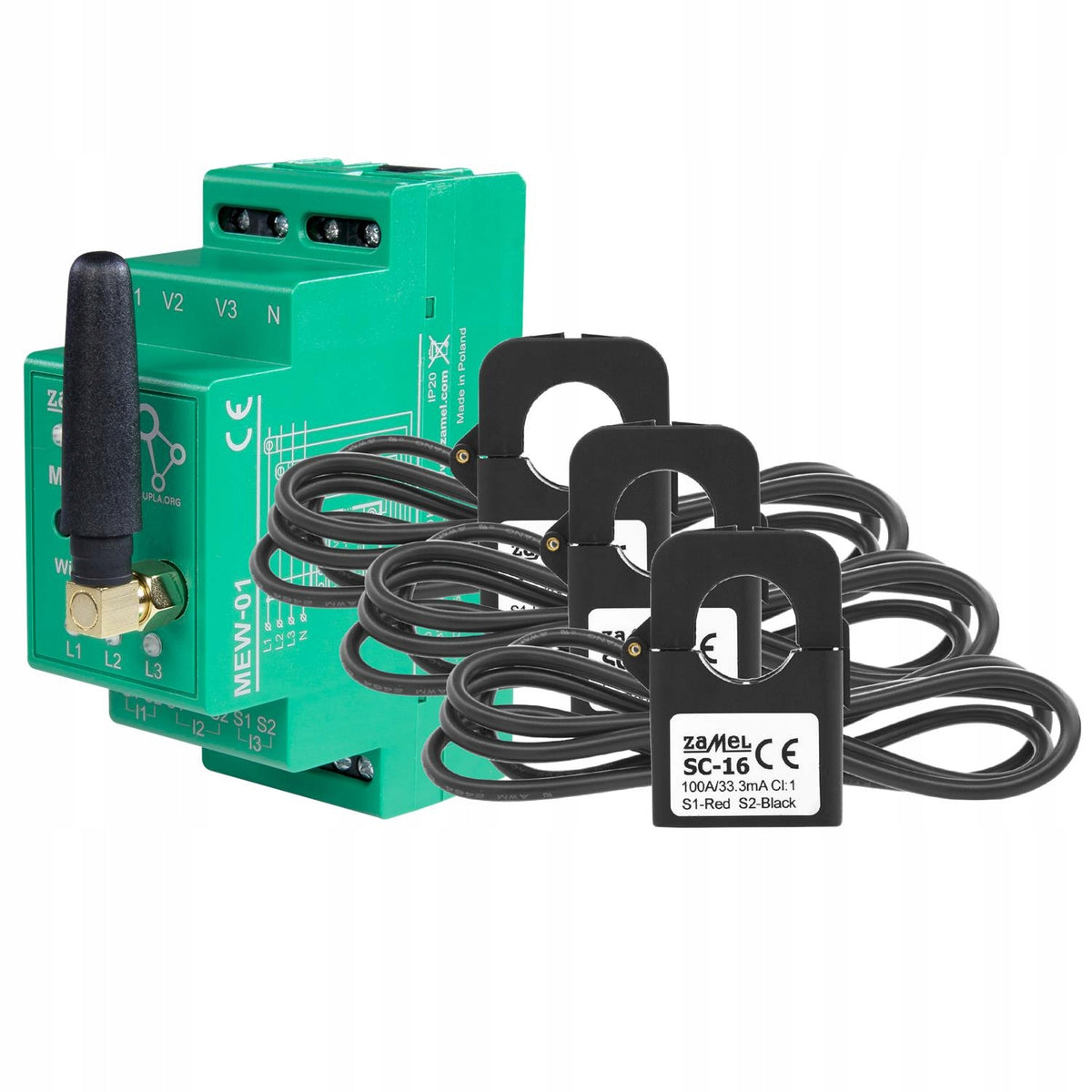

Prekė: Elektros energijos matuoklis su Wi-Fi, dvipusis, trifazis, Zamel MEW-01. Kategorija: Automatizavimo moduliai.
- Gamintojas: Supla
- Modelis: MEW-01
Producer: Zamel Brand: Supla
Manufacturer code: SPL10000009 EAN: 5903669324737
Short name: MEW-01
Housing color: Green Other: -
The MEW-01 electricity monitor allows you to control your power consumption via wireless Wi-Fi.
The MEW-01 receiver is designed for installation in distribution cabinets on the TH35 rail (DIN). The device occupies two modules. An important element is the connection of current transformers 100A (diameter of the transformer hole 16mm) and antenna (included in the set). If the antenna must be installed outside the distribution cabinet (mainly for metal switchgear), an external antenna should be used for this purpose. The antenna has a SMA connector.
It is worth noting that MEW-01 allows you to measure energy consumption also on the 1st phase.
Product Features
- Simple installation - building automation systems available on the market are usually very complex, closed and expensive. In many cases, they require installation already at the stage of construction of the facility. SUPLA devices are easy to install and configure and do not require additional wiring.
- SUPLA Community - SUPLA products have a developed community. You can share comments and ideas with other users of the system, you can look for support and inspiration in the community forum. Join thousands of satisfied users!
- Includes 3 current transformers 100 A (diameter of the transformer hole 16mm).
- Wi-Fi - all SUPLA products communicate over a wireless network. This way, you don’t have to invest in expensive building automation controllers. Wi-Fi can connect to devices from anywhere in the world. No need to worry about bringing additional communication wires to your devices.
- Measurement of electricity consumption and electricity, voltage, power on 3 phases.
- Possibility to measure electricity consumption on 1 phase.
- Everything at hand - each of us sometimes wonders whether he turned off the light, stove or kettle after leaving the house. Today you don't have to worry about it anymore. All you have to do is mount the SUPLA devices and you can immediately check whether everything that should have been turned off.
- Transferring and accessing measurement data in the cloud. Download electricity consumption reports to Excel file. Data on electricity consumption and measured network parameters (also in the form of charts) presented in the Supla application.

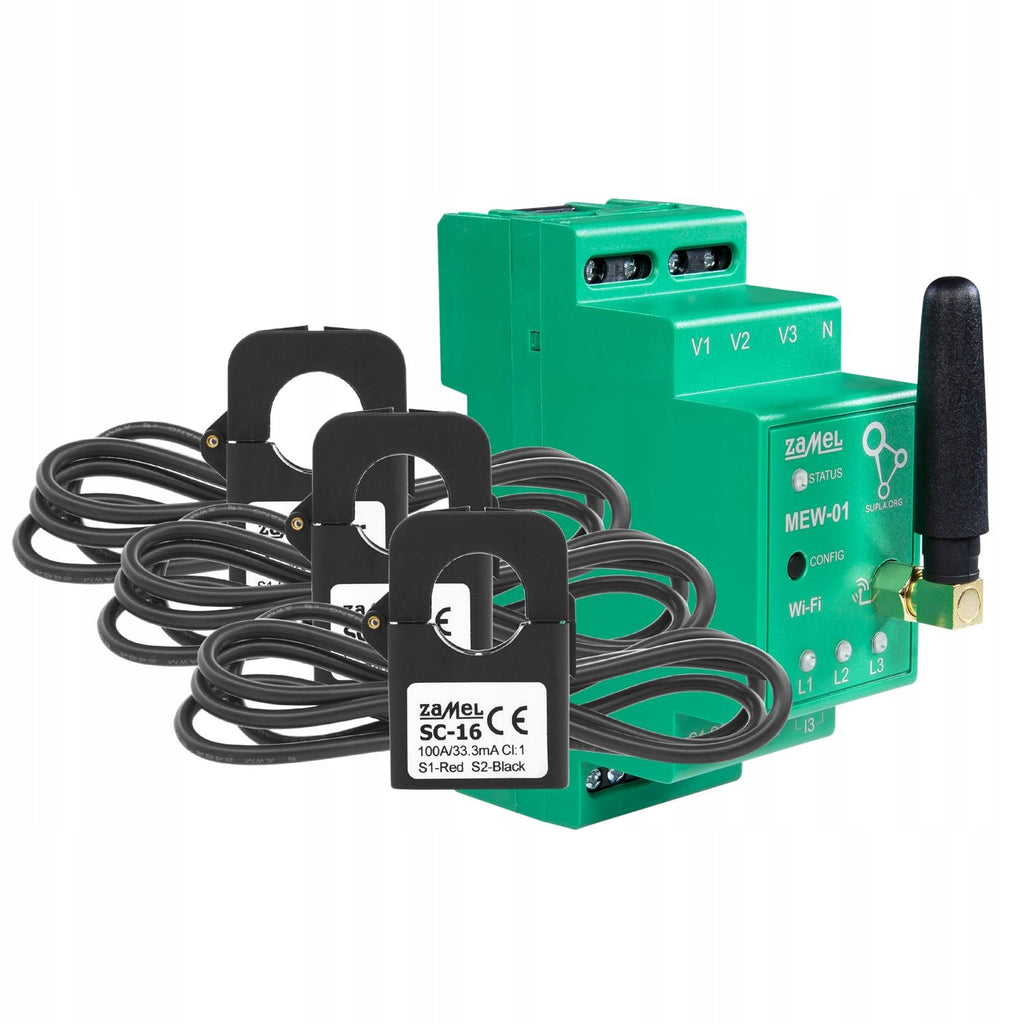

The price includes
1. Three-phase energy meter MEW-01 - 1 piece.
2. Current transformers SC-16 - 3 pieces.
3. Instructions - 1 piece.
- Manufacturer: Zamel
- Brand: SUPLA
- Series: MEW
- Functionality: energy monitor (counter)
- Short name: MEW-01
- Product code: SPL10000009
- EAN (GTIN): 5903669324737
- Power supply voltage [V]: : 3x230/400 AC
- Voltage tolerance [%]: -20÷+15
- Rated power consumption [W]: 1,5
- Number of connection terminals: 10
- Number of inputs: 3
- Cable cross-section [mm2]: to 2,5
- Housing protection degree [IP]: 20
- Number of communication channels: 1
- Range of operation : Wi-Fi coverage
- Wi-Fi transmission : 2,4GHz b/g/n
- Measurement accuracy: Class 2 (±2%)
- Energy class: 2
- Protection class: II
- Assembly method: DIN rail (TH35)
- Temperature operating range [°C]: -10÷+55
- Housing color: green
- Width [mm]: 35
- Diameter [mm]: -
- Number of modules occupied [17,5mm]: 2
- height [mm]: 90
- Depth [mm]: 66
- Weight [g]: 370
- Packaging depth[mm]: 63
- Weight with packaging [g]: 430
Transformers
- Nominal primary current [A]: 100
- Nominal secondary current [mA]: 0,1-33,3
- Color of the transformer housing: black
- Transformer width [mm]: 18
- Diameter of transformer [mm]: -
- Number of modules occupied [17,5mm]: 2
- transformer height [mm]: 45
- Depth of transformer [mm]: 14
- Weight of transformer [g]: 90
- Compliance with standards : EN 61010-1, EN 50581.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | switch |
| Parametry | Series | MEW-01 |
| Parametry | Power supply | mains |
| Parametry | Communication | WiFi |
| Parametry | Brand | Supla |
| Parametry | Number of communication channels | 1 |
| Parametry | Additional features | WiFi connection |
| Parametry | Product weight with unit packaging | 0.5 kg |
| Parametry | Manufacturer code | MEW-01 |
| Parametry | EAN (GTIN) | 5903669324737 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
