Elektros energijos matuoklis ZAMEL LEW-02, 1 fazės, 100A, 230V

Trumpai apie prekę

Prekė: Elektros energijos matuoklis ZAMEL LEW-02, 1 fazės, 100A, 230V. Kategorija: Išoriniai moduliai.

• Gamintojas: no brand
• Modelis: 410126184

Producer: Zamel Brand: Supla

Manufacturer code: SPL10000043 EAN: 5903669492191

Short name: LEW-02

Housing color: Green Other: -

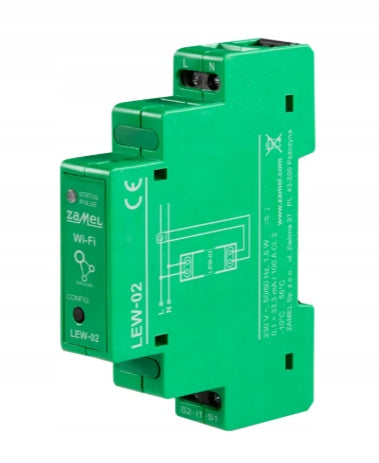

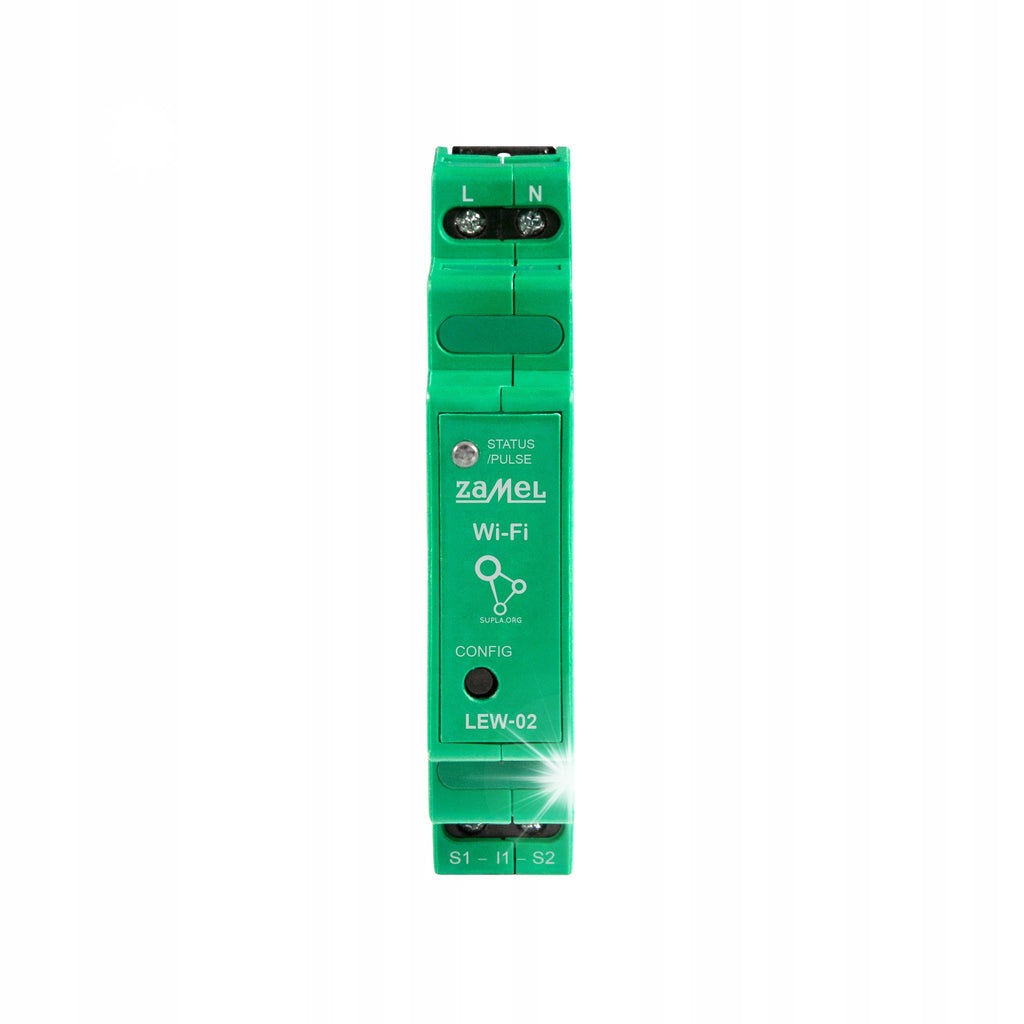

Designed for DIN rail mounting (TH-35), the LEW-02 electrical energy monitor is a device designed to measure and analyze electrical energy parameters on single-phase circuits. This monitor performs two-way semi-indirect measurement, which makes it suitable for use in both lighting and socket circuits of significant power or single-phase photovoltaic installations. The device works in the Supla smart home system offering the functionality of wireless Wi-Fi communication. The data is presented in the Supla application, which is easy to use, and can also be exported to xlsx, ods, csv and html files or other software as part of the MQTT integration. We can also analyze charts from the Supla Cloud dashboard, where advanced reports and charts are available.

LEW-02 is a two-way device that records data related to the energy collected and returned.

Product Features

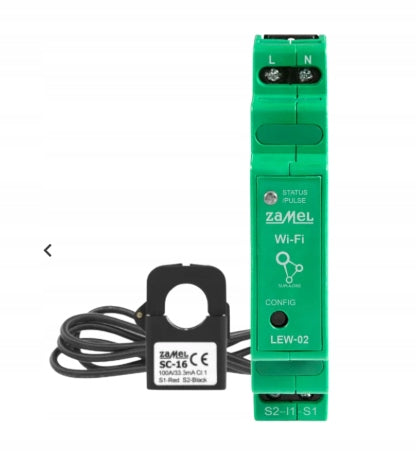

• Semi-indirect measurement – using SC-16 current transformer.
• For monitoring single-phase circuits.
• Two-way monitor – also suitable for single-phase photovoltaic installations.
• DIN rail mounting (TH-35) - width of one module.
• Data analysis in Supla or Supla Cloud with export capability.
• Extensive integration capabilities via the MQTT protocol.
• Working with Home Assistant.
• Ability to analyze in Grafana, Zabbix, Power BI.
• Voltage aberration (monitoring of voltage spikes).
• The ability to read data by API, using direct links.
• ZAMEL quality - thousands of satisfied users is the best recommendation.

• Manufacturer: Zamel
• Brand: SUPLA
• Series: LION
• Functionality: Electricity Monitor
• Short name: LEW-02
• Product code: SPL10000043
• EAN (GTIN): 5903669492191
• Power supply voltage [V]: 230 AC
• Voltage tolerance [%]: -20 ÷ +10
• Rated power consumption [W]: 0,8
• Relay contact parameters: -
• Maximum output load capacity [A]: -
• Number of connection terminals: 4
• Number of inputs: -
• Cable cross-section [mm2]: to 2,5
• Housing protection degree [IP]: 20
• Number of communication channels: 1
• Range of operation : Wi-Fi coverage
• Wi-Fi transmission : 2,4GHz b/g/n
• Energy class: 2
• Protection class: II
• Assembly method: DIN rail (TH35)
• Temperature operating range [°C]: -10÷+55

• Housing color: green
• Width [mm]: 17,5
• Diameter [mm]: -
• Number of modules: 1
• height [mm]: 90
• depth [mm]: 66
• Weight [g]: 52

• package depth[mm]: 22
• Weight with packaging [g]: 65

• Compliance with standards: EN 61010-1, EN 50581
