Apraksts
Trumpai apie prekę
Prekė: Elektros energijos skaitiklis Shelly Pro 3EM-3CT63. Kategorija: Automatizavimo moduliai.
- Gamintojas: Shelly
- Modelis: PRO 3EM-3CT63
Manufacturer: Shelly
Product Code: Pro3EM3CT63
Specification:
- Manufacturer: Shelly
- Manufacturer code: Pro3EM3CT63
- Dimensions: Shelly Pro 3EM-3CT63: 94 × 19 × 69 mm; Shelly 3CT63: 14 × 54 × 26 mm
- Weight: Shelly Pro 3EM-3CT63: 62 g; Shelly 3CT63: 32 g
- Assembly: Shelly Pro 3EM-3CT63: DIN rail; Shelly 3CT63: Phase wire mounting
- Housing material: Plastic
- Housing color: White
- Working temperature: -20°C to 40°C
- Moisture: 30% - 70% RH
- Maximum working height: 2000 m
- Power supply: 100-260 V AC, 50/60 Hz
- Power consumption: < 3 W
- External protection: Characteristics of the circuit breaker: B or C, Maximum rated current: 16 A, Minimum shutdown capacity: 6 kA, Energy limitation class: 3
- AC voltage: 100 - 260 V (accuracy ±1%)
- AC current: 0 - 63 A (accuracy ±1% for 2 - 63 A, ±2% for 1 - 2 A, ±5% for 0 - 1 A)
- Compatible current transformers: 3CT63
- Power measurement: Active and apparent
- Energy measurement: Active, apparent, power factor
- Minimum load for channel calibration: 500 W
- No-load threshold: 30 VA per channel
- Data storage: 60 days in 1-minute resolution
- Data export: CSV for PQ value, JSON by RPC
- Wi-Fi: 802.11 b/g/n (2,4 GHz), RF power < 20 dBm
- Range: up to 30 m inside buildings, up to 50 m outside
- Bluetooth: 4.2, RF power < 4 dBm
- Range: up to 10 m inside buildings, up to 30 m outside
- Communication protocol: KNX, Modbus, MQTT, HTTP, WebSocket
- Microcontroller: CPU: ESP32-D0WDQ6; Flash memory: 16 MB
- Software features: Support webhooks (20 with 5 URLs per action); Scriptable (mjS); TLS encryption for incoming calls

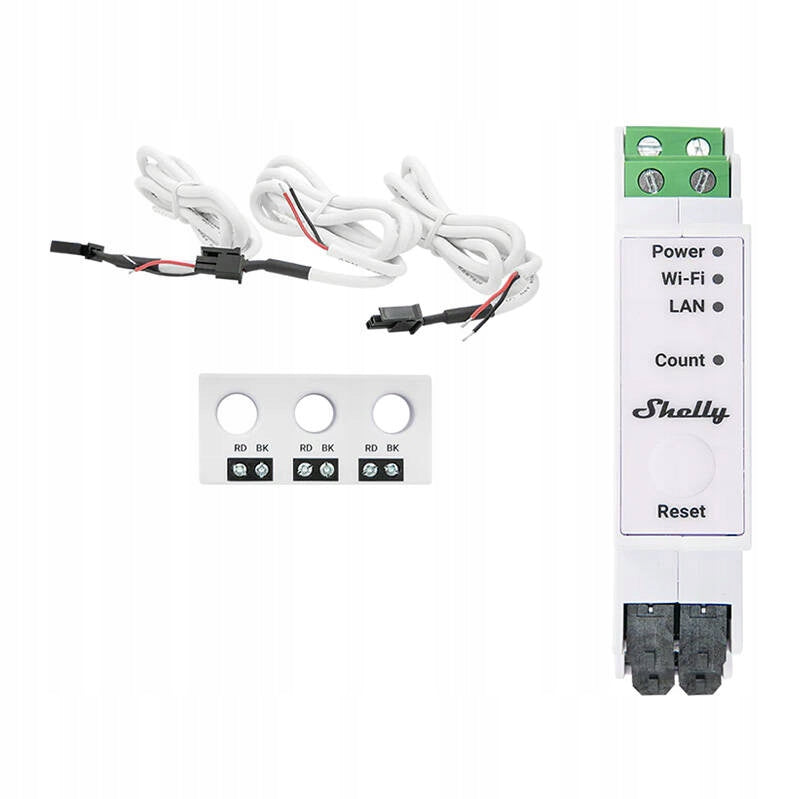

Included:
- Shelly Pro 3EM-3CT63 Energy Meter
- Shelly 3CT63 3-Phase Current Transformer
- User manual
1/3-way Shelly Pro 3EM-3CT63 WIFI Electricity Consumption Meter
In modern homes and enterprises, effective energy management means not only savings, but also convenience and greater environmental awareness. Shelly Pro 3EM-3CT63 is a professional electricity meter that provides accurate real-time power consumption data. With support for LAN, Wi-Fi and Bluetooth, it can work independently on the local network or work with home automation systems. It is a comprehensive solution for businesses and private users who want to monitor and optimize their energy consumption. Download the Shelly Smart Control app and take control!
Precise measurement and storage of data
Shelly Pro 3EM-3CT63 allows you to measure voltage, current, active and apparent power for each phase separately. With its 4-quadrant measurement, the meter is suitable for both standard installations and renewable energy systems. The data is stored in the device's memory for 60 days, and the built-in real-time clock ensures accurate event marking, even in the event of an Internet outage.
Easy installation and operation

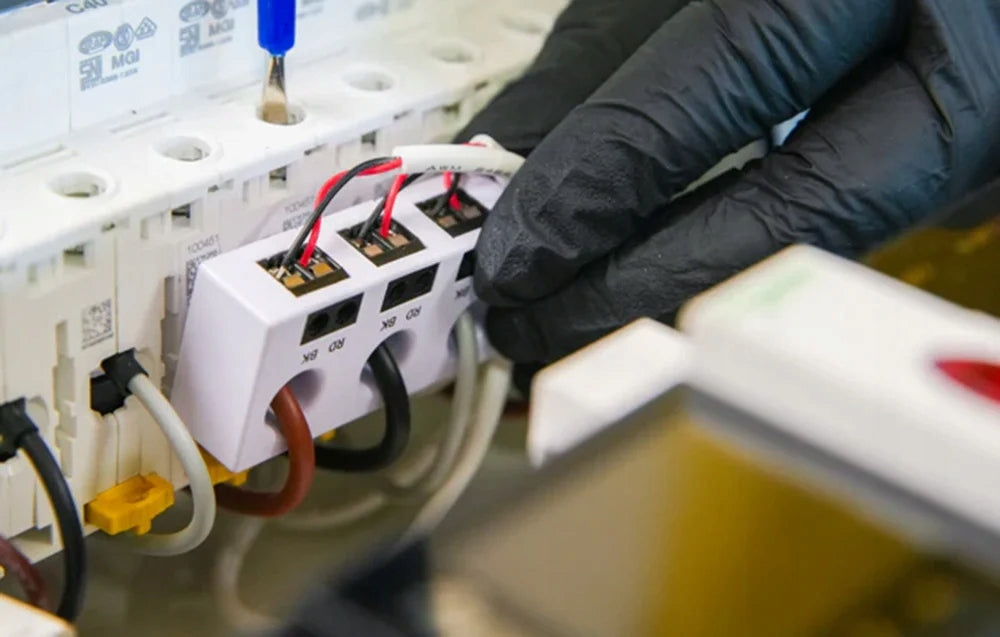

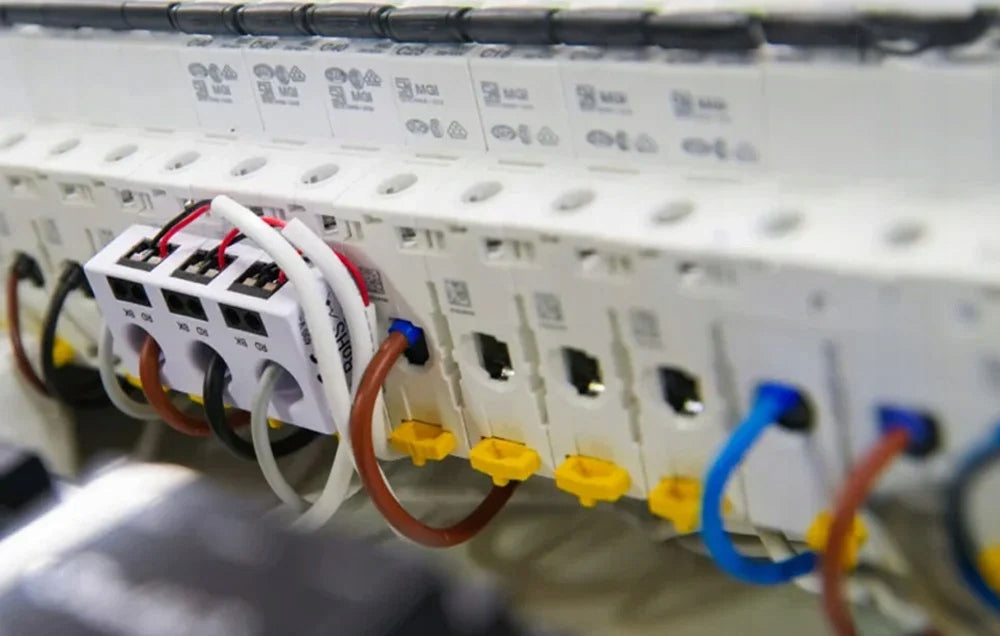

The device is designed for DIN rail mounting and supports both single- and three-phase installations. The measurement is carried out using special current transformers, which allows for non-contact reading of energy consumption. Thanks to the possibility of cooperation with an additional Shelly Pro Add-on module (not included), you can control external contactors, which allows for automatic load management.
Applications in Home and Business
Shelly Pro 3EM-3CT63 is the perfect solution for homeowners and businesses alike. In domestic applications, it can be used to monitor energy consumption by electric vehicle chargers, photovoltaic systems or the entire household. In business, it will work as a tool for managing electricity consumption in commercial buildings, production plants and data centers, helping to optimize energy costs.
Advanced integration and automation
With support for KNX, Modbus, MQTT and WebSocket standards, Shelly Pro 3EM-3CT63 can be easily integrated into building and smart home management systems. The ability to export data in CSV and JSON format facilitates the analysis of energy consumption, and scripting allows you to create custom automations tailored to the individual needs of users.
Free Shelly Smart Control App
Shelly Smart Control is a free application that allows you to fully manage Shelly devices, monitor energy consumption and control costs in real time. Thanks to the clear interface, you can track the operating parameters of individual devices, create automations and receive notifications about energy anomalies. The app works on smartphones and computers, and access to Shelly Cloud allows you to remotely control the installation from anywhere.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | control panel |
| Parametry | Series | Relais Pro |
| Parametry | Power supply | mains |
| Parametry | Communication | WiFi |
| Parametry | Brand | Shelly |
| Parametry | Number of communication channels | 1 |
| Parametry | Additional features | WiFi connection |
| Parametry | Product weight with unit packaging | 0.1 kg |
| Parametry | Manufacturer code | PRO 3EM-3CT63 |
| Parametry | EAN (GTIN) | 3800235268193 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
| Parametry | Certificates of conformity | CE |
