Elektriskais ģenerators 3500W, invertora, 230V, vara tinums

Trumpai apie prekę

Prekė: Elektros generatorius 3500W, inverterinis, 230V, varinė apvija. Kategorija: Elektros generatoriai.

• Gamintojas: HEXWELT
• Įtampa: 230 V

MOBILE POWER SOURCE WHERE YOU NEED IT

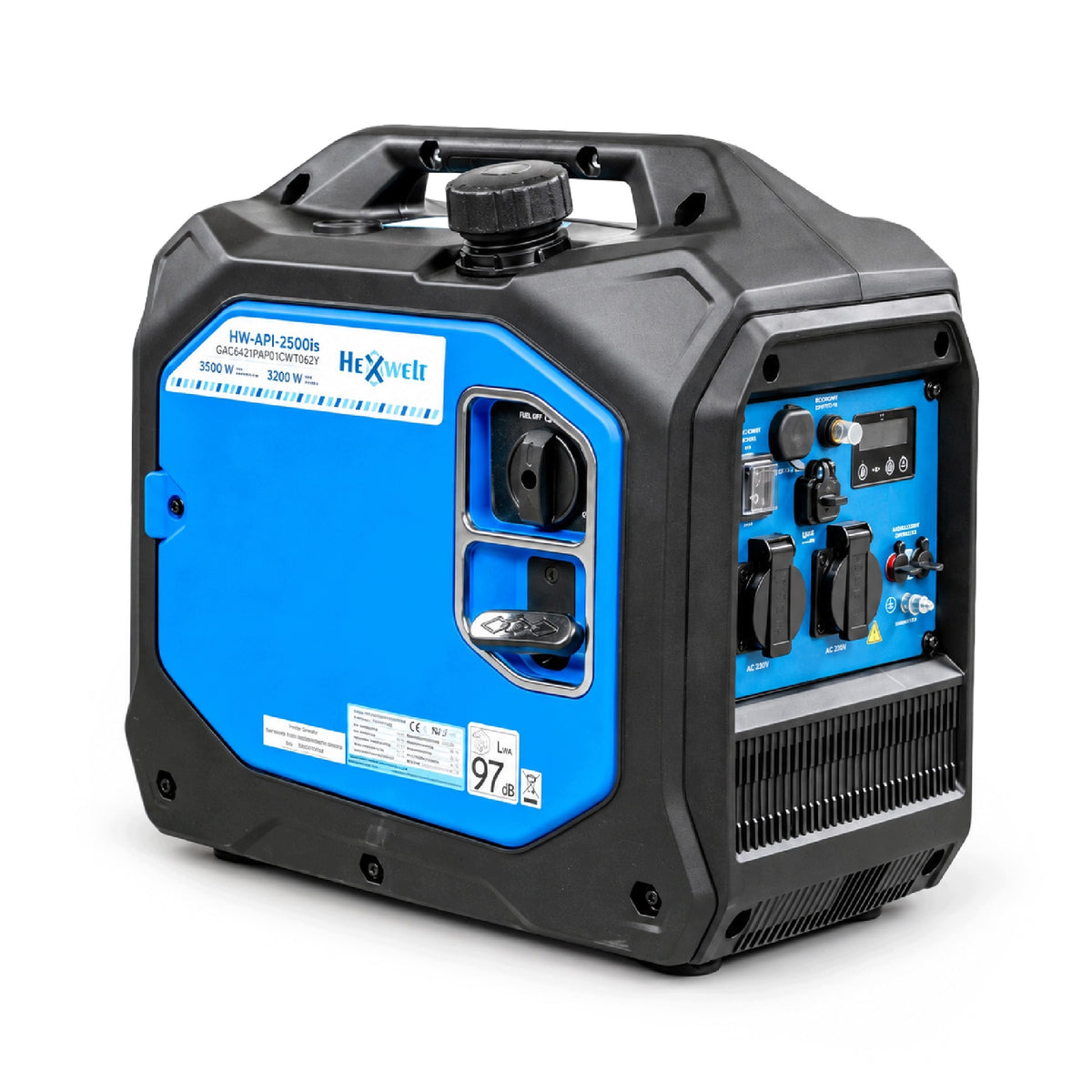

HEXWELT HW-API-2500is is a petrol generator set with inverter technology, designed for convenient access to energy outside the permanent electrical system.

Thanks to the maximum power of 3500 W, a functional connection panel and a compact design, it will work well in the field, on the plot, in the workshop and during trips.

It is a practical solution for users who want to power the devices they need where there is no access to a traditional outlet.

Greater mobility, specific power and independent energy source always at hand.

Technical data of HEXWELT HW-API-2500is

• Parameter: Value
• Brand: HEXWELT
• Model: HW-API-2500is
• Type: Inverter petrol generator
• Maximum power: 3500 W
• Nominal power: 3200 W
• Engine: Four-stroke
• Engine capacity: 181 cm³
• Capacity of fuel tank: 4,8 l
• AC sockets: 2 × 230 V
• USB ports: USB, USB-C
• DC output: 12 V / 6 A
• Startup: Manual
• Oil capacity: 0,45 l
• Recommended oil classes: 10W30, 10W40, 15W30, 15W40
• Equipment: Display, fuel gauge, DC protection, parallel operation connectors
• Net weight: 23,9 kg
• Gross weight: 25,8 kg
• Package dimensions: 52 × 32 × 49 cm

Important: Before connecting the receivers, the voltage and frequency on the rating plate of a specific unit must be verified and the maximum permissible load must be observed.

3200 WATT POWER FOR DAILY WORK. MAXIMUM 3500 IN

Specific parameters that allow you to properly plan the power supply of devices.

HEXWELT HW-API-2500is offers 3200 W of nominal power, which is the most important parameter for standard operation of the unit, and 3500 W of maximum power, available at a momentary higher demand.

Thanks to this, you can consciously choose receivers for the capabilities of the device and better control the total load of the unit. The applied inverter technology is responsible for the electronic processing of output energy and is a modern solution in this class of devices.

When connecting the equipment, it is necessary to take into account not only its rated power, but also starting current, especially in the case of pumps, power tools and devices equipped with electric motors.

3200 W nominal power, 3500 W maximum power and greater control over the selection of connected devices.

ONE AGGREGATE. MANY POSSIBILITIES OF APPLICATION

HEXWELT HW-API-2500is gives you access to power where you don't have a traditional outlet.

It will work on the plot, during trips, in the workshop and during field work, where it can power properly selected electrical devices within the parameters of the unit.

It can also be used as an additional source of energy in emergency situations, provided that the receivers are correctly selected and the connection is secure.

Greater freedom of work and own power source exactly where it is needed.

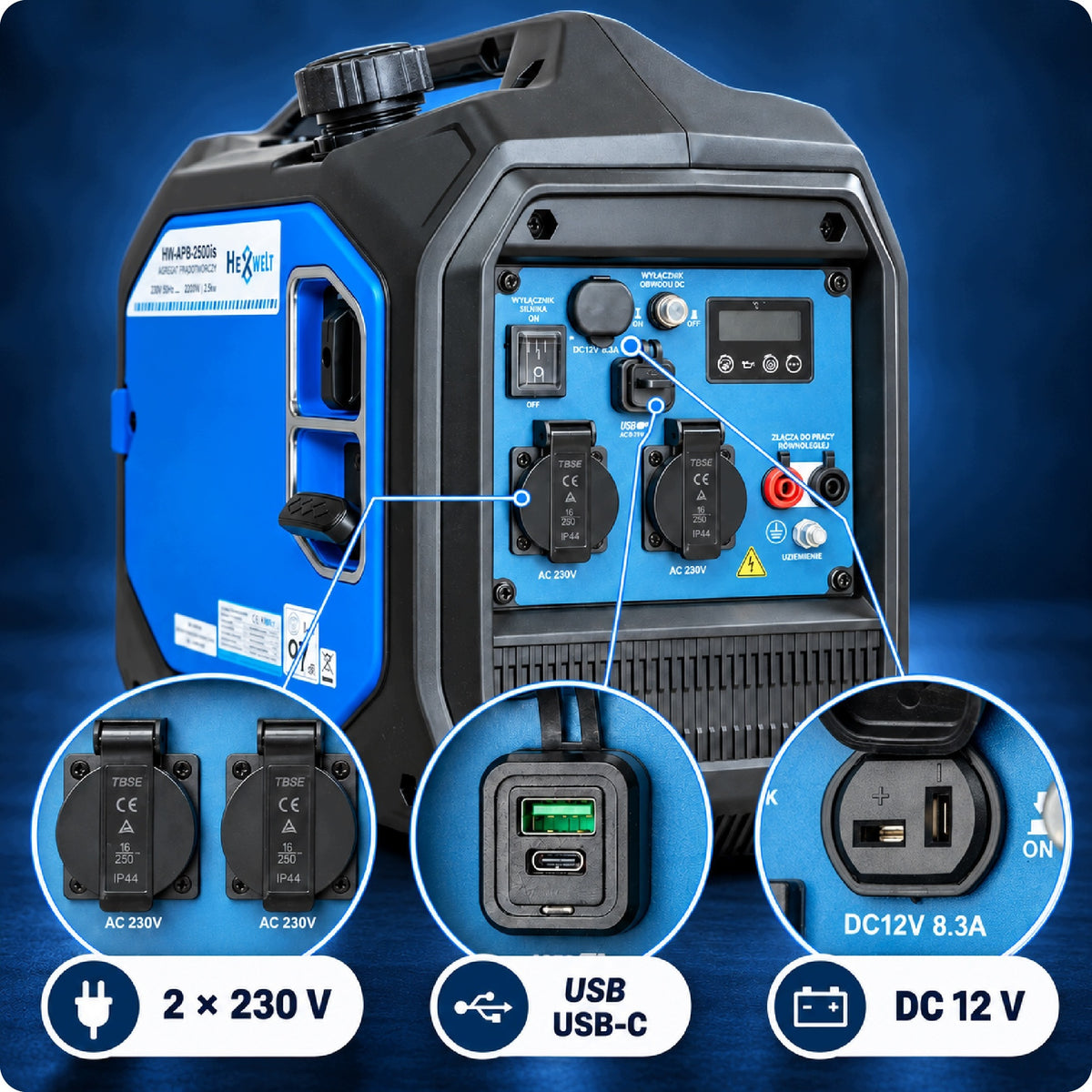

Functional panel – several connection options

HEXWELT HW-API-2500is is equipped with a set of connections that facilitates the use of various devices.

• 2 AC 230 V sockets – for connecting compatible network receivers.
• USB port – for powering and charging appropriate devices.
• USB-C port – additional possibility of connecting compatible equipment.
• DC output 12 V / 6 A – for applications compliant with output parameters.

Thanks to this, you get both traditional electrical sockets and additional low-voltage ports in one device.

Convenient access to connections means less complications when organizing a workstation.

Four stroke engine with a capacity of 181 cm³

The heart of the unit is a four stroke petrol engine with a capacity of 181 cm³.

It is a power unit cooperating with an inverter system, ensuring the generation of electricity regardless of access to the network.

The unit is equipped with a manual starter and a switch that supports FUEL OFF / RUN / CHOKE positions, which allows you to control the fuel supply and suction during start-up.

The design allows you to independently handle basic operational activities according to the instructions.

Fuel tank 4,8 l – convenient refueling and level control

Capacity of fuel tank: 4,8 liters.

The unit is equipped with solutions facilitating everyday use:

• Fuel level indicator – allows you to control the amount of fuel in the tank.
• Strainer in the infusion – helps to stop larger contaminants during refueling.
• Fuel filler cap – provides access to the tank.

You don’t have to guess how much fuel is left. You can check its level and plan the supplement accordingly.

The actual operating time on a single refueling depends, among other things, on the load and operating conditions.

Mobile design – easier transport and storage

Net weight: 23,9 kg.

HEXWELT HW-API-2500is has a closed housing with a transport handle, making it easier to move it to the desired location.

The compact form factor also makes it easy to find storage space for your device when not in use.

This is a practical solution for people who use the aggregate in different locations and do not want to be limited to one position.

PARALLEL WORK. MORE POWER SUPPLY OPTIONS

The HW-API-2500is model is equipped with connectors for parallel operation, thanks to which it is possible to combine two compatible aggregates into one system.

This practical solution allows you to increase the available power supply capabilities when one unit turns out to be insufficient. Instead of choosing a larger and heavier device right away, you can use two smaller units working together.

Greater flexibility, easier power adjustment to current needs and the ability to expand the set in the future.

Work control and additional functions

The unit is equipped with elements that increase the functionality of operation:

• Display – allows you to read the information presented by the device.
• On/off motor switch – provides access to basic control.
• DC circuit protection – is an element of DC circuit protection.
• Ground clamp – allows you to make the right connection according to the instructions.
• Connections for parallel operation – the unit is equipped with connections designed for this mode of operation. Their use requires the compatibility of devices, appropriate equipment and following the manufacturer's instructions.

Each of these elements has a specific application, and the panel has been designed so that the most important functions are available in one place.

Copper winding – element of generator construction

The aggregate uses a generator system that generates electricity then processed by inverter electronics.

The quality of the generator components is important for the operation of the device. When choosing an aggregate, it is worth paying attention to both its design and actual rated parameters.

Set with accessories – equipment for operating the device

The package includes:

• HEXWELT HW-API-2500is generator set.
• Instruction manual in 15 languages.
• Fuel funnel.
• Wires for the applications provided by the manufacturer.
• Key to candles.
• Screw.
• 2 plugins 230 V.

You get the device along with accessories to help you prepare and operate it.

Before the first start, read the instructions, replenish the required oil and fuel and check the correctness of the preparation of the unit.

HEXWELT – select equipment based on specific parameters

A good choice of aggregate starts with knowing what the device actually offers.

In HEXWELT HW-API-2500is you get nominal power of 3200 W, inverter technology, four-stroke engine, two AC sockets and additional USB and DC ports.

It is a functional unit for people who are looking for a mobile energy source and want to adjust the equipment to their actual needs.

HEXWELT HW-API-2500is – energy where you need it.

1. What is the power of HEXWELT HW-API-2500is?

The unit has a maximum power of 3500 W and a nominal power of 3200 W. When selecting devices for power supply, it is necessary to be guided primarily by the nominal power and take into account the possible increased power consumption during start-up.

2. Is the unit suitable for powering power tools?

Yes, the generator can power tools whose electrical requirements fall within its capabilities. Before connecting, check the rated power of the tool and its energy demand during start-up.

3. What does it mean that the unit is inverter?

The inverter unit uses an electronic system to process the electricity generated. It is a solution that allows you to control the parameters of the output voltage. Before connecting particularly sensitive equipment, it is necessary to check the requirements of its manufacturer and the output parameters of the unit.

4. What sockets and ports does the unit have?

The device is equipped with 2 230 V sockets, USB port, USB-C port and DC 12 V / 6 A output. This allows you to connect a variety of compatible receivers without having to use traditional power outlets.

5. What fuel is used in the aggregate and what is the tank capacity?

HEXWELT HW-API-2500is is a petrol generator. The fuel tank has a capacity of 4,8 liter. The device is also equipped with a fuel level indicator and a strainer in the infusion.

6. How much does the unit weigh and can it be moved?

The unit weighs 23,9 kg net and has an integrated transport handle. Thanks to this, it can be moved between workstations, while maintaining appropriate principles of safe lifting.

7. How does the unit start?

The device is equipped with a manual starter. The FUEL OFF / RUN / CHOKE switch allows you to set the appropriate mode when starting and running the engine. Before the first start, prepare the unit according to the instruction manual.

8. Can two aggregates be combined for parallel operation?

The HW-API-2500is has connectors for parallel operation. However, the equipment with connectors alone does not mean that any two units can be connected. Only the configuration and fittings authorised by the manufacturer should be used.

9. What is included in the set?

The set includes HEXWELT HW-API-2500is, user manual in 15 languages, fuel funnel, wires, candle wrench, screwdriver and 2 plugs 230 V. This equipment is designed to operate and prepare the device for use.
