Elektroģenerators DAEWOO GDA 7500E-3, 6,5 kW, 400 V, elektriskais starts

Trumpai apie prekę

Prekė: Elektros generatorius DAEWOO GDA 7500E-3, 6,5 kW, 400 V, elektrinis starteris. Kategorija: Elektros generatoriai.

• Gamintojas: Daewoo
• Modelis: GDA 7500E-3
• Įtampa: 380 V

GENERATOR GDA 7500E-3

GDA 7500E-3

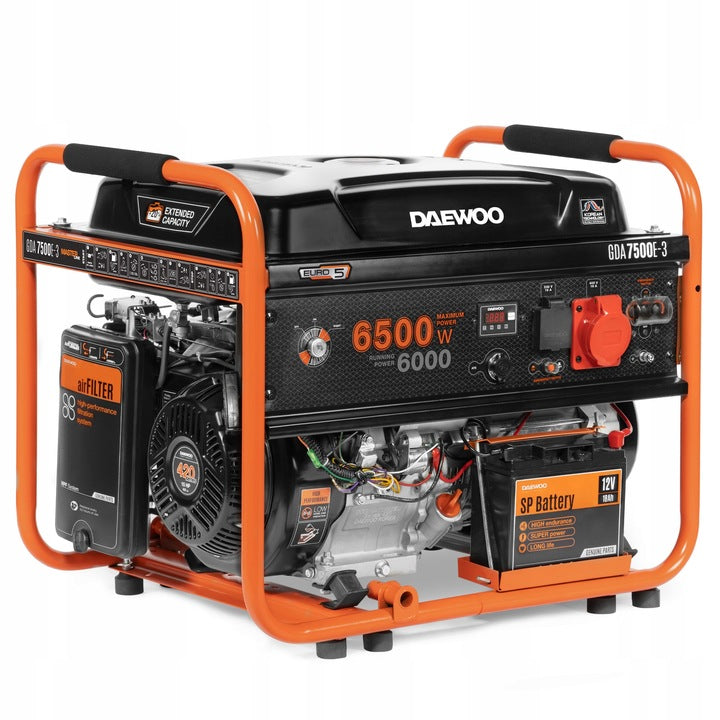

DAEWOO GDA 7500E-3 is a reliable and easy-to-use petrol generator set designed to provide electricity supply on the plot, at home or on the construction site during a primary network failure or lack of mains electricity supply.

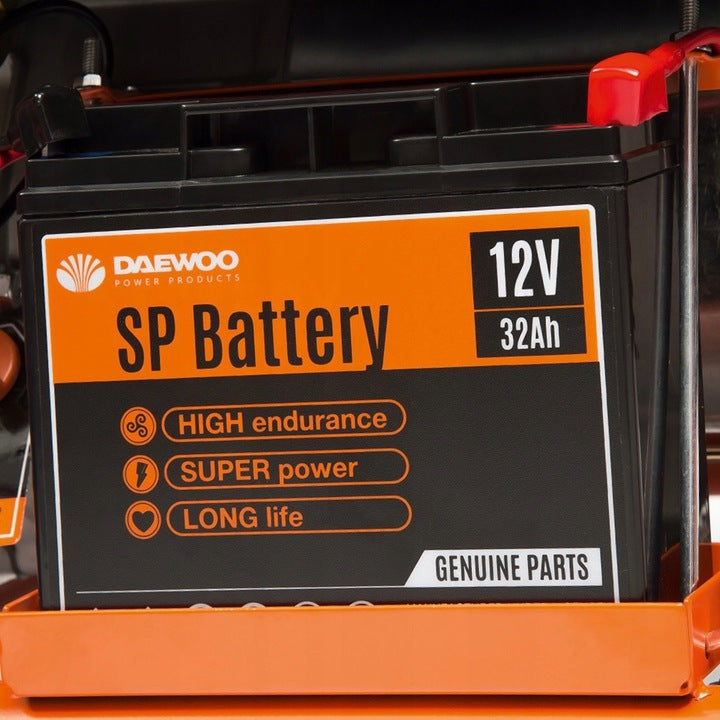

The unit is equipped with a display that allows you to control the parameters and quality of the output current, as well as a 12 V battery with a built-in starter, thanks to which the device can be started by turning the key.

GDA 7500E-3 allows you to connect three-phase receivers with a total power of 6000 W.

TECHNICAL PARAMETERS

✔ Reliable four stroke engine 420 series DAEWOO Euro 5

✔ 2 operating modes: 230 V/ 380 V

✔ Enlarged fuel tank 30 l

✔ Electric start-up

✔ Multifunction display

✔ AVR - automatic voltage stabilization

✔ Overload protection

✔ Oil level sensor

✔ Possibility to connect the SZR module (to be purchased at a separate allegro auction)

✔ Low noise and vibration

✔ Strong frame

✔ Copper winding generator

✔ Possibility of mounting a transport kit (to be purchased at a separate allegro auction)

✔ 12 V socket

RELIABLE 4-STROKE ENGINE DAEWOO

DAEWOO units are equipped with 4-stroke OHV engines. They are characterized by a long service life (over 1500 hours), which is evidenced by an extended warranty, and thus a longer period of stable operation without a decrease in power

The engine meets the EURO 5 standard, thanks to which the exhaust emissions are much lower and the use of the unit becomes more comfortable.

ELECTRIC START-UP

With a built-in electric starter and battery, the unit can be started by turning the key, without having to pull the cord.

MULTIFUNCTION DISPLAY

It indicates the most important current measurement parameters of the generator: voltage, current and frequency, as well as the load and operating time of the motor.

ENGINE AND GENERATOR COVER

Additional metal covers protect important unit assemblies from mechanical damage.

The advanced air filtration system captures dust and debris, protecting your engine from overheating.

ENLARGED FUEL TANK 30 L

It allows you to extend the time of continuous operation on one refueling to 18 hours. The tank was covered with a special matte paint resistant to corrosion and chemical influences. The built-in indicator allows you to control the fuel level.

Possibility to connect the SZR module (ATS)

The unit is compatible with the automatic reserve switching module. SZR starts the unit in the event of a power failure or voltage drop in the primary network.

Available at our other auctions

ATS15-380GDA

The DAEWOO ATS15-380GDA automatic generator set control module is designed to work with three-phase gasoline generator sets DAEWOO GDA series:

• DAEWOO GDA 7500E-3
• DAEWOO GDA 7500DPE-3
• DAEWOO GDA 8500E-3

The automation module, also called ATS (Automatic Transfer Switch) or SZR (Reserve Switching Controller), is used to automatically switch the power supply between the primary and backup sources.

In the event of a power failure or voltage drop in the primary network, the module starts the generator. After resuming the supply of electricity, the return switch to the primary power supply track takes place, and the unit is switched off and goes into standby mode.

The module also constantly monitors the voltage of the starter battery of the unit and, if necessary, switches on charging.

The device has convenient mounting wall brackets and a solid metal housing with a key.

1. Lock to protect the module from unauthorized opening
2. Operating mode switch (manual/auto)
3. Indicator of the presence of voltage in the primary network
4. Indicator of the presence of voltage at the generator output
5. Automatic mode operating indicator
6. Module overload indicator

Specifications
