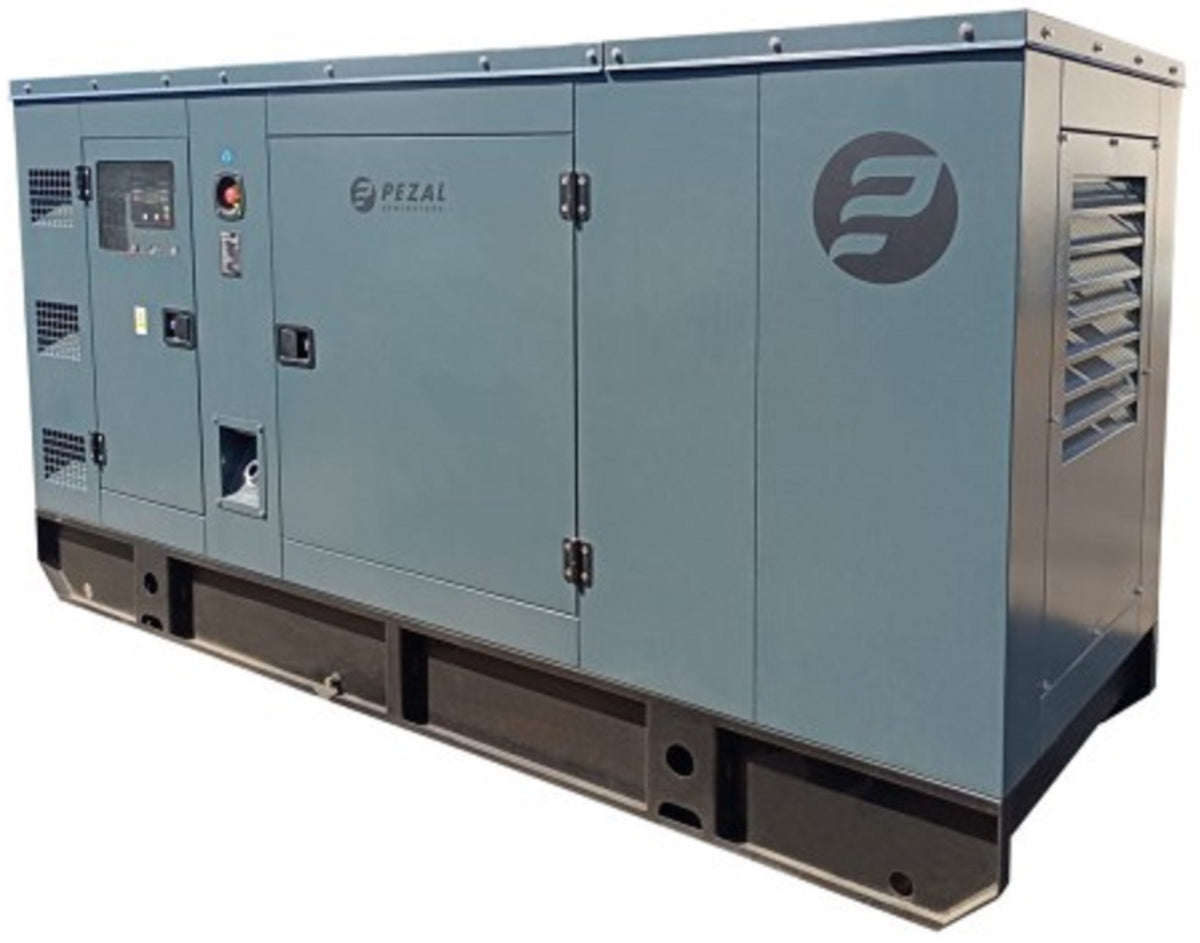

Elektros generatorius PEZAL PDE22RST3, 20 kW, 30 kVA

Trumpai apie prekę

Prekė: Elektros generatorius PEZAL PDE22RST3, 20 kW, 30 kVA. Kategorija: Elektros generatoriai.

• Gamintojas: Pezal
• Modelis: PDE22RST3

• Aggregate housing made of steel protected against corrosion by phosphating, powder coating. Colour grey RAL7016
• Service door and fuel filler cap closed with a key.
• Aggregate adapted to cooperate with the SZR system (Self-activation of the reserve).
• Battery buffer charger with mass disconnect lever.
• Electric cabinet heater with control panel and motor block heater for reliable start-up.

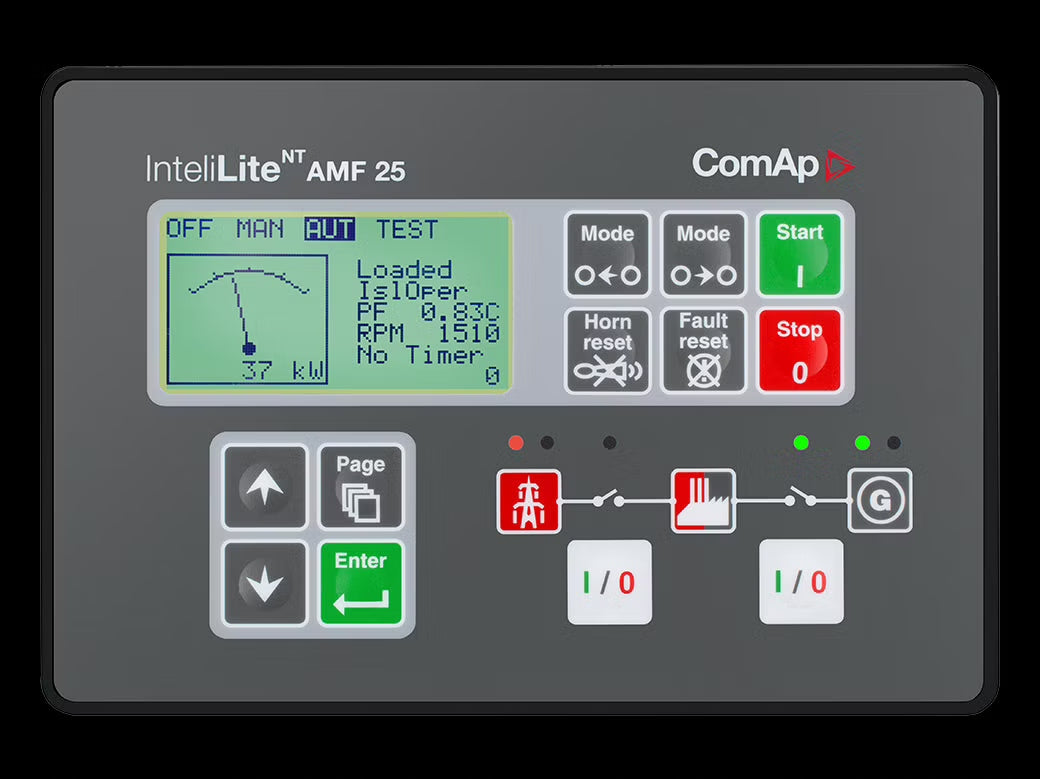

• Modern microprocessor control panel ComAp with transparent display LCD and menu in Polish, monitoring the operating parameters of the engine, aggregate, network, fuel level, list of events.

GENERAL PARAMETERS:

• Maximum LTP power (cosφ=0.8): 24 kVA / 19 kW
• Rated power PRP (cosφ=0.8): 22 kVA / 18 kW
• Rated current: 32 A
• Rated voltage: 400/230 V
• Frequency: 50 Hz
• Fuel tank capacity: 50 L
• Net dimensions (LxWxH): 1900x900x1080 mm
• Aggregate weight (net): 740 kg

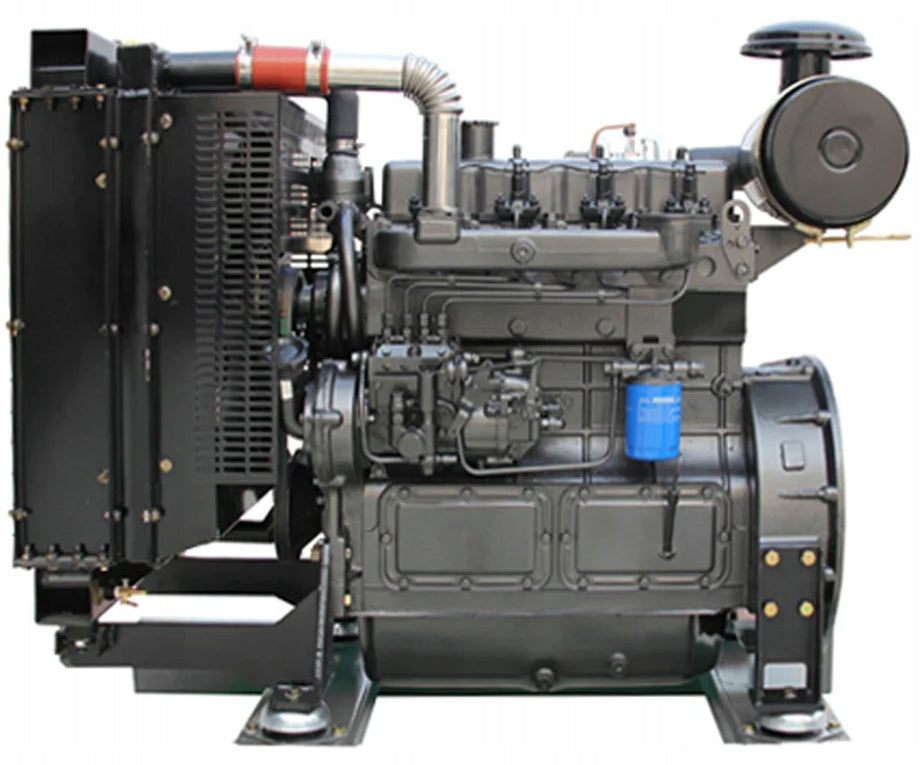

ENGINE PEZAL PD490C1:

• Emission class: Stage 2
• Execution class: G2
• Engine speed: 1500 rpm
• Number and arrangement of cylinders: 4 / row,
• Engine power supply system: direct injection
• Max. exhaust gas temperature: 600 °C
• RPM stabilization: electronic
• Type of fuel: Diesel / ON - DIESEL
• Rotation control range: 0 - 1 %
• Capacity: 2.5L
• PRP power (ISO 3046): 21 kW
• Electrical installation: 12 VDC

GENERATOR PEZAL PPA183-18A

• Type of generator: PMG synchronous brushless
• Number of poles / connection type: 4 / star
• Environmentally resistant winding: moist / salty
• Isolation class of windings: H
• Degree of protection: IP23
• Voltage regulation: electronic - AVR
• Voltage stability: ± 1.5 %
• THD content (no load): < 2 %
• Efficiency: 84.9 %

Features of the PEZAL aggregate:

• made in Poland
• Maximum power 24 kVA
• four-pole brushless generator with digital AVR
• three-phase synchronous unit
• four-cylinder, slow-speed Diesel engine with electronic regulator
• muted, built-in construction
• manual or automatic start ATS/SZR (optional)
• working time on a full tank at 100% load 12 hours
• large possibilities of expanding the configuration on request

• FUEL:
• Type of fuel: ON - DIESEL
• Fuel tank capacity: 70L
• Working time on a full tank at 100% load: 11,9 h
• Fuel consumption at 100% load: 5,9 l/h
• Fuel consumption at 75% load: 4,6 l/h
• Fuel consumption at 50% load: 3,0 l/h

●MAINTENANCE

●Periods between oil changes

motorised:

first after 100 mth / next every 500

mth

●Periods between fluid exchanges

refrigerated:

first after 1000 mth / next every 1000

mth

●Replacement of fuel filter:

first after 500 mth / next every 500

mth

●Replacement of oil filters:

first after 100 mth / next every 500

mth

●Replacement of air filter:

first after 500 mth / next every 500

mth
