Elektros instaliacija priekabos jungčiai 7 pin, 200 cm, DGH

Trumpai apie prekę

Prekė: Elektros instaliacija priekabos jungčiai 7 pin, 200 cm, DGH. Kategorija: Laidai ir lizdai.

• Gamintojas: DGH

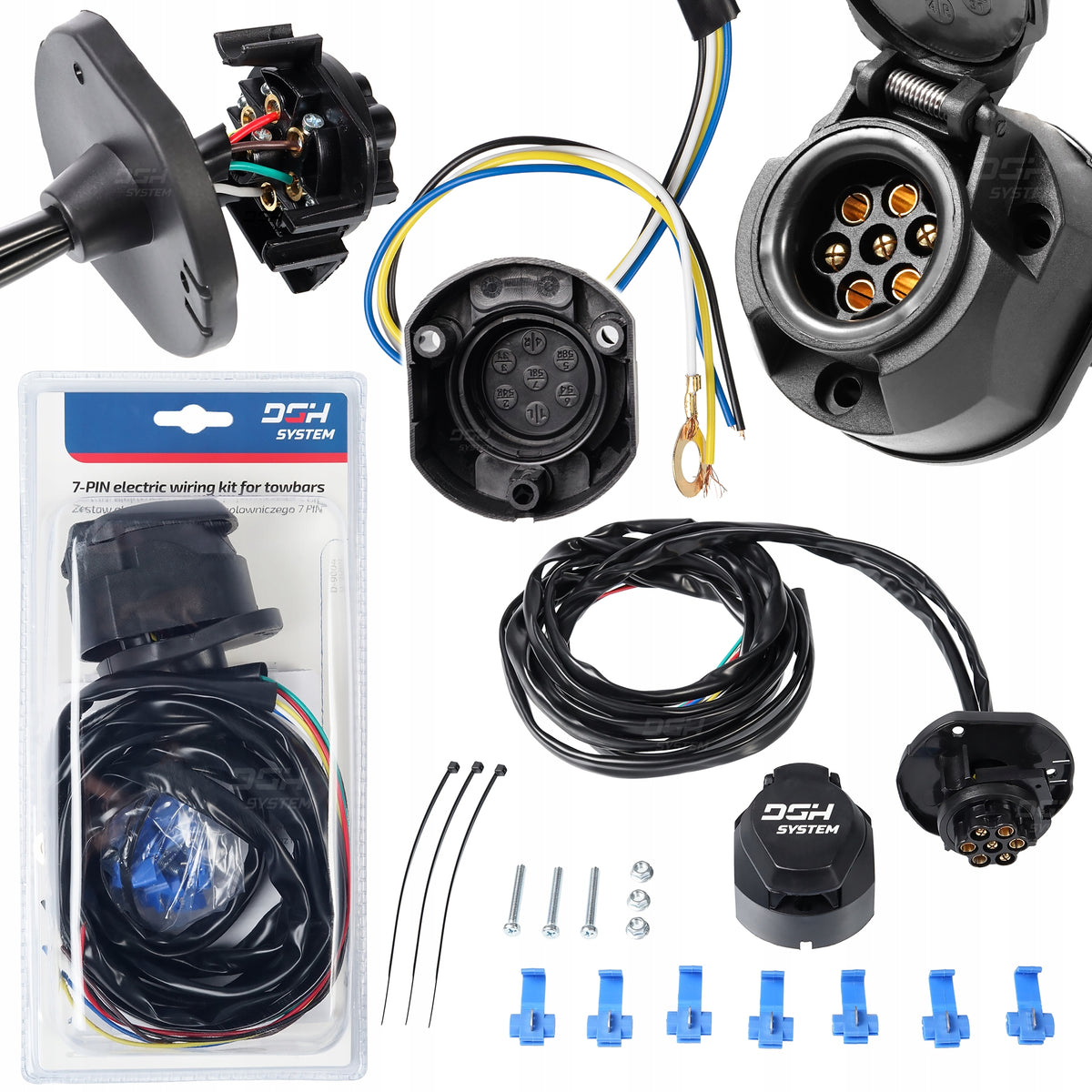

Complete universal electrical harness of the towing hook with 7-pin socket DGH SYSTEM

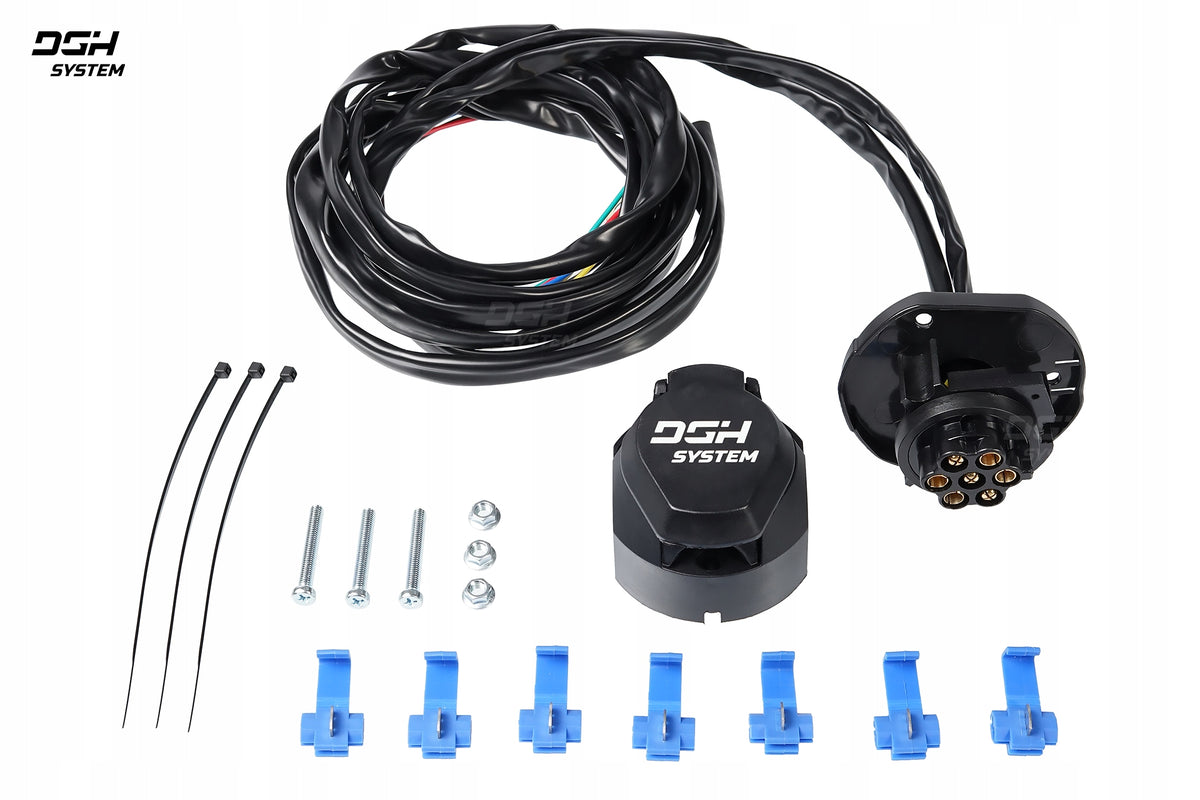

Contents of the set

• Beam: 1 × bundle with wires 200 cm long
• Socket: 1 × 7-pin trailer socket (ISO 1724)
• Seal: 1 × gasket under the socket, protecting against moisture ingress
• Quick couplers: 7 × terminal blocks for quick connection of wires
• Bolts and nuts: 3 × bolts with nuts to attach the socket
• Clamp bands: 3 × clamp bands for attaching the beam
• Other: 1 x Multilingual Assembly Instructions

Product characteristics

• Complete 7-pin beam (ISO 1724)

  Ready-to-install electrical installation for cargo trailers with a GVW of up to 750 kg, not equipped with a reversing light.

• Factory connected wires to the socket

  All wires are already attached to the appropriate socket pins, which greatly facilitates installation and reduces its time.

• Division of the beam into two sides

  The cables are carried out in two separate covers – left and right side of the vehicle:

  Left: left direction indicator, left position, fog position, mass,

  Right: right direction indicator, right position, stop light

• Individually insulated wires

  Each cable has its own insulation made of flexible PVC, resistant to abrasion, moisture and temperature fluctuations.

• Protective covers (feeds)

  Separate cables protect the wires from mechanical damage and facilitate their handling.

• 7-pin socket with gasket

  Solid socket made of durable weather-resistant plastic, with a gasket under the socket protecting against moisture ingress.

• Quick couplers for wires

  The set includes 7 quick couplers for safe and quick connection of the harness to the electrical system of the car.

• Assembly kit

  The set includes screws with nuts for fixing the socket and 3 clamps for attaching the harness to the body or factory wires of the vehicle.

• Assembly instructions

  Multilingual manual containing illustrations and detailed distribution of pins, functions and colors of wires.

• Resistance to external conditions

  The materials used in the beam ensure a long service life in road conditions – resistance to water, salt, dirt and variable temperatures.

Brief description

The 7-pin electrical harness is designed to connect the trailer's lighting system to the vehicle's electrical system.

The kit includes a complete beam with seven wires of 200 cm length, terminated with a 7-pin trailer socket (ISO 1724).

Each cable has individual insulation, and the whole is divided into two sides in separate covers, which facilitates the installation and cleaning of cables on the left and right sides of the vehicle.

The left side of the beam supports: left direction indicator, left position light, fog light and mass.

The right side includes: right direction indicator, right position light and stop light.

The kit is complemented by quick couplers, mounting hardware, and clamp ties, which allow for safe and aesthetically pleasing beam guidance in your vehicle.

Wire Fastening

An additional advantage is that the wires are already factory attached to the socket, which significantly reduces the assembly time and eliminates the risk of misconnection of pins. Thanks to this, the installation is quick, intuitive and does not require specialized tools.

Application in vehicles

The electrical harness without module is designed for vehicles where it is possible to directly connect the trailer installation to the factory lighting system of the car. This solution works well in older vehicles, not equipped with a CAN bus and electronic light control modules monitoring the load on bulb circuits.

Purpose of 7-pin beam

The 7-pin harness is used to support basic lighting of light trailers, freight trailers with a permissible gross weight of up to 750 kg, which are not equipped with a reversing light. The 7-pin standard (ISO 1724) ensures full compatibility with most trailers available on the European market.

Construction and construction

The beam consists of seven copper conductors, individually insulated with a colored PVC sheath. Each side of the beam is guided in a separate protective cover (peszel), protecting the wires from mechanical damage, dirt and moisture. The use of double cable routing (left/right side) facilitates installation and allows for aesthetic adjustment to the vehicle structure.

7-pin socket (ISO 1724)

Made of weather-resistant plastic. It provides a secure electrical connection to the trailer plug and protects the contacts from corrosion and moisture. A protective seal is attached to the socket, which additionally secures the connection from the body side. The socket provides lighting support:

• left direction indicator
• right direction indicator
• left position lamp
• right position lamp
• stop light
• fog light

Quick couplers – easy and safe installation

The use of quick couplers (clamp connectors) enables quick, durable and safe connection of wiring harnesses to the electrical system of the vehicle – without the need for soldering, stripping insulation or cutting wires.

Installation is extremely simple and does not require specialized tools. This solution ensures a stable electrical contact, protects the connection from loosening and significantly reduces the installation time of the entire beam. In addition, quick couplers allow you to perform the installation without permanent interference with the original wiring harness, making the installation aesthetically pleasing, reversible and safe.

Assembly instructions

The set comes with multilingual assembly instructions with illustrations and a clear description of the pins, functions, and colors of the wires.

Assembly instructions

• Do not run wires near the silencer/exhaust system or suspension components.
• In places where you go through the sheet metal, use edge protection (e.g. rubber grommet).
• After installation, perform a visual inspection of whether the cables are not stretched and whether the bands do not crush the wires.

Action control

• Check all lighting functions with connected trailer or 7-pin tester: turn signals, positions, STOP, fog. .
• Make sure the socket is stable, the gasket adheres well, and the bundle is securely fixed.

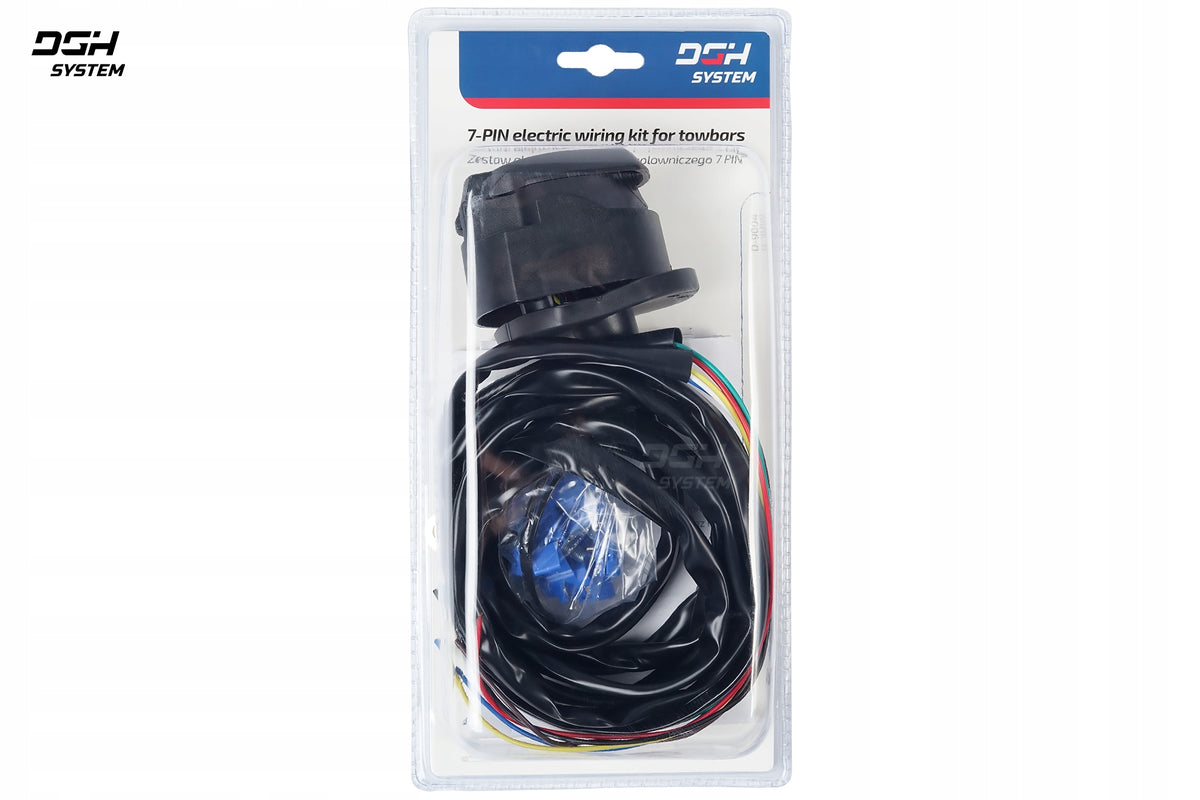

Corporate blister packaging

The whole set was placed in an aesthetic, company packaging – tightly welded and profiled blister with a euro hole, allowing convenient hanging of the product at the store display. The packaging ensures that the contents are protected during transport and storage, while also presenting the product in a clear and professional manner.
