Elektros instaliacija su 13 kontaktų Unikit 3G Protec Beam kablys

Trumpai apie prekę

Prekė: Elektros instaliacija su 13 kontaktų Unikit 3G Protec Beam kablys. Kategorija: Laidai ir lizdai.

• Gamintojas: no brand

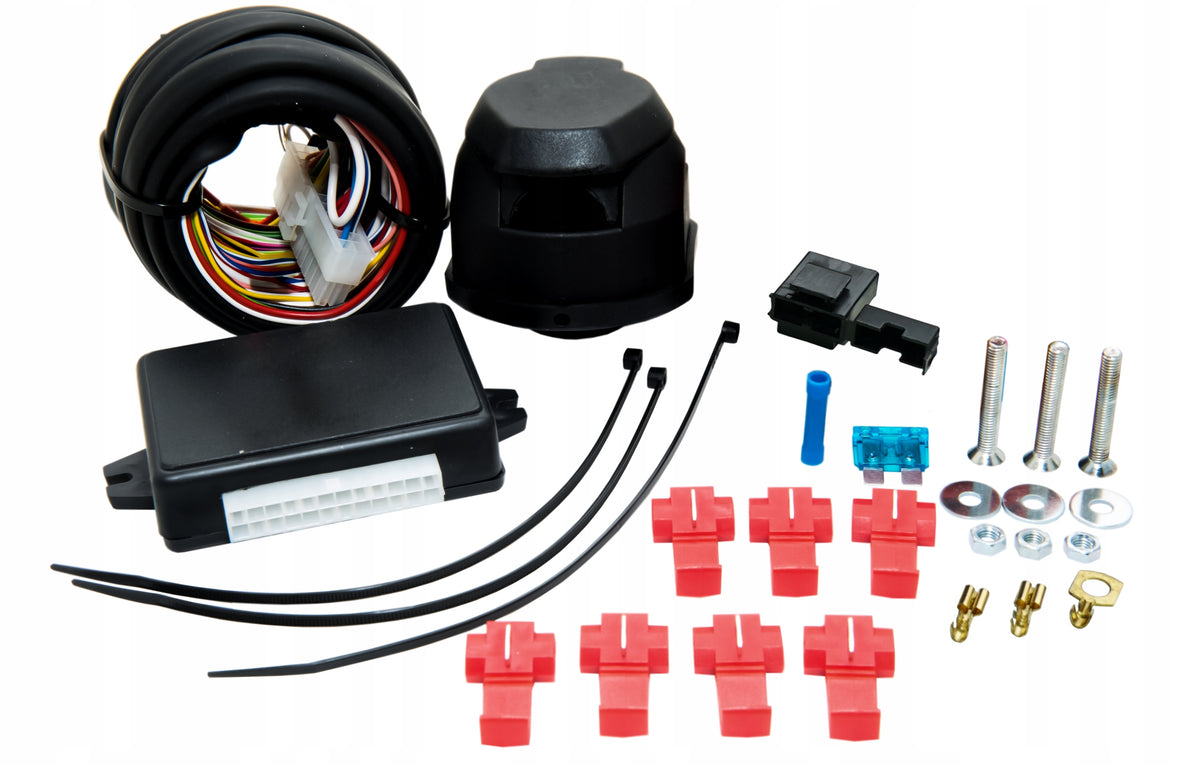

UNIVERSAL 13/8PIN HOOK ELECTRICAL MODULE WITH ELECTRIC BEAM

COMPLETE FOR ASSEMBLY

Companies

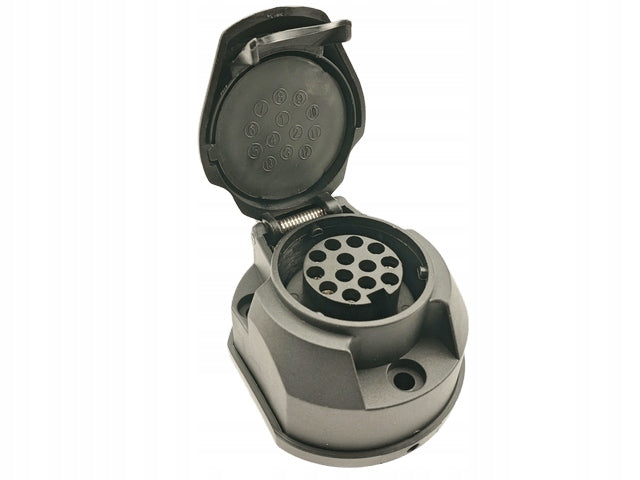

✅ SOCKET PLASTIC 13 PIN

✅ RUBBER GASKET UNDER SOCKET

✅ WIRING DIVIDED INTO RIGHT AND LEFT

✅ QUICK COUPLERS

✅ LUMINAIRE WITH FUSE

✅ CLAMPS

✅ BOLTS AND NUTS FOR FIXING THE SOCKET

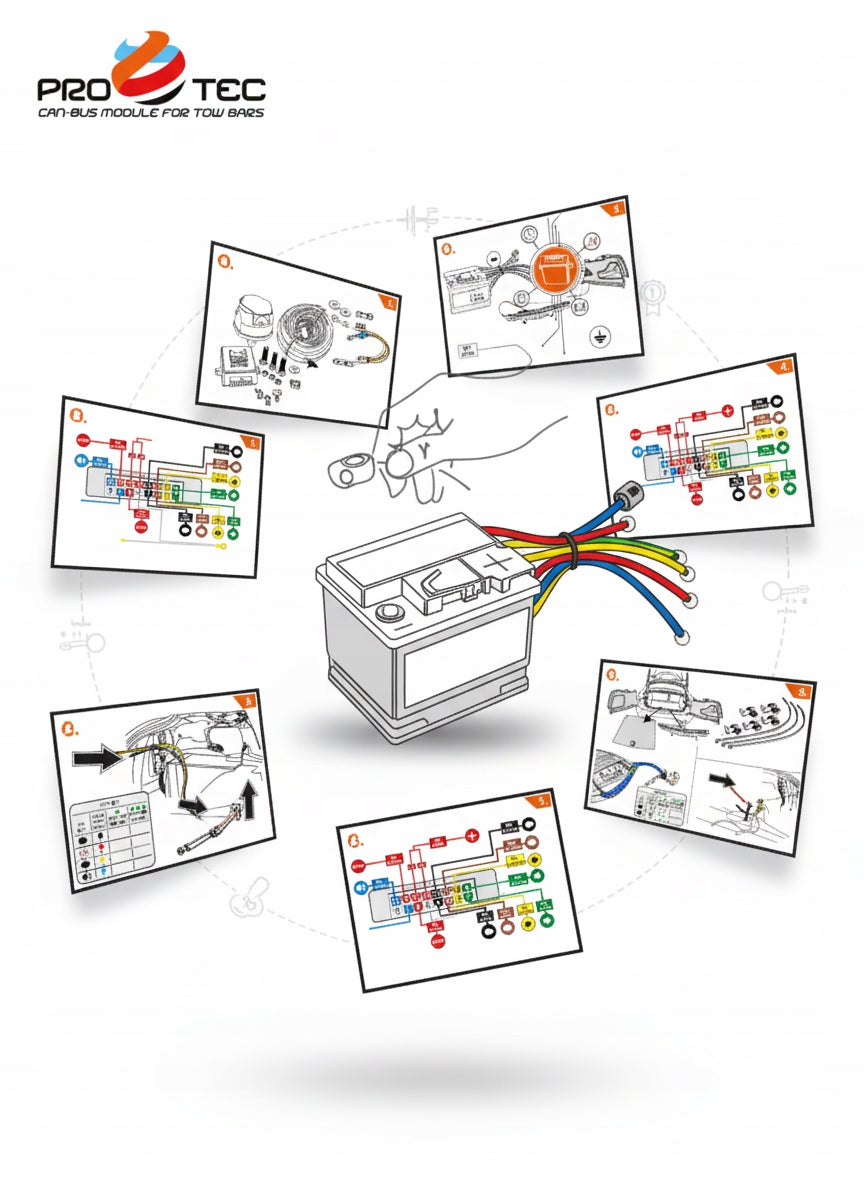

✅ CONNECTION INSTRUCTIONS

✅ VERSATILITY FOR ANY CAR WITH 12V VOLTAGE

The module is designed for lighting control trailers goods, camping, and baggage carriers platforms bicycle with connector for 13 PIN

It acts as an additional protection against possible short circuits from the side of the trailer’s electrical system.

The module can cooperate with installations in which some car lighting circuits (e.g. position/stop, position/fog) are realized on a one-fiber bulb.

The indicated electrical installation also supports the new generation flasher so-called dynamic (sequential, linear) and LED lamps.

WHAT THE HOOK MODULE GIVES US

✅ cooperation with CAN BUS

✅ controls trailer/truck lighting, also LED

✅ cooperation with vehicle and trailer LED lights

✅ supports lights with one-fiber, two-fiber bulbs

✅ does not require coding/programming

TECHNICAL DATA:

✅ Support 13 pin socket with 8 pin functions ( 13-pin socket / 8 wires): YES

✅ Cooperation with Can Bus: YES

✅ Support LED lights: YES

✅ Operation of position lights: YES

✅ STOP light support: YES

✅ Operation of direction indicator lamps: YES

✅ Cooperation with single-fiber and double-fiber lighting of the car: YES

✅ Cooperation with PDC* (mainly with added sensors)

✅ Current load of inputs below: 2mA

✅ Output load capacity: 1A

LENGTH OF WIRES

• power supply 5,5 m
• bundles for socket 1,8 m
• signals per side L=1,2 / P=3,0 m
• The set does not include previews No. 9, 10, 11, 13
