Elektros laidų komplektas 200 cm, 13 kontaktų, universalus, DGH

Trumpai apie prekę

Prekė: Elektros laidų komplektas 200 cm, 13 kontaktų, universalus, DGH. Kategorija: Laidai ir lizdai.

• Gamintojas: DGH

Complete universal electrical harness of towing hook with 13-pin socket DGH SYSTEM

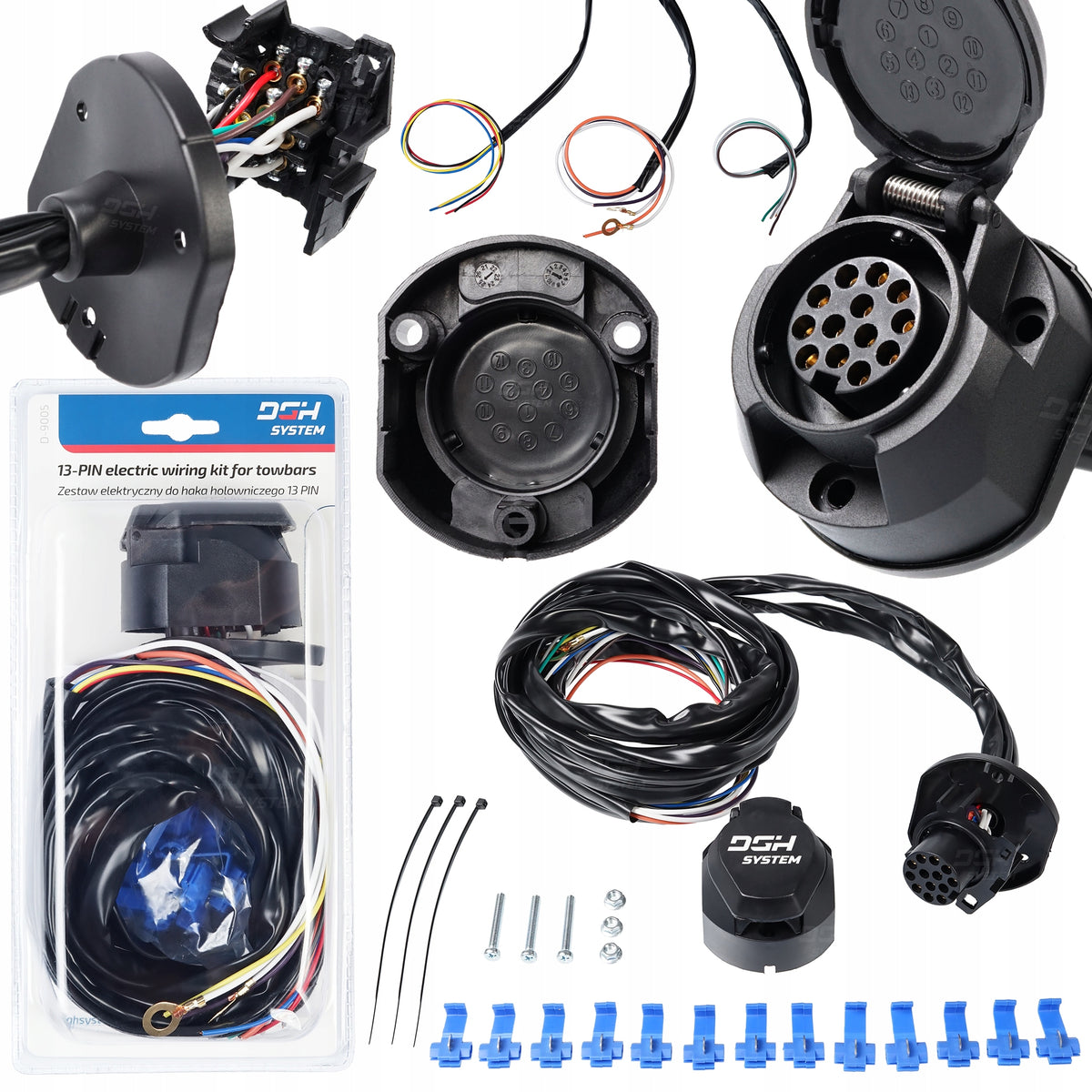

Contents of the set

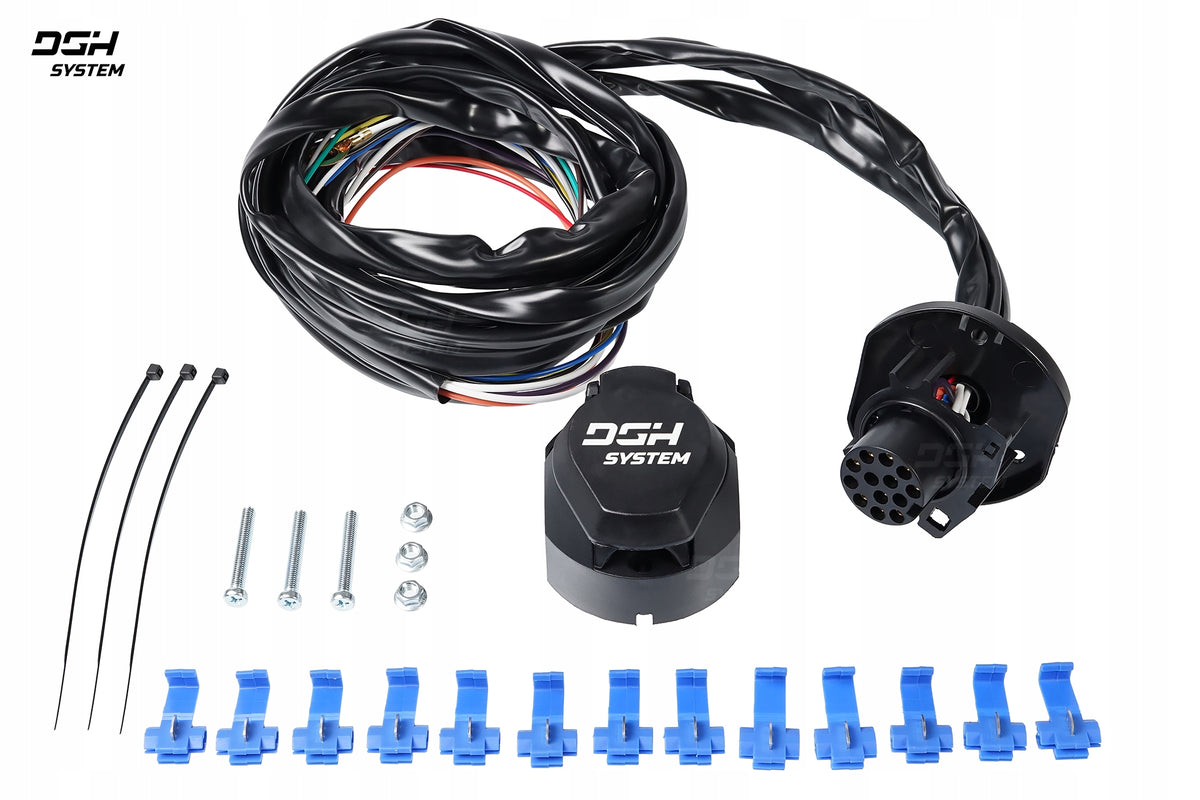

• Beam: 1 × bundle with wires 200 cm long
• Socket: 1 × trailer socket in 13-pin standard (ISO 11446)
• Seal: 1 × gasket under the socket, protecting against moisture ingress
• Quick couplers: 13 × terminal blocks for quick connection of wires
• Bolts and nuts: 3 × bolts with nuts to attach the socket
• Clamp bands: 3 × clamp bands for attaching the beam
• Other: 1 x Multilingual Assembly Instructions

Note on power cables: Installation requires retrofitting on your own in: fuses (separate for pin 9 and 10, with battery) and charging control system – VSR relay / separator or DC-DC charger.

Product characteristics

• Complete 13-pin harness (ISO 11446)

  Ready-to-install electrical installation for cargo trailers with a GVW of more than 750 kg and caravans, tow trucks and bicycle racks equipped with a reversing light. For caravans, the harness supports a fixed plus and battery charging circuit, allowing you to power your on-board devices while stationary or driving.

• Factory connected wires to the socket

  All wires are already attached to the appropriate socket pins, which greatly facilitates installation and reduces its time.

• Increased cross-sections of power cables

  The harness equipped with four thicker wires (4 × 1,5 mm²) for constant power (pin 9), charging (pin 10) and mass (pins 11 and 13) circuits ensures reliable power supply to devices in the trailer.

• Support for reversing light

  Fully compatible with the 13-pin standard, allows you to connect the reversing light and additional functions, not available in the 7-pin version.

• Division of the beam into two sides + power supply

  The cables are conducted in three separate covers – left and right side of the vehicle and power cables:

  Left: left direction indicator, left position, fog, stop light,

  Right: right direction indicator, right position, reverse light, mass

  Power cables: constant plus, charging and two masses

• Individually insulated wires

  Each cable has its own insulation made of flexible PVC, resistant to abrasion, moisture and temperature fluctuations.

• Protective covers (feeds)

  Separate cables protect the wires from mechanical damage and facilitate their handling.

• 13-pin socket with gasket

  Solid socket in 13-pin standard (ISO 11446), made of durable weather-resistant plastic, with a gasket under the socket protecting against moisture ingress.

• Quick couplers for wires

  The set includes 13 quick couplers for safe and quick connection of the harness to the electrical system of the car.

• Assembly kit

  The set includes screws with nuts for fixing the socket and 3 clamps for attaching the harness to the body or factory wires of the vehicle.

• Assembly instructions

  Multilingual manual containing illustrations and detailed distribution of pins, functions and colors of wires.

• Resistance to external conditions

  The materials used in the beam ensure a long service life in road conditions – resistance to water, salt, dirt and variable temperatures.

Brief description

The 13-pin electrical harness is designed to connect the lighting system and trailer power supply circuits to the vehicle's electrical system. The kit includes a complete bundle with wires of 200 cm length, terminated with a trailer socket in 13-pin standard (ISO 11446).

Each cable has individual insulation, and the whole is divided into three separate sections in protective pellets, which facilitates installation and cleaning of cables.

The left side supports: left direction indicator, left position light, fog light and stop light.

The right side includes: right direction indicator, right position light, reversing light and mass.

The power section contains wires for a constant plus, charging the trailer battery and additional masses, made in an increased cross-section of 1,5 mm² to ensure a stable current flow.

Wire Fastening

An additional advantage is that the wires are already factory attached to the socket, which significantly reduces the assembly time and eliminates the risk of misconnection of pins. Thanks to this, the installation is quick, intuitive and does not require specialized tools. The kit is complemented by quick couplers, mounting hardware, and clamp ties, which allow for safe and aesthetically pleasing beam guidance in your vehicle.

Application in vehicles

The electrical harness without module is designed for vehicles where it is possible to directly connect the trailer installation to the factory lighting system of the car. This solution works well in older vehicles, not equipped with a CAN bus and electronic light control modules monitoring the load on bulb circuits.

Purpose of 13-pin beam

The 13-pin harness is used to handle full lighting and power of car trailers, including cargo trailers with a permissible gross weight of over 750 kg, tow trucks, bicycle racks and caravans. The 13-pin standard (ISO 11446) provides extended functionality compared to the 7-pin version – it supports a reversing light, a fixed plus and a battery charging circuit in the trailer.

Construction and construction

The beam consists of twelve copper conductors, individually insulated with a colored PVC sheath. Each of the three sections of the beam – left, right and power – is conducted in a separate protective cover (peszel), protecting the wires from mechanical damage, dirt and moisture. The use of triple cable routing (left/right/power supply) facilitates installation and allows for aesthetic adjustment to the vehicle structure.

13-pin socket (ISO 11446)

Made of weather-resistant plastic, it provides a secure electrical connection to the trailer plug and protects the contacts from corrosion and moisture. The socket is accompanied by a gasket under the socket, which additionally secures the connection from the body side. The 13-pin standard allows you to provide full lighting (including reversing lights) and power circuits. The socket provides lighting support:

• left direction indicator
• right direction indicator
• left position lamp
• right position lamp
• stop light
• fog light
• reversing lamp

Quick couplers – easy and safe installation

The use of quick couplers (clamp connectors) enables quick, durable and safe connection of wiring harnesses to the electrical system of the vehicle – without the need for soldering, stripping insulation or cutting wires.

Installation is extremely simple and does not require specialized tools. This solution ensures a stable electrical contact, protects the connection from loosening and significantly reduces the installation time of the entire beam. In addition, quick couplers allow you to perform the installation without permanent interference with the original wiring harness, making the installation aesthetically pleasing, reversible and safe.

Assembly instructions

The set comes with multilingual assembly instructions with illustrations and a clear description of the pins, functions, and colors of the wires.

Assembly instructions

• Do not run wires near the silencer/exhaust system or suspension components.
• In places where you go through the sheet metal, use edge protection (e.g. rubber grommet).
• After installation, perform a visual inspection of whether the cables are not stretched and whether the bands do not crush the wires.

Action control

• Check all lighting functions with connected trailer or 13-pin tester: turn signals, positions, STOP, fog, reversing, fixed plus and charging circuit (if connected).
• Make sure the socket is stable, the gasket adheres well, and the bundle is securely fixed.

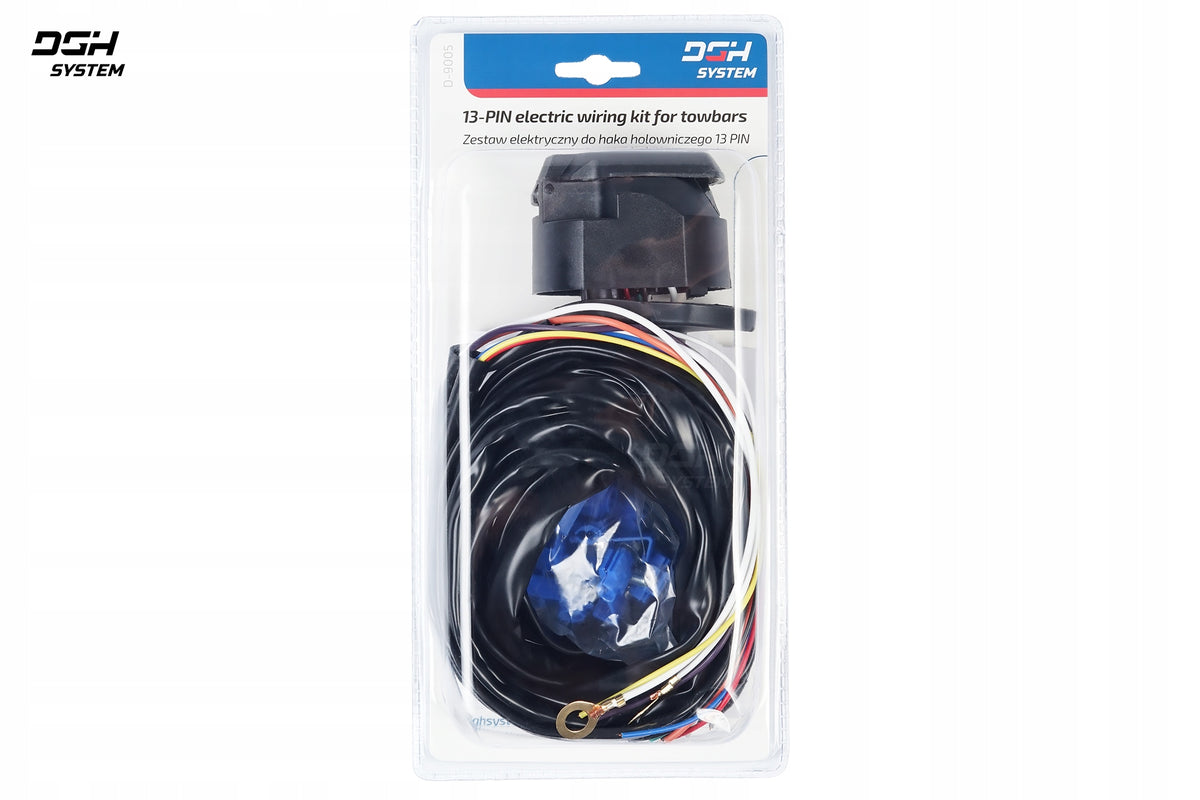

Corporate blister packaging

The whole set was placed in an aesthetic, company packaging – tightly welded and profiled blister with a euro hole, allowing convenient hanging of the product at the store display. The packaging ensures that the contents are protected during transport and storage, while also presenting the product in a clear and professional manner.

DGH SYSTEM™ – Quality, safety, convenience

DGH SYSTEM™ is a brand that focuses on functionality, reliability and modern design, creating car accessories that facilitate everyday travel and active lifestyle. Thanks to precise workmanship, durable materials and attention to detail, our products guarantee reliability, comfort and complete safety on every route.

Our solutions are intuitive to use, easy to install and adapted to the real needs of drivers, so that you can enjoy the freedom of travel without unnecessary complications.

At DGH SYSTEM™, we believe that travel matters. That’s why we create equipment that gives you complete freedom, intuitive operation and safety – wherever you go.
