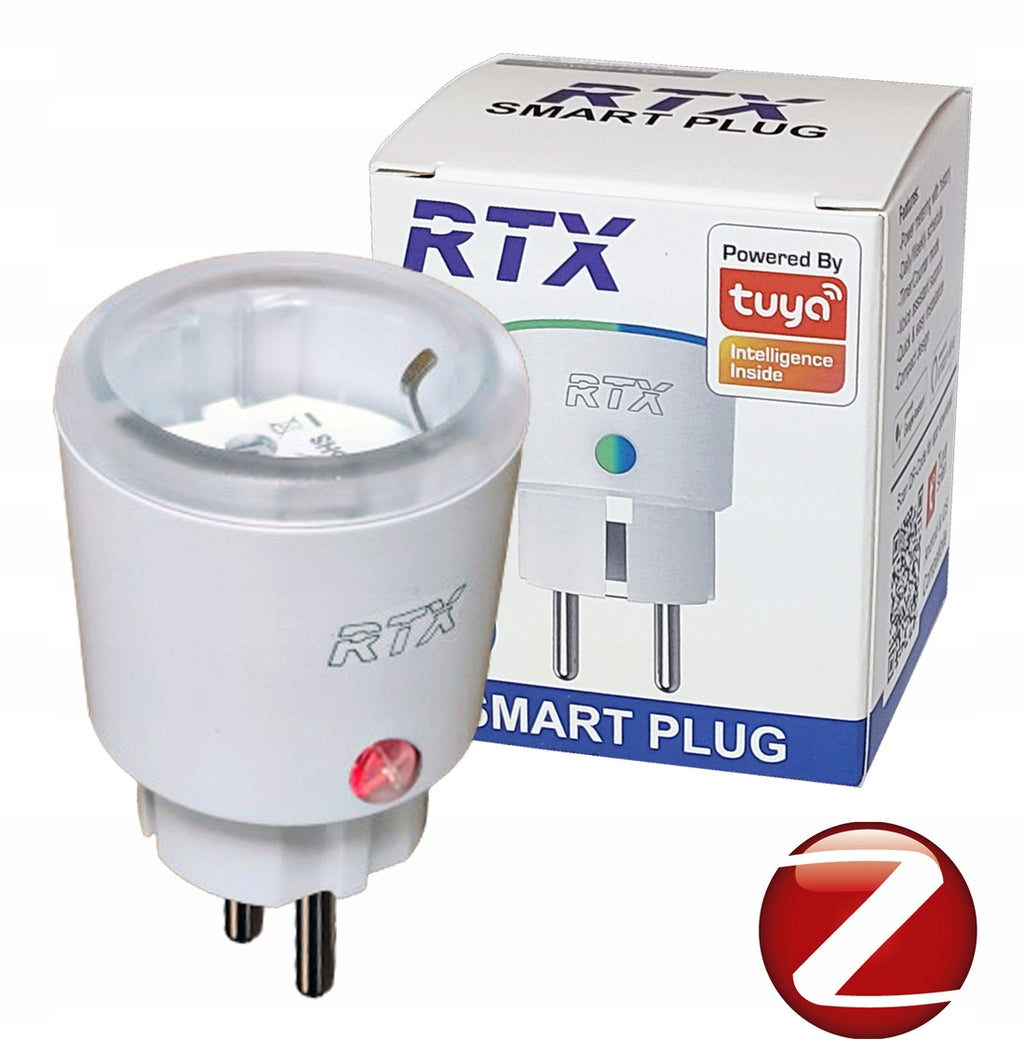

Elektros lizdo energijos matuoklis RTX, iki 260V, ZigBee, TUYA kartotuvas

Trumpai apie prekę

Prekė: Elektros lizdo energijos matuoklis RTX, iki 260V, ZigBee, TUYA kartotuvas. Kategorija: Automatizavimo moduliai.

• Gamintojas: RTX
• Modelis: ZP3

• wireless smart outlet
• energy consumption meter
• Zigbee network range extender

It enables intelligent control and energy measurement of current receivers using a smartphone and the Tuya application - the most popular app for smart home management. The repeater function allows you to extend the network coverage for other ZigBee devices.

To operate ZigBee devices, it is necessary to have a ZigBee gateway that is a "node" between the system elements and the Tuya Smart cloud server.

We offer gates in separate offers:

• WiFi gateway, offer no. 9054486387
• LAN gateway, offer no.: 9291747069

The socket operates at voltages up to 260V - works with photovoltaics.

Zigbee Repeater

- ZigBee network extender function

You can easily set up process automation, e.g. switching devices on or off depending on the time of day, set schedule or information from other elements of the system

• Enabling/disabling remote via app
• Enabling/disabling local manually with the button
• Measurement of energy consumption-recording of results in history
• Timer - automatic control according to the set time
• Terminator - planned weekly automation cycle on/off
• Scenario - automatic control according to set dependencies between other elements of the system

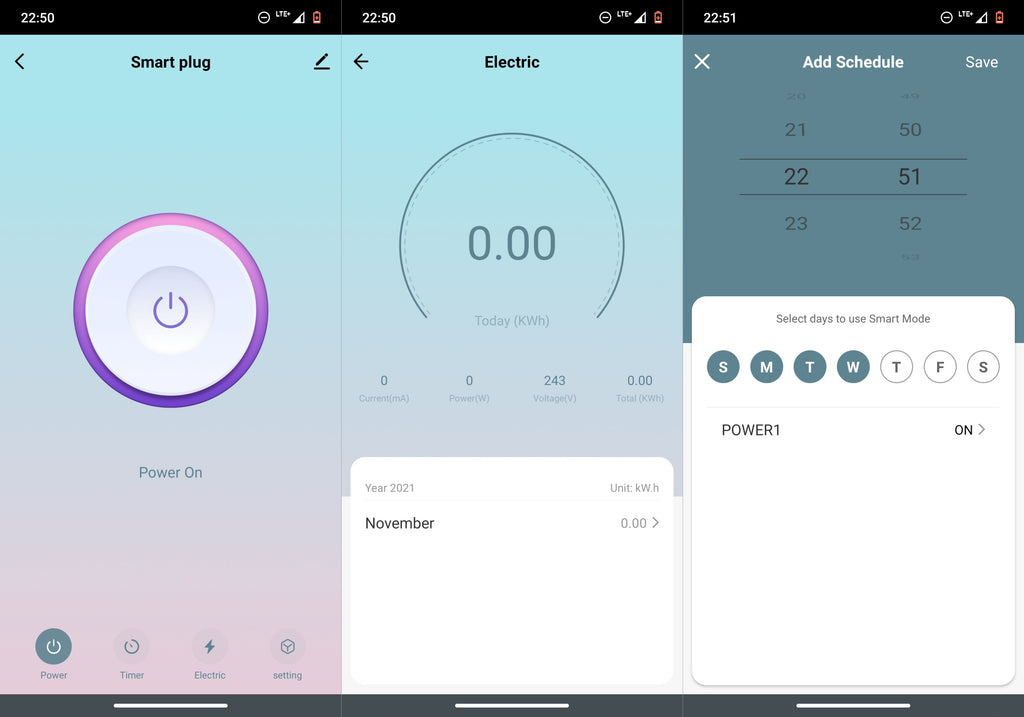

Energy measurement with data archiving

The device measures current energy consumption and archives data.

The history of the measurement is maintained until the year back.

• Current measurement
• Daily consumption
• Weekly consumption
• Consumption in a month
• Graphical presentation of energy consumption

Memory of operating status after power failure

It is possible to configure the state after the power return:

• Return to the state as it was before the voltage disappeared
• Socket included
• Socket disabled

Additional features:

• Child lock disables control from the button on the housing
• Configurable button backlight on constantly, off, compatible with outlet status

Tuya Smart Life joined ZigBee Alliance thanks to which huge possibilities of expanding the system with new elements were opened.

• integration of more than 11000 different devices
• 30 categories (control, air conditioning, monitoring, etc.)
• 10000 manufacturers of smart devices
• develops new features and supported devices every day
• available for free for Android and iOS

Dedicated Tuya Smart Life app - easy installation and hassle-free operation.

Wherever you are, you can control the safety of your property!

Adding a new device only requires pressing a button on it and confirming the addition in the app.

Speed of operation, stable and safe communication and low power consumption are the main advantages of ZigBee

ZigBee is an open standard of radio communication supported by leading manufacturers of consumer electronics associated within the Zigbee Alliance.

The current version – ZigBee 3.0 – was developed for Internet of Things systems and smart home systems.

Process automation between system elements is carried out in the control panel, not in the cloud, thanks to which individual actions are performed much faster.

The lattice topology (mesh) provides stable communication between the gate and individual elements of the system, because each receiver is a transmitter. Damage to a single device does not stop the entire network.

Low power consumption needed for the system components to operate, so ZigBee devices (nodes) can usually run for many years on a single battery.

Technical specification:

• ZigBee protocol: version 3.0 according to the standard: 802.15.4
• Power: 3680 Watts
• Power supply: mains, typically 85-230V AC, maximum 260V AC
• Antenna type: built-in
• Net weight: 70g
• Dimensions: 62x77mm
• Application: Tuya or Smart Life ( ZigBee control panel is required to work - also available in our offer)

• Socket Zigbee v3.0
• Instruction for use
