Apraksts
Trumpai apie prekę

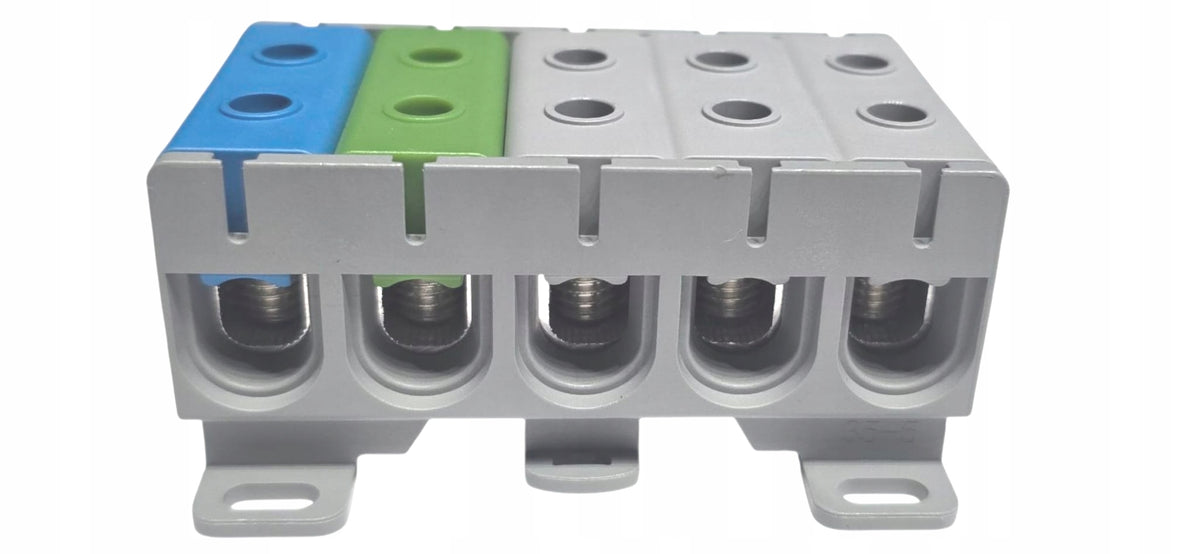

Prekė: Elektros skirstomasis blokas 5x35 mm. Kategorija: Išoriniai moduliai.
- Gamintojas: Cosmo
- Modelis: 62730-JHT5-35
62730-JHT5-35
💥1 pcs. Resolution Block 5 x 35mm.
- 👉5 Allen screw terminals
- 👉STRONG DIN rail HOOKS
- ✅3 x phase block
- ✅1 x PE
- ✅1 x N
- Cross-section of connection cable from 2.5-35mm2
- Rated current 800v / 120A
- Type of insulating material: Thermoplastic
- Clamp material - aluminum alloy

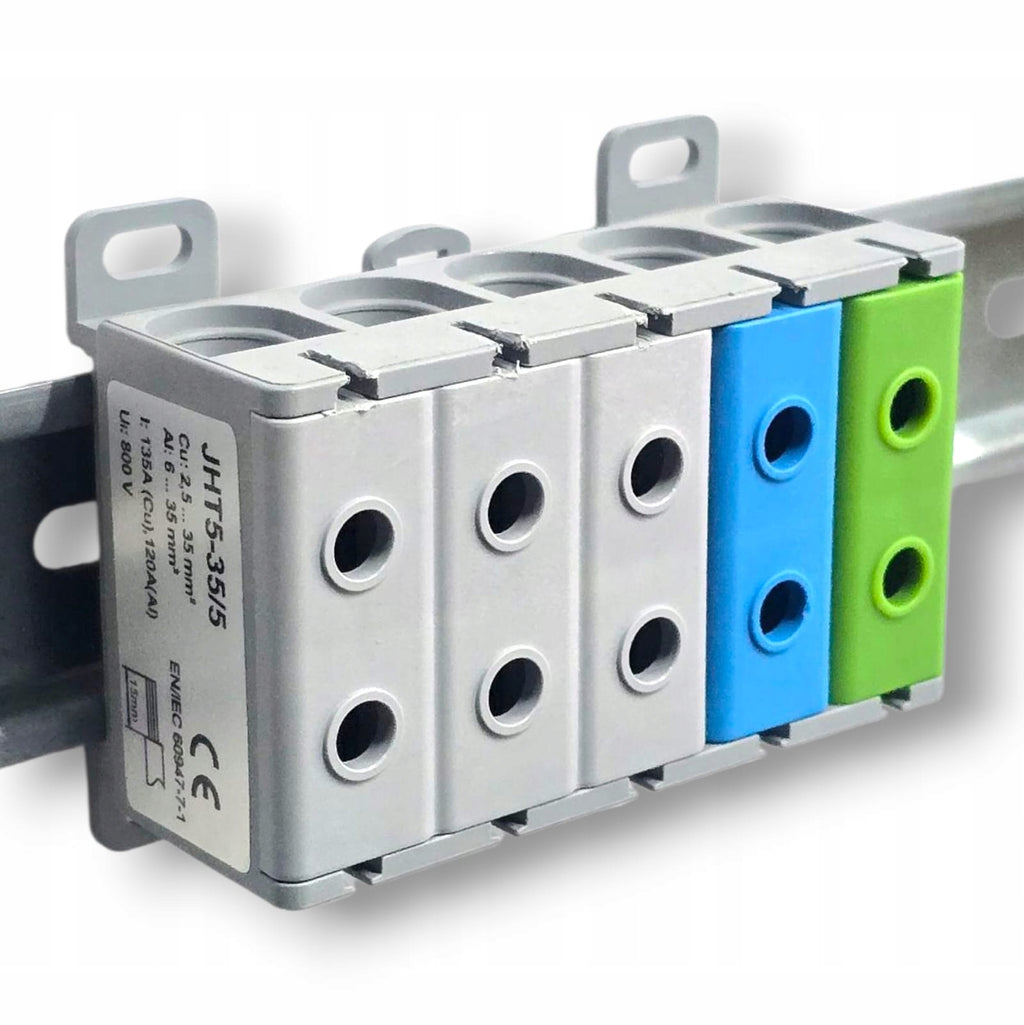

- Mounting: for TH35(DIN) rail or directly to the mounting plate
👉BLOCK is characterized by a very strong and stable connection of wires through screw terminals.
💥BLOCK is freely configurable by changing the arrangement of colored terminals on the block
- ✅Small size block made of PA66 flame retardant material
- ✅Possible installation of the strip both on the DIN rail and directly on the mounting plate.
- ✅Hexagonal hexagon key clamps that allow for easy and strong tightening of the cable.

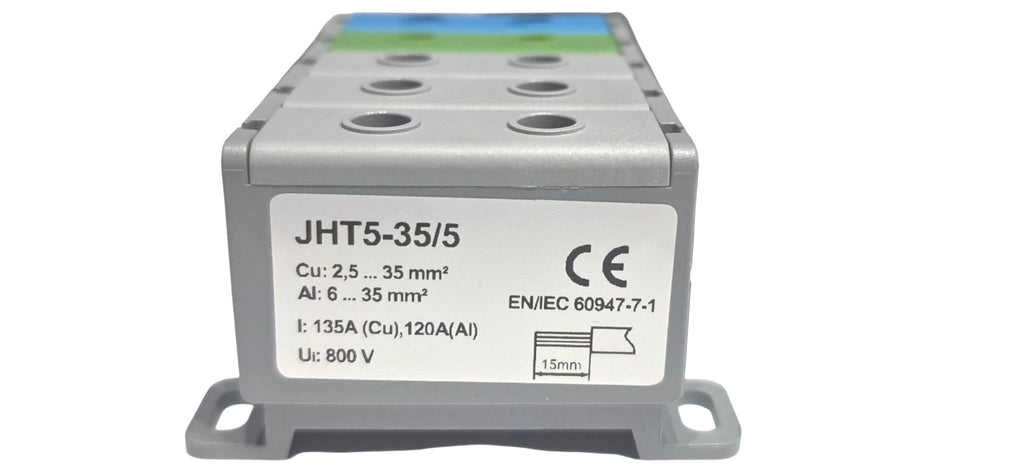

✅ Dimensions of the block:
- Width 47mm
- Height 36mm
- Length 86mm
👉 Other products and accessories in our assortment:
- ZUG rail fittings
- end caps / decals
- End terminals blocking a number of fittings
- Quick couplers for connecting canned wires
- Numerical markers for fittings
- Distribution blocks
- Wire terminal bushings
- clamps (tritiques)
- descriptive clamps
- steel clamps
- Heat shrinkable casings with tin
- many others
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | other |
| Parametry | Series | JHT5-35 |
| Parametry | Brand | Cosmo |
| Parametry | Manufacturer code | 62730-JHT5-35 |
| Parametry | EAN (GTIN) | 5905358362730 |
| Parametry | Product weight with unit packaging | 0.12 kg |
| Parametry | Packaging status | original |
