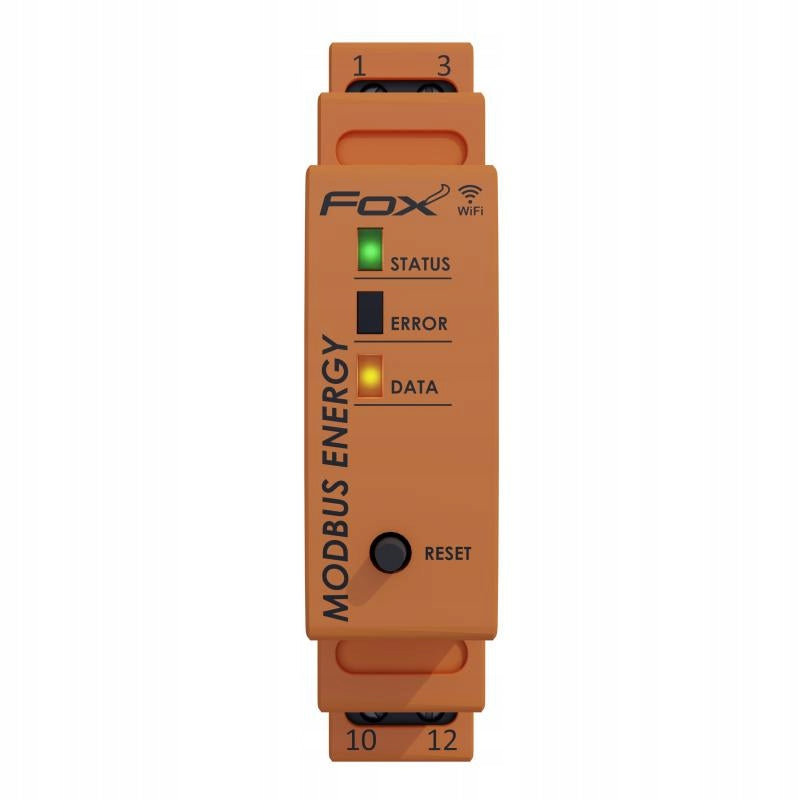

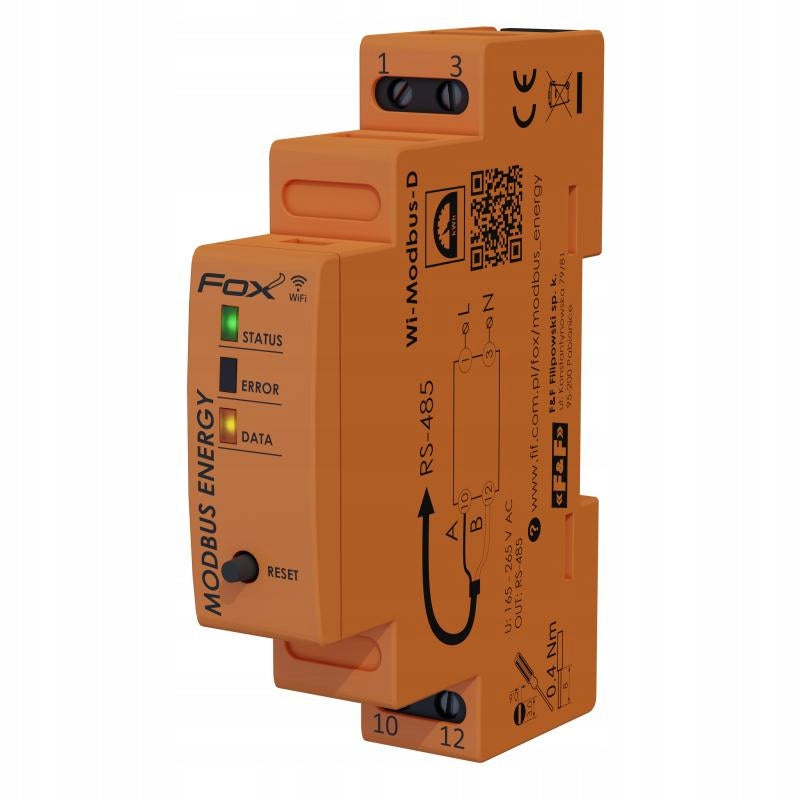

Energijos matuoklio integratorius MODBUS-D 230V FOX F&F

Trumpai apie prekę

Prekė: Energijos matuoklio integratorius MODBUS-D 230V FOX F&F. Kategorija: Išoriniai moduliai.

• Gamintojas: F&F
• Modelis: WI-MODBUS-D

• Wi-Modbus-D

Integration of F&F energy meters equipped with Modbus RTU interface with Fox system.

• Power supply voltage: 165÷265 V AC
• Moisture (non-condensing): ≤ 90%
• Output: RS485 interface
• Radio frequency: 2,4 GHz
• Transmission: WI-FI
• Radio power (IEEE 802.11n): ≤ 20 dBm
• Receiver sensitivity: -98 dBm
• Communication protocol: MODBUS RTU
• Connection: screw terminals 2,5 mm² (link); screw terminals 4,0 mm² (wire)
• Tightening torque: 0,5 Nm
• Power consumption: ≤ 2 W
• Working temperature: -20÷50°C
• Dimensions: 1 module (18 mm)
• Assembly: on 35 mm rail
• Degree of protection: IP20

Modbus Energy is an extension of the functionality of F&F energy meters with the recording and visualization of energy consumption and electricity grid parameters.

Modbus Energy cooperates with energy meters produced by F&F:

• LE-01MR
• LE-01MR v2
• LE-01MW
• LE-01MW v2
• LE-01MQ
• LE-03MQ
• LE-03MQ v2
• LE-03MQ CT
• LE-03MW
• LE-03MW CT
