Filtrų rinkinys THESSLA GREEN AIRPACK4 300v/400v/500v, CleanPad Pure 10 M5 G3, 6 vnt.

Trumpai apie prekę

Prekė: Filtrų rinkinys THESSLA GREEN AIRPACK4 300v/400v/500v, CleanPad Pure 10 M5 G3, 6 vnt.. Kategorija: Dalys.

• Gamintojas: Exim
• Modelis: Airpack4 300v 400v 500v CleanPad Pure 10

A set of high-quality filters designed for THESSLA GREEN AirPack4 V series recuperators.

set of 6pcs. filters (2 x M5 filter + 4 x G3 prefilter)

Effective filtration and protection of the air handling unit

A set of 6 filters designed for THESSLA GREEN AirPack4 recuperators with a V nozzle system. The kit fits AirPack4 300V, 400V, 500V and 550V models.

The offered set consists of 2 pleated filters class M5 and 4 interchangeable prefilters class G3. Two prefilters can be mounted together with M5 filters, while the other two pieces form a stock for the next replacement.

The kit is a high quality replacement for THESSLA GREEN CleanPad Pure 10 filters with the catalog designation 002B0010. The two-stage design helps to effectively stop contaminants and reduces their deposition inside the control panel.

Compatibility

Filters are designed for recuperators:

• THESSLA GREEN AirPack4 300V
• THESSLA GREEN AirPack4 400V
• THESSLA GREEN AirPack4 500V
• THESSLA GREEN AirPack4 550V

They fit AirPack4 control panel variants with V connector system, including the corresponding versions Energy+, Energy++ and Enthalpy.

Important: filters do not match:

• recuperators AirPack4 version H,
• older AirPack control panels,
• older AirPack Home control panels.

Before purchasing, check the full marking of the recuperator, in particular the letter V located next to the model number.

Why choose this product?

Complete set of 6 elements

The package includes two M5 filters and four G3 prefilters, thanks to which the set also includes spare nonwoven fabrics for the next replacement.

Two-stage filtration system

The G3 prefilter traps larger contaminants before air reaches the main M5 filter surface.

Filters class M5

Pleated material helps to reduce the entry of dust, dust, plant pollen and other pollutants present in the air.

Replaceable prefilters G3

The pre-filament takes over a significant part of the larger dirt, helping to extend the period of effective operation of the main filters.

Protection of the recuperator interior

Regular replacement of filters reduces dust build-up on the exchanger, fans and other elements of the control panel.

Proper air flow

Clean filters help maintain proper ventilation performance and reduce the additional load on fans.

Fit for AirPack4 V series

The dimensions of the filters correspond to the filter chambers of the indicated models, so that the installation does not require modifications.

Economic alternative

The replacement allows you to maintain proper filtration of the recuperator at a more favorable cost of regular operation.

⁣

⁣

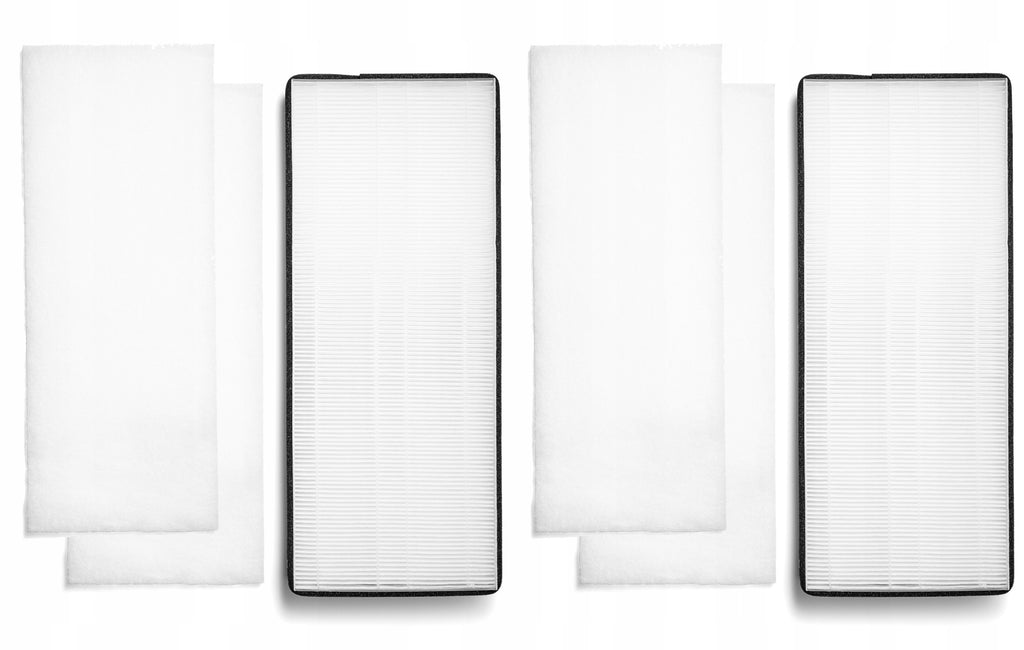

The set includes a set of 6 filters:

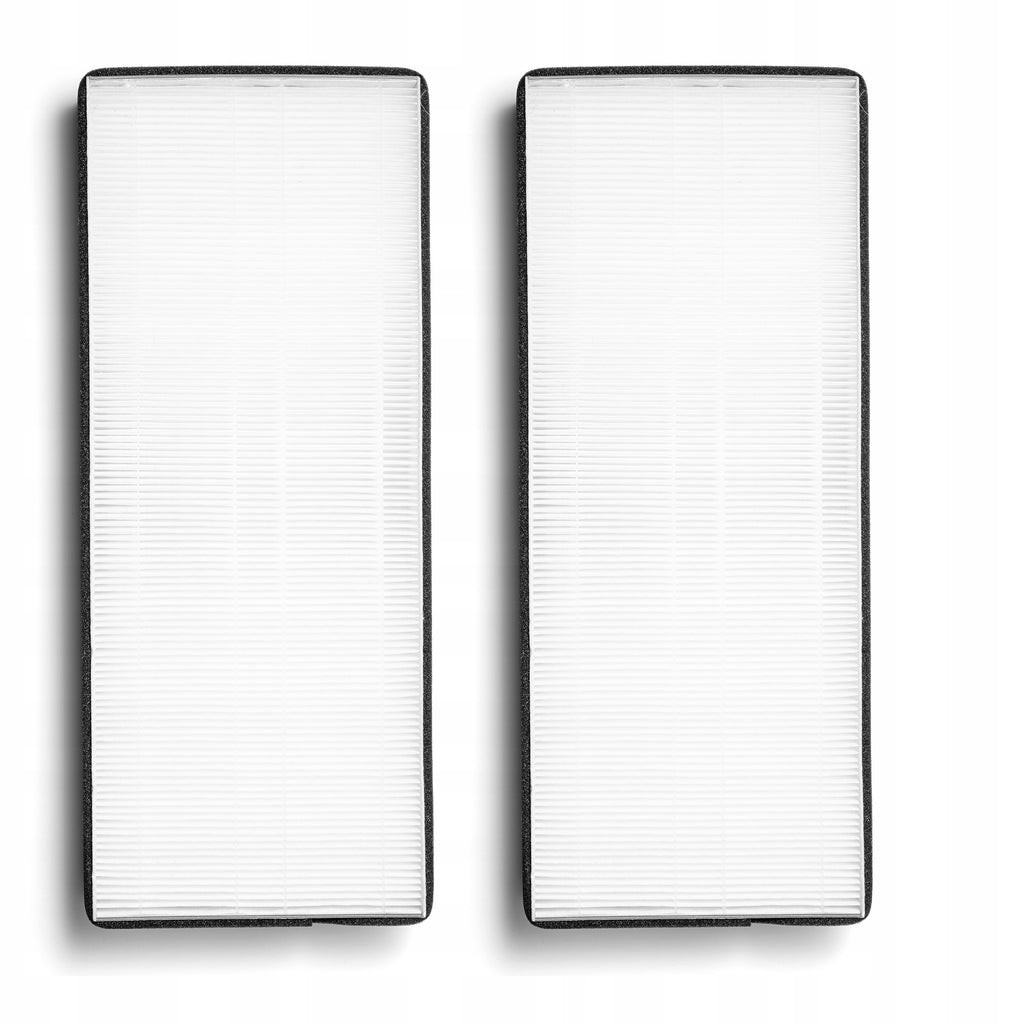

✅ 2 pcs. Two-stage filter class M5 / EU5 (ISO ePM10)

• dimensions: 477 x 185 x 48 mm

✅ 4 pcs replacement prefilter class G3/EU3

• dimensions: 465 x 173 x 10 mm

• 2x Filter M5 (EU5) - 477 x 185 x 48 mm
• 2x Filter G3 (EU3) - 465 x 173 x 10 mm

The perfect choice for

➡ users of THESSLA GREEN AirPack4 300V, 400V, 500V and 550V recuperators,

➡ people looking for a replacement CleanPad Pure 10 / 002B0010,

➡ homeowners equipped with mechanical ventilation with heat recovery,

➡ people who want to reduce the amount of dust, dust and pollen entering the installation,

➡ users who care about proper air flow and protection of the recuperator,

➡ people looking for a set with additional prefilters for the next replacement.

When to change filters?

Filters should be replaced regularly, usually around every 3 to 6 months. The frequency depends, among others, on the air quality, season, intensity of operation of the headquarters and location of the building.

The exchange should be carried out when:

• The control panel will display a message about filters,
• the filter surface is clearly soiled,
• decreased air flow,
• the recuperator is working louder than before,
• increased energy consumption of the device,
• There is more dust in the rooms,
• It has been about 3 to 6 months since the previous exchange.

G3 prefilters can be controlled more often than main filters, especially during periods of increased pollination or intense pollination of plants.

About the product

The kit uses two-stage air filtration. The G3 prefilter mounted in front of the main filter captures larger contaminants such as dust, fibers, insects and larger dust particles.

Pleated M5 filter is responsible for more thorough air purification. The harmonic design increases the active surface area of the filter material, which promotes effective retention of impurities while maintaining proper air flow.

The set includes two prefilters for ongoing assembly and two additional pieces that can be used for the next replacement.

How to take care of filters?

Regularly control the condition of filters – the speed of their contamination depends on weather conditions, the location of the building and the intensity of ventilation.

Control prefilters more often – as the first stage of filtration, they can retain a large amount of dust and larger impurities.

Do not wash M5 filters with water – the pleated material is not intended for washing or wet cleaning.

Take care of the cleanliness of the air intake – leaves, dust and other dirt at the intake can accelerate the contamination of filters.

Replace both main filters at the same time – this allows you to maintain even filtration and proper operation of the control panel.

How to change filters?

1. Turn off the recuperator according to the user manual of the device.
2. Open the lid for access to the filter chambers.
3. Remove the filters for replacement.
4. Attach one G3 prefilter to each new M5 filter.
5. Place the prepared filters in the appropriate chambers.
6. Check the correct location and direction of air flow.
7. Close the lid and start the control panel.
8. Reset the counter or filter replacement message if necessary.

Specification

• Product type: set of filters for recuperator
• Number of items: 6 pieces
• Main filters: 2 × M5 / EU5
• Prefilters: 4 × G3/EU3
• Filter dimensions M5: 477 × 185 × 48 mm
• Dimensions of G3 prefilters: 465 × 173 × 10 mm
• Main filter design: pleated
• Filtration system: two-stage
• Prefilter mounting: to the surface of the main filter
• Equivalent: THESSLA GREEN CleanPad Pure 10
• Equivalent of catalogue number: 002B0010
• Purpose: AirPack4 300V / 400V / 500V / 550V
• Spiral layout: V
• Application: mechanical ventilation with heat recovery

Additional information

The offered product is a high quality replacement.

The manufacturer’s name, device models and catalogue markings are provided solely for the purpose of indicating product compatibility.
