FPV dronas BETAFPV Aquila20 rinkinys

Trumpai apie prekę

Prekė: FPV dronas BETAFPV Aquila20 rinkinys. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: Aquila20

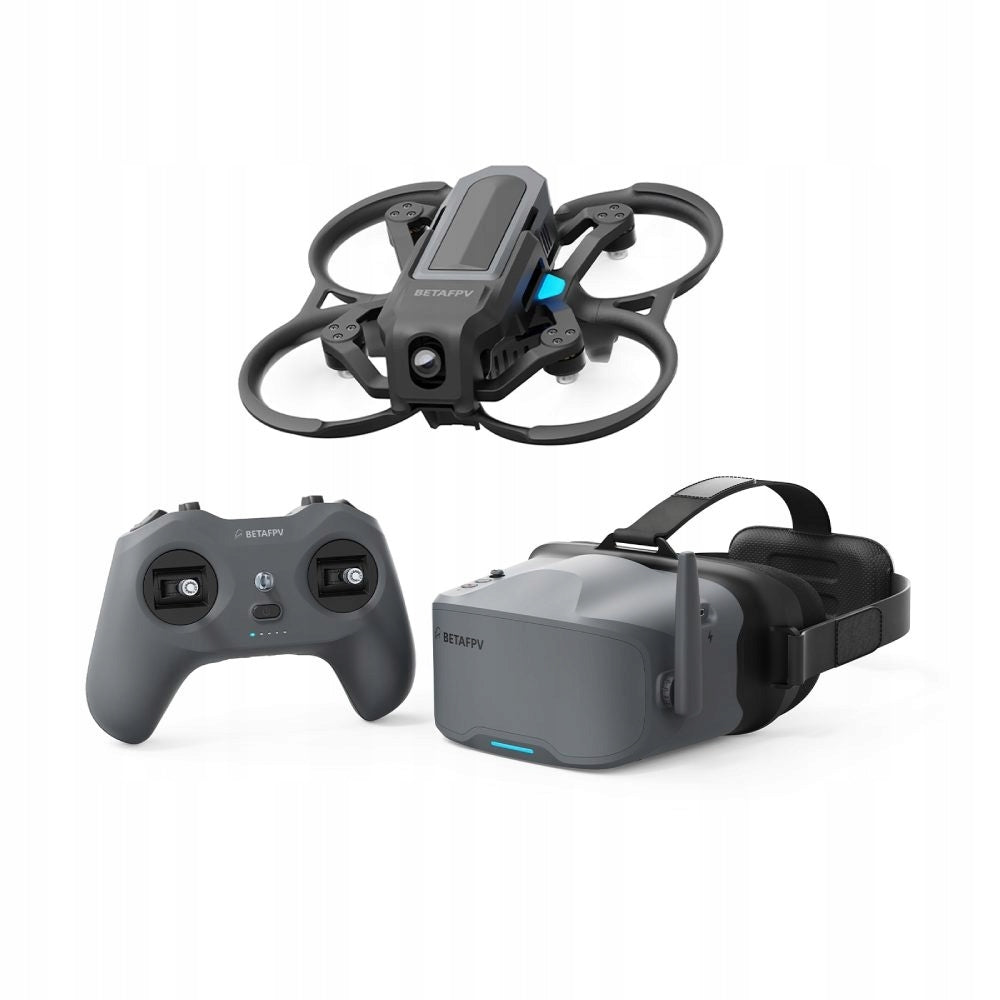

COMPLETE SET OF FPV

BETAFPV Aquila20 FPV Kit is a complete Ready-to-Fly FPV kit, designed for people starting their adventure with flying in First Person View mode. In one box there are all the necessary elements – a drone, control apparatus and FPV goggles – so you can start the flight just a few minutes after unpacking the equipment. The set combines a stable flight system, a solid construction and friendly learning modes that allow you to gradually develop piloting skills. The kit includes everything you need to get started with FPV flights: a drone, VR04 FPV goggles, and a LiteRadio 4 SE controller. Thanks to this, you do not have to complete additional elements – just charge the battery and you can start your first flights.

ANALOGUE FPV VIDEO TRANSMISSION

The drone uses an analog VTX system with a power of up to 350 mW, which provides a stable view of the image in real time and a range exceeding 200 meters. This allows for comfortable flying and learning to fly in FPV mode.

FPV CAMERA WITH ADJUSTABLE ANGLE

The C04 camera with 1/3” CMOS sensor allows you to get a clear image during flight. The adjustable camera angle of 10° to 30° allows you to tailor your perspective to your flying style, from quiet training flights to more dynamic maneuvers.

EFFICIENT 2S DRIVE – DYNAMIC AND STABLE FLIGHT

The drone uses a powerful 2S propulsion system with 1103 10500KV engines and three-bladed Gemfan propellers. This ensures smooth control, good stability in the air and sufficient power to perform dynamic FPV maneuvers.

UP TO 10 MINUTES OF FLIGHT

The power supply is provided by a dedicated 2S HV 1100 mAh battery, which allows a flight lasting about 10 minutes. This is enough time to practice maneuvers, explore the environment and develop piloting skills.

SMART FLIGHT MODES FOR BEGINNERS

• N MODE – STABLE FLIGHT AND AUTOMATIC HANGING

  Normal mode (N Mode) uses a barometric sensor to maintain altitude and stable hovering. Thanks to this, the drone can maintain its position in the air on its own, which greatly facilitates learning control and safe landing.

• PRO MODES – S MODE I M MODE

  After acquiring basic skills, you can switch to Sport (S Mode) or Manual (M Mode). They disable assistance systems, giving full control over the drone and enabling flips, rollers and precise FPV maneuvers.

• TURTLE MODE – QUICK RETURN TO FLIGHT

  If the drone falls over after a failed maneuver, the Turtle Mode function allows you to turn it back to the correct position with a single command from the controller – without having to approach the drone.

RECORD YOUR FLIGHTS IN GOGGLES

The included VR04 FPV goggles offer a comfortable, eyeglass-friendly design. The built-in recording feature allows you to save your video directly to your memory card with a single button, so you can easily keep your best flights.

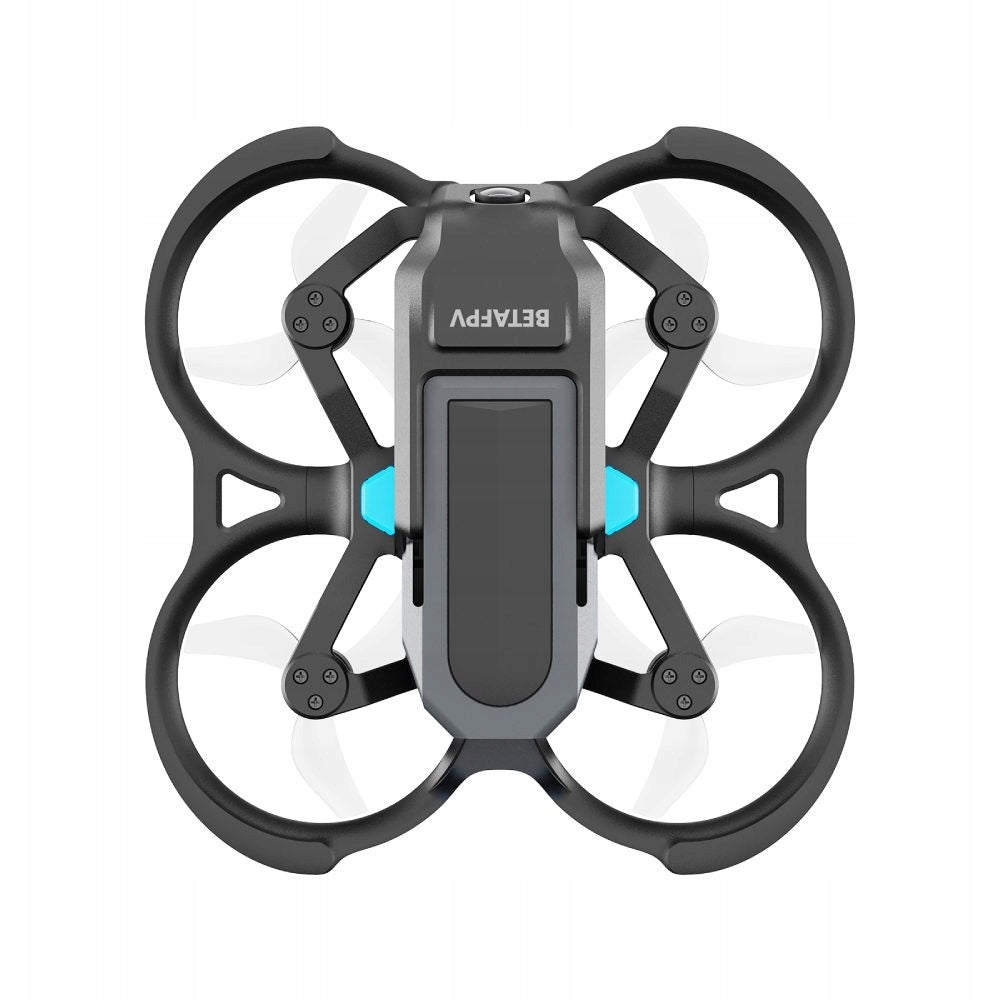

DURABLE IMPACT-RESISTANT FRAME

The frame made of PA material is designed to absorb impact energy and protect electronics during collisions. Thanks to this, Aquila20 tolerates falls well and works great during the first FPV workouts.

THE PERFECT SET TO START IN THE WORLD OF FPV

The BETAFPV Aquila20 FPV Kit is a great choice for those who want to start their FPV flying adventure without having to assemble the equipment separately. Stable flight modes, solid construction, up to 10 minutes of time in the air and the ability to switch to full manual mode make the set grow together with the pilot's skills.

It is a well-thought-out and complete package that allows you to quickly enter the world of dynamic piloting of FPV drones.

FPV GOGGLES

• FPV Goggles: VR04 FPV Goggles
• Goggles battery: 2000 mAh
• Operating time (standby mode): up to 1.5 hours
• Recording function: yes
• Supported MicroSD cards: FAT32, max. 64 GB

CONTROL APPARATUS

• LiteRadio 4 SE Radio Transmitter
• Control protocol: ExpressLRS 2.4G V3

POWER SUPPLY

• Aquila20 Exclusive Battery 2S HV 1100 mAh
• Battery Connector: BT3.0
• Charger: 2S HV battery charger with voltage tester and BT3.0 connector
• Charging time: about 40 minutes

CAMERA

• Camera: C04 (1/3" CMOS sensor)
• Viewing angle (FOV): 160°
• Camera angle adjustment: 10°–30°

VIDEO SYSTEM

• Video Transmitter (VTX): Aquila20 Analog VTX
• Video transmission quality: 480p at 30 fps

FLIGHT CONTROLLER

• Flight Controller: Aquila20 V1.0

DRIVE

• Engines: 1103 | 10500KV
• Propellers: Gemfan 2218, 3-blade

CONSTRUCTION

• Frame Material: PA410
• Wheelbase: 100 mm
• Starting weight: 119 g

TECHNICAL DATA OF THE FLIGHT

• Flight time: about 10 minutes
• Flight modes:

  - N/S/M

  - Altitude Hold

  - Stable hover (N mode)

  - Turtle Mode

• Flight speed:

  - SLOW: 1 m/s

  - MID: 2 m/s

  - FAST: 3 m/s (N mode)

  - 5 m/s (S/M mode)

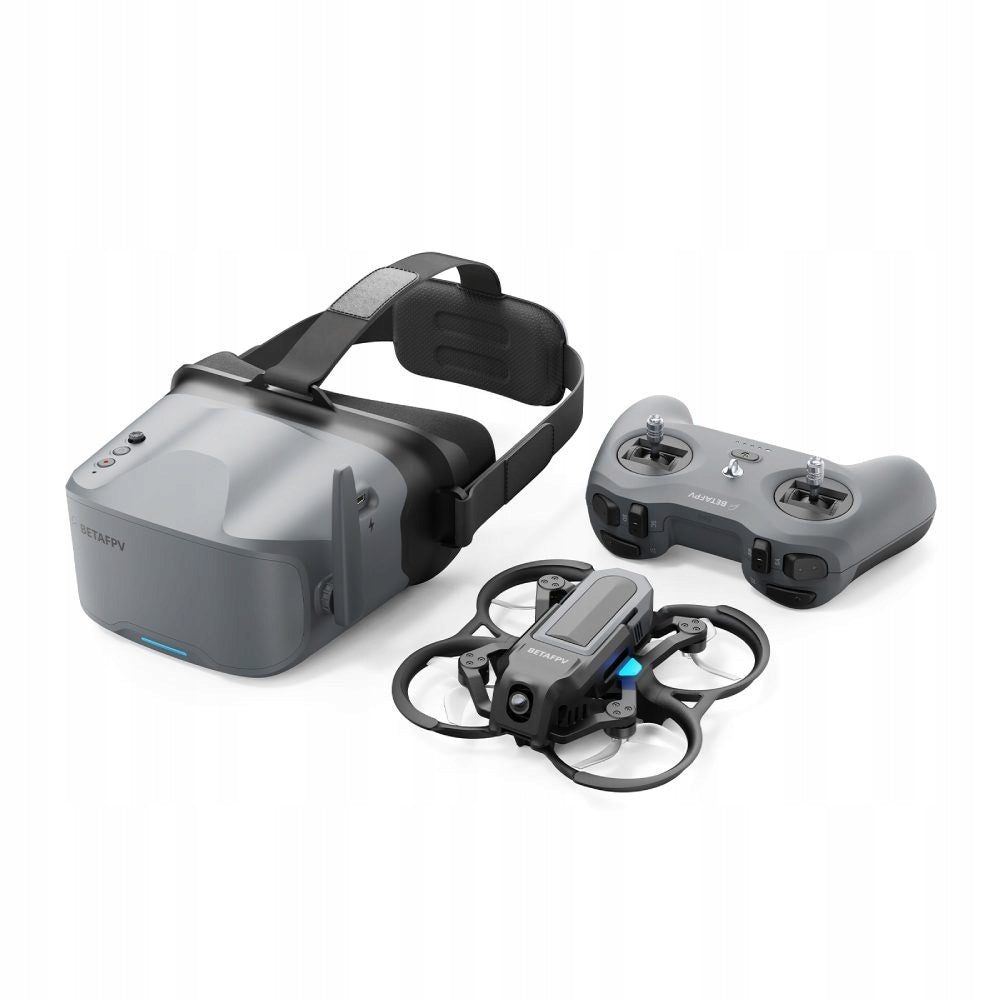

CONTENTS OF THE SET

• 1 × Aquila20 Brushless Whoop Quadcopter
• 1 × LiteRadio 4 SE Radio Transmitter
• 1 × VR04 FPV Goggles
• 2 × Aquila20 Exclusive Battery 2S HV 1100 mAh
• 1× 2S HV charger with voltage tester and BT3.0 connector
• 1 × set of Gemfan 2218 propellers (4 pcs. )
• 1 × USB-C cable
• 1 × propeller removal tool
• 1 × Phillips screwdriver
• 1 × 4-pin adapter cable
• 1 × USB Type-C adapter board
• 1 × portable carry bag
• 1 × User Manual
• 1 × Quick Start Guide

Specifications
