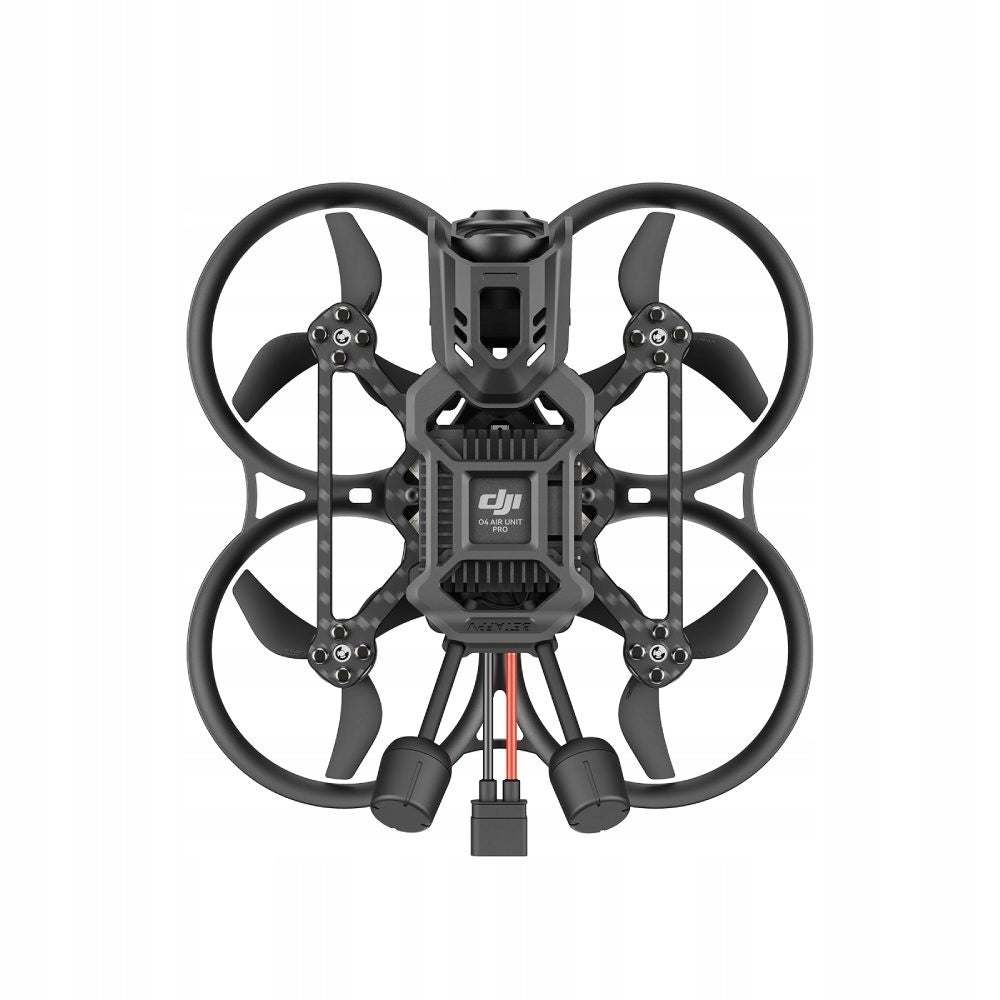

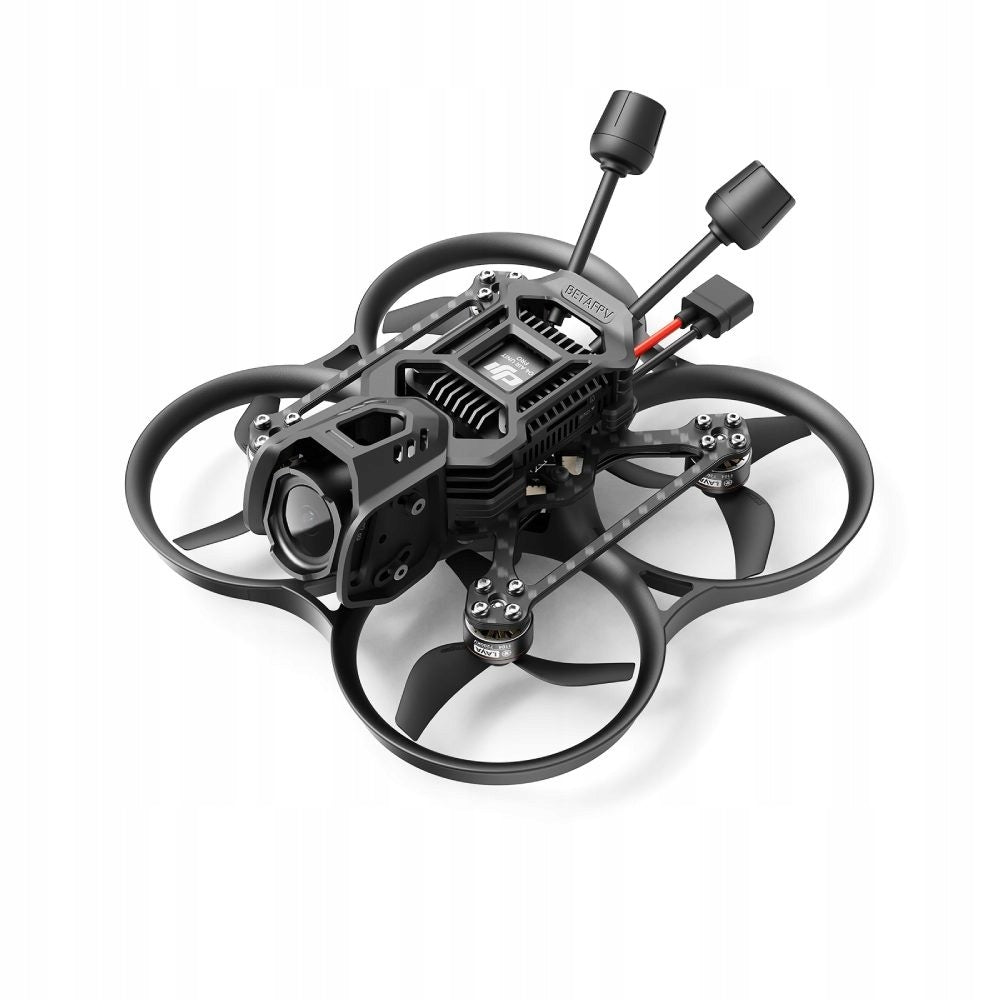

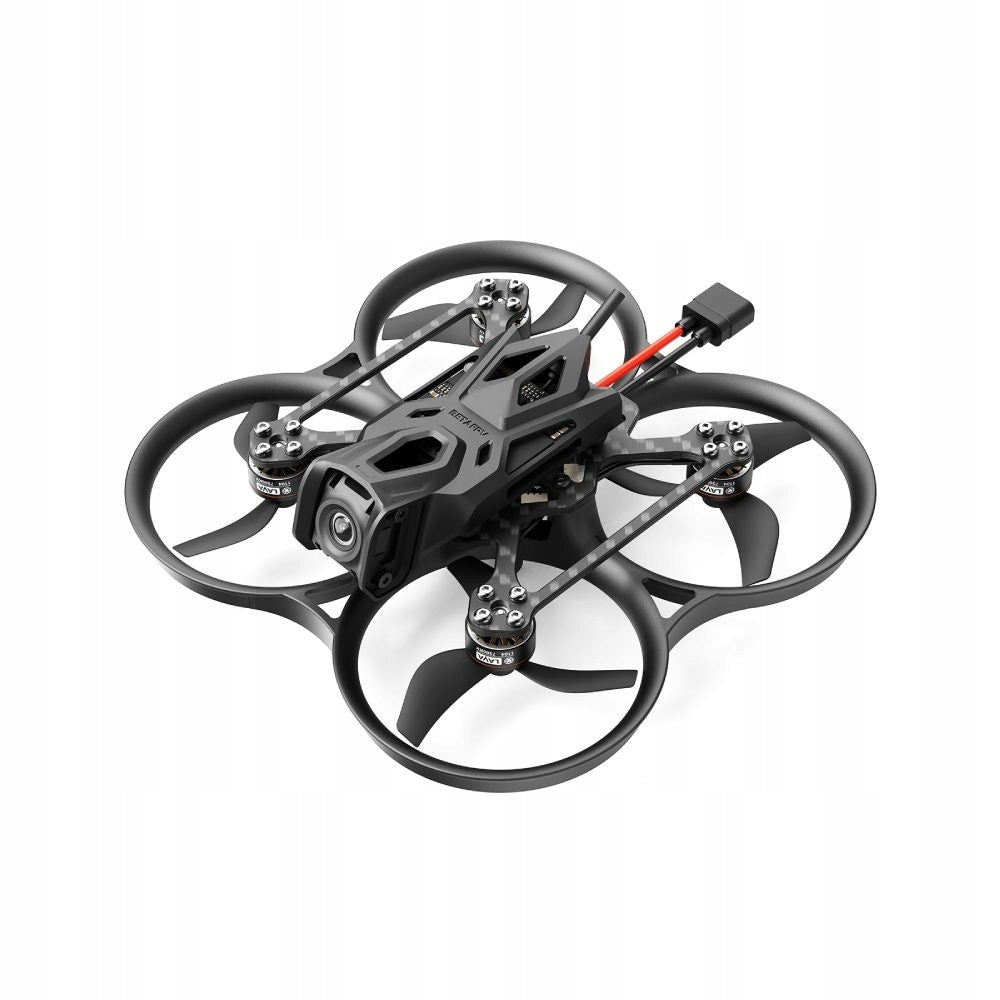

FPV dronas BETAFPV Pavo20 Pro II 4S O4 Pro ELRS 2.4G su kamera

Trumpai apie prekę

Prekė: FPV dronas BETAFPV Pavo20 Pro II 4S O4 Pro ELRS 2.4G su kamera. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: Pavo20 Pro II 4S O4 Pro ELRS 2.4G

THE MOST IMPORTANT FEATURES

• BETAFPV Pavo20 Pro II version 4S O4 Pro ELRS 2.4G.
• Factory mounted DJI O4 Air Unit Pro.
• Receiver ExpressLRS 2.4 GHz.
• Brushless Whoop / Cinewhoop design.
• Wheelbase 93,9 mm.
• LAVA Series 1104 5500KV engines.
• Cube 2–4S 30A 3IN1 flight controller.
• GF D2.2 3-Blade propellers.
• Dedicated O4 Air Unit Pro Bracket.
• Camera angle adjustment 0 to 40°.
• Compatible with DJI O4, O4 Wide and O4 Pro.
• Built-in buzzer.
• Two GPS mounts included.
• Support 12× 12 mm and 18 × 18 mm GPS modules.
• Integrated NightFire RGB LED strip.
• Factory tuned PID parameters for DJI O4.
• Battery connector XT30.
• Up to 8 min 30 s flight with 4S 580 mAh battery.
• Up to 10 min 30 s flight with 4S 680 mAh battery.
• Designed for freestyle and cinematic FPV.

The product offered at this auction is original, factory packed and comes from the official distribution

BETAFPV PAVO20 PRO II BRUSHLESS WHOOP QUADCOPTER – 4S O4 PRO ELRS 2.4G

BETAFPV Pavo20 Pro II 4S O4 Pro ELRS 2.4G is an advanced Brushless Whoop FPV drone designed for dynamic freestyle and recording high-quality cinematic FPV materials. In this version, the manufacturer combined a more powerful 4S drive with a digital video system DJI O4 Air Unit Pro and a receiver ExpressLRS 2.4 GHz.

The Pavo20 Pro II uses a new, improved frame design with a wheelbase of 93,9 mm, which provides high rigidity, impact resistance and easier assembly of components. In combination with the LAVA 1104 5500KV engines and the Cube 2–4S 30A 3IN1 controller, we get a dynamic platform designed for demanding FPV pilots.

DJI O4 AIR UNIT PRO – DIGITAL FPV IN HIGH QUALITY

The most important element of this configuration is the factory-installed DJI O4 Air Unit Pro. The system provides high-quality digital FPV image transmission and the ability to record material directly during flight.

The Pavo20 Pro II is equipped with a dedicated O4 Air Unit Pro Bracket, which keeps the video system stable and helps reduce the impact of vibrations generated by the drive.

The design is also compatible with other DJI O4 system variants, ensuring that the platform remains flexible in terms of configuration.

ELRS 2.4 GHZ – FAST AND PRECISE CONTROL

The ELRS 2.4G version uses the ExpressLRS serial receiver, providing quick response to pilot commands and a stable connection.

ExpressLRS is one of the most popular control systems used in FPV drones. It allows you to use your own equipment equipped with a compatible 2.4 GHz ELRS module.

4S DRIVE – LAVA 1104 5500KV

The 4S variant received a more powerful drive system specially prepared to work with higher voltage. Four brushless LAVA Series 1104 5500KV motors were used.

High torque and properly selected KV value ensure a large amount of thrust, quick reactions to rod movements and adequate power reserve during dynamic freestyle.

Compared to the 3S version, equipped with 7200KV motors, the 4S variant uses a lower KV value optimized for a higher supply voltage.

CONTROLLER CUBE 2–4S 30A 3IN1

The new Cube 2–4S 30A 3IN1 FC is responsible for controlling the Pavo20 Pro II 4S. This is a significant change from the 3S version, which uses the F4 2–3S 20A AIO.

The controller has been prepared to handle the 2–4S voltage and offers a larger current supply, suitable for a more powerful 4S drive. It also provides a quick response to the control system during dynamic maneuvers.

UP TO 10 MINUTES 30 SECONDS FLIGHT

One of the most important advantages of the 4S version is the extended flight time. With the LAVA II 4S 680 mAh battery, the Pavo20 Pro II can fly for up to about 10 minutes 30 seconds.

With the LAVA II 4S 580 mAh battery, the declared flight time is about 8 minutes 30 seconds.

The actual flight time depends on the style of pilotage, the weight of additional equipment, weather conditions and the battery used.

NEW PAVO20 PRO II FRAME

The Pavo20 Pro II received a completely improved frame design with a wheelbase of 93,9 mm. It uses a reinforced support structure and guided mounting points that facilitate the correct positioning of the elements during assembly.

The mounting system uses only 4 screws, which simplifies installation and servicing while ensuring high rigidity of the structure.

The frame also uses thickened PA12 shields to protect the propellers and increase the drone's resistance to accidental impacts.

BETTER PROTECTION OF DJI O4 PRO SYSTEM

The dedicated O4 Air Unit Pro Bracket is designed specifically for the DJI O4 Pro system. The reinforced panel on the camera side increases its protection, and the mounting design helps to reduce vibration transmission.

The mount also allows you to adjust the angle of the camera in the range of 0 to 40°, allowing you to customize the perspective to suit your individual flying style.

The design also provides easy access to ND filters and allows you to quickly change antennas without the use of additional tools.

PROPELLERS GF D2.2 3-BLADE

The Pavo20 Pro II uses three-blade GF D2.2 3-Blade propellers. They were selected for the characteristics of the 4S drive used.

The propellers are fixed with screws, making the connection to the engine more secure than with a classic push-in mount. This reduces the risk of loosening the propeller during intense flying.

BUILT-IN BUZZER

The Pavo20 Pro II is equipped with an integrated buzzer, which helps to find the drone after an emergency landing.

This is especially useful when flying outdoors, when a small drone can land in tall grass or any other hard-to-reach location.

READY FOR GPS

The Pavo20 Pro II design has dedicated GPS mounts compatible with most modules with sizes 12 × 12 mm and 18 × 18 mm.

This allows you to easily extend the configuration with GPS without having to do the mount yourself. The set includes two GPS brackets.

NIGHTFIRE RGB LED

The integrated NightFire RGB LED tape improves the visibility of the drone during flight and facilitates its orientation in space.

The backlight also increases the visual appeal of the Pavo20 Pro II, especially during flights at dusk and after dark.

COMPATIBILITY WITH DJI O4, O4 WIDE AND O4 PRO

The new Pavo20 Pro II carbon plate is designed to support various variants of the DJI O4 system. The design supports the DJI O4 Air Unit, DJI O4 Wide Air Unit and DJI O4 Air Unit Pro.

This allows the user to change the video configuration in the future without having to replace the entire framework.

FACTORY TUNING FOR DJI O4

The Pavo20 Pro II comes with pre-optimized PID parameters designed to work with DJI O4 systems.

The right configuration can be selected via the OSD, which makes it easier to prepare the drone for flight and allows you to use its capabilities without having to perform full tuning from scratch.

FOR FREESTYLE AND CINEMATIC FPV

The combination of 4S drive, lightweight design and DJI O4 Pro digital system makes the Pavo20 Pro II a versatile platform for a variety of applications.

The large power supply allows you to perform dynamic freestyle maneuvers, while the stable O4 Pro mount allows you to create smooth cinematic materials.

CONTENTS OF THE SET

• 1 * Pavo20 Pro II Brushless Whoop Quadrocopter (O4 Pro)
• 4 * Gemfan D2.2 3-blade propellers
• 1 * Type-C to SH1.0 Adapter
• 1 * SH1.0-4-pin adapter cable
• 1 * HD SH1.0-6-pin cable (100 mm)
• 1 * RGB LED strip (500mm)
• 2 * 5,8 GHz VTX Antenna
• 1 * 5,8 GHz VTX Antenna Holder
• 1 * 22 x 22 mm GPS Holder
• 1 * 14 x 17 mm GPS holder
• 2 * GPS sponge mat
• 1 * Allen Screwdriver H1.5
• 1 * O4 Air Unit Pro user manual

The 4S battery and control apparatus are not part of the kit and must be purchased separately.

A transmitter compatible with ExpressLRS 2.4 GHz is required for control.

TECHNICAL SPECIFICATION

• Model: BETAFPV Pavo20 Pro II Brushless Whoop Quadcopter
• Version: 4S O4 Pro ELRS 2.4G
• Type: Brushless Whoop / Cinewhoop FPV
• Axle spacing: 93,9 mm
• Flight Controller: Cube 2–4S 30A 3IN1 FC
• Receiver: Serial ExpressLRS 2.4 GHz
• Video system: DJI O4 Air Unit Pro
• VTX Mount: O4 Air Unit Pro Bracket
• Engines: LAVA Series 1104 5500KV
• Propellers: GF D2.2 3-Blade
• Battery connector: XT30
• Battery space width: 29 mm
• Battery space height: without limitation
• Flight time: up to 8 min 30 s with LAVA II 4S 580 mAh / up to 10 min 30 s with LAVA II 4S 680 mAh
• Lighting: NightFire RGB LED Strip
• GPS: compatibility with 12× 12 mm and 18 × 18 mm modules
• Camera angle adjustment: 0 to 40°
• Supported VTX systems: DJI O4 Air Unit Pro, DJI O4 Air Unit
• Camera filters: ND/UV for DJI O4 Pro
• Recommended batteries: LAVA II 4S 580 mAh / 680 mAh
• Mass with DJI O4 Pro: about 116,2 g
