Garažo vartų valdiklis su 5 m jutikliu ir 1 m antena, AC/DC, WiFi TUYA, OXT

Trumpai apie prekę

Prekė: Garažo vartų valdiklis su 5 m jutikliu ir 1 m antena, AC/DC, WiFi TUYA, OXT. Kategorija: Automatizavimo moduliai.

• Gamintojas: OXT
• Modelis: T211G

⭐Module OXT Mini | Garage Door Controller

230V AC / 12V-48V DC| Reed sensor 5m + Antenna 1m | WiFi | TUYA

• ℹ Smart Retrofit: The compact controller allows you to turn a classic gate drive into a smart device that you can start with your smartphone or automatically.

• ✅ Antenna and Contact: Provide a stable wireless connection and ensure that the garage is always securely closed or open on time.

• ⭐ Wide power supply range: Latest version, supporting almost every drive on the market (230V AC / 12-48V DC)

⭐ OXT Mini module: 2026

More possibilities - Same compact size

The latest generation but offers something that its predecessors lacked: total freedom of power.

• ✅ 230V AC
• ✅ 12V DC
• ✅ 24V DC
• ✅ 48V DC

⭐Main features⭐

• The antenna version has a longer WiFi range!
• Power supply 230V AC, 12V DC, 24V DC, 48V DC
• Controlled by the popular TUYA Smart app
• Ability to share password to open/close gateway
• Event history - opening/closing of the gate
• Set schedules, timers, or countdowns to close/open the gate
• Support advanced automation with other products in the TUYA app
• Notifications about the status of the device
• Voice control using Amazon Alexa and Google Assistant - requires access password setting
• No additional gateway is required to operate the device. Connect your device to your home WiFi router and enjoy the full potential in any location

⭐Comfort of use⭐

Customization and settings options are available at your fingertips. Become smart by controlling devices from anywhere, and customize all smart products to suit your applications and respond automatically through previous settings.

The product is compatible with peripheral devices, making it possible to control it using voice commands. Electricity management has not been so convenient yet!

• Possibility of providing password to open/close the gate
• Compatible with Google Home and Amazon Alexa
• Voice control

⭐Set your own schedules⭐

Don’t bother running around your devices. With the TUYA microprocessor, you can set your schedules according to your preferences and daily routine. Set the device to turn on and off according to your needs and save on electricity!

• Ability to set actions when setting schedules, countdown or automation

⭐Change your space to smart⭐

Program several smart devices that will allow you to react automatically in any way you want. Suppose you have an advanced motion sensor - if the motion sensor detects that you are getting into the car, it will send the appropriate information to the controller, so that the gate will open itself. Create your own automations without limit!

• Automate the entire smart home
• Set Reactions Between Smart Devices

ℹ Specification

Electrical data and power supply

• AC power supply: 100-240 V (50/60 Hz)
• DC power supply: 12-48 V

⚠ Note: Requires constant power supply (L/N or +/-)

Connectivity and coverage

• Protocol: WiFi IEEE 802.11b/g/n
• Frequency: 2.412 GHz - 2.484 GHz
• Range: Up to 100 meters

Design and installation

• Dimensions: 39.2 x 39.2 x 18 mm
• Driver class: IP20

General information

• Purpose: Gate and garage drives
• Working temperature: -10°C to +40°C
• Certificates: CE, ROHS

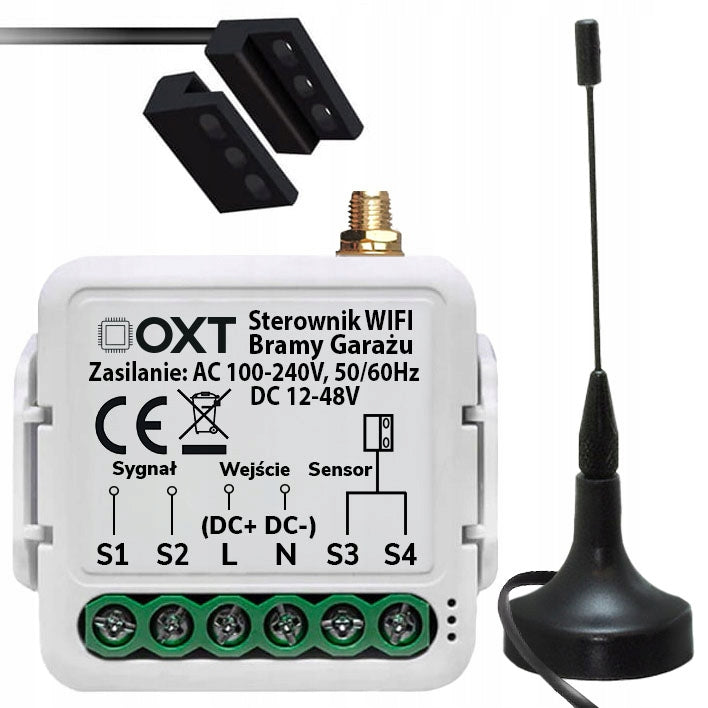

ℹ Included

• OXT module for Gate Engines version AC/DC 2026
• Wired contactor / Gate opening and closing sensor (5 meters)
• Antenna with thread cable RPSMA (1 meter)
• Fastening screws + Angle plate
• Cable ties for wiring
• Cable / Extension
• User manual in Polish

Product code: T211G
