GPS seklys SINOTRACK ST901 automobiliams ir motociklams, naudojamas su programėle, be prenumeratos

Trumpai apie prekę

Prekė: GPS seklys SINOTRACK ST901 automobiliams ir motociklams, naudojamas su programėle, be prenumeratos. Kategorija: GPS sekimo įrenginiai.

• Gamintojas: SinoTrack
• Modelis: Lokalizator GPS SINOTRACK ST901 V2

VEHICLE LOCATOR

GPS TRACKER

ORIGINAL

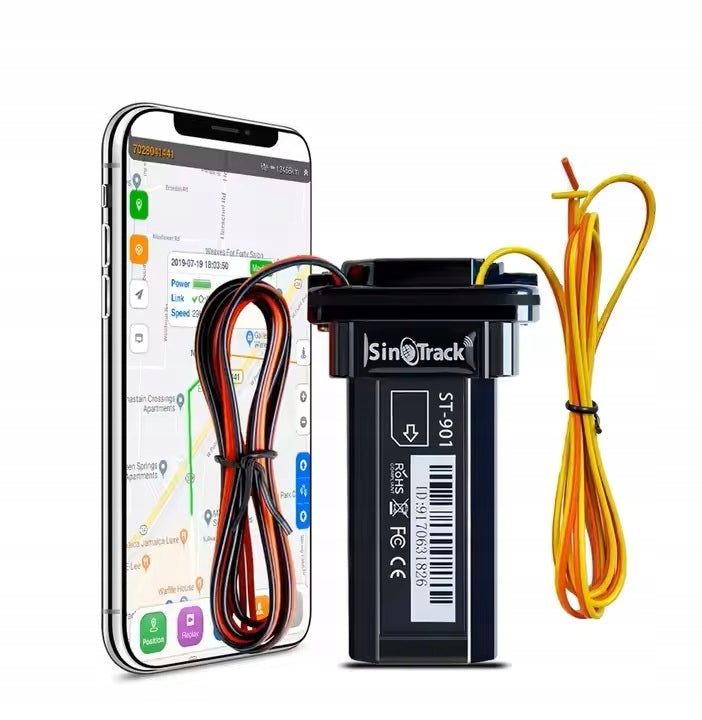

SINOTRACK ST-901

CAR, MOTORBIKE, MOTORCYCLE, SCOOTER, QUAD, BOAT, FLEET AND MORE

Polish – APPLICATION FOR PHONE + WEBSITE

LIFETIME FREE SUBSCRIPTION ON THE WEBSITE

LIFETIME FREE SUBSCRIPTION ON ANDROID OR IOS MOBILE APP

NO CONTRACTS OR SUBSCRIPTIONS

THE ABILITY TO CONNECT SEVERAL DEVICES TO ONE ACCOUNT

BATTERY SUPPORTING POWER SUPPLY 150mAh

WATERPROOF HOUSING

GPS LOCATOR IS USED FOR:

- protection of vehicles against theft, enables quick location of lost items or vehicles

- vehicle tracking

- fleet management - on the website you can enter several locators and assign them their own names

The locator is equipped with two modules: a GPS module for precise location of the device and a GSM module for communication with the user. When we want to find out what is currently the location of the locator on the SIM card number placed in the device, we send an SMS with the appropriate command. After a while, we receive a return message with the current position or a link to the Google map where this item has already been selected.

We can also follow everything on the free application for Android or IOS phone.

The locator also allows you to track the route traveled by the device. GPS gives the current location at predetermined intervals. These points on the map create the path that the device has traveled.

Locator is a new way to monitor vehicles. This is a modern GPS and GSM terminal that allows you to obtain up-to-date data on the location of our vehicle. The user receives precise data with the location and constant monitoring of the facility - both trucks, cars, construction machinery, boats or motorcycles. With this solution, the user can remotely control various types of vehicles.

The ST-901 locator is a device designed for any type of vehicle, even the most specialized such as construction or agricultural machinery. It is used to control the position of the vehicle - a practical solution after theft, so you can locate the current location of the stolen vehicle. Also used for inspection of company cars.

Location information is transmitted using the GSM module, which enables data management. It is also possible to contact the tracker via SMS. Compact GPS Tracker ST-901 allows you to easily track the location of the tracked object - by sending data to a predefined phone number or to a defined server using GPRS - which allows you to track online on any computer with Internet access.

The locator is very intuitive and does not require the user to have specialist knowledge to use it efficiently. On-demand tracking function by making a call to the number of the SIM card in the device - after 1 or 2 signals the connection is interrupted and then after a few seconds an SMS is sent to the phone number from which the call was made with a link to Google Maps or information about the location (length and latitude), which will allow you to quickly determine your location on the map. SMS sent by the locator also informs about the speed at which the targeted object moves.

The geofence function is a function of a virtual fence on any area on the map. The user uses the map to program a safe area - when a given area is crossed, he will receive an SMS message with a message about crossing a given safe zone along with a link with the current location of the vehicle with the ST-901 locator. It depends on the owner what the geo-fence area will look like, he has full control over the designation of a safe area.

Includes a wiring harness to connect - no inverters, etc. You connect the red “+” and black “-” cables to a constant 12-24V power supply and install a SIM card. If we want to have the "car firing alarm" function enabled, we connect the third cable (ACC) in orange to the current informing about the car firing (it can not be connected at all or connected to the radio backlight or ignition).

Additionally, the device is equipped with 3,7v 150mAh batteries, thanks to which we can also locate the car after disconnecting the power supply.

The alarm, which is a function of the locator, will inform us about the loss of power.

The device is also equipped with a shock sensor. If activated and vibration is detected, the device will send an alarm text message about the event. The shock sensor can also wake the device from sleep mode. In this mode, the device uses less power.

FUNCTIONS:

Real-time online trail tracking

The ability to automatically report locations and errors and save reports on the Internet

Privacy protection, password-protected access to settings

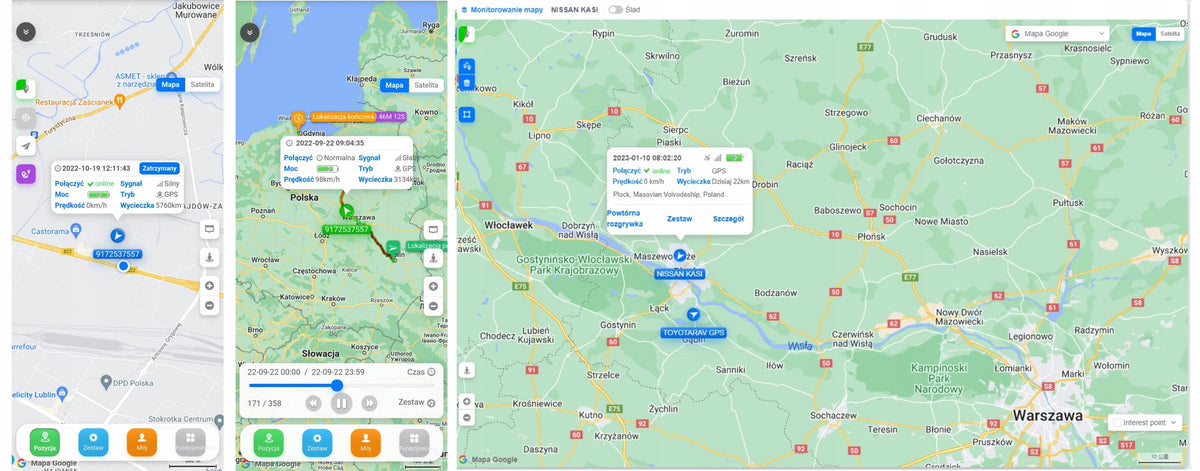

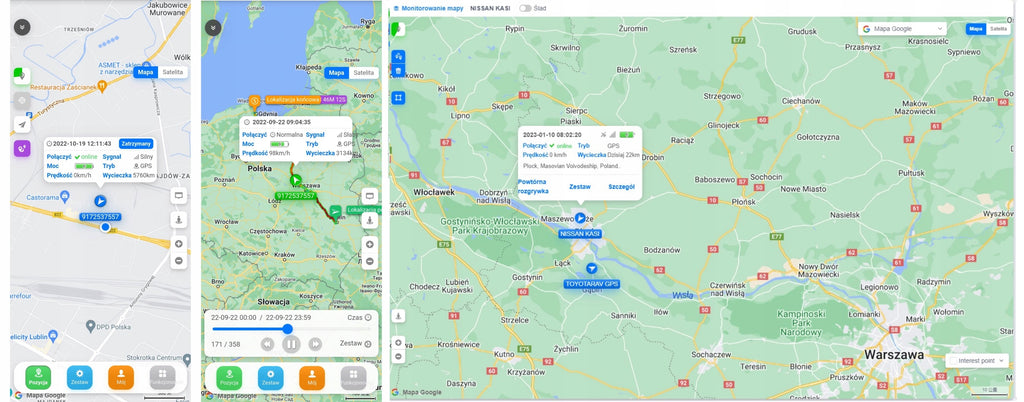

Management on the website or by phone via Android or IOS applications

Access to the server is possible from any computer, tablet via a web browser.

Possibility to recreate the route

Calculatable fuel consumption

Control of vehicle stops with the device installed.

The locator calculates the kilometers of the vehicle traveled.

GPS or GSM signal loss message.

Location history on the web server

GEOFENCE function

Surveillance of the speed of the moving vehicle. If the vehicle exceeds the permitted speed, the device will send a message with the information.

Checking the speed of the device at each point - report on the website

Power loss notification

Shock sensor

PARAMETERS:

Phone app: "SinoTrack PRO"

Website: www sinotrackpro com

Location accuracy: 5m

Cold start: 35-80 seconds

Hot start: 1 second

Small dimensions: 88x50x27mm

Battery: 3,7V 150mAh

Waterproof housing

Two ways to locate based on MBS and GPS

Supports 9-80V input voltage

Location provided via SMS or GPRS (TCP/IP).

GPS sensitivity: -159 dBm

Working temperature: -20°C to +55°C

ST-901 works with any operator's SIM card that supports the GSM frequencies displayed below. The card cannot have a PIN code – it must be disabled.

Four-band GSM system with built-in antenna

GSM frequency: 850/900/1800/1900Mhz

Full support for web, SMS and Google Link Map.

Precisely locate even when signal is weak

Display the current position of the device on the map in real time (refreshing the position every 10 seconds)

Low power consumption so that the locator does not burden the battery

Waterproof
