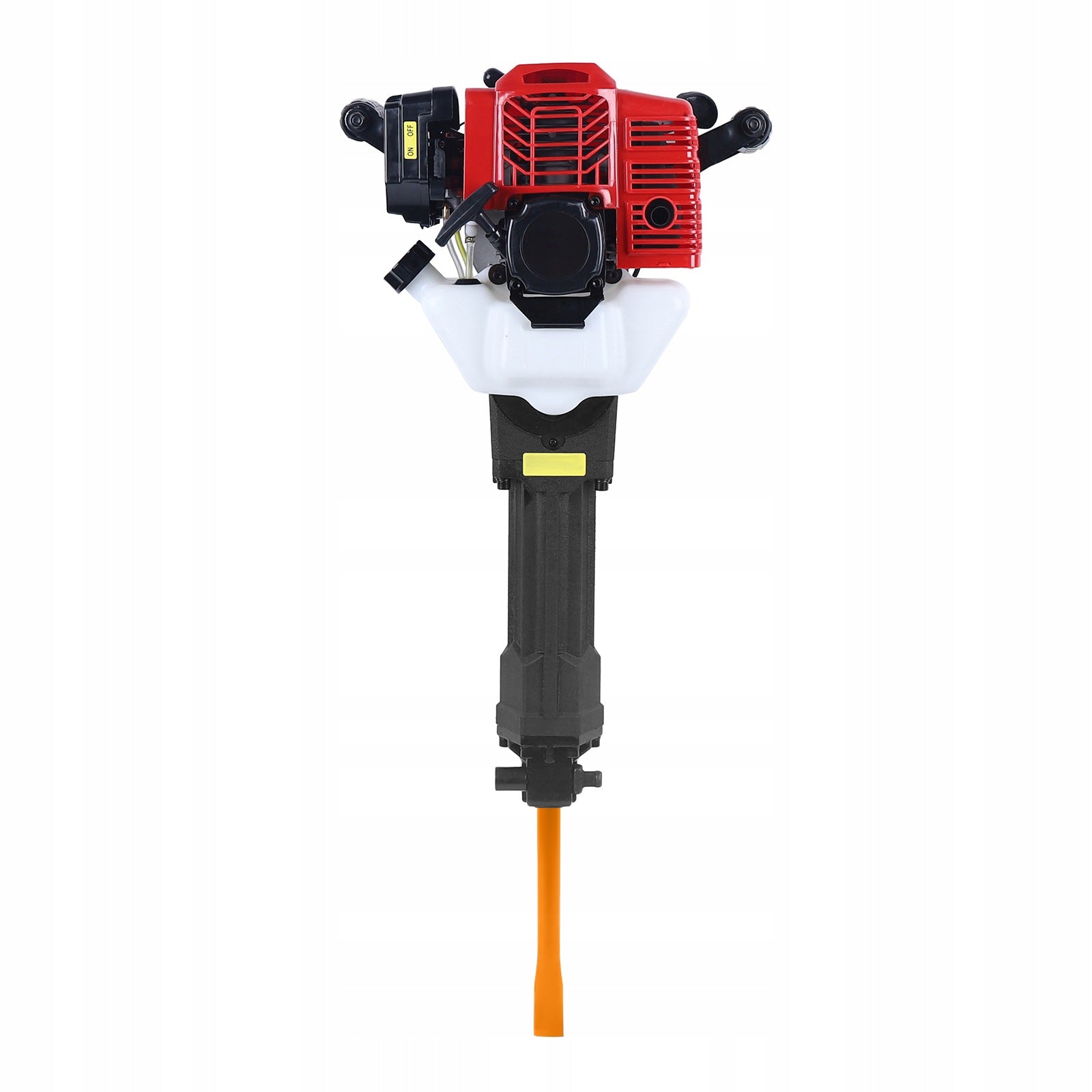

Gręžtuvinis plaktukas 1900 W, 1500 smūgių/min, statybos darbams

Trumpai apie prekę

Prekė: Gręžtuvinis plaktukas 1900 W, 1500 smūgių/min, statybos darbams. Kategorija: Griovimo plaktukai.

• Gamintojas: no brand
• Modelis: 5767
• Galia: 1900 W

Description

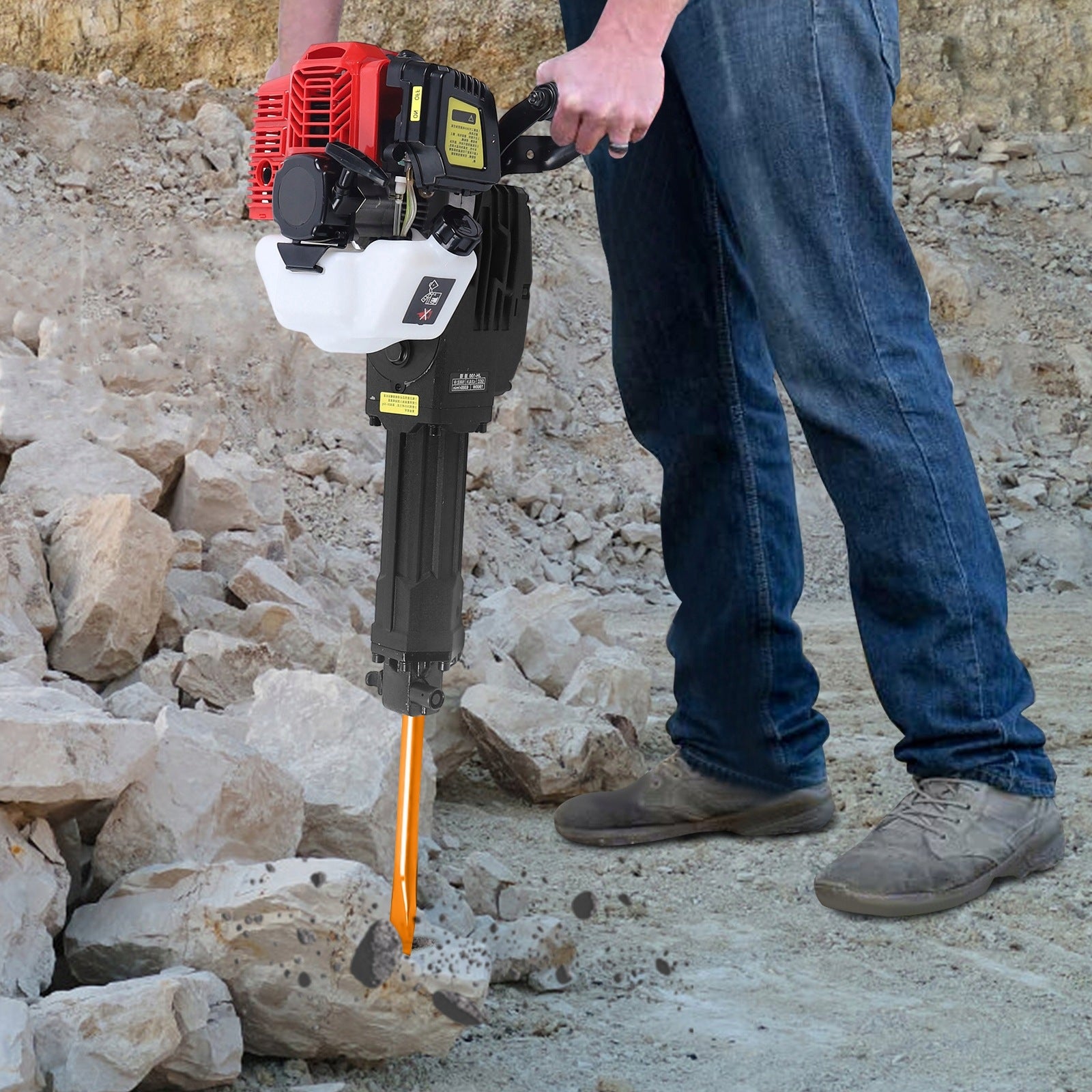

With this hammer, crushing rocks and concrete will no longer be a problem! Its high strength and different types of chisels will make it easier for you to get the job done and meet your diverse needs. This impact hammer can handle both small rock drilling projects and large-scale crushing jobs with ease. Choose it to make any construction more efficient and easier.

Key Features

Exceptional performance: The 1900W motor, 1500 beats per minute impact frequency and 20 to 55 J impact energy provide stable and high power output, guaranteeing effective crushing even when working with hard rocks or concrete.

Safety of use: The outlet hole is smokeless and does not heat up to the touch. The inner core elements are heat resistant and not easy to extinguish. Numerous heat dissipation holes around the body ensure safety of use.

Easy operation: The convenient jumper cord is easy to pull. The suction valve can reduce the volume of air to increase the concentration of the mixture, making it easier to start the machine. The switch allows you to quickly turn off the device, which provides convenience of operation and control.

Multiple choices: It has a point and flat chisel that meet different operational requirements. Whether it's for fine drilling in stone or large-scale crushing, it can handle them with ease.

Low noise: Compared to other pneumatic hammers, it has a silencer that effectively reduces noise during operation (70 dB). It is perfect for places that require less interference during work.

Large capacity: With a high capacity fuel tank (0,34 gallons) and low fuel consumption (≤ 0,16 gallons/h), the engine can run continuously for 7-8 hours with full oil. This guarantees reliable performance without frequent oil replenishment.

Easy to clean: With its smooth metal material, the dirt can be easily removed with a cloth, which is convenient and hassle-free.

Details

Comfortable grip: Made of non-slip silicone and shock-absorbing, it provides a comfortable grip even after long periods of use.

Transparent fuel tank: Makes it easy to control the oil level and refill it in a timely manner, ensuring that your device runs smoothly.

Alloy Clamp Head: Made of high quality and durable alloy, which prevents the chisel from falling out.

Application

It can be used for ground drilling, rock breaking, wall drilling, and concrete demolition. It is perfect for removing foundations of houses, demolition of bricks, interior decoration and construction of pipelines.

Assembly method

1. Insert the chisel into the clamping head.

2. Rotate the latch to lock the chisel.

3. Check that the chisel is properly mounted.

Commissioning

1. Close the suction valve.

2. Press the oil bubble.

3. Pull the boot cord.

4. Open the suction valve.

5. Pull the cord again to complete the boot.

Specification

Material: ABS, cast iron, aluminum, alloy steel, alloy, silicon

Engine type: 44 mm, single cylinder, air-cooled, 2-stroke

Color: Black, Red

Method: spraying plastic

Assembly Required: Yes

Starting system: manual starter

Carburetor Type: MZ15-048

Spark Plug Type: TORCH BM6A

Power Source: Gasoline

Fuel mixture: 25:1 (petrol: oil for 2-stroke engines)

Power: 1900 W

Speed: 6500 rpm /min

Displacement: 52 cm3

Noise: 70 dB

Impact energy: 20-55 J

Stroke frequency: 1500 beats per minute

Max. Torque and speed: 3,5 Nm/5000 rpm /min

Fuel tank capacity: 1,3 l/0,34 gallons

Fuel consumption: ≤ 0,6 l/0,16 gallons/h

Cylinder diameter * Stroke: 44 x 34 mm/1,73 x 1,34 inches

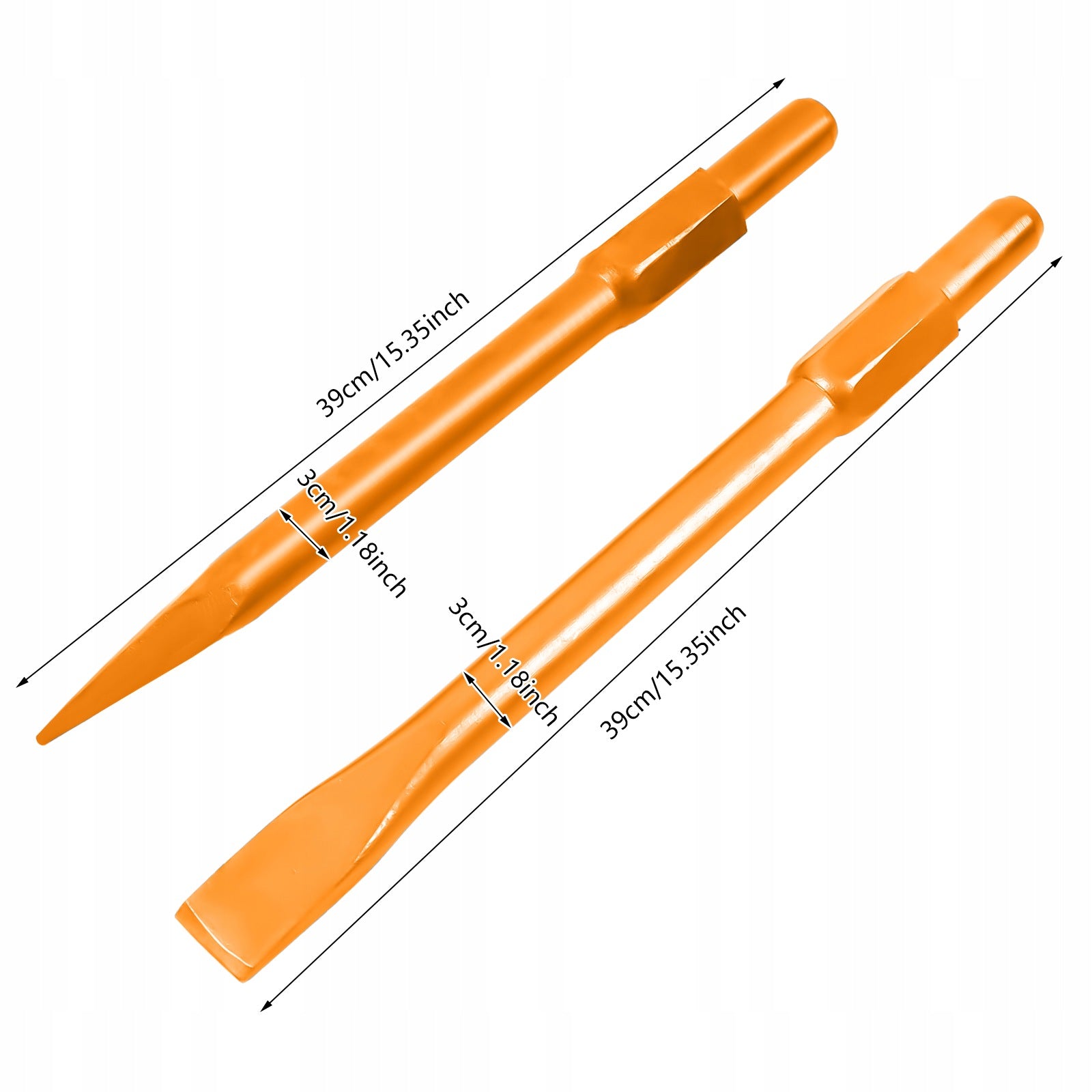

Pointed chisel size: 40 cm/15,8 inch

Flat chisel size: 39,5 cm/15,6 inch

Product Dimensions: 61 x 38,5 x 26,5 cm/24 x 15,2 x 10,4 inches

Package Dimensions: 35 x 40 x 72 cm/13,8 x 15,8 x 28,4 inches

Net weight: 19,65 kg/43,3 lbs

Gross weight: 21,05 kg/46,4 lbs

Package Contents: 1 x Pneumatic Hammer Demolition Kit

1 x Fuel Oil Mixing Bottle

1 x Pointed Chisel

1 x Flat Chisel

1 x Funnel

1 x Filter

Other accessories

Notes

1. Please read the instruction manual carefully and pay attention to the precautions contained therein.

2. Please take into account the slight differences in color caused by the flash light and the manual measurement error of 1-3 cm. Please make sure that this does not bother you before placing your order.
