Hidraulinis presavimo įrankis PEX vamzdžiams, V/U/TH žnyplės 15–32 mm, su dėklu

Trumpai apie prekę

Prekė: Hidraulinis presavimo įrankis PEX vamzdžiams, V/U/TH žnyplės 15–32 mm, su dėklu. Kategorija: Spaudimo replės.

• Gamintojas: FUGERT
• Modelis: FUG-0113B
• Svoris: 3.4 kg

⚜ PRESS CRIMPING MACHINE FOR PEX PIPES HYDRAULIC 12 TONS DIES V+U+TH 15-32MM ⚜

☑ Rotary head - facilitates work in hard-to-reach places

☑ U, V, TH matrix sets

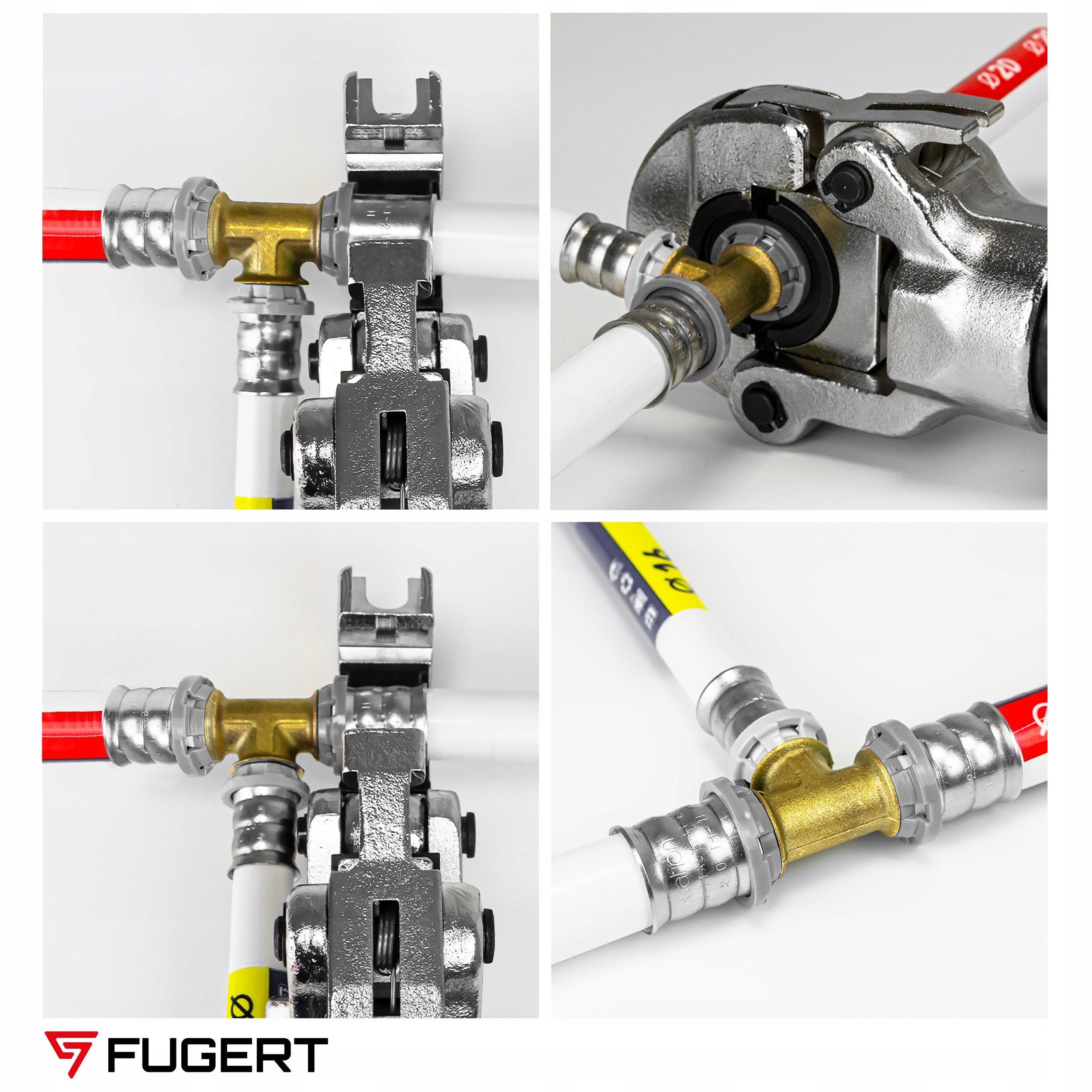

☑ High-precision connection of PEX pipes and tubes

☑ All packed in a sturdy suitcase

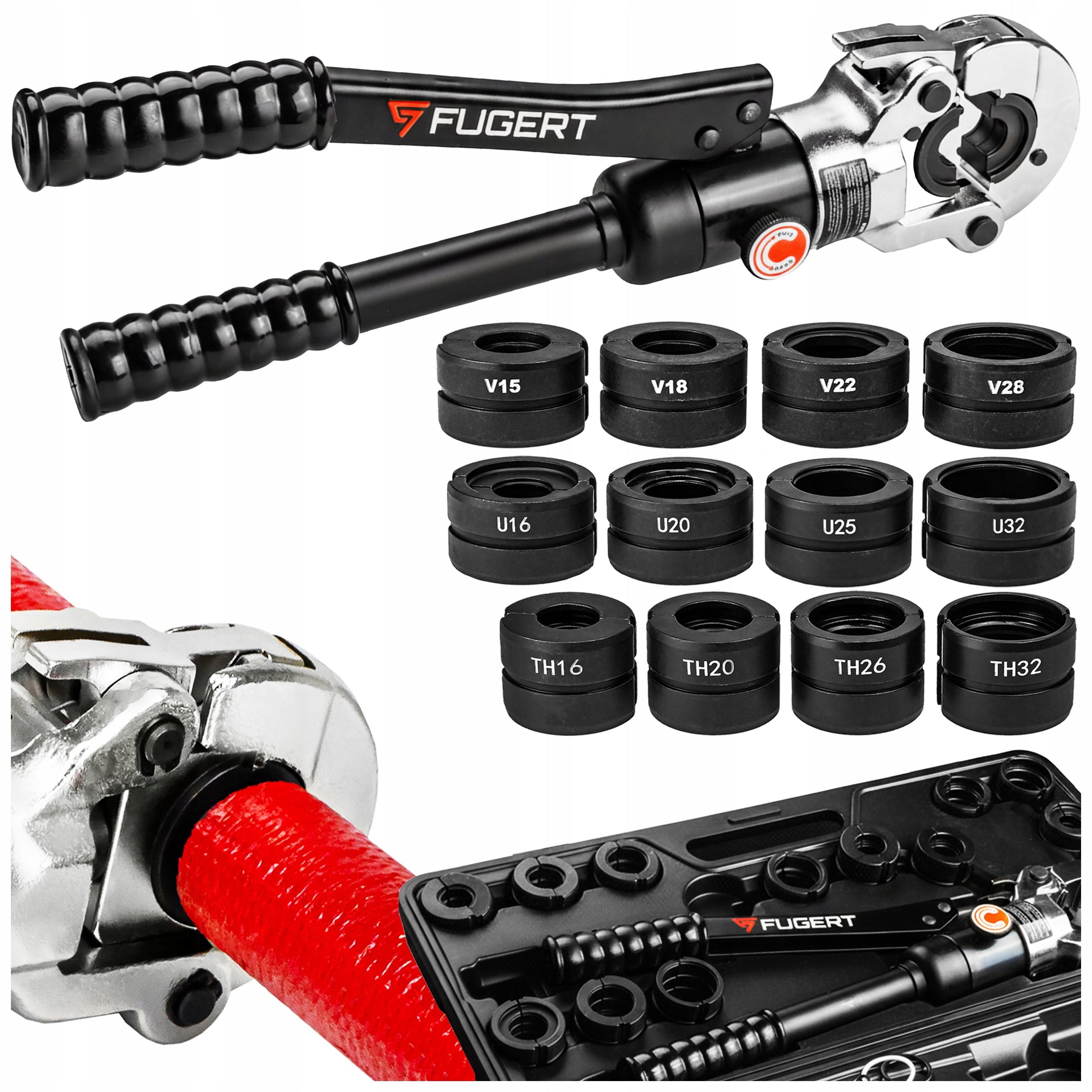

☑ U head sizes: 16, 20, 25, 32mm, V: 15, 18, 22, 28mm, TH: 16, 20, 26, 32mm

☑ PEX Pipe Crimping Machine Technical Data

• Brand: Fugert
• Model: FUG-0113
• Link operation: 15-32mm
• Hydraulic pressure force: 12ton
• Hydraulic cylinder: yes
• Piston stroke: 17mm
• Material: steel

☑ Hydraulic crimping machine has a rotating head 360°

Openable rotating head with a rotation of up to 360°. It will make it easier and more efficient to work even in hard-to-reach places.

☑ Even faster and more efficient change of dies in the crimper

Head 1 (new improved model):

• This is a newer model with fast matrix change system
• Failure-free head
• It has a snap/quick-connect mechanism, marked with a red arrow
• It has a more streamlined, modernized shape
• The matrix can be replaced with a single motion, without the need to unscrew or press buttons
• Made of high quality materials resistant to exploitation

Head 2 (older model, more emergency):

• Presents older crimper model
• It has an older matrix mounting system, requiring pressing black buttons (two small elements marked with arrows are visible)
• Model more emergency and not as fast when replacing dies as our new model

☑ Type V heads - clamping jaws

Application: mainly for metal pipes: copper, stainless steel and carbon.

Typical in industrial, water supply and heating installations requiring high strength.

This profile provides even pressure around the perimeter, which makes the connection particularly tight.

4 sizes: 15mm, 18mm, 22mm, 28mm

☑ U-heads - clamping jaws

Application: for multilayer pipes (PEX-AL-PEX), PEX and plastics.

Ideal for heating and sanitary installations in residential construction, where multilayer pipes are standard.

It provides precise crimping, minimizing the risk of damage to the material.

4 sizes: 16mm, 20mm, 25mm, 32mm

☑ TH type heads - clamping jaws

Designed for dedicated systems by specific brands of pipe and fitting manufacturers.

Often used in modern heating, sanitary and refrigeration installations.

Specialized shape, in accordance with the requirements of dedicated systems, most often used in multilayer pipe systems and specific heating and sanitary installations.

4 sizes: 16mm, 20mm, 26mm, 32mm

☑ Pex crimping machine - simple operation

1. Select the appropriate set of dies for the connector you are using.
2. Make sure that both halves of the matrix are well protected against falling out.
3. Set the connector between the dies. Set the actuator switch to the "ON" position. Pump the tool with the handle, until the connector is immobilized in the matrix.
4. Continue pumping to completely crush the link. To release the connector with the pressed pipe, set the knob to the "OFF" position. The piston will retract and the tool is ready to start the next cycle.

☑ High quality and reliability of the crimper

✔ Rotating head 360° - will facilitate work in hard-to-reach places

✔ Actuator knob - trouble-free compression release.

✔ Anti-slip rubberized handles - secure grip in the hands.

✔ Simple and intuitive matrix replacement - just slide the appropriate matrix sideways.

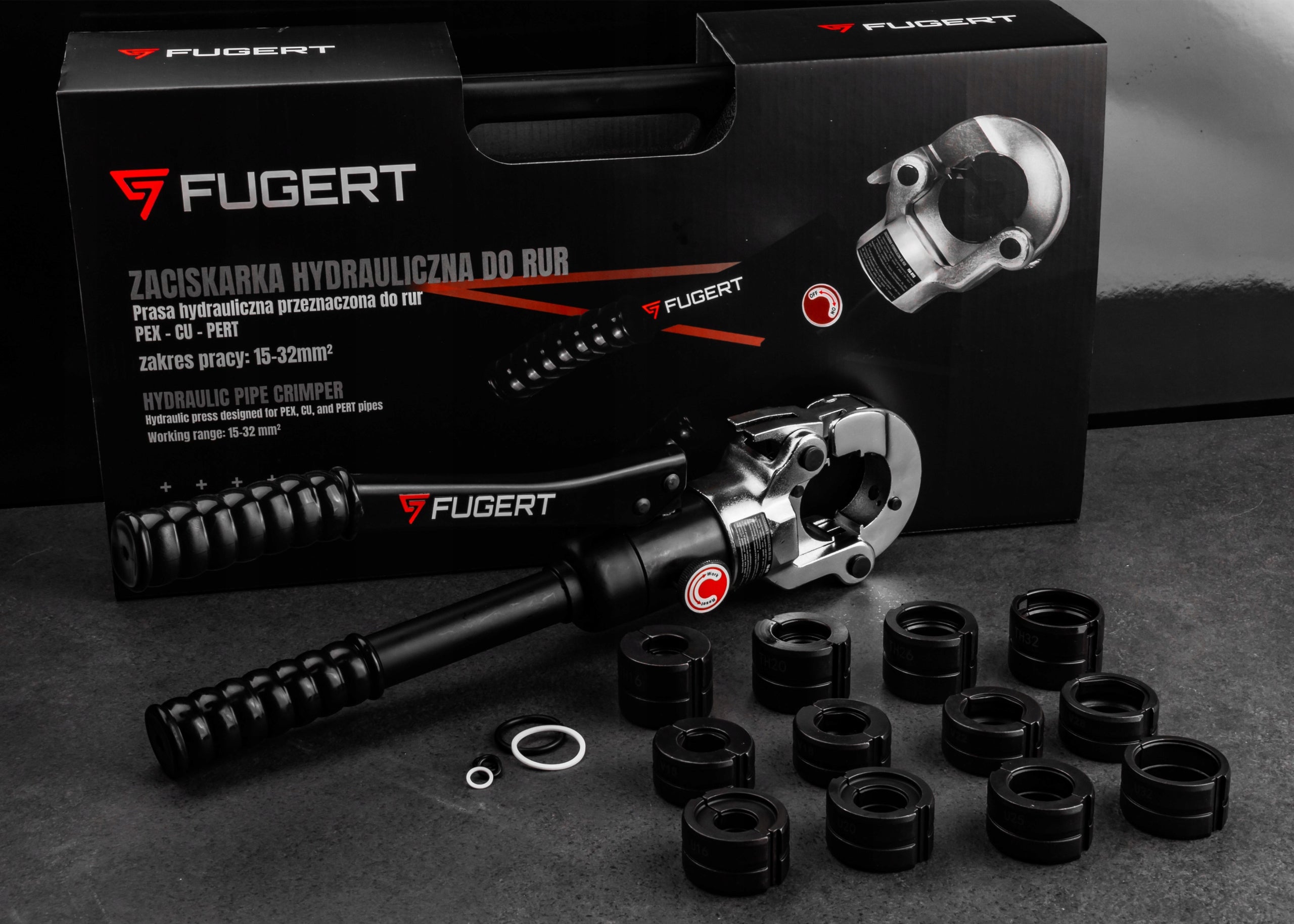

☑ The press pex pipe crimper has a convenient case that holds the whole set

The entire set of the crimper is packed in a convenient and made of solid plastic suitcase.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	FUGERT
Parametry	Maximum jaw diameter	32 mm
Parametry	Minimum jaw diameter	15 mm
Parametry	Power supply	handheld
Parametry	Weight	3.4 kg
Parametry	Product weight with unit packaging	6.3 kg
Parametry	Manufacturer code	FUG-0113B
Parametry	EAN (GTIN)	5906688630551
Parametry	Batteries included	no
Parametry	Packaging status	original
Parametry	Additional features	rotating head,replaceable jaws
