Įkroviklis starteriui su inverteriu, 12V/24V

Trumpai apie prekę

Prekė: Įkroviklis starteriui su inverteriu, 12V/24V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: BJC
• Modelis: BC-600

600A START INVERTER RECTIFIER BJC Digital Inverter Battery charger™

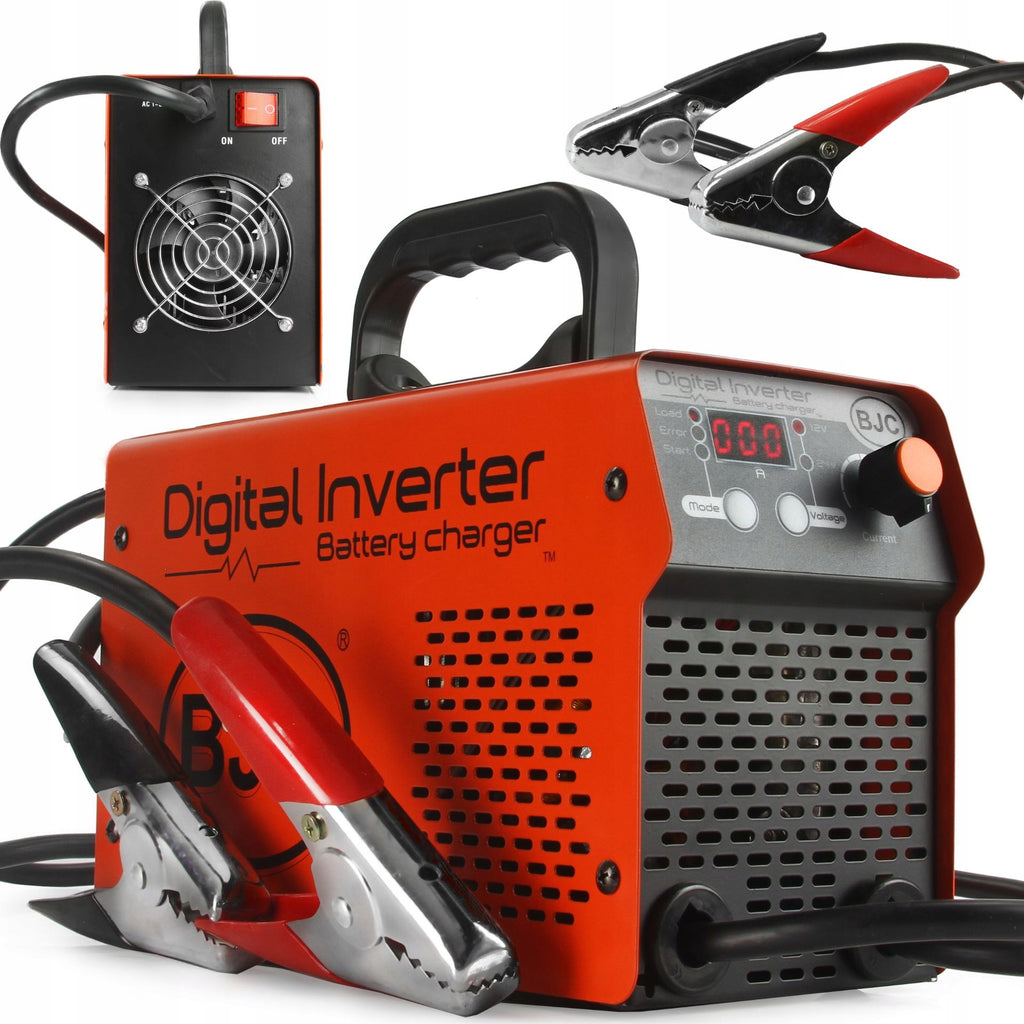

The BC-600 charger with a quick charging and start-up function is a professional device for charging and starting batteries with a voltage of 12V / 24V and a battery capacity from 50Ah to 800Ah.

Technical data:

• Model: BC-600
• Supply voltage: 230V / 50Hz 7A
• Output voltage: 12/24V
• Output current: 80A
• Max current: 600A
• Output: 5 - 80A
• Inrush: 600A
• Supported batteries: 50 - 800 Ah
• Insulation class: I
• Degree of protection: IP20
• Dimensions: 30 x 12 x 18 cm
• Charging cable length: 1.45 m
• Power cord length: 2 m

Rectifier features:

• 12V/24V START FUNCTION
• CHARGING 12V / 24V BATTERIES
• POTENTIOMETER FOR CURRENT ADJUSTMENT
• Strong
• Efficient
• Very solid construction

THICK CABLES FOR MAX. EFFICIENCY AND EFFICIENCY

Multifunctionality

The BJC inverter rectifier provides the ability to effectively and efficiently charge and start both 12V and 24V batteries.

Simple and intuitive control panel

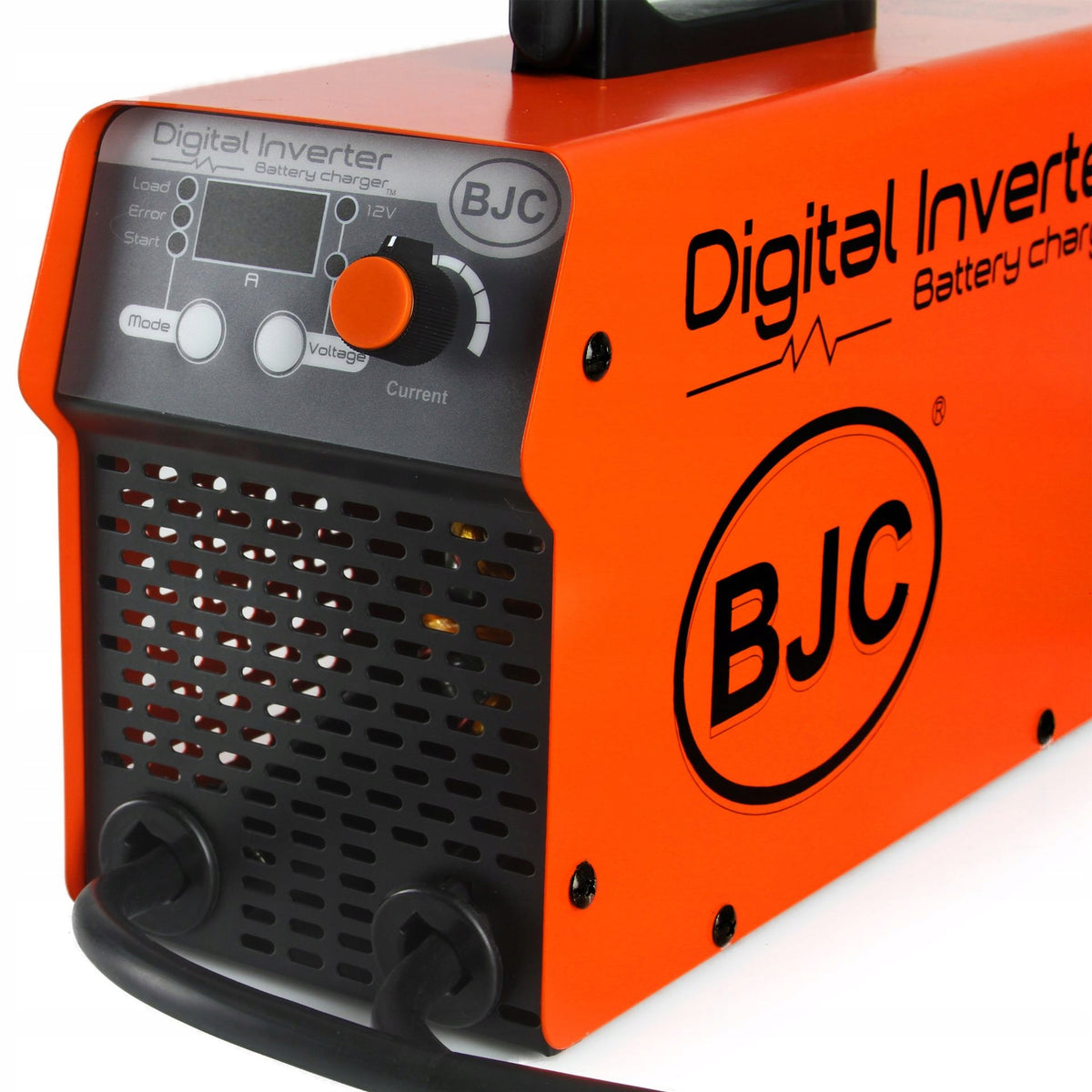

The BJC inverter rectifier is equipped with an extremely simple and clear control panel with an LED display, signaling diodes and a potentiometer.

Selectable load / start operating mode

12V/24V voltage selectable

Possibility of adjusting the current with a potentiometer

Extremely thick 25mm² cables

Dedicated, thick cables not limiting the rectifier, providing max. efficiency and effectiveness

The set includes strong self-locking clips on springs

BUILT ON THE BEST COMPONENTS

Advanced technology and powerful integrated circuits have been created to achieve the highest efficiency and reliability of the device.

Dedicated cooling

High performance requires dedicated solutions

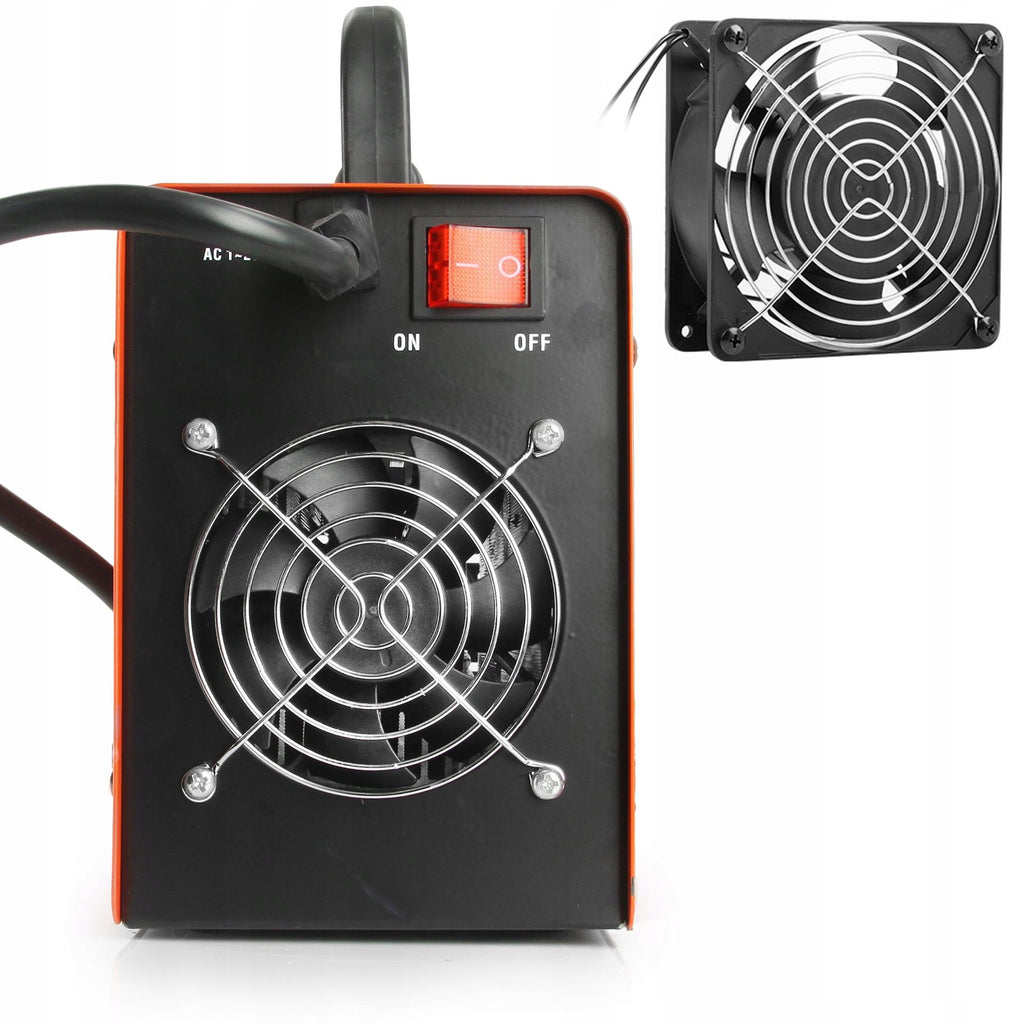

The BJC® Inverter Rectifier is equipped with a fan mounted on the rear housing to ensure optimal operating temperature. After turning off the rectifier, the fan continues to run for a while , cooling the circuits inside the housing.

ON/OFF switch with indicator light

ATTENTION ! The charger will always turn on in 12V mode after restarting even if previously set to 24V charge/start.

Compact dimensions with maximum performance

Don't be fooled by appearances, designed to take up little space, be handy and compact, and at the same time extremely powerful and efficient.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	BC-600
Parametry	Brand	BJC
Parametry	Maximum amperage	600 A
Parametry	Product weight with unit packaging	4 kg
Parametry	EAN (GTIN)	5901969122725
