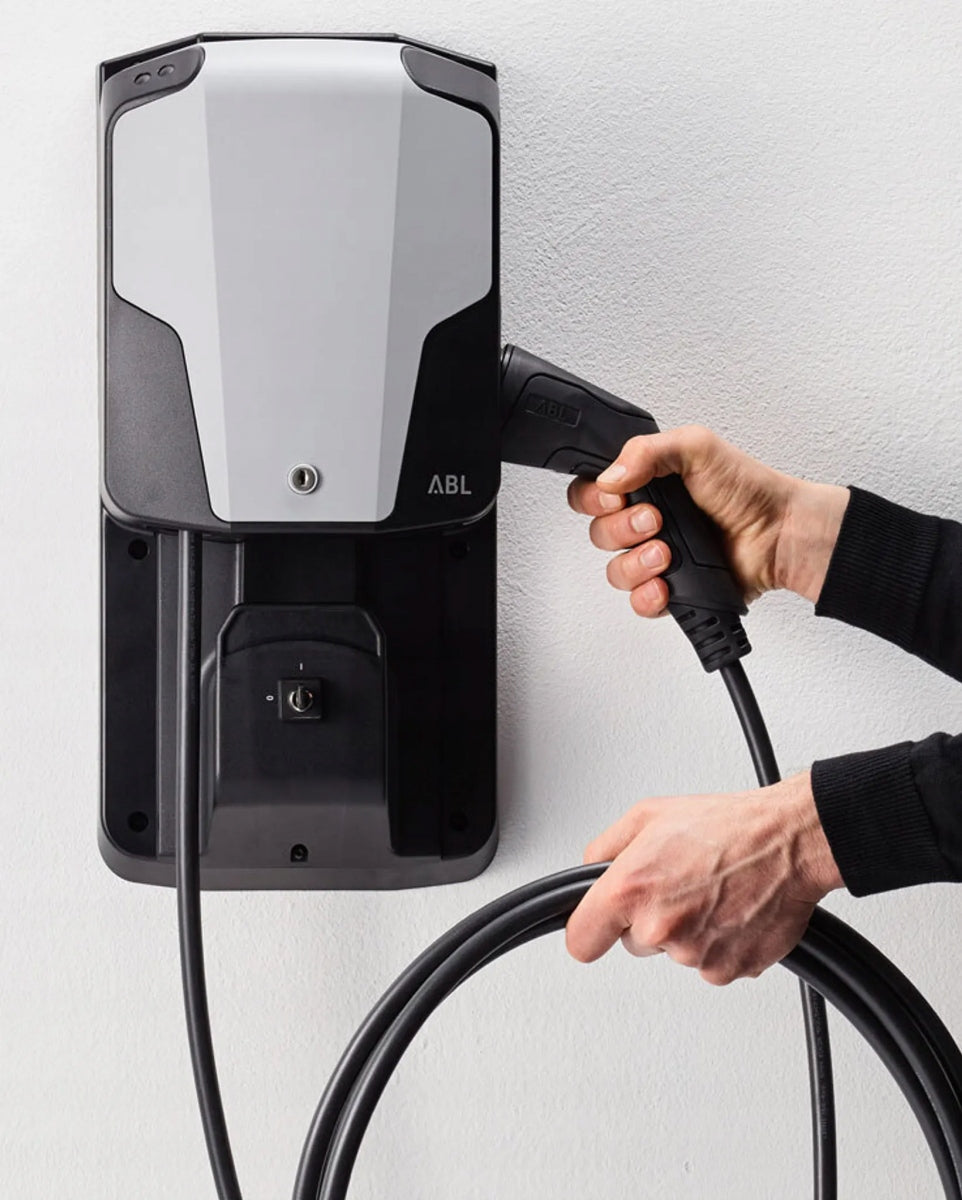

Įkrovimo stotelė ABL eMH1 SENEC Wallbox Pro, 11–22 kW

Trumpai apie prekę

Prekė: Įkrovimo stotelė ABL eMH1 SENEC Wallbox Pro, 11–22 kW. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand

ABL eMH1 SENEC Wallbox PRo 11-22 KW

The Wallbox eMH1 has a permanently integrated charging cable with a Type 2 charging connector. With its compact dimensions, the Wallbox eMH1 is the perfect solution for efficient vehicle charging. The operation of the Wallbox station is intuitive and is also ideal for novice users. With standard type A residual current circuit breaker and DC differential current detection, the charging station is always pre-installed and ready to be connected by the installer.

Product Features

• Wallbox Station
• Brand eMH1
• Product number 1W1101
• Packaging (dimensions H. × W. × D. ) 355 × 330 × 270 mm
• Scope of delivery: Wallbox station, printed short instruction manual, installation kit, 2 keys, template for drilling holes

Input / power connection

• Network connection max. 5 × 6 mm²
• Rated voltage 230 / 400 V
• Rated current 16 A
• Network frequency 50 Hz
• 16 A reserve fuse (on site required), recommended characteristic C
• Connection terminals Direct connection to RCD
• PE: through clamp 6 mm²

Vehicle output/connection

• Connection technology Single charging cable with type 2 connector according to IEC 62196-2, ca. 6,35 m
• Output voltage 230 / 400 V
• Maximum charging current 16 A
• Maximum charging power 11 kW

Fuse protection / installation

• RCCB Residual Current Circuit Breaker, Type A, 30 mA
• Electronic detection of short-circuit current DC, I?n d.c. ? 6 mA
• Load switch contactor, 4-pole
• Welding Detection Triggered when contactor is welded
• Internal temperature monitoring, charging current reduction or shutdown

Charging monitoring / displaying functions

• Display (operating status / error display) LED
• Firmware LED display (flashes when turned on)
• EV communication according to IEC 61851-1, mode 3
• Communication EVSE RS485

Standards / Directives

• IEC 61851-21-2
• IEC 61851-1 Ed. 3
• IEC 60364-7-722 Ed. 1

Working conditions

• Storage ambient temperature -30 to 85 °C
• Ambient temperature Operation -25 to 40 °C
• Relative humidity from 5 to 95%, non-condensing
• Protection class I
• Overvoltage category III
• Degree of contamination 3
• Degree of protection of housing IP54
• Power loss n/d A.

Housing

• Type of construction Wall-mounted housing
• Mounting type Wall mounting with mounting kit
• Material (Housing / Cover) Plastic
• Closing panel, closed with integrated lock
• Dimensions (H) × W. × deep. ) 272 × 221 × 116 mm
• Weight about 4,5 kg

Optional accessories

• Basis of POLEMH1
• Base EMH9999
• WPR12 weather protection roof
• Mounting plate with cable holder WHEMH10
• Mounting plate with cable holder and key switch 1W0001
• Energy management system eMS home
• Cable Conversion Current Transformer for eMS home eMS CT
• Mounting plate with switch for PV PVEMH10 connection
• Cable holder with plug-in holder CABHOLD
• CONFCAB configuration kit
• TE001 Installation Tester
• Adapter for vehicle simulation TE005
