Apraksts
Trumpai apie prekę

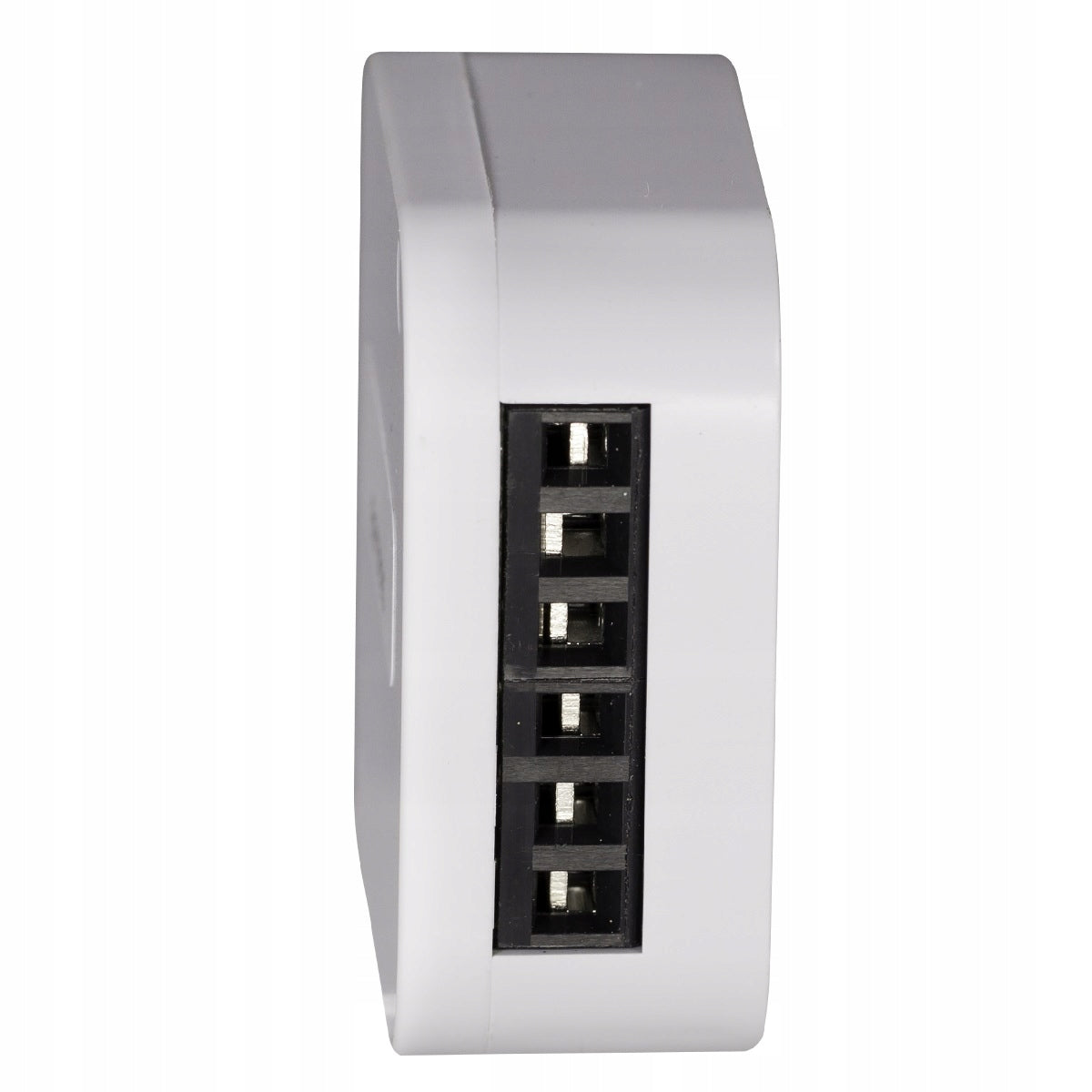

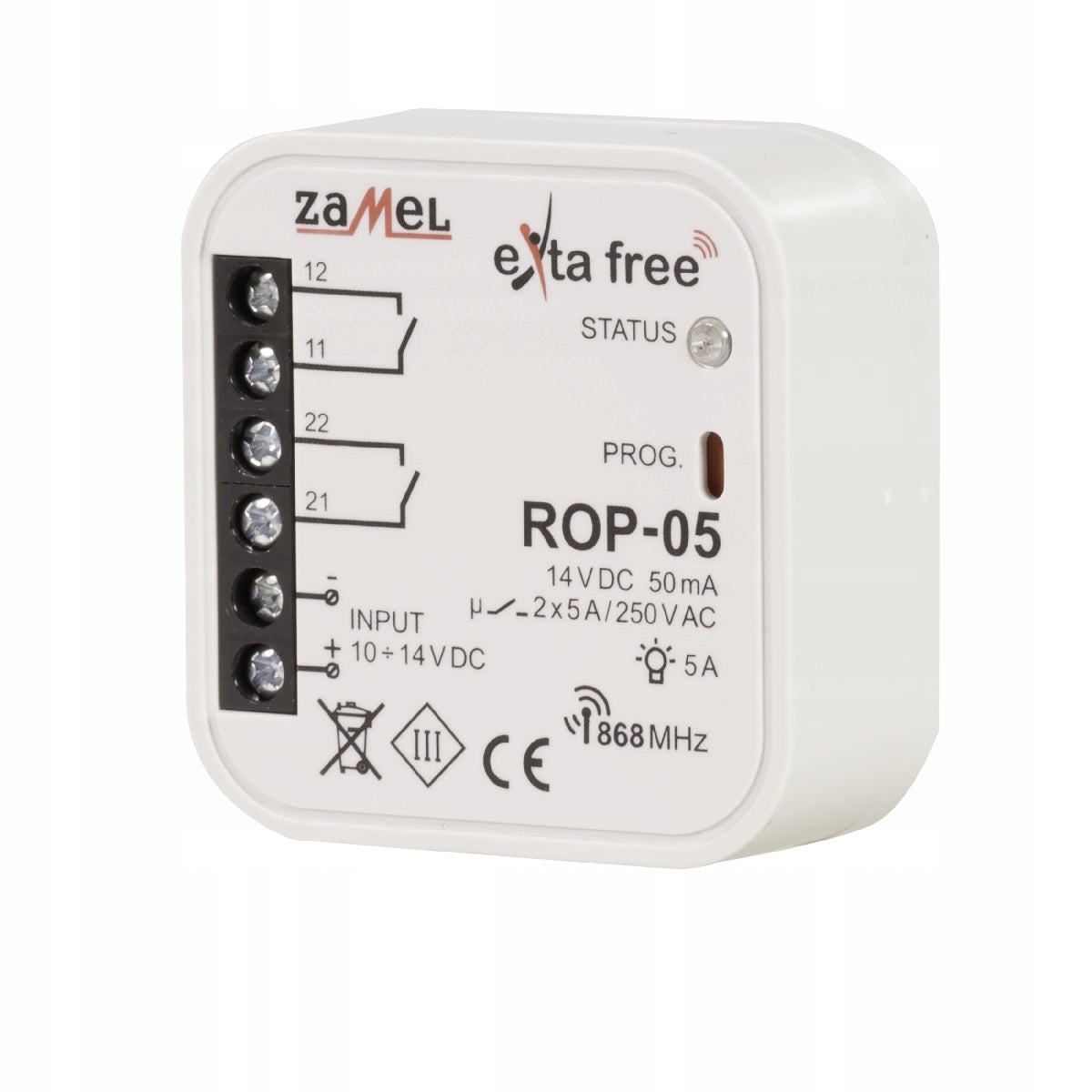

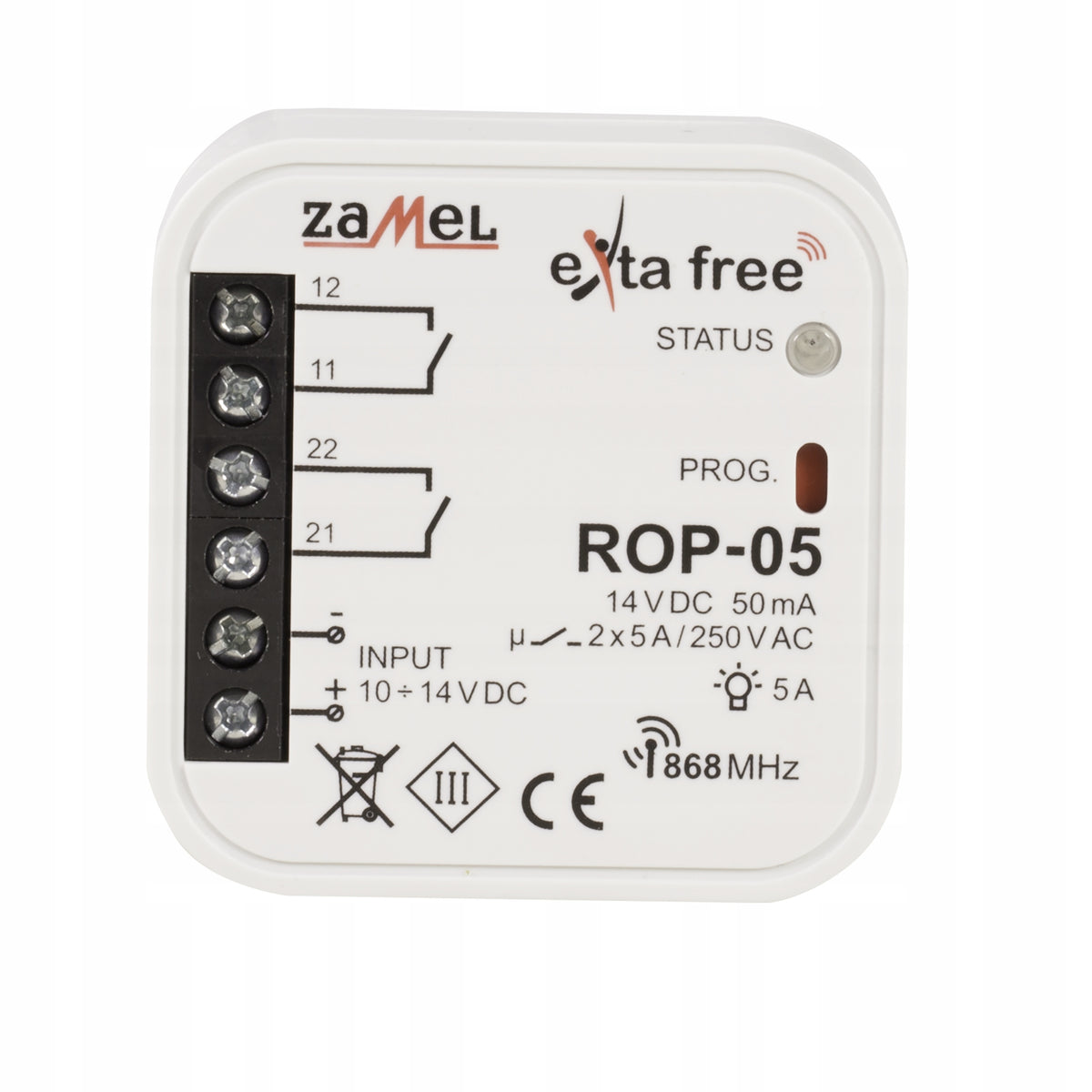

Prekė: Imtuvo maitinimo šaltinis 2 kanalų 10–14V Zamel EXTA FREE ROP-05. Kategorija: Išoriniai moduliai.
- Gamintojas: Zamel
- Modelis: ROP-05
The ROP-05 receiver is designed to perform simple control functions in low-voltage installations 10 ÷ 14 V DC. In combination with EXTA FREE transmitters, it enables the implementation of the on/off function, monostable, bistable and time mode. The receiver is recommended to work with LED lighting.
Product functional features:
- Cooperation with EXTA FREE wireless transmitters.
- Independent control of up to two receivers in modes: on/off, monostable, bistable, timed.
- 2 NO type non-voltage relay outputs with a maximum load capacity of 5 A for 250 V AC.
- Long operating range (up to 230 m in open area).
- Small dimensions adapted for installation in a typical installation box Ø60.
- Low power consumption in standby mode (0,15 W) receiver adapted for continuous operation.
Technical data:
- Rated receiver supply voltage: 10 ÷ 14 V DC
- Frequency: 868 MHz
- Encoding: transmission with addressing
- Number of receiver channels: 2
- Receiver operating range: 230 m
- Degree of receiver protection: IP20
- Maximum relay current: 5 A
- Maximum relay power: 70 W
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | other |
| Parametry | Series | EXTA FEE |
| Parametry | Brand | Zamel |
| Parametry | Manufacturer code | ROP-05 |
| Parametry | EAN (GTIN) | 5903669066989 |
| Parametry | Product weight with unit packaging | 0.2 kg |
| Parametry | Certificates of conformity | CE |
