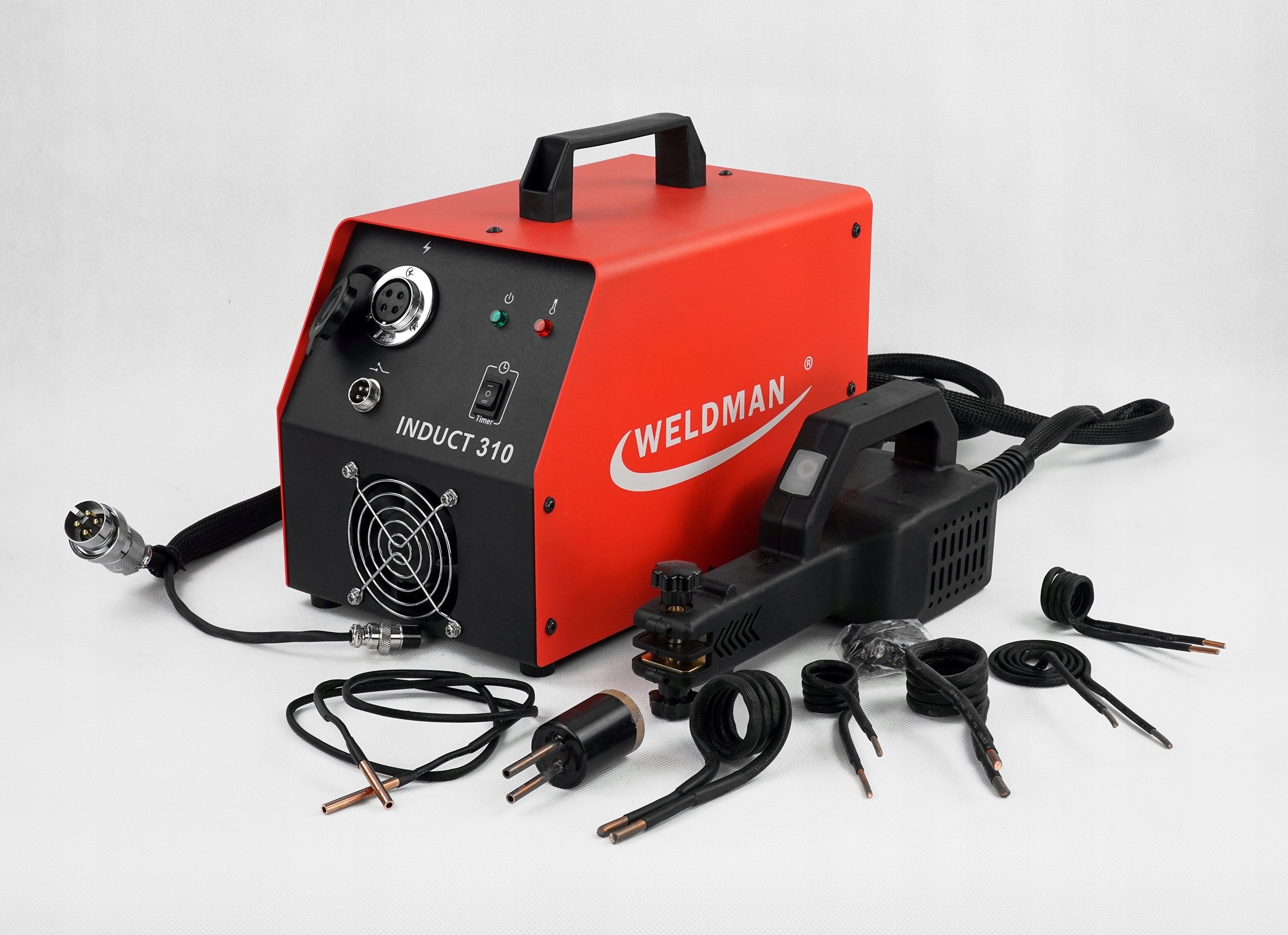

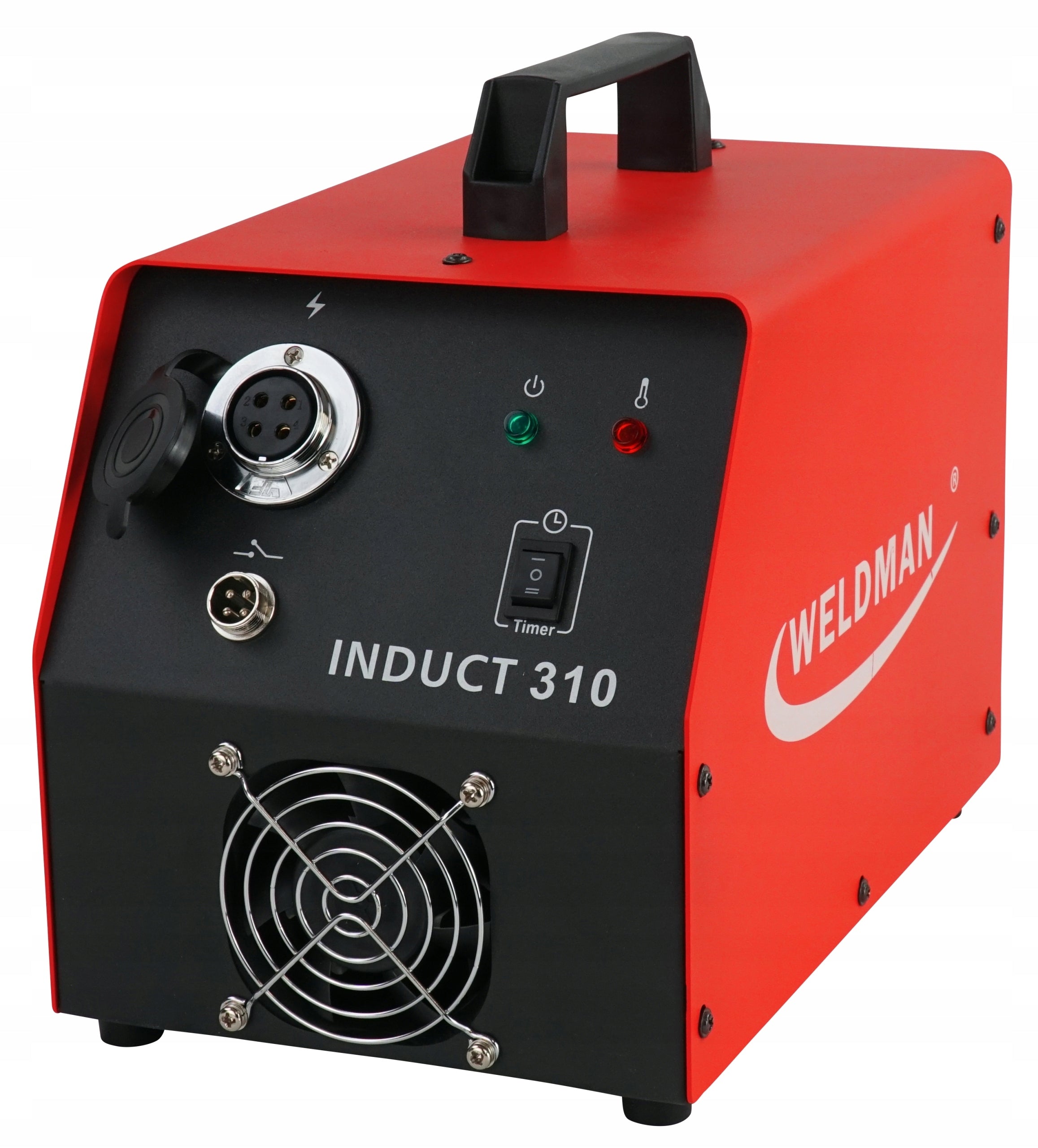

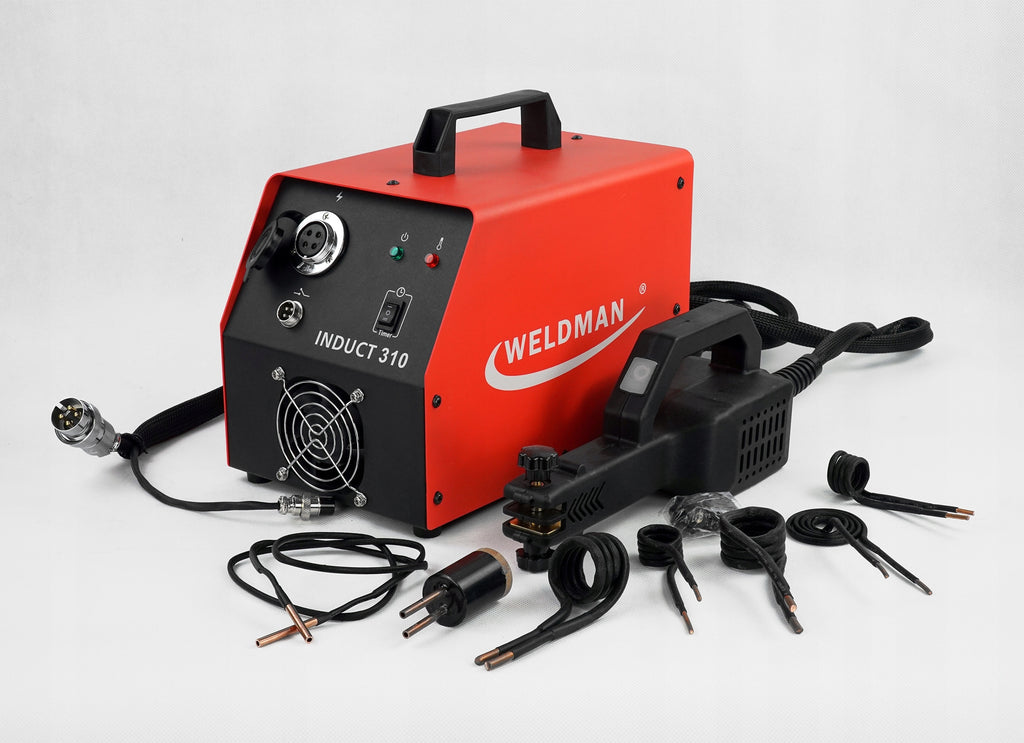

Indukcinis kaitintuvas varžtams WELDMAN

Trumpai apie prekę

Prekė: Indukcinis kaitintuvas varžtams WELDMAN. Kategorija: Sandarikliai.

• Gamintojas: Weldman
• Modelis: Induct 310
• Įtampa: 230 V

The INDUCT 310 induction heater is designed for fast heating of metal elements, perfectly replacing traditional methods of heating with combustible gases. By limiting the heating zone, eliminates the risk of damage to the element (varnished surface, electrical harness, upholstery, rubber wire) and improves work safety.

Indispensable in the automotive industry in workshop and repair work (heating corroded bolts and nuts, hubs, bushings, bearings, exhaust system components, flat sheets, protective strips on the body, etc. ) and in the heating and sanitary industry.

If your plant performs such works as: bending of pipes and rods, unscrewing of sealed pipes, straightening of sheets, removing stickers, etc. It is with the induct 310 device that you will perform these operations more efficiently and safely - this device perfectly replaces the standard methods of heating with combustible gases (propane-butane-oxygen, acetylene-oxygen).

ADVANTAGES OF THE WELDMAN INDUCT 310

• Power:3kVA
• Work cycle:15%
• constructed on the basis of modern electronics,
• power supply from single-phase network 230V,
• Security: IP21
• cooled by an efficient fan,
• LENGTH OF WORKING WIRE 2,4M

PURCHASE OF AN INDUCTION HEATER - COST REDUCTION

• Lower costs associated with crew training, lower wage costs.
• There is no need for periodic employee training, which is required when working with combustible gases.
• Low cost of purchase and operation. No costs associated with the purchase of technical gases and the lease of cylinders.
• High energy efficiency.

Includes induction tips for spot heating, for bolts, pins, nuts, pipes, as well as for removing stickers.

WORK CYCLE

The work cycle is based on a 10-minute period. The 15% duty cycle means that after 1,5 minutes of operation of the device, a 8,5-minute break is required. The 100% duty cycle means that the device can work continuously, without interruptions.

WORKING ENVIRONMENT

The device should be placed in a well-ventilated room, with free air circulation, away from flammable objects, min. distance from other objects 0,5m.

SOLID CONSTRUCTION

The housing of the device is made of light and durable composites, resistant to all kinds of mechanical damage.

EASE OF TRANSPORT

The low weight of the heater provides comfort when changing jobs.

• Supply Voltage: 230V/50Hz
• Power supply: 3 kVA
• Power supply current max: 10 A
• Output current voltage: 16 V
• Output current: 120 A
• Induction frequency: 100 kHz
• Efficiency: 15%@120A
• Ambient temperature: -10°C to +40°C
• Protection: IP21
• Protection Required: 16 A
• Heater dimensions (W) x L x H ): 19 x 30 x 31 cm
• Heater weight: 5,5 kg
• Weight of heater with accessories: 8 kg

Working cable length: 2,4m

INCLUDED IN THE SET:

• Induction heater Weldman Induct 310
• Multifunction holder 2,4m
• Power cord 1,8m
• User manual

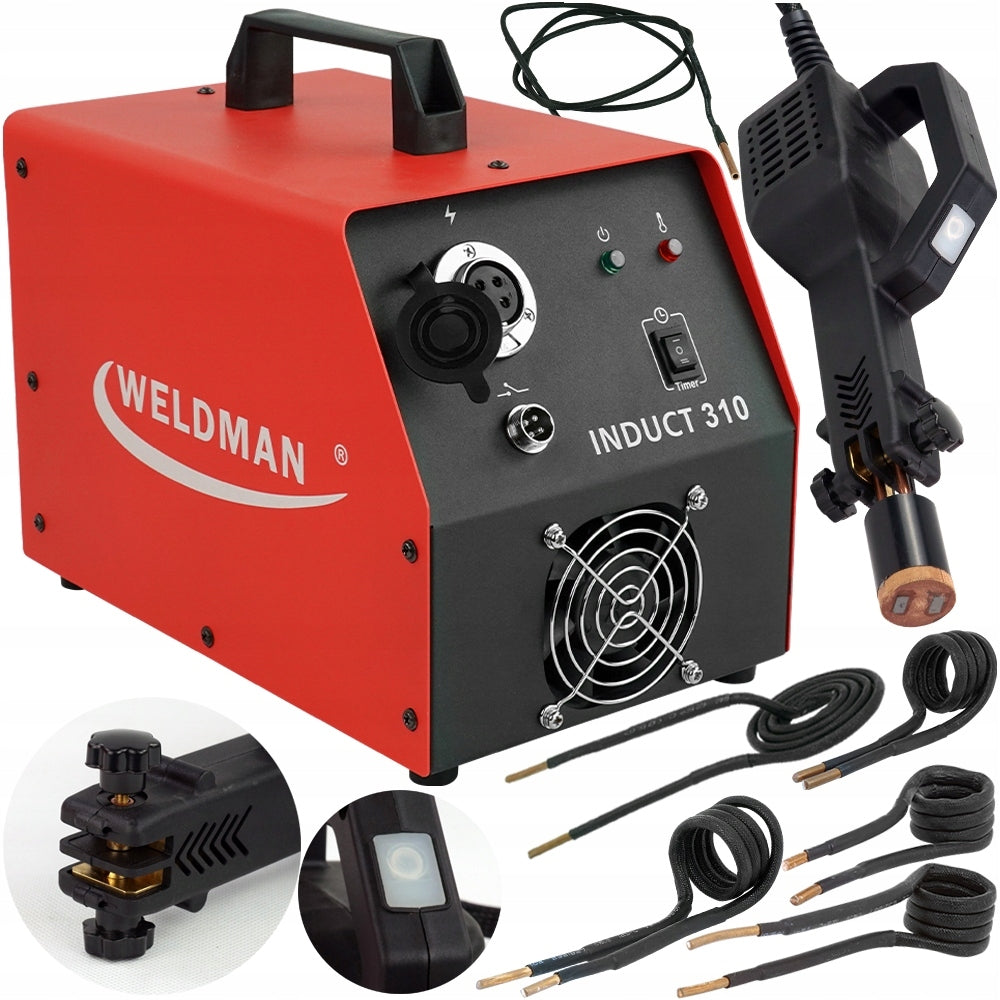

SET OF TIPS (COILS):

• vertical coil with a diameter of 20mm,
• horizontal coil with a diameter of 20mm,
• vertical coil with a diameter of 28mm,
• horizontal coil with a diameter of 28 mm,
• flat coil with a diameter of 55 mm,
• flexible with a length of 92cm (for pipes and rods),
• coil for repairing dents.
