Įrankių rinkinys Makita DLX4196JX1: DHR243, DGA504, DTD173, DHP489, 18V, 3x3Ah baterijos

Trumpai apie prekę

Prekė: Įrankių rinkinys Makita DLX4196JX1: DHR243, DGA504, DTD173, DHP489, 18V, 3x3Ah baterijos. Kategorija: Elektrinių įrankių rinkiniai.

• Gamintojas: Makita
• Modelis: DLX4196JX1

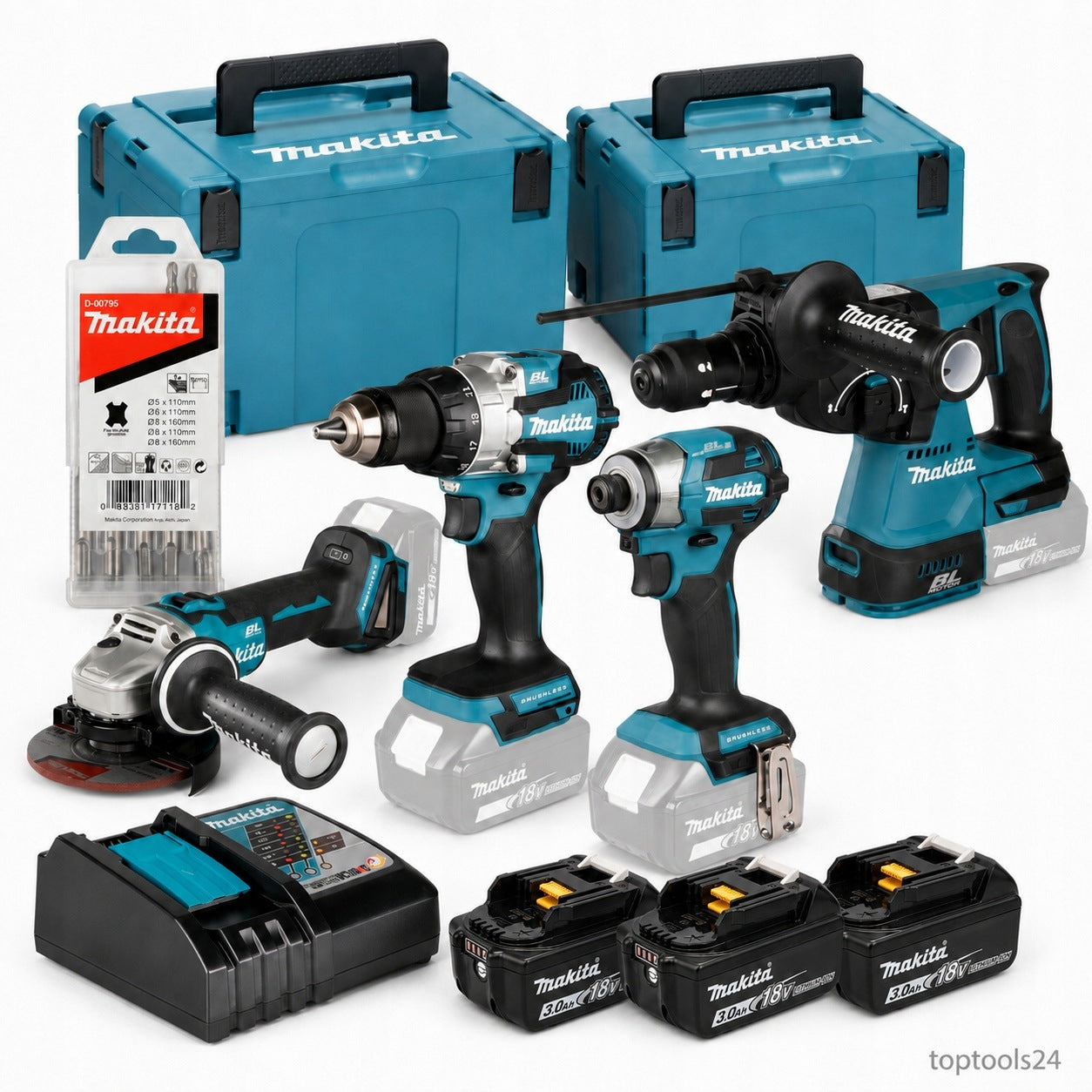

The set includes:

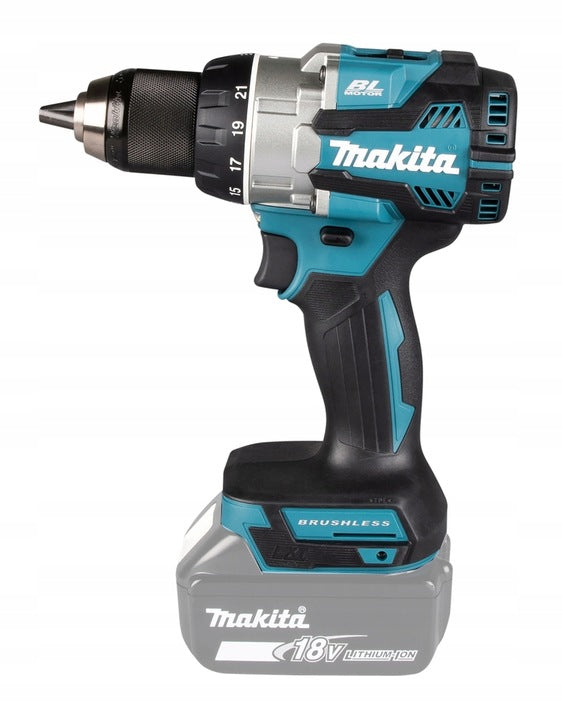

• BRUSHLESS DRILL LXT 18V DDF489
• 18V LI-ION ANGLE GRINDER 125mm BRUSHLESS DGA504
• BRUSHLESS HAMMER DRILL WITH FORGING 18V DHR243
• IMPACT DRIVER 1/4" 180NM18V LXT DTD173
• FAST CHARGER DC18RC LXT
• 3 BL1830B BATTERIES (18 V / 3,0 Ah)

With XPT technology, which means increased resistance to dust and moisture. Rotary speed adjustment with the trigger of the switch.

Has 21-degree torque adjustment + drilling mode.

Clutch torque adjustable in the range of 1,0 - 5,0 Nm, and max. The torque of the device is 73 Nm.

The ergonomic handle is covered with elastomer.

• Durable, made of aluminum gear housing. It has a metal self-clamping handle.
• The device has a double LED illuminating the working area with a delayed extinguishing function.

  Does not work with BL1811G, BL1813G, BL1815G batteries (without electronics), BL1815 (18 V / 1,3 Ah).

Benefits for the user

• XPT technology developed to provide increased resistance to dust and moisture, in harsh workplace conditions
• Battery protection system automatically turns off the power when its charge level is low

Technical data:

• Battery Voltage: 18 V
• Power supply LXT
• BLDC - brushless DC motor
• Speed of rpm. idle: 0 - 500 / 0 - 1800 min⁻¹
• Max. Hard/soft torque: 70 / 40 Nm
• Clutch torque setting: 21
• Max. Drilling diameter in steel: 13 mm
• Clamping range: 1,5 - 13 mm
• Sound Pressure Level: 77 dB(A)
• Noise Ratio: 3 dB(A)
• Vibration level, drilling: ≤ 2,5 m/s²
• Vibration factor K hL 1,5 m/s²
• Weight of battery-operated machine (EPTA): 1,8 - 2,5 kg
• Dimensions (D x S x W): 174 x 81 x 261 mm
• Battery Type: Li-ion
• Max. Power of the device: 620 W
• Max. Drilling diameter in wood (drill bit): 38 mm
• Max. Drilling diameter in wood (Self-feeding bit): 51 mm
• Weight: 1,45 kg

• BLDC - brushless DC motor
• Light and handy angle grinder for discs with diameter 125 mm
• XPT technology - increased resistance to dust and moisture
• Narrow motor housing allows for a comfortable and secure grip on the grinder
• anti-restart protects against accidental start-up after battery installation
• Automatic speed control depending on the type of work performed
• Works with batteries in LXT technology: BL1815, BL1820, BL1830, BL1830B, BL1840, BL1840B, BL1850B, BL1860B BL1890, BL18120

• Supply Voltage: 18 V
• Battery Type: Li-ion
• Supported Batteries: 1,5 / 2,0 / 3,0 / 4,0 / 5,0 Ah / 6,0 Ah
• Speed of rpm. idle: 8500 rpm /min
• Disc diameter: 125 mm
• Dimensions (LxWxH): 362 x 140 x 145 mm
• Weight with battery (EPTA): 2,5 kg

The grinder contains:

• Grinding Disc Cover 125mm
• Side handle
• Fastening flange
• Flange nut
• Wrench for counter nut
• Rough grinding disc

• Anti-slip handle covered with rubber
• Easy-to-set depth stop
• Increased drill bit stability in the chuck
• BLDC - Brushless DC Motor
• XPT Technology - enhanced resistance to dust and moisture
• Compatible with DX02 dust extraction system (optional accessory)
• Compact design and good balance provide greater control and maneuverability
• 40-position chisel adjustment
• Electronic switch allows starting work at a precisely defined point
• Unique design of rubber connections - reduces the level of vibration reaching the battery

Increased drill bit stability in the chuck

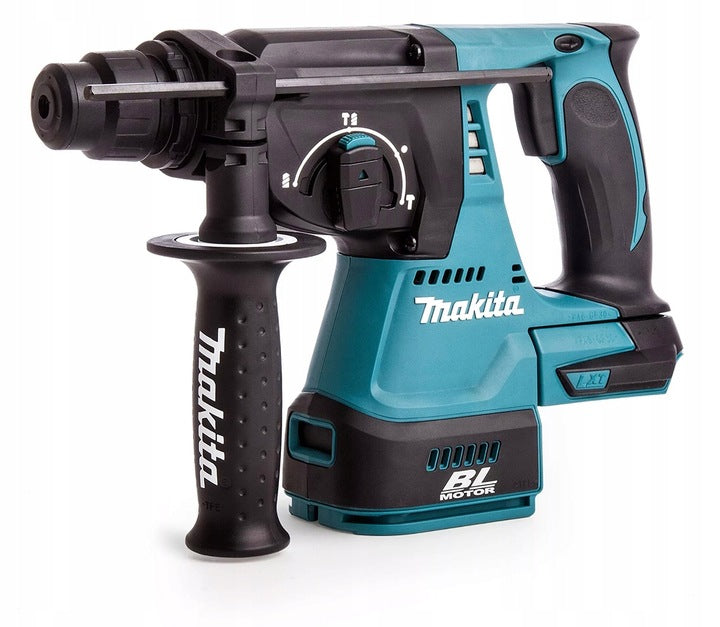

• 3 operating modes: drilling, hammer drilling, and chiseling
• Supported batteries: MAKITA BL1815N 1.5 / BL1820 2.0 / BL1830 3.0 / BL1840 / BL1840B 4.0 / BL1850 / BL1850B 5.0 Ah BL1860B 6.0 Ah , 9.0 Ah, 12.0 Ah which are compatible with the entire series of approximately 80 MAKITA LXT 18V tools.

Technical data:

• Tool holder type: SDS-PLUS
• Supply Voltage: 18V
• Power supply system: MAKITA LXT 18V
• Speed of rpm. idle: 0-950 rpm /min.
• Frequently. idling strokes: 0-4.700/min
• Max. Drilling diameter in steel: 13mm
• Max. Drilling diameter in wood: 27mm
• Max. Drilling diameter in concrete: 24mm
• Single impact energy: 2,0 J
• Weight (EPTA): 3,2 - 3,7 kg

• BLDC - brushless DC motor
• XPT technology - increased resistance to dust and moisture
• 4-degree electronic speed and frequency switch for strokes
• Adjustable speed with switch trigger
• Reduced overall length compared to DTD172 and slim housing allows even easier screwing in corners and places with limited space
• Move the control panel to the back of the handle allows easy control and change of mode during operation

• Possibility to change the operating mode with an additional switch located just above the main switch
• Lighting of the working area in the form of a ring surrounding the transmission housing, reducing the shadow cast by the bit, with 3 degrees of brightness setting
• Lighting mode in which the LEDs automatically turn off after an hour
• Ergonomically designed elastomer-coated handle
• Possibility of installing bits with one hand

4 screwing assistant options:

- Working mode "A" - in this mode, the tool starts screwing at low speed, then turns on the stroke and increases the speed until it reaches max. speed

- Working mode "T" for thick metal sheet - special mode for optimal and fast screwing of self-drilling screws

- Working mode "T" for thin sheet metal - the device stops automatically after 3 strokes

- Screw mode - at reverse rotation - stops the impact and rotation backwards in 0,2 s from the moment of sufficient loosening of the screw or nut during unscrewing - the stroke of the switch trigger needed to achieve the maximum rotational speed has been reduced to 1/3

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Makita
Parametry	Power supply	rechargeable battery
Parametry	Number of batteries	3
Parametry	Packaging	case
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	DLX4196JX1
Parametry	EAN (GTIN)	197050012470
Parametry	Batteries included	yes
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Battery capacity	3 Ah
Parametry	Set contents	rechargeable battery,charger,rotary hammer,angle grinder,screw gun,impact driver
