Išmanioji rozetė TUYA WiFi 16A su energijos matuokliu

Trumpai apie prekę

Prekė: Išmanioji rozetė TUYA WiFi 16A su energijos matuokliu. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: SB106



Remote control of the NEO WiFi socket with a power of up to 3680 W, 16 A with the function of measurement of energy consumption (POWER, CONSUMPTION, VOLTAGE...) is a smart socket with an EU plug and communicating via Wi-Fi. After just a few seconds ready for operation, installation is very simple and intuitive.

Thanks to Wi-Fi connectivity, we can control lighting or other household appliances connected to a smart outlet, directly from the application on our smartphone.

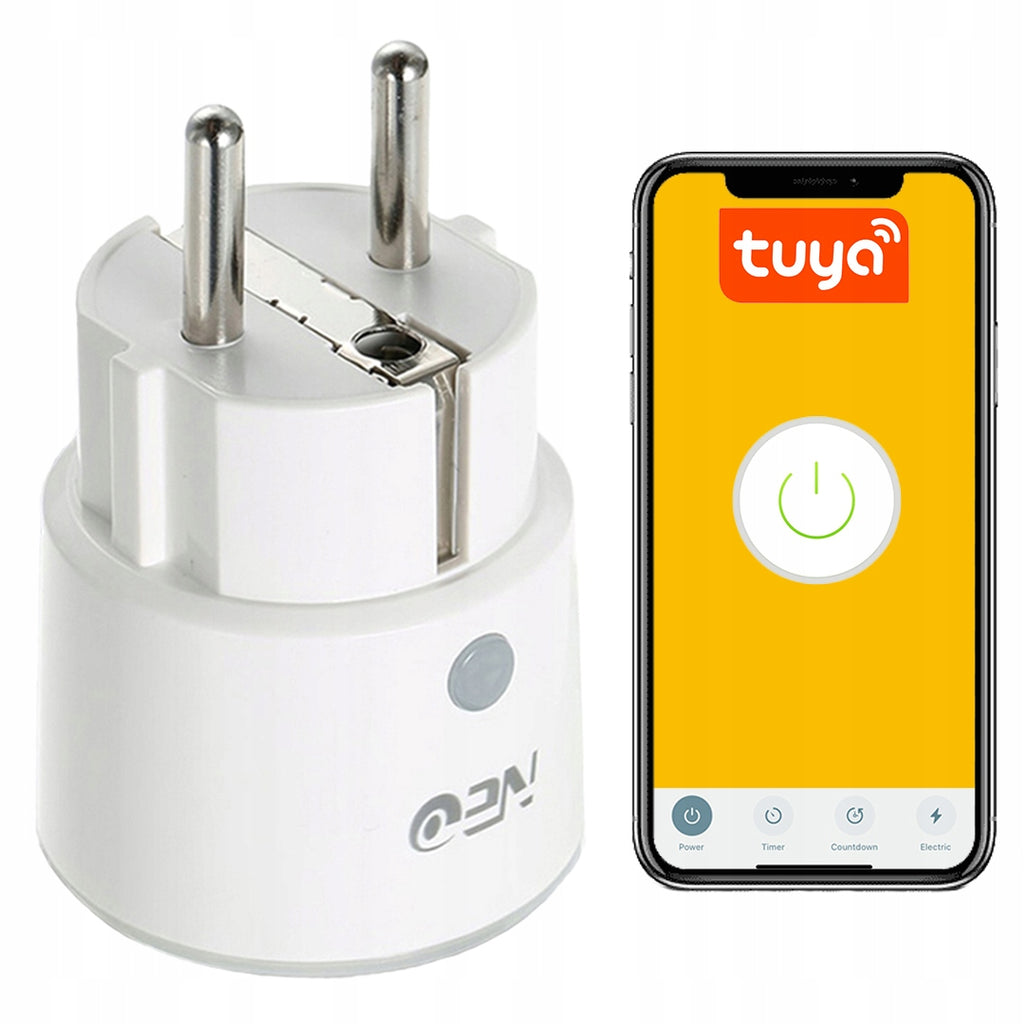

Wi-Fi control is done using the Tuya or Smart life application or another application. (free to download on Android and iOS). The device works with applications and voice assistants: Google Home, Amazon Alexa and Home Assistant.

✅One of the smallest sockets 16A

✅Wireless remote controlled outlet Enable/Disable

✅Maximum load 16A (16 Ampere)

✅Maximum power of connected device 3680 W = 3,68 kW

✅WiFi and manual control with the push of a button

✅Measurement of electricity consumption

✅Dedicated free app

✅Reading Parameters in the application

✅Remote control from anywhere in the world

✅Easy pairing

✅Power, Consumption, Voltage, Intensity (kW, kWh, V, A)

✅Timer - countdown time to turn off or on

✅LED switch-on signal

✅Schedule - setting specific on and off times

✅Scenes (automations) - control against specific conditions, e.g. When it's 21:00, turn off the TV (connected to an outlet)

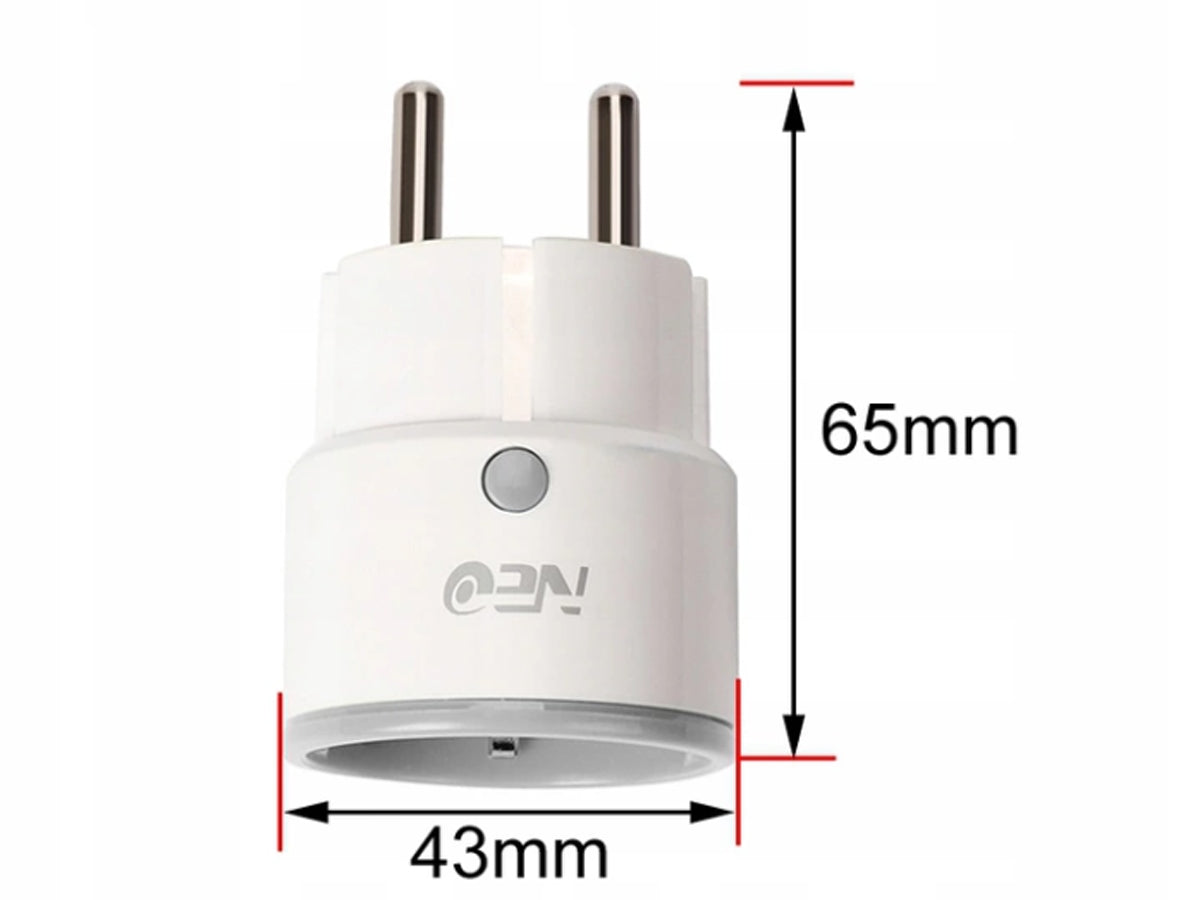

Remote control of the WiFi socket with power up to 3680 W with the function of measurement of energy consumption will allow you to control the device while connected to the Wifi network or remotely from anywhere on earth. In addition, you can set a schedule, timer or stopwatch functions that will turn the outlet on or off at the time you set, as well as smart scenes such as turning on the outlet when the motion sensor detects movement. Compact size 43 x 65 mm.



✅Turning on the lamp whose switch is in an inconvenient place

✅Inclusion of electric thermals for heating water on the plot

✅Turning on the fan on a hot day

✅Measurement of energy consumption of the device

✅Tracking consumption to reduce bills

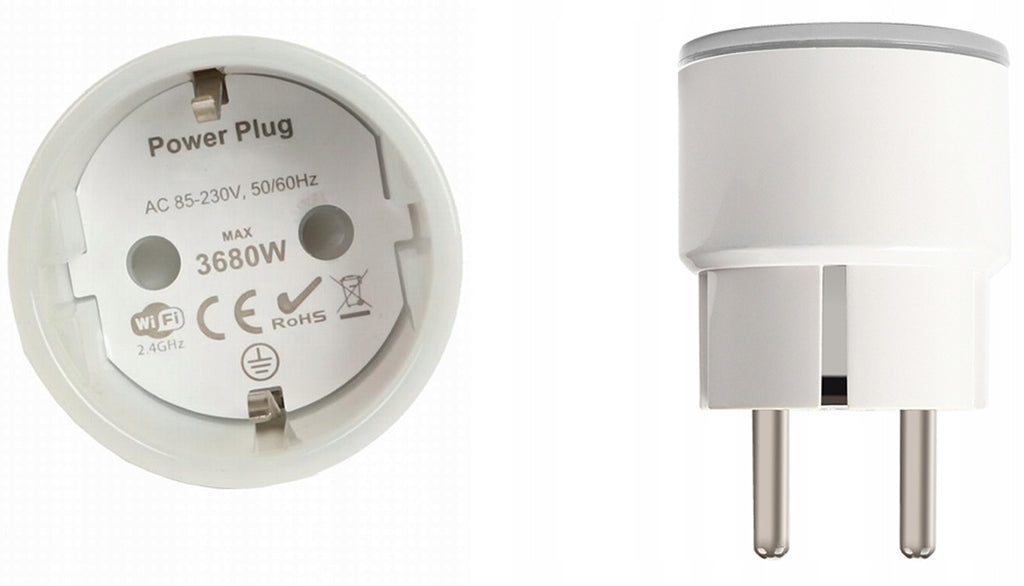

The standard socket plug "Schuko" with spring-loaded plates placed on the sides for protective grounding allows you to connect both Polish plugs and plugs from other European countries. It is possible to connect both versions of C plugs and E/F dual plugs to the socket. The socket is symmetrical (the plug can be rotated when connecting by 180°)

✅Schuko is the most universal plug



The device has the function of current control of energy consumption so you can check on an ongoing basis how much energy has been consumed by the device that is connected to the outlet.

Measurement data is saved (archived) on the Tuya server so you can check the level of consumption up to a year back

• Current measurement
• Daily consumption
• Monthly consumption
• Graphic presentation using charts
• Enable and disable logs (data available for 7 days back)

Our outlet is one of the few that offers very convenient options for switching on directly from the home screen. Below are 2 options for enabling:

• Directly from the home screen
• Classically after entering the device



• Enabling/disabling remote via app
• Enabling/disabling local manually with the button
• Stopwatch - setting the time to turn off
• Terminator - planned weekly automation cycle on/off
• Scene - setting the control dependence on the time of day

ENERGY CONSUMPTION RESET FUNCTION - not all outlets have this important function

State memory function after power outage

In the application you can set what will happen after the power goes out:

• Restoration of the last state before disappearance
• Device on
• Device disabled

• Inching - turn off after the set time (once you set it will always turn off)
• Schedule - Turn on or off at specific times
• Circulate - During the time period specified by you, the socket will turn on for a specified period of time and turn off for a specified period of time. E.g. Between 10:00 and 12:00 we want the outlet to turn on for a minute and turn off for 10 minutes and so for 2 hours

The device works with Tuya Smart – a popular application for IoT devices (internet of things) The application works in Polish, you can add and control various smart devices of the NeO brand and other brands cooperating with Tuya. The application works with a very wide range of devices, the offer of nearly 10 000 manufacturers includes almost 310 000 devices compatible with the application from as many as 30 categories, which include, among others: lighting, monitoring, air conditioning and many others. The application is free and constantly developed with new features. Applications can be downloaded to iOS and Android devices.

Before you start adding an outlet download the TUYA SMART apps (logo above)

Open TUYA SMART apps

1. Hold the button on the outlet for 5-7 seconds when the LED starts flashing quickly and uniformly, that is, the outlet is in pairing mode. It should appear as in Figure "1", if this does not happen then click plus in the upper right corner and select "add device"

2. Enter password for WIFI (wifi network must have a frequency of 2,4 GHz, it cannot be 5 GHz network)

3. The socket will start the addition process.

4. Ready by clicking on "pencil" you can change its name. You can also do this later in the settings.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	wall socket
Parametry	Series	Power Plug
Parametry	Power supply	mains
Parametry	Communication	WiFi
Parametry	Brand	Sone
Parametry	Number of communication channels	1
Parametry	Additional features	WiFi connection
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Manufacturer code	SB106
Parametry	EAN (GTIN)	5905954837250
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
