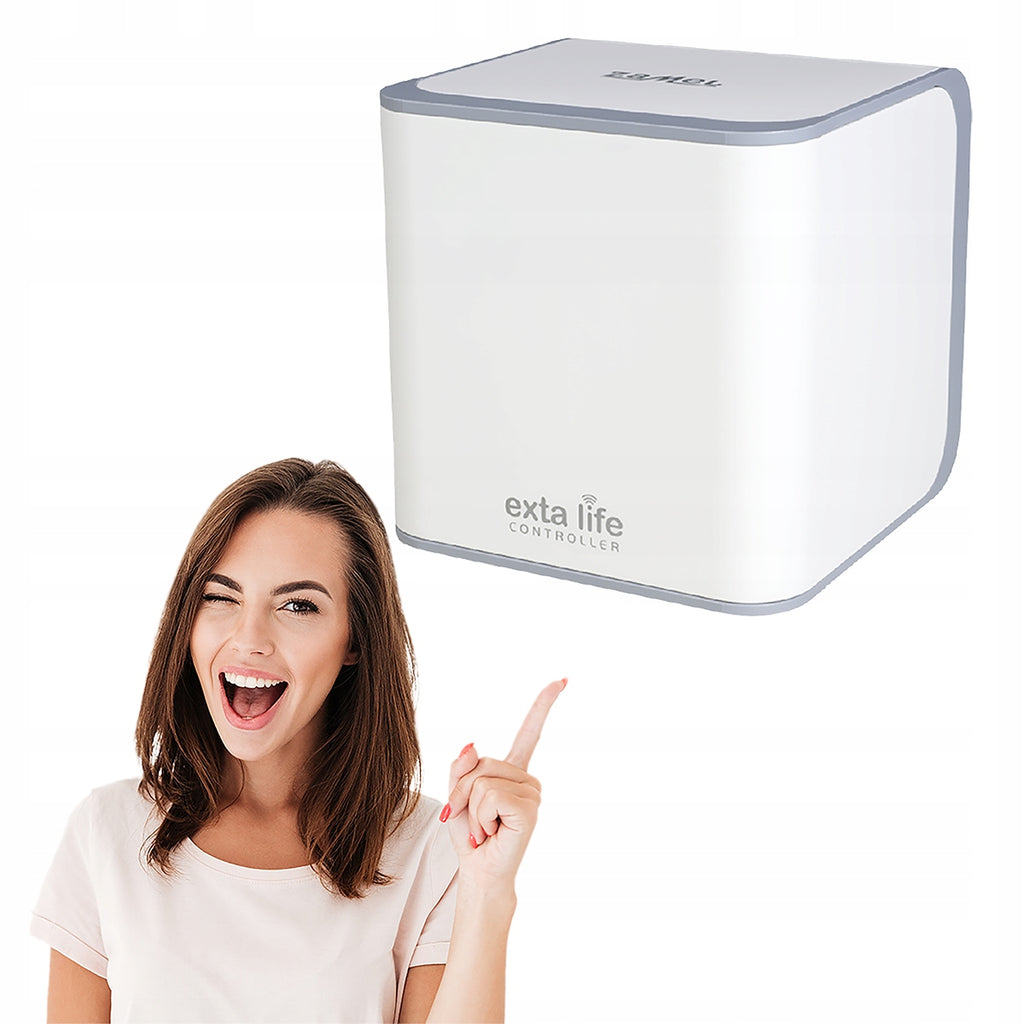

Išmaniųjų namų valdymo modulis EXTA LIFE EFC-01

Trumpai apie prekę

Prekė: Išmaniųjų namų valdymo modulis EXTA LIFE EFC-01. Kategorija: Centriniai blokai.

• Gamintojas: Zamel
• Modelis: EFC-01

Producer: Zamel Sp. z o.o.

Brand: MATEC

Short name: MOJ-25

EAN: 5903669207429

Manufacturer code: EXL10000009

Content of the package:

➡ 1 x EFC-01,

➡ 3 x SC-16 100 A current transformer,

➡ 1 x User Manual.

Key features of EFC-01

⚡Remote access via mobile app – control EXTA LIFE from anywhere in the world, regardless of location. ⚡Integration with the EXTA LIFE mobile application – convenient control from anywhere. ⚡Remote configuration of receivers and transmitters – ideal for installers. ⚡Security thanks to encrypted transmission – effective protection against unauthorized access and interference by third parties. ⚡Process automation - thanks to time and logical functions. The planned activities are carried out automatically in the EXTA LIFE system, increasing the comfort of use. ⚡Advanced logical functions – the house responds to dusk, temperature drops and other planned events, adapting the conditions to the needs of residents. ⚡Two-way communication – always up-to-date status of devices in the application. It provides automatic, remote control of receivers, guaranteeing their current status in the application. ⚡Control – both inside and outside the home network (via the Internet). ⚡Compact dimensions – easy installation anywhere. ⚡The EXTA LIFE controller is a key element of a smart home that increases its functionality, convenience and safety of users.

Technical data

• Rated supply voltage: [V]: 5 DC (micro USB standard)
• Clock support: Yes – CR1620 battery
• Rated frequency [Hz]: -
• Rated power consumption [W]: 1,1
• Radio transmission - bandwidth [MHz]: ISM 868 (868,50)
• Radio transmission method: bidirectional - 9600 bps
• Coding: algorithm based on 128 bit key
• Range of operation [m]: to 300 in open area
• Broadcasting power [mW]: ERP < 20
• Ability to connect an external antenna: no
• Integrated Wi-Fi router: no
• Mobile device connection protocol: TCP/IP
• Connections: 1x RJ45 Ethernet Port (LAN); 1x micro USB B 2.0; 2x USB A 2.0; RESET button
• Maximum number of supported devices*: 100
• Update software: yes (Internet / USB A 2.0)
• Optical signaling - transmission: yes - 3 LEDs
• Temperature operating range [°C]: -10 to +55
• Protection class: III
• Housing protection degree: IP20

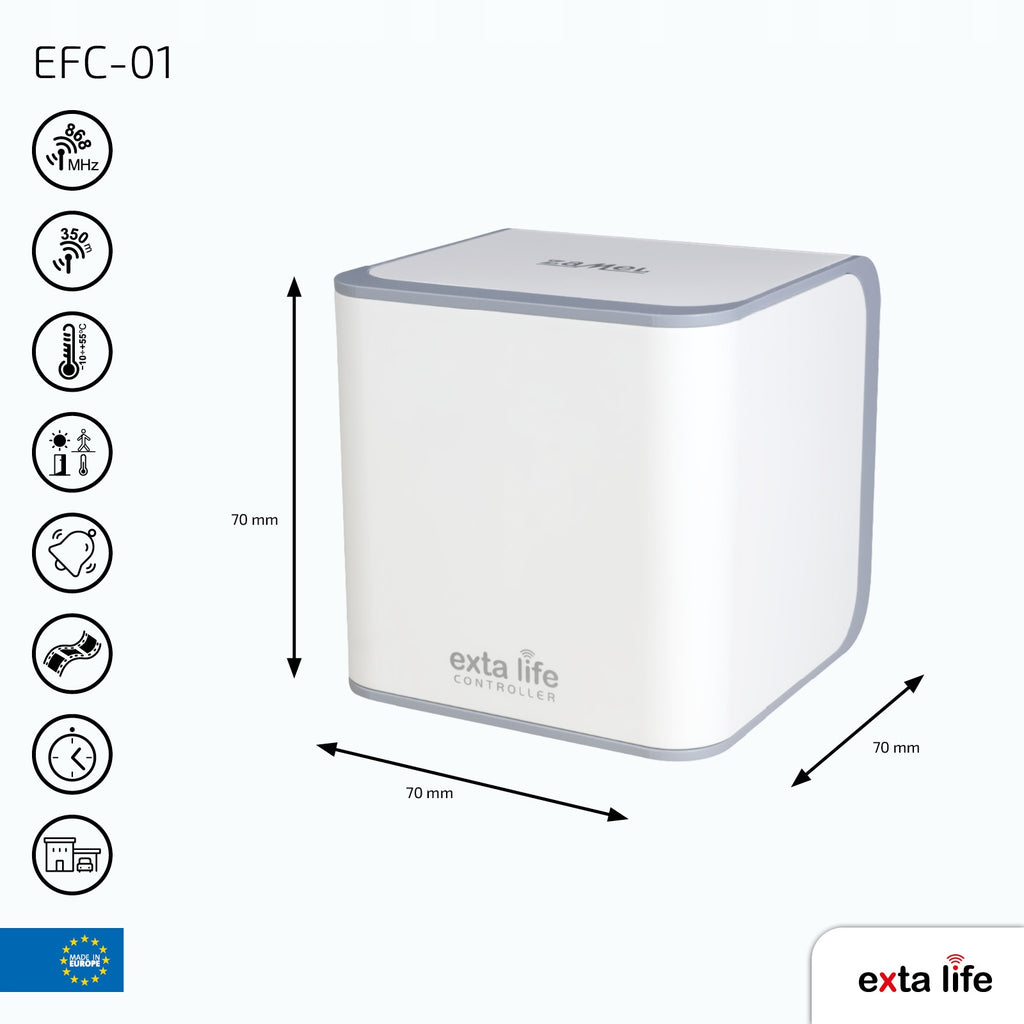

• Product dimensions [mm]: 70 x 70 x 70
• Product weight [g]: 290

• Dimensions with packaging [mm]: 102 x 102 x 188
• Weight with packaging [g]: 380

• Compliance with standards: PN-ETSI EN 300 220-1, PN-ETSI EN 300 220-2

ATTENTION! * applies to all devices paired with the controller (transmitters / receivers / sensors).

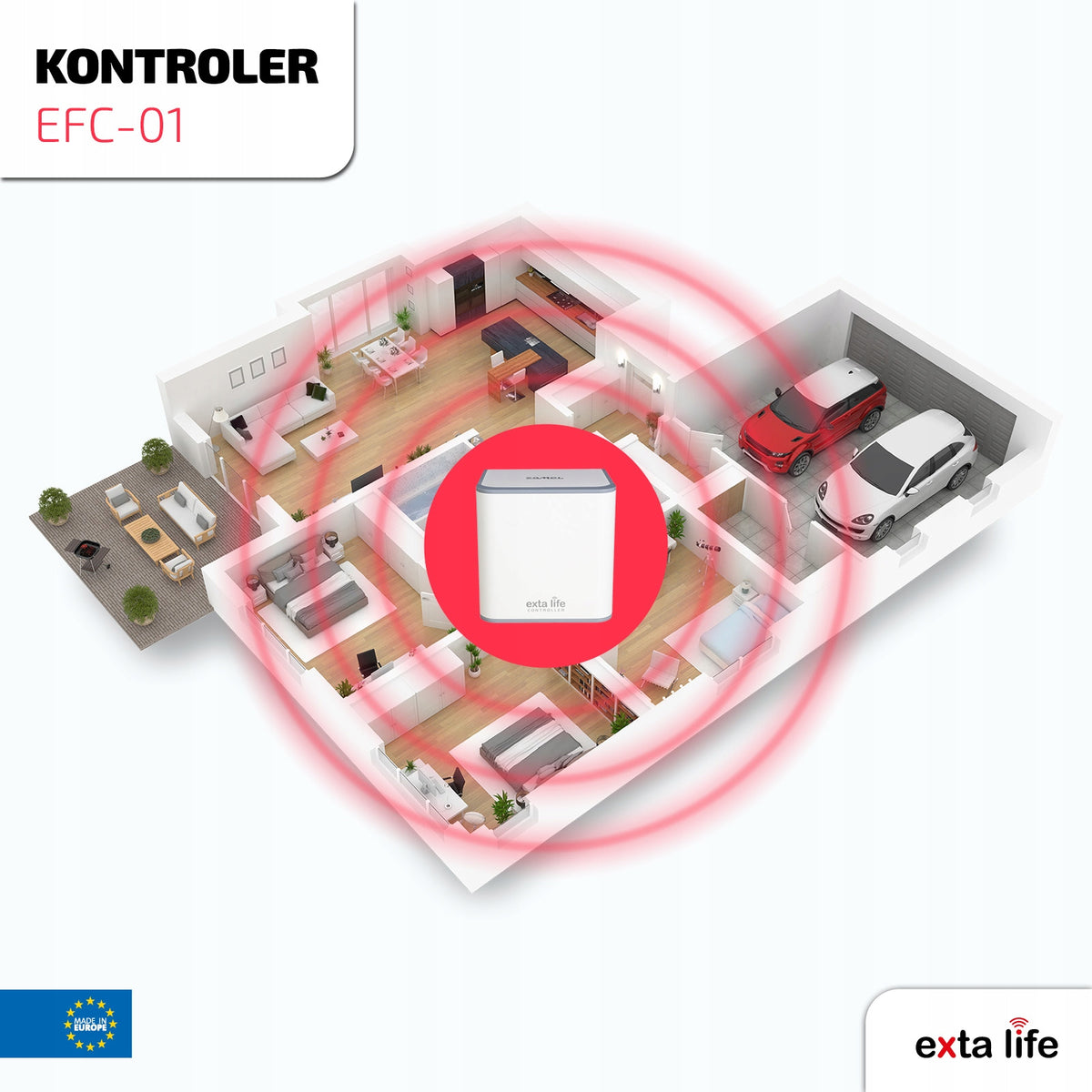

✅ EFC-01 is an advanced controller of the EXTA LIFE system, which plays a key role in the integration and management of the smart home. Its main task is to connect receivers, sensors and transmitters, giving them functionality that allows for full automation of everyday processes. Thanks to this, the user can easily control the operation of electrical devices in his home, both locally and remotely, through a mobile application. Working with devices running on Android and iOS makes smart home control intuitive and accessible from anywhere in the world.

✅ EFC-01 is distinguished by advanced two-way communication, which means that all devices paired with it always send the current state to the mobile application. This is extremely important in the context of monitoring the operation of the intelligent system, because the user can see on an ongoing basis which devices are turned on, what parameters have been set and whether the system works according to planned scenarios. Thanks to this feature, the EFC-01 is the foundation of modern home automation, allowing users to effectively manage energy, safety and comfort of life.

✅ The configuration of EXTA LIFE via EFC-01 is extremely simple and is done using a free mobile application. It is thanks to this application that the user can manage all the elements of his smart home, add new devices, configure their settings and plan automatic scenarios of operation. The controller is also an indispensable tool for EXTA LIFE system installers, because it allows remote assignment of transmitters to receivers and their parameterization, which significantly speeds up and facilitates the installation process.

✅ EFC-01 has the function of programming time and logical events, which allows you to automate many processes in a smart home. Thanks to this technology, the user can plan to ensure that the system responds to specific conditions, such as dusk, temperature drop or the presence of household members. The ability to control devices both within and outside the home network via the Internet makes home management extremely convenient, regardless of where the user is currently located.

✅ One of the important advantages of the controller is its compact design, thanks to which it can be easily mounted anywhere. Despite its small size, it offers great integration and automation capabilities, making EXTA LIFE one of the most functional smart home systems on the market. It is a solution that guarantees not only full control over electrical devices, but also comfort, safety and significant energy savings by optimizing its consumption.

✅ EFC-01 is the foundation of modern building automation, which provides users with flexibility in managing the system and increases its functionality. Integration with multiple devices makes EXTA LIFE a one-stop solution for anyone looking to make their home smarter, safer and energy efficient.

✅EXTA LIFE is a modern intelligent home control system that provides convenience, safety and full control over electrical devices. Thanks to wireless technology, it enables the integration of receivers, sensors and the EFC-01 controller, allowing users to remotely manage lighting, heating, blinds and other elements of the electrical system.

✅The EXTA LIFE system is distinguished by intuitive operation using a mobile application available for Android and iOS, allowing you to control your home from anywhere in the world. Thanks to two-way communication, the user can always see the current status of the receivers, which increases the reliability and functionality of the system. EXTA LIFE supports advanced automation scenarios, enabling you to respond to changes in environmental conditions, such as dusk or temperature drop.

✅ Thanks to encrypted transmission, the system provides a high level of protection against unauthorized access. Support for software updates ensures that EXTA LIFE devices are always compliant with the latest smart home technology standards.
