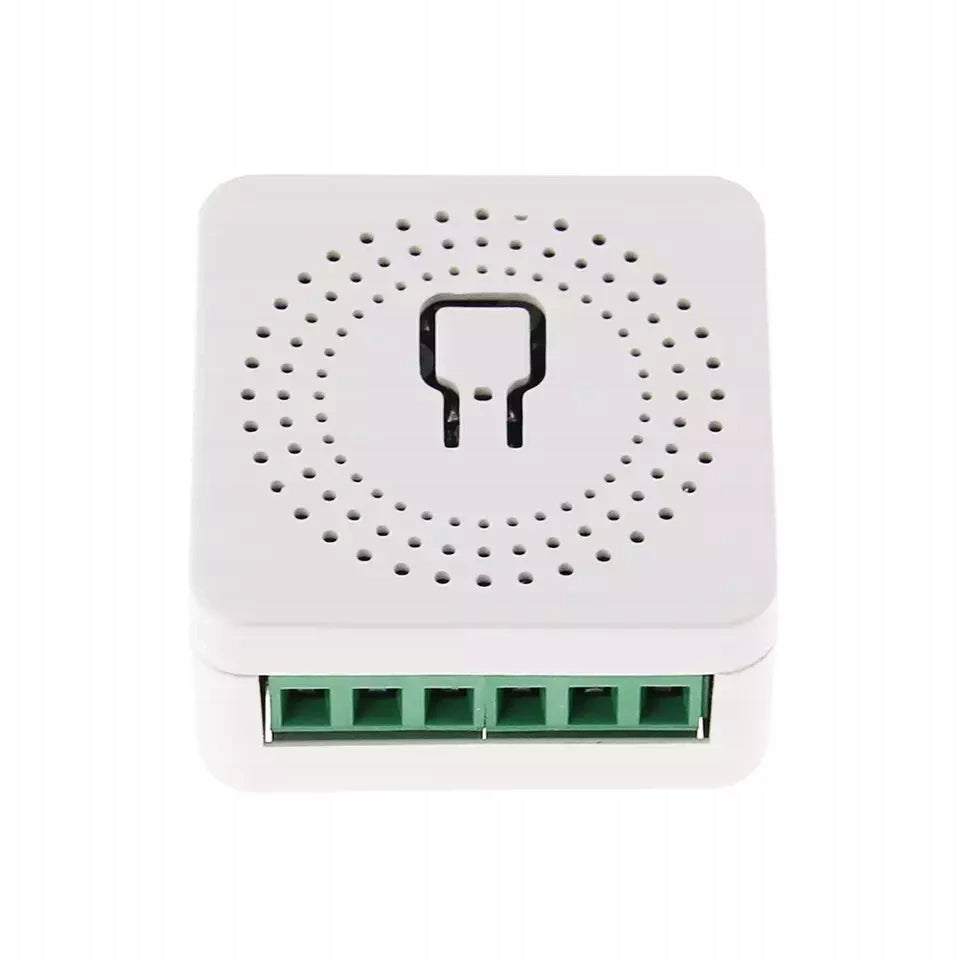

Išmanusis 1 kanalo Zigbee Tuya SONE 230V relės modulis

Trumpai apie prekę

Prekė: Išmanusis 1 kanalo Zigbee Tuya SONE 230V relės modulis. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: SB1548

A Zigbee gateway is required to control the device.

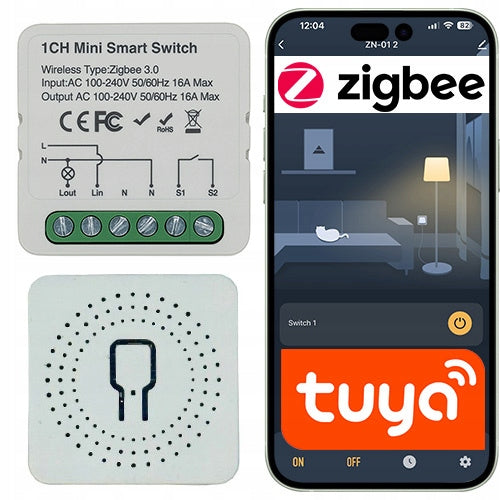

The Zigbee Tuya Smart Life relay by SONE is a modern receipt module for controlling lighting and other electrical devices 230 V. It allows you to remotely turn on and off the light from the Tuya Smart or Smart Life application, as well as from the classic wall switch. The device works with popular voice assistants, such as Google Home, Amazon Alexa, so that lighting control can also be done by voice.

Thanks to the compact dimensions of the 41 × 41 × 23 mm, the relay easily fits into the flush-mounted box (60 mm depth recommended), ensuring easy installation and reliable operation in any installation.

The most important information

• Communication Zigbee 3.0 – requires Zigbee gateway
• Works with Tuya Smart and Smart Life apps (Android, iOS)
• Ability to add a device to Home Assistent via ZIGBEE2MQTT
• Remote control of lighting and 230 V devices
• Dimensions: 41 × 41 × 23 mm
• Flush-mounted installation (60 mm depth recommended)
• Maximum load: 1 × 3680 W / 16 A
• Support for classic wall switches
• Button modes: monostable (bell) and bistable (classic)
• Possibility to work without a switch – control only from the application
• State memory after power loss
• Support for schedules, timers and automation scenes
• Compatible with Google Home, Amazon Alexa voice assistants
• Reading the status of the device in the application (information whether the light is on)
• Reset and pairing button on housing (holding time approx. 5 to 8 s)
• Stable and energy-efficient Zigbee connection



Remote control and compact size

The Tuya SONE Smart Life Zigbee Relay allows for full remote control of lighting or other electrical devices in your home. Once connected to a Zigbee gateway and the Tuya or Smart Life app, you can turn your lights on and off from anywhere – both locally on your home network and remotely via the internet.

The application allows you to create schedules, timers and intelligent scenes that automate everyday activities.

Thanks to the use of Zigbee communication, the relay ensures a stable connection, low latency and low energy consumption. The small size of the device (41 × 41 × 23 mm) allows for easy installation in a flush-mounted box (60 mm depth recommended), making installation quick and aesthetic.

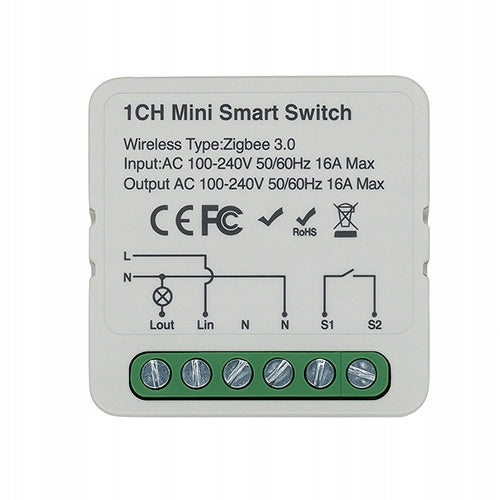

Connection diagram

Connection diagram with stair or cross connectors

The most popular applications:

Thanks to the ability to work with the Tuya application and integrate with smart home systems, its application is very wide.

The most common examples of use:

• remote switching on and off internal and external lighting,
• automatic switching off of lights after a specified time (timer function),
• turning on the lighting after sunset or according to the schedule,
• control of several light points from one button,
• turning off all lights in the house when going to work or at night,
• integration with motion, temperature or presence sensors in the Tuya Smart system,
• control of decorative lighting, LED strips, garden lamps, floodlights or classic bulbs.

The device allows you to configure automation scenes in the Tuya application, which allows you to adjust the operation of the relay to the individual needs of the user and environmental conditions.

1. LED bulbs
2. Halogens
3. Classic bulbs
4. Floodlights
5. LED Strips
6. LED Hoses

Home screen and selection of button type in the app

When you add the Zigbee Tuya SONE Smart Life relay to your app, a simple and easy-to-read interface appears on the home screen to control the connected lighting or device.

In the "Switch type setting" menu, you can select the type of physical switch with which the relay is to work:

• Rocker switch – flip to change state – classic bistable switch, in which changing the position causes a change in the state of the relay,
• Rocker switch – state synchronous – switch whose state remains synchronized with the current state of the relay,
• Button switch – monostable button (instantaneous, so-called. bell).

With these options, the device can be easily adapted to any type of installation and existing wall switches.

Schedules and automation features

The Tuya Smart / Smart Life app allows you to create schedules and automate the operation of the SONE Zigbee relay. You can set times to turn the light on and off on selected days of the week, use the timer function (countdown) or Inching mode, in which the relay will automatically turn off after a certain time.

In the "Relay status" settings, the user decides how the relay should behave after a power outage – remain off, turn on automatically or restore the last state.

Thanks to these options, the device allows you to fully automate the work of lighting and other devices in the house.

Technical specification

• Manufacturer: SONE
• Device Type: ON/OFF Recessed Module
• Number of Channels: 1
• Power supply: 230 V AC
• Maximum load: 16 A / 3680 W
• Communication standard: Zigbee 3.0 (requires Zigbee gate)
• Apps: Tuya Smart, Smart Life (Android, iOS)
• Integration: Google Home, Amazon Alexa
• Operating modes: monostable (instantaneous) or bistable (classic)
• Functions: remote control, schedule, timer, automation scenes
• State memory after power loss: yes
• Installation: in flush-mounted box (recommended depth 60 mm)
• Dimensions: 41 × 41 × 23 mm
• Operating temperature range: -10°C to +45°C

Our relay is compatible with Home Assistant and works via Zigbee2MQTT.

In the following screenshot you can see its parameters.

The relay was added to Home Assistant using:

• Zigbee2MQTT
• Version Zigbee2MQTT: 1.42.0-2
• Zigbee dongles: SLZB-06

• Fast response between devices
• Frequency NOT blocking WIFI
• Reliability (Connected devices can communicate with each other even when the Gateway does not have a wifi connection)
• Lower power consumption - that's why battery-powered devices use this communication protocol
• Topology Mesh, each module powered by 230V amplifies the signal for other devices
• Automation works without WIFI.



Application and ecosystem TUYA and SMART LIFE

The device works with Tuya Smart and Smart Life – popular applications for IoT devices (Internet of Things)

Simple addition of the device - just hold down the button on it and search for it in the application.

The TUYA and SMART LIFE ecosystems are:

• The application works in Polish, you can add and control various smart devices in it
• The application works with a very wide range of devices
• Nearly 10 000 manufacturers
• 310 000 devices compatible with the app
• 30 categories that can include, among others: lighting, monitoring, air conditioning, heating
• The application is free and constantly developed with new features.
• Applications can be downloaded to iOS and Android devices.

Above all, it is intuitive operation and simple installation

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	control panel
Parametry	Series	Przekaźnik zigbee 1ch tuya
Parametry	Power supply	mains
Parametry	Communication	ZigBee
Parametry	Brand	Sone
Parametry	Number of communication channels	1
Parametry	Product weight with unit packaging	0.5 kg
Parametry	Manufacturer code	SB1548
Parametry	EAN (GTIN)	5902065395563
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
