Išmanusis Wi-Fi valdiklis SHELLY, nuotolinis valdymas, Bluetooth 4.2, 3840W

Trumpai apie prekę

Prekė: Išmanusis Wi-Fi valdiklis SHELLY, nuotolinis valdymas, Bluetooth 4.2, 3840W. Kategorija: Automatizavimo moduliai.

• Gamintojas: Shelly
• Modelis: Shelly_Plus_PM_Mini_G3

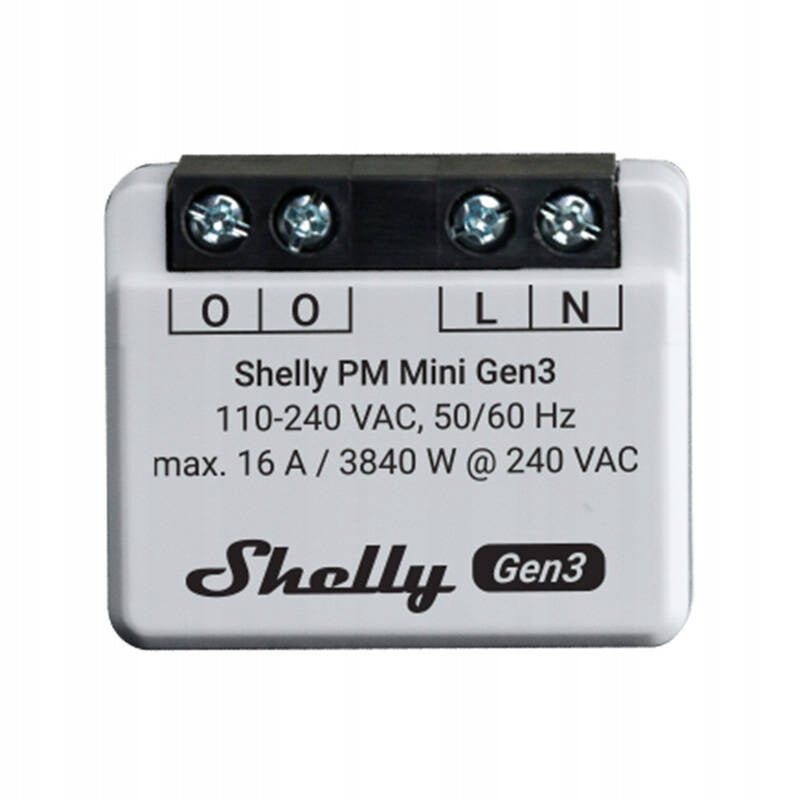

Shelly PM Mini Gen3 is a small energy meter in a compact housing. It provides professional integrators with additional solution options for end customers. It can run on its own on an on-premises Wi-Fi network or be supported by cloud home automation services using MQTT, HTTP and WebSocket protocols. All incoming calls support TLS. The device is an improved version of the Shelly Plus PM Mini model, equipped with a more advanced processor and more memory.

• Manufacturer Shelly
• Model PMminiGen3
• Size 29 × 34 × 16 cm
• Weight 13 g
• Screw clamps maximum torque 0,4 Nm / 3,5 lb
• Cable cross-section 0,2 to 2,5 mm² / 24 to 14 AWG (single core, cable and bushing pipes)
• Cable length without insulation 6 to 7 mm
• Assembly Wall box
• Coating material Plastic
• Ambient temperature during operation -20°C to 40°C
• Moisture 30% to 70% relative humidity
• Max. Height 2000 m
• Power supply 110 – 240 V AC
• Energy consumption < 1,2 W
• External protection Trigger characteristics B or C, max. 16A max. rated current, min. interruption rated value 6 kA, energy limitation class 3
• Power measurement Yes
• Max. measuring voltage 240 V
• Max. measuring current 16 A
• Max. measurement power 3840 W
• Wi-Fi 802.11 b/g/n
• RF band 2401 - 2495 MHz
• Max. RF power < 20 dBm
• Scope Up to 30m/100ft indoors and 50m/160ft outdoors (depending on local conditions)
• Bluetooth 4.2
• RF band 2400 - 2483,5 MHz
• Max. RF power < 4 dBm
• Scope Up to 10 m indoors and 30 m outdoors (depending on local conditions)
• Processor ESP-Shelly-C38F
• Memory 8 MB

Shelly PM Mini Gen3 is a small energy meter in a compact housing. It provides professional integrators with additional solution options for end customers. It can run on its own on an on-premises Wi-Fi network or be supported by cloud home automation services using MQTT, HTTP and WebSocket protocols. All incoming calls support TLS. The device is an improved version of the Shelly Plus PM Mini model, equipped with a more advanced processor and more memory.

Shelly PM Mini Gen3 has the ability to remotely control, enabling configuration and monitoring. The device can also communicate with the automation system if it is on the same network infrastructure. It features a built-in web interface that allows you to monitor and control your device and customize its settings. What’s more, the device has been equipped with an improved processor and more memory, which translates into performance.

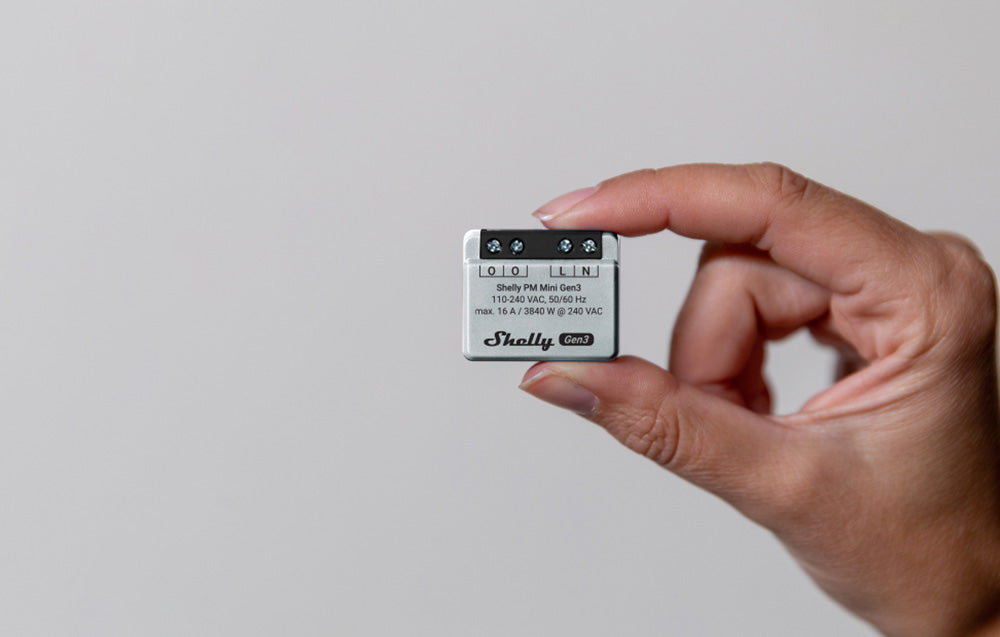

Shelly PM Mini Gen3 is designed as a small energy meter, allowing you to monitor the energy consumption of connected devices. Thanks to its small housing (29 × 34 × 16 cm), the PM Mini Gen3 can be easily placed in places difficult to reach for other devices.

The device has the BLE Gateway function, which acts as a bridge between Shelly BLU devices and the wider Shelly ecosystem. It can also act as a Wi-Fi range extender for IoT devices. In addition, it supports scripts and offers a wide range of integrations with third-party home systems through documented HTTP, MQTT(s), Web Hooks APIs over HTTP and HTTPS, UDP.

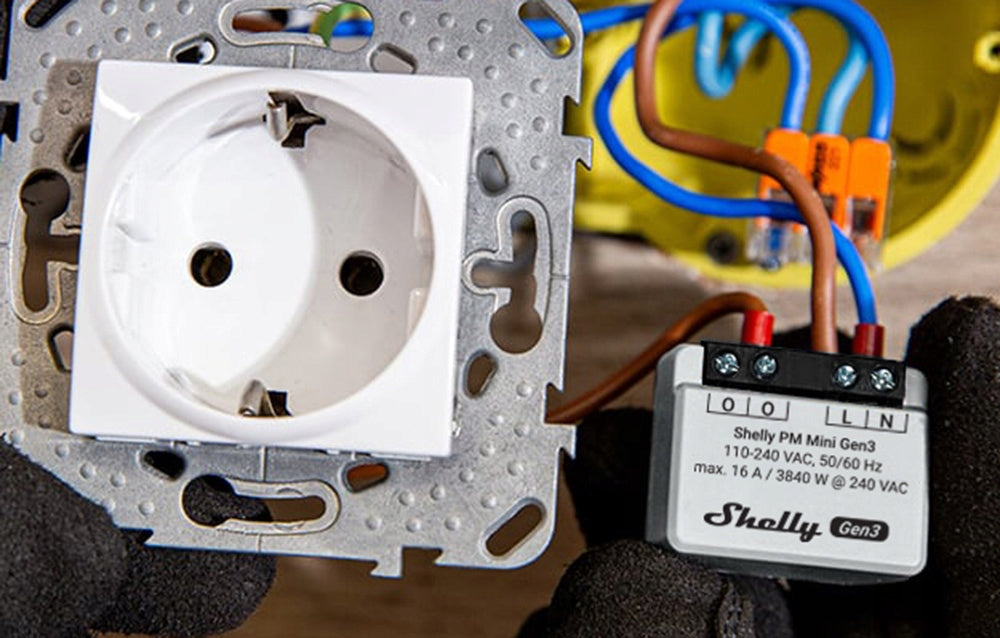

Shelly PM Mini Gen3 is mainly used to monitor the power consumption of connected devices in real time. It is useful for identifying devices that consume a lot of energy and optimizing their use to improve energy efficiency. You can also track the power consumption of individual devices to assess their condition and performance. Knowledge about energy consumption also allows you to estimate the operating costs of devices and manage electricity expenditure. Thanks to its compact design, the device can be installed in standard electrical cans and other places with limited space. It also supports remote access, allowing you to monitor your energy consumption even outside your home.
