Išmanusis WiFi 16A TUYA relė su nuotoliniu valdymu ir DIN bėgelio montavimu

Trumpai apie prekę

Prekė: Išmanusis WiFi 16A TUYA relė su nuotoliniu valdymu ir DIN bėgelio montavimu. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: Przekaźnik WIFI 16A TUYA SMART Z POMIAREM

The module enables remote control of electrical devices and monitoring of energy consumption through TUYA or Smart Life applications. With a built-in electricity meter, you can keep track of your electrical consumption. The relay offers a wide range of automation, work schedules and alarms, providing full control over the power supply.

The most important

information:

• Free app

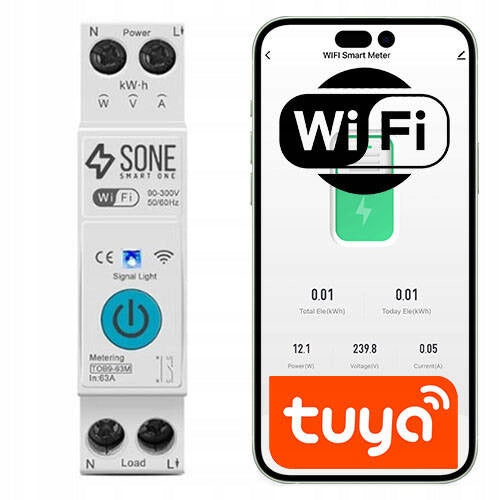

• Remote control via Tuya app and Smart Life
• Measurement of electricity
• Communication: WiFi 2,4GHz
• Compatibility: Apps available for Android and iOS
• Automation: Work schedules, scenes
• Dimensions: 18 x 50 x 82mm, for DIN rail 35mm
• Operating temperature: -20°C to +60°C
• Maximum current: 63A (short-term),
• Maximum continuous current: 16A
• Power supply voltage: AC 90V – 300V
• Measurements: Voltage, current, power, electricity consumption
• Status settings after voltage failure
• Indicator diode
• Recording of events
• Service security - attachment lock
• Our device has settings and status memory after power loss!
• Easy pairing
• Control from anywhere in the world

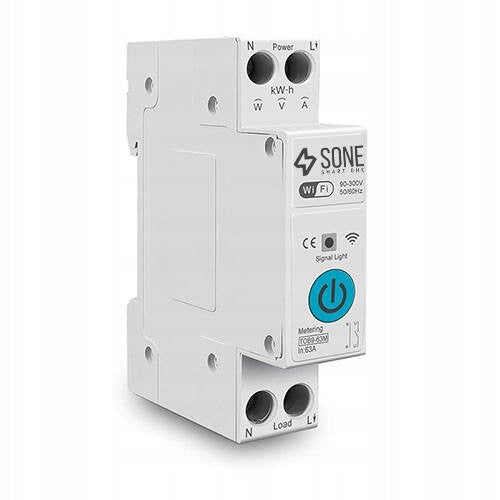

Assembly and dimensions

The relay is mounted on a standard DIN rail with a width of 35mm. Please note that the relay must operate in an electrical network protected by an overcurrent circuit breaker and a residual current circuit breaker.

Dimensions: 18 x 50 x 82mm.

Supported functions

• Remote control of electrical devices
• Measurement of electricity
• Communication via WiFi 2,4GHz
• Compatible with TUYA and Smart Life apps
• Automation of work schedules
• Alarms and notifications
• Timer the ability to set a countdown that will turn off or on after a set time
• Scenes and automations – controlling the device on the basis of conditions, e.g. turn on after sunset
• Monitoring and recording of events
• Our device has settings and status memory after power loss!
• Protection against accidental disconnection

Connection diagram

Our relays are the perfect solution for a wide range of applications, including operation of light bulbs, heaters or submersible pumps. Thanks to their versatility and automation capabilities, users can conveniently control the operation of these devices, ensuring optimal conditions for their operation and energy savings.

Measurements

Our relay offers accurate measurements. It allows you to measure electricity consumption, which enables efficient energy management.

Measurements

• Voltage measurement
• current measurement
• power measurement
• electricity

Schedule and Timer

• Schedule - allows you to schedule specified hoursn of turning devices on and off.
• Sunset and Sunrise - control devices based on times of sunrise and sunset. This allows the user to automatically schedule devices to turn on and off in harmony with the natural cycles of the day.
• Cyclic shutdown mode

Settings

• Timer (countdown) the ability to set a countdown that will turn off or on after a set time
• Relay status settings after power loss - on/off/remember
• Backlighting of the button
• Service protection - attachment lock

Technical data:

• Power supply voltage: AC 90V – 300V
• Relay Rated Current (Short): 63A
• Maximum continuous current: 16 A
• Frequency: 50/60Hz
• Power consumption of the device: < 0.3W
• Device dimensions: 18 x 50 x 82mm
• DIN rail: 35mm
• Operating temperature: -20°C to +60°C
• Communication: WiFi 2,4GHz
