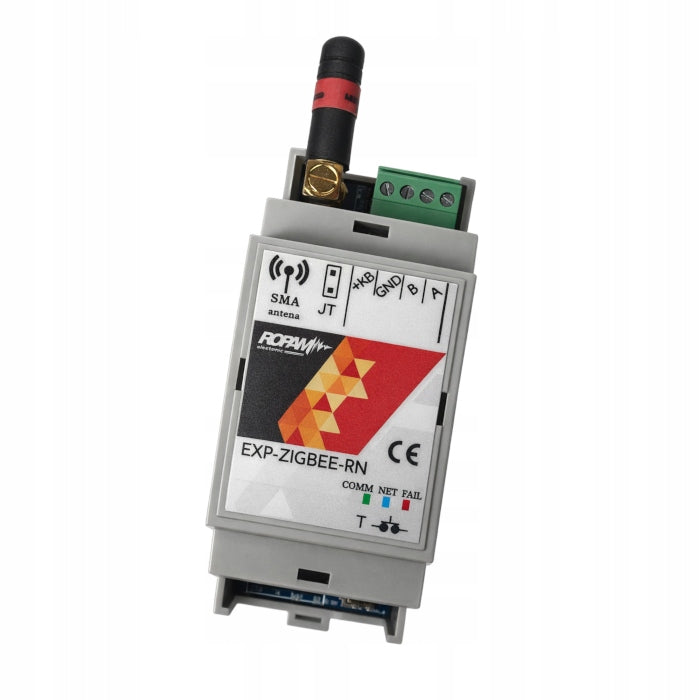

Išplėtimo modulis Zigbee Ropam EXP-Zigbee-RN, RopamNET NeoLTE-IP-64, montavimas ant DIN bėgelio

Trumpai apie prekę

Prekė: Išplėtimo modulis Zigbee Ropam EXP-Zigbee-RN, RopamNET NeoLTE-IP-64, montavimas ant DIN bėgelio. Kategorija: Centriniai blokai.

• Gamintojas: Ropam
• Modelis: EXP-Zigbee-RN

Included:

• Ropam EXP-Zigbee-RN gate - 1 pc;
• instructions.

Ropam EXP-Zigbee-RN is a modern extension module enabling integration of Zigbee end devices with the Ropam system, supervised by Neo-IP-64 / NeoLTE-IP-64 series control panels. The connection to the control panel takes place via the RopamNET bus.

It allows you to connect up to 32 Zigbee compliant devices, which allows for flexible expansion of the installation with the functions of building automation, lighting control, heating and monitoring of environmental parameters. You can mention m.in here:

• alarm detectors (including movement or reeds),
• motion and/or presence sensors
• remote controls,
• temperature and/or humidity sensors,
• IO modules, including sockets controlled with power measurement,
• thermostatic heads,
• RGB-controlled lighting, including RGB+CCT bulbs.

Devices tested and confirmed by Ropam Elektronik as compatible with the EXP-Zigbee-RN gateway are:

✨ Thermostatic heads

• Bosch BTH-RA
• MOS TRV801
• Danfoss Ally
• Mr Sonoff TRVZB

✨ RGB lighting

• Philips HUE
• Aqara ZNLDP31LM
• Gledopto GL-C-201P

✨ Temperature, humidity or air quality sensors

• Sonoff SNZB-02P
• Ferguson FS1HT
• Aqara AAQS-S01

✨ Flood detectors

• IKEA E2202

✨ Smoke detectors

• INEOX YG500A

✨ Motion and presence sensors

• IKEA VALLHORN
• Ferguson FS1MS

✨ Remote controls

• Ferguson FS1RC
• IKEA E2002
• IKEA E2201
• IKEA E2213
• Philips HUE 9290023986
• Gise GS BT-ZB
• Aqara WXCJKG11LM

✨ Keyboards

• Immax NEO Smart Keyboard

✨ Sockets

• Philips HUE Smart Plug
• Aqara SP-EUC01
• PLUG-001SPB2
• ZB1EEM (device based on TUYA TS011F, custom made)

✨ Contacts

• IKEA E2013
• Sonoff SNZB-04P
• Ferguson FS1MP
• Aqara DW-S03D

✨ Signallers

• Immax NEO Smart Sirena

✨ IO modules

• Sonoff ZBMINIR2
• Aqara T2
• OXT 1C

✨ Wall switches

• ZBDM (device based on TUYA TS0601, custom made)
• ZB401NM (device based on TUYA TS0004, custom made)
• ZB101LM (on request)

Copy the link: ➡ ➡ ➡ https://youtu.be/YZfMrMKtuKw ⬅ ⬅ ⬅

❗Note ❗

For the correct operation of the gateway, a central from the Neo-IP-64 / NeoLTE-IP-64 series in the software version not lower than v4.1 is required. The control panel supports up to 1 EXP-Zigbee-RN module.

When operating RGB lighting by TPR-7 series touch panels, panel software version not lower than v2.0 is required. TPR-4 series panels do not support RGB lighting control.

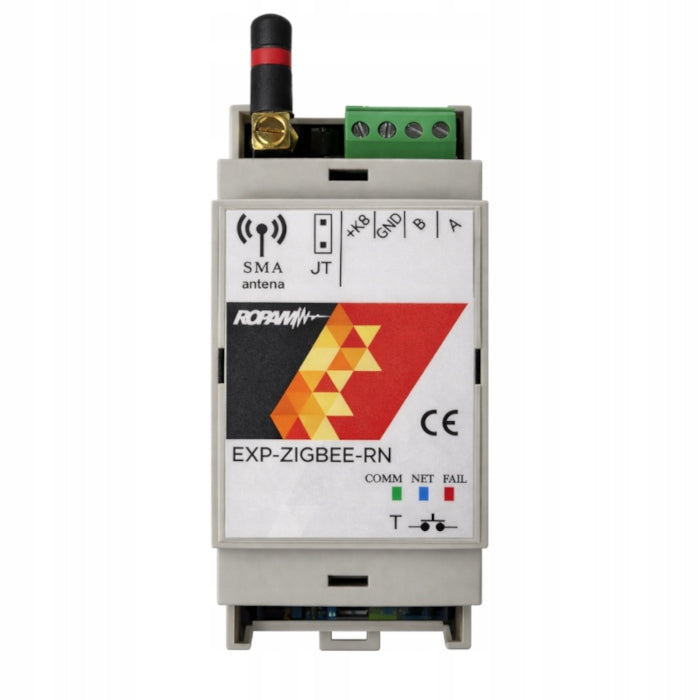

Legend:

1. Button (T, in the current software version i.e. v1.0 unused)
2. LEDs
3. USB-MGSM update connector (USB-MGSM cable required, not included)
4. RopamNET bus connector (for communication with the control panel and power supply of the device: "B", "A" - communication connector with the control panel; "+KB" - power connector +12V; "GND" - power connector, mass)

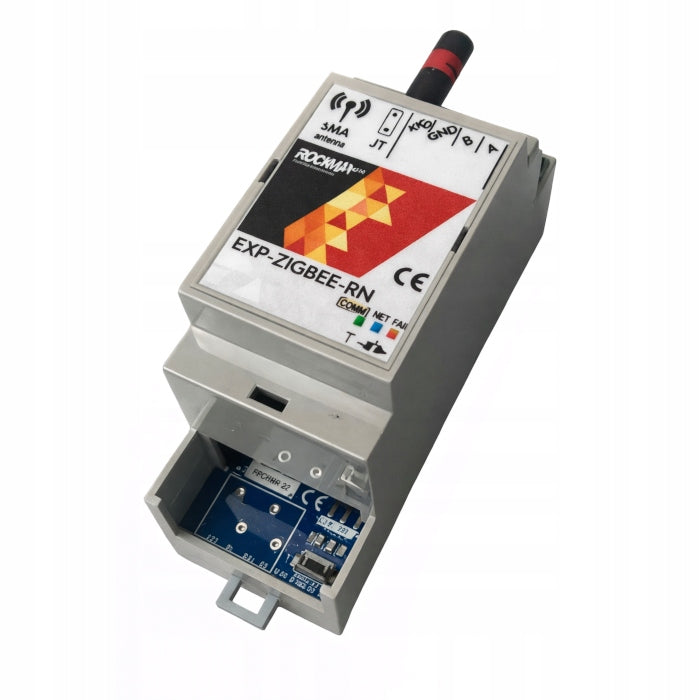

5. Update mode PR pins (allow you to set up a jumper to put your device into software update mode)
6. JT pins terminating the bus (allow you to set up a jumper for bus termination - jumper required when the gate is at the end of the bus)
7. SMA connector for Zigbee antenna connection (2,4GHz)

1. COMM (green): flashes indicate communication with the control panel via the RopamNET bus
2. NET (blue): flashes indicate communication with connected Zigbee devices
3. FAIL (red):

   - continuous light indicates a detected problem in the operation of the device (Zigbee communication errors, communication with the control panel, etc. ),

   - flashes mean sending control instructions (turning on outputs, changing thermostat settings, etc. ).

✅ TECHNICAL SPECIFICATION:

• communication with the headquarters: RopamNET bus
• radio communication: ZigBee 2,4GHz; channels 11 to 25
• Operating temperature: -10°C...+55°C
• RH humidity: 20...90%, non-condensing
• DIN rail mounting TH-35 (width. 2 modules)
• supply voltage: 9V-14VDC (power supply from RopamNET bus)
• Current consumption: 17 mA (average) / 25 mA (max.)
• dimensions: 36,3 x 90,2 x 57,5 mm
• Weight: ~63g
