Įtampos keitiklis pilnos sinusoidės, 12V, 1000W/1500W, su USB ir nuotolinio valdymo pultu

Trumpai apie prekę

Prekė: Įtampos keitiklis pilnos sinusoidės, 12V, 1000W/1500W, su USB ir nuotolinio valdymo pultu. Kategorija: Įtampos keitikliai.

• Gamintojas: Volt

• Total power (instantaneous): 1500VA
• Permanent power: 1000W
• Battery voltage: 12V
• Input voltage: 10,5-15,5V
• Output voltage: 225-235V
• Output voltage frequency: 50Hz(+-2Hz)
• Full load efficiency: 92%
• Undervoltage protection threshold: 10,7V(+-0,3V)
• Working temperature: -10-40°C
• Dimensions: 342 x 201 x 94 mm
• Weight: 3,768 kg
• Product code: 20846

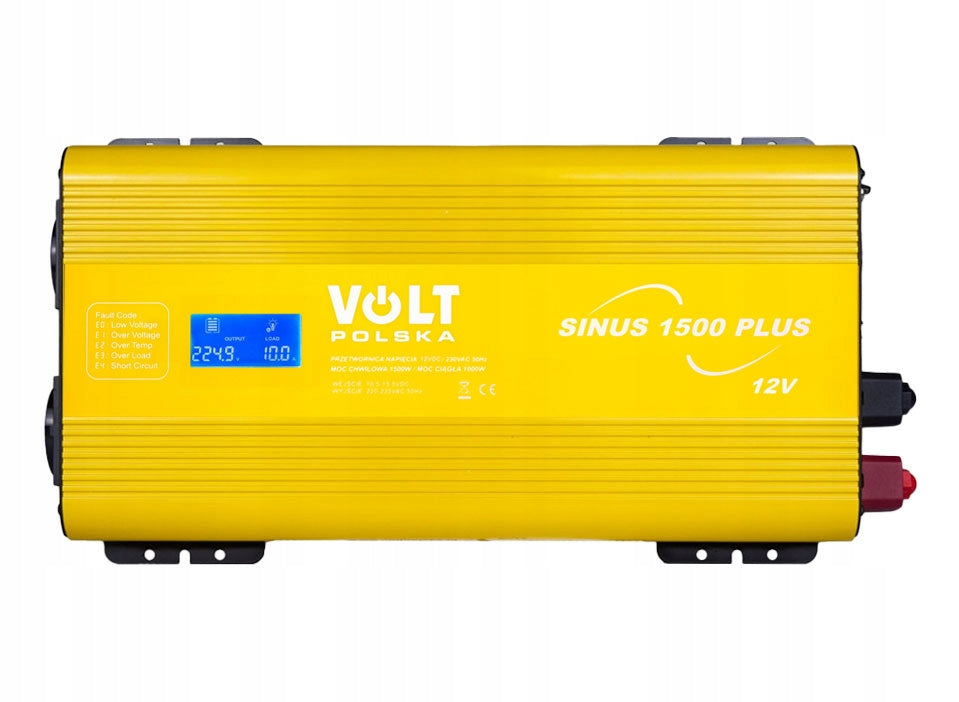

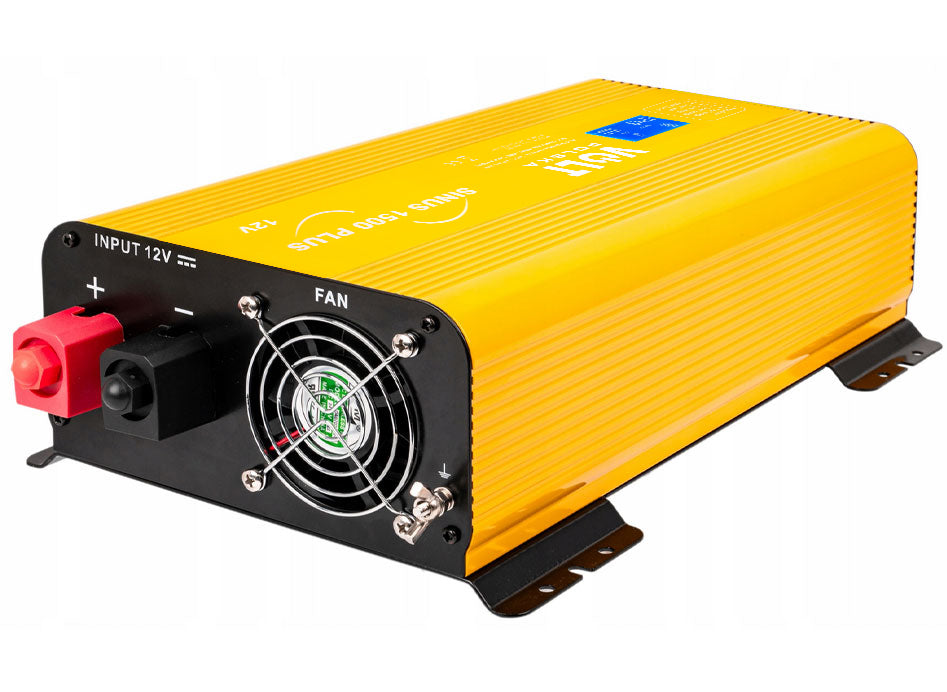

Electronic converter SINUS PLUS 1500 12V is used to power electrical devices requiring 230V alternating voltage from batteries and automotive installations with a constant voltage of 12V.

It works perfectly in vehicles (e.g. Motorhomes) and in places where there is no possibility of direct connection to the power grid.

In addition, the product is equipped with a USB socket for powering or charging mobile devices.

• The SINUS pure converter produces a “sine waveform” voltage at the output, the same as in the power grid. Thanks to this, it can power devices of an inductive nature m.in. power tools, air compressors, air conditioners, refrigerators, freezers, etc.
• The PLUS version offers an additional control panel with a cable, which can be connected to the converter and run remotely using the button located on the panel
• Possibility of connecting photovoltaic panels via MPPT or PWM voltage regulator

A number of protections are responsible for the safe operation of the converter protecting both connected devices and the electrical system of the vehicle. The converter will turn off automatically in case the load rises above 120%, as well as in case of short circuit.

• Short-circuit protection
• Thermal protection
• Undervoltage protection
• Overvoltage protection
• Overload protection

No forms of fuses, including surge protectors, i.e. popular distributors with protection, should be used at the output of voltage converters. The only safe form of protection of the system is to install a fuse on the battery side and the only allowed form of separation from the mains sockets is the use of a basic distributor, devoid of protection, diodes and switches.

• Motorhomes
• Refrigerators, freezers
• Air conditioners
• Electronic devices, e.g. TVs, consoles, speakers, etc.
• LED lighting
• Home automation and smart home devices
• Power tools, e.g. drills, grinders, angles, etc.
• Household appliances, e.g. washing machines, microwaves, etc.
• CO pumps

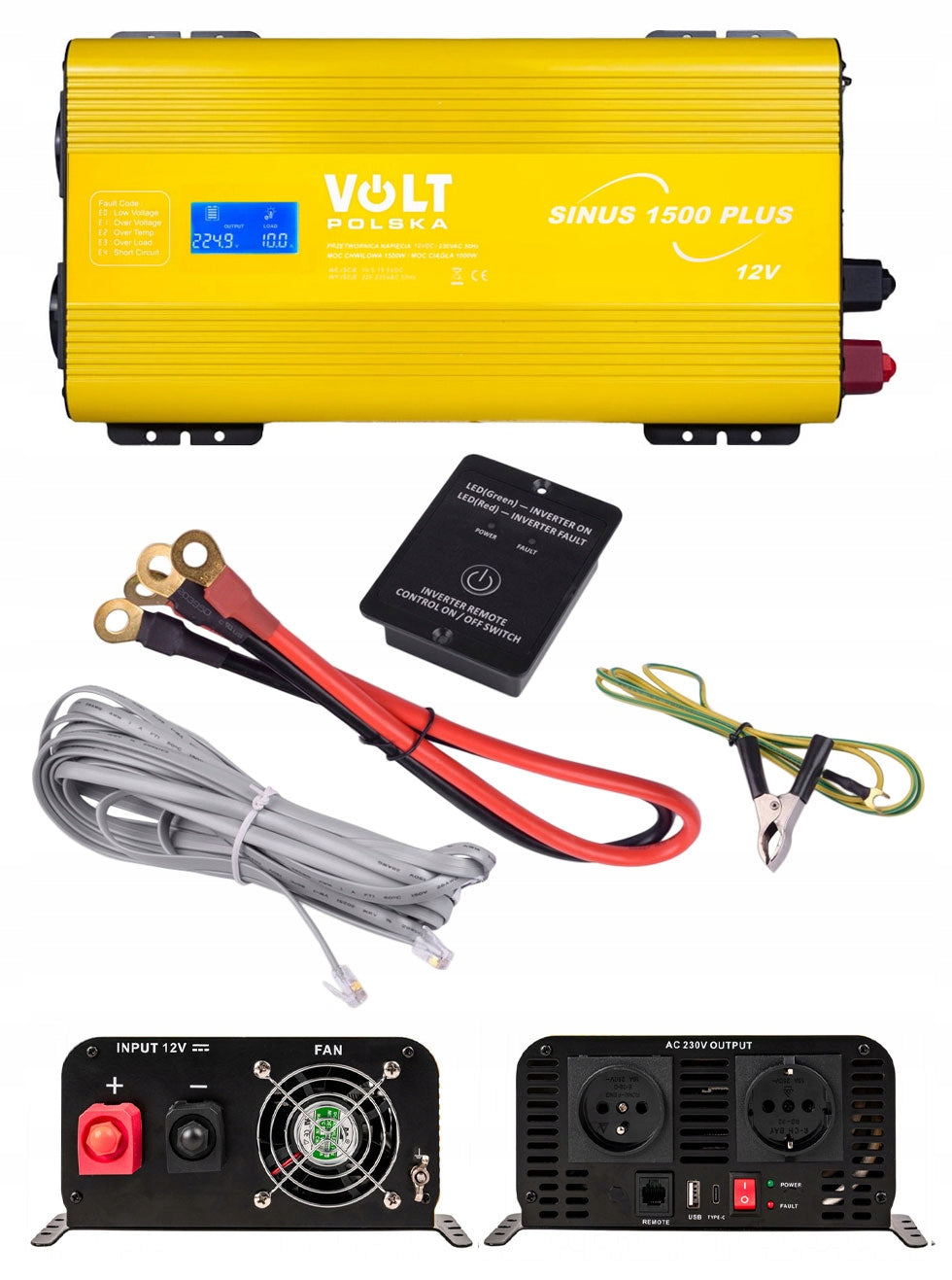

• Voltage converter VOLT SINUS PLUS 1500 12V 1500VA/1000W 12/230V
• Wiring for battery power
