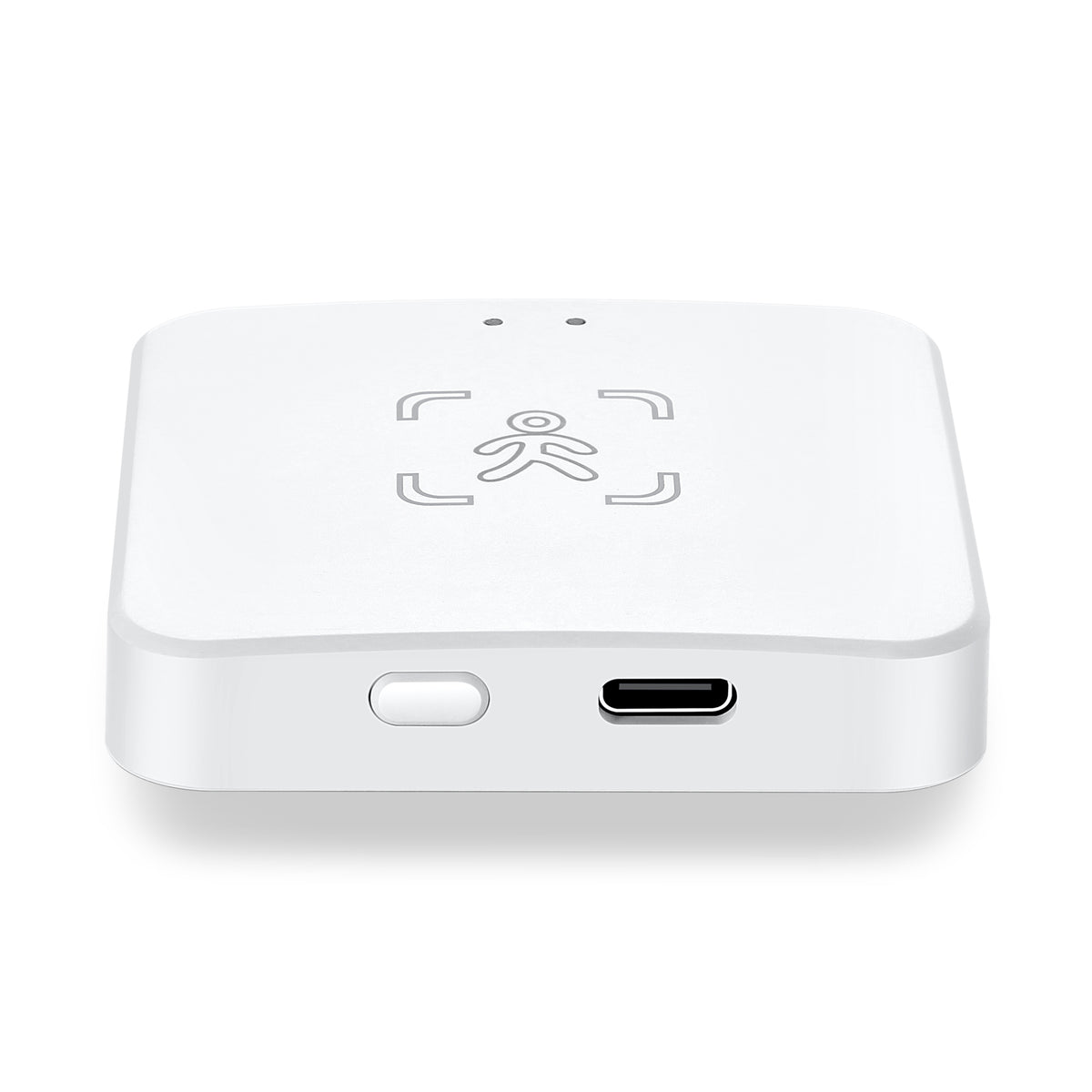

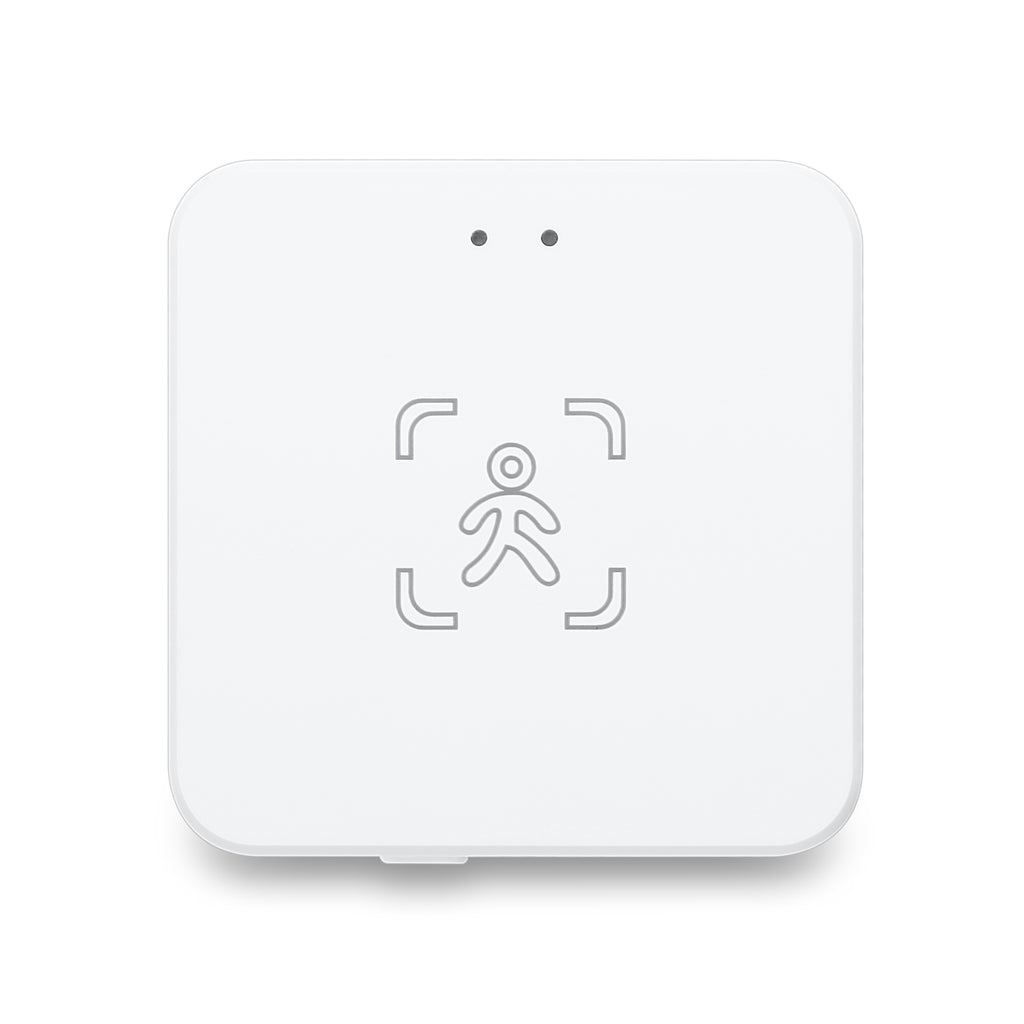

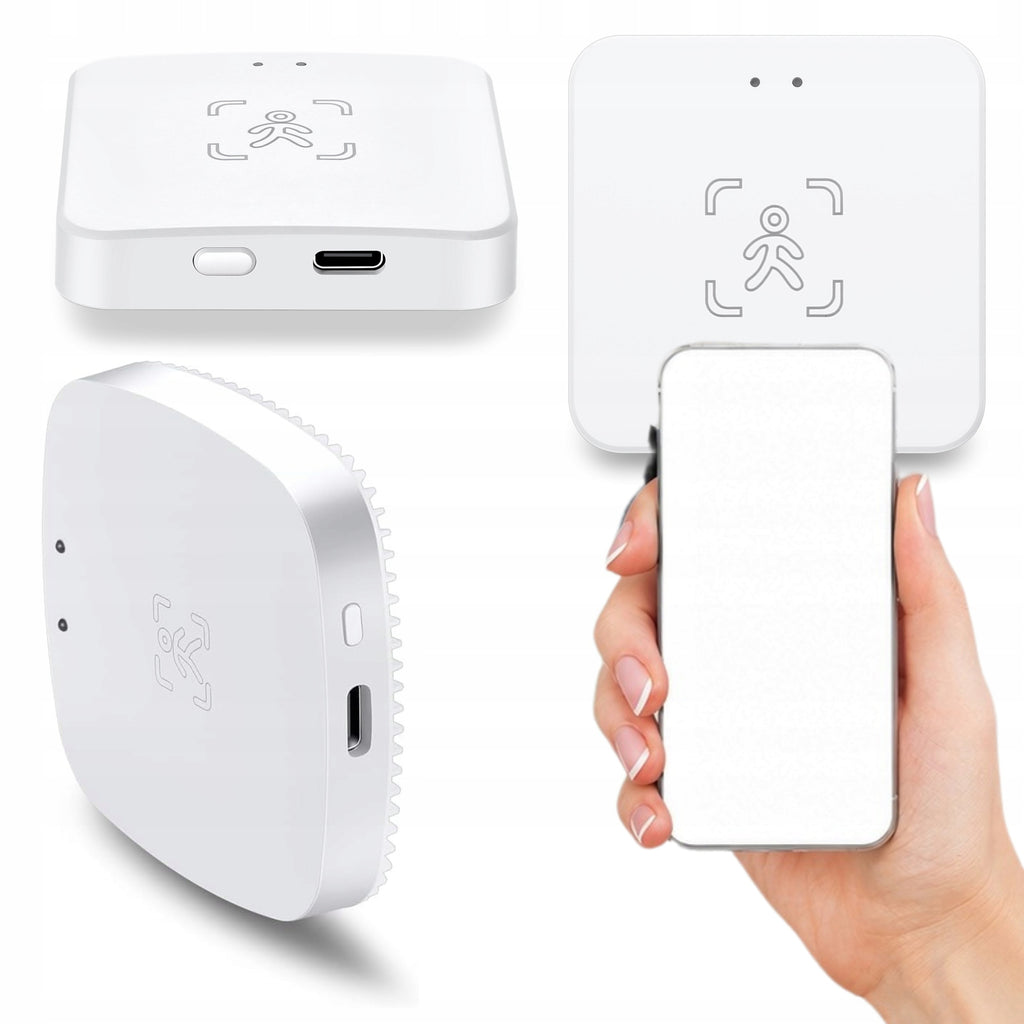

Judesio ir buvimo jutiklis HAOZEE HZ-PS-02-PRESENCE Zigbee mmWave 24 GHz USB

Trumpai apie prekę

Prekė: Judesio ir buvimo jutiklis HAOZEE HZ-PS-02-PRESENCE Zigbee mmWave 24 GHz USB. Kategorija: Jutikliai.

• Gamintojas: no brand
• Modelis: HZ-PS-02-PRESENCE

✔ 24 GHz mmWave Radar ✔ Motion and Static Presence Detection ✔ Zigbee Standard 3.0 ✔ Light Measurement 0 – 3000 lx ✔ USB 5 V Power Supply ✔ Wall or Ceiling Mount

✦ Key features

• ✔ Detection of human presence – the sensor recognizes both moving people and static presence.
• ✔ Radar technology mmWave 24 GHz – allows the detection of very small movements, difficult to recognize by classic PIR sensors.
• ✔ Standard Zigbee 3.0 – stable communication with a compatible Zigbee coordinator or gateway.
• ✔ No Tuya Zigbee version – designed for open Zigbee systems, not Tuya Smart Life app.
• ✔ Built-in light sensor 0 – 3000 lx – allows you to create automations depending on the brightness of the room.
• ✔ Power supply DC 5 V / 1 A – continuous and stable operation without battery replacement.
• ✔ Ceiling or wall mounting – easy to adjust the position to the layout of the room.

👤 Detects motion and static presence

HAOZEE HZ-PS-02-PRESENCE uses the 24 GHz millimeter wave radar, so it can detect not only more movement, but also a person sitting or staying in one place for a long time.

The sensor will work in rooms where a regular motion sensor could turn off the light prematurely, e.g. in the office, living room, kitchen, bathroom or bedroom. The radar also responds to small body movements, increasing the accuracy of determining room occupancy.

📡 Zigbee 3.0 Standard – without Tuya

The offered variant communicates in the Zigbee 3.0 standard and requires a compatible coordinator or gateway. It can be used in the Home Assistant system, depending on the operation of the device by the coordinator and Zigbee integration.

This is the standard version of Zigbee, which according to the manufacturer's information does not work with the Tuya Zigbee gateway. It should not be confused with a separate version of Wi-Fi available on the same product card.

💡 Light sensor and intelligent automation

The built-in sensor measures the lighting level in the range of 0 – 3000 lx. Thanks to this, the system can react simultaneously to the presence of the user and the brightness of the room.

Examples of applications:

• ✔ turning on the light after detecting a person only after dark,
• ✔ turn off the lighting after leaving the room,
• ✔ control of ventilation or other devices depending on presence,
• ✔ energy-saving automations in the home and office.

🔌 Constant power supply and flexible installation

The sensor is powered by DC 5V/1A, so it can constantly monitor the room without having to replace the battery. The declared operating current is a maximum of 70 mA.

The device can be mounted on the wall or ceiling. The appropriate position allows you to cover the detection zone of the selected part of the room and limit unwanted reactions to movement outside the monitored area.

📦 Included

• ✔ HAOZEE presence sensor HZ-PS-02-PRESENCE
• ✔ USB power cable
• ✔ Assembly elements
• ✔ Operating instructions

⚙ Product specification

Manufacturer: HAOZEE

Model: HZPS-02

Product code: HZ-PS-02-PRESENCE

Type of device: motion and human presence sensor

Detection technology: mmWave 24 GHz radar

Motion detection: yes

Detection of static presence: yes

Communication: Standard Zigbee 3.0

Compatibility with Tuya Zigbee: no

Measurement of light intensity: yes

Light sensor range: 0 – 3000 lx

Working voltage: DC 5 V / 1 A

Working current: ≤70 mA

Working temperature: from –10°C to 55°C

Assembly method: wall or ceiling

Battery power: no

Color: white.
