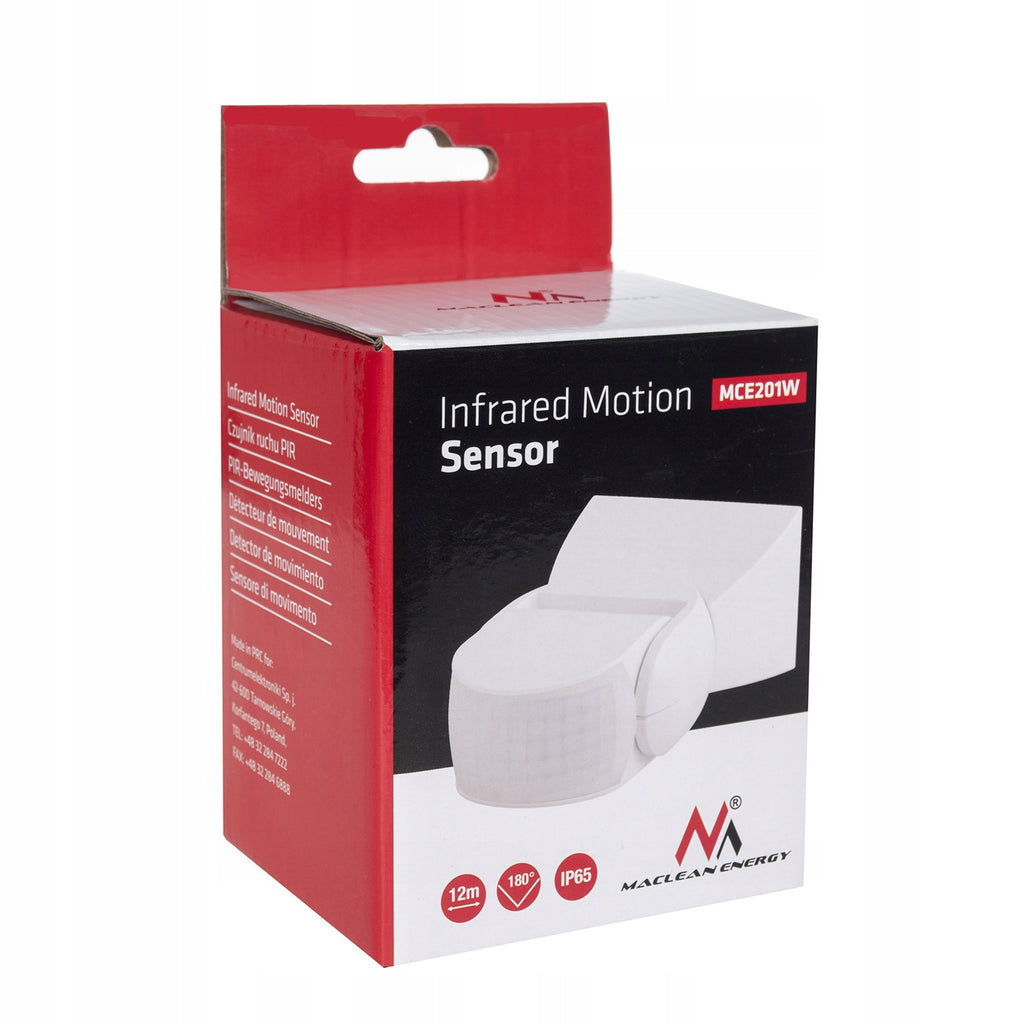

Judesio jutiklis Maclean MCE201W

Trumpai apie prekę

Prekė: Judesio jutiklis Maclean MCE201W. Kategorija: Jutikliai.

• Gamintojas: Maclean
• Modelis: MCE201W

PRODUCT CODE:80482

Maclean MCE201W

With the MCE201W, you’ll save money on your electricity bills because the lighting will only turn on when you need it! The sensor is used to automatically control lighting or other electrical devices. It also works with LED lighting.

The New Generation

The product is distinguished by high sensitivity through the use of an integrated circuit. The infrared sensor has high stability, nice, modern and practical appearance, wide operating voltage range, easy installation and wide detection range. Automatically detects day and light at night. Applied SMT technology, in accordance with European standards.

180°

The sensor has a detection angle of 180° and a large possibility of manual adjustment. It is designed for automatic lighting control in homes, gardens, hotels, offices, staircases, hallways, basements, toilets, etc.

Technical specification:

• Power Supply: 220-240V/AC
• Detection angle: 180°
• Power Frequency: 50/60Hz
• Detection range: 12m max (<24°C)
• Light intensity: <3-2000LUX (adjustable. )
• Time delay: Min.10sec±3sec / Max.15min±3min
• Operating temperature: -20/+40°C
• Operating Humidity: <93%RH
• Power Consumption: ~0.5W
• Max. load: 1200W (resistance load) / 300W (inductive load)
• Mounting height: 1.8-2.5m
• Motion detection speed: 0.6-1.5m/s
• Sensor Dimensions (mm):52 / 80 / 124

Included:

• Infrared motion sensor pir modern Maclean Energy MCE201W
• Mounting accessories (screws + pegs)
• User manual
• Original packaging
